Shimano Ultegra 12-Speed Di2 Build Project Part 2: Lynskey Helix PRO Disc

shimano ultegra r8170 build project
Grease those headset cups

The Lynskey Helix PRO titanium road bike build continues in Part 2, paired with Shimano’s R8170 12-Speed Di2 groupset. A little known fact, JOM of the Gravel Cyclist crew still rides on the pavement semi-regularly, which allowed for a unique collaboration with Shimano and Lynskey Titanium Bicycles.

shimano ultegra r8170 build project
Handlebar & stem fitted

Handling the build is Pete, co-founder of Brickyard Bike Co., located in Phenix City, Alabama, just across the Chattahoochee River from Columbus, Georgia. This is not Pete’s first rodeo, and marks his fourth build project with Gravel Cyclist HQ.

Shimano Ultegra R8170 12-Speed Di2 Build Project Video – Part 2

Alternative Video Link for those reading via email subscription.

In this video, JOM Of the Gravel Cyclist continues where we left off from Part 1. Pete performing his magic building the Lynskey Helix PRO from a massive box of parts, into the bike you’ll see in later in this presentation. There are likely to be several wheelsets featured on this bike, the first of which is the Corima Essentia 40, as featured in this video.

shimano ultegra r8170 build project
Install the compression plug

Lynskey Helix Pro Disc

“The Helix Pro Disc is designed with our Race geometry and disc brakes for additional stopping power. The benefits of the Helix frame include overall frame stiffness and handling, with optimal speed and lightweight. The addition of disc brakes takes your performance to the next level. Internal downtube and chainstay cable routing lends to clean lines and aero performance. New rear end with half-yoke design allows ample clearance for 32c tires.”

Additional Photos

shimano ultegra r8170 build project

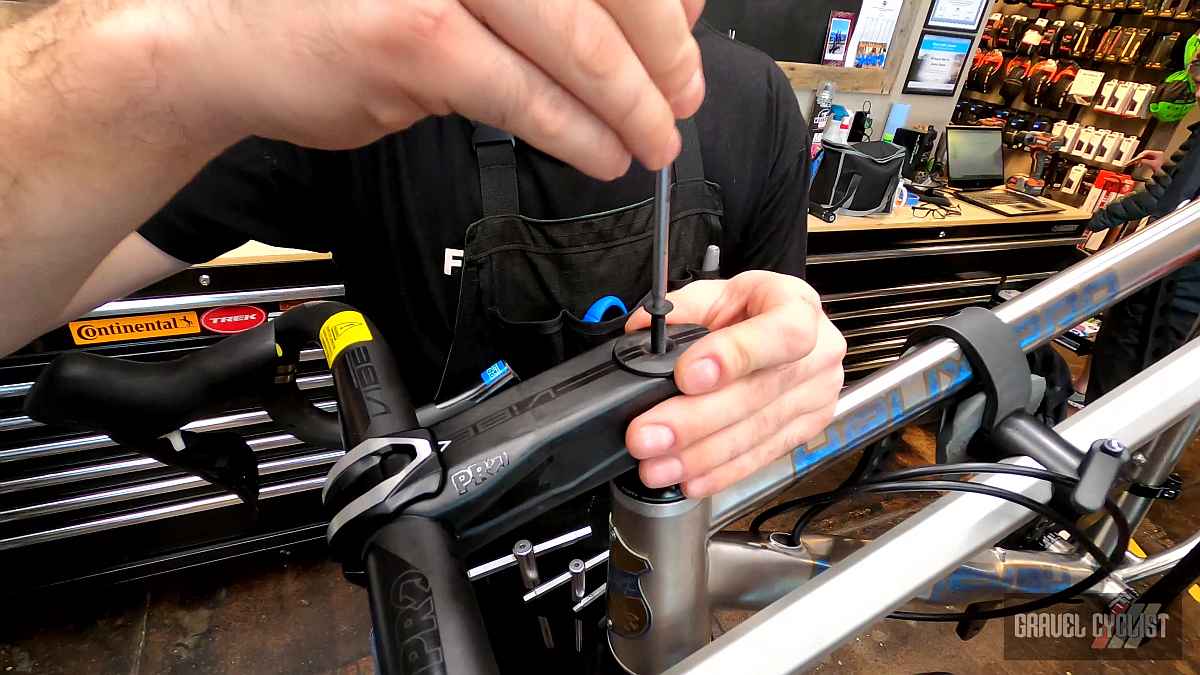

Set the compression cap
shimano ultegra r8170 build project
Tighten stem bolts
shimano ultegra r8170 build project

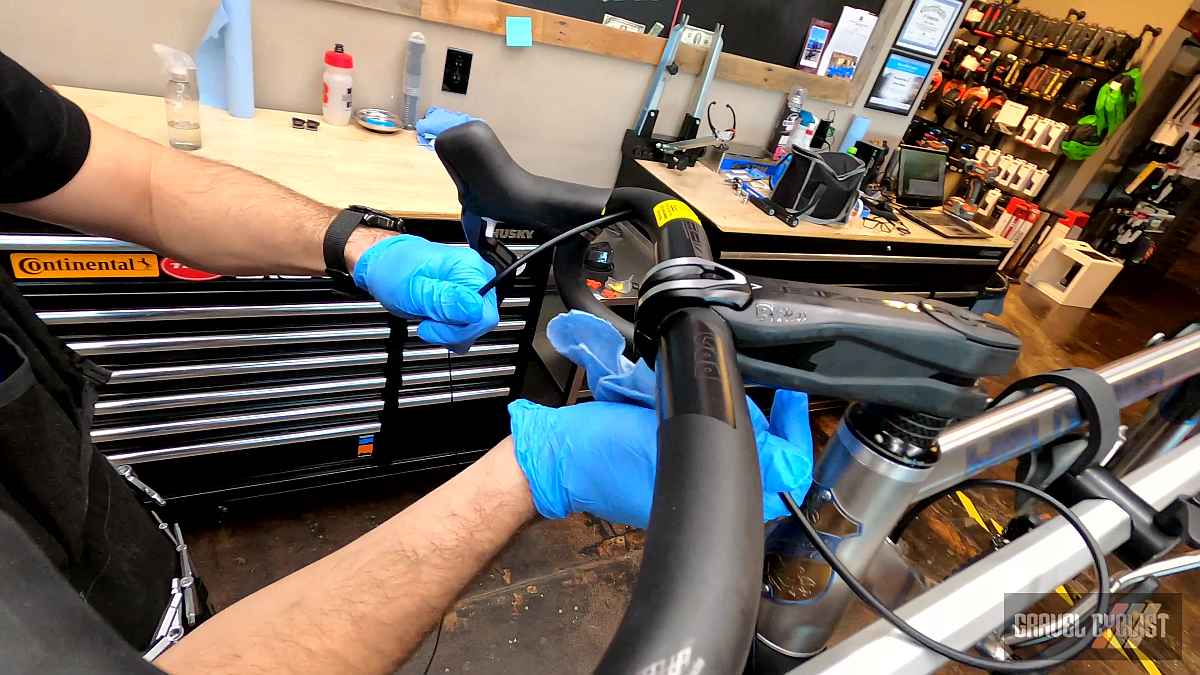

Route hydro brake housings through the handlebar
shimano ultegra 12-speed di2 review

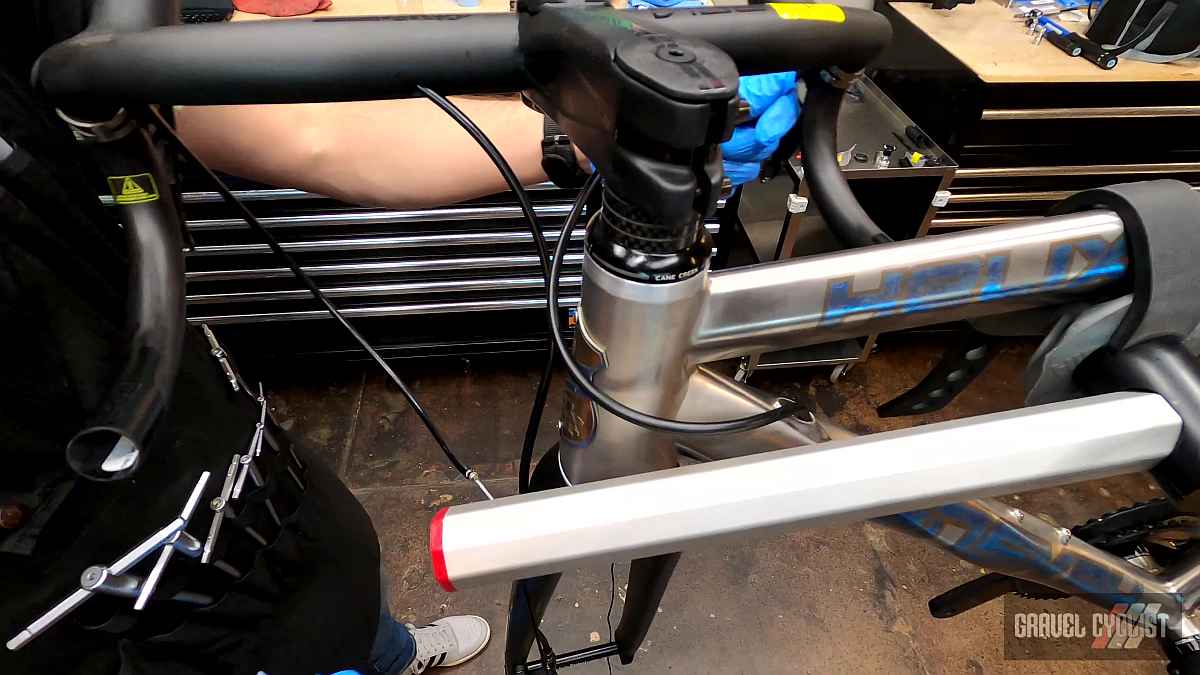

Routing continued
shimano ultegra 12-speed di2 review
Ensure there is plenty of housing for rotating the handlebar
shimano ultegra 12-speed di2 review

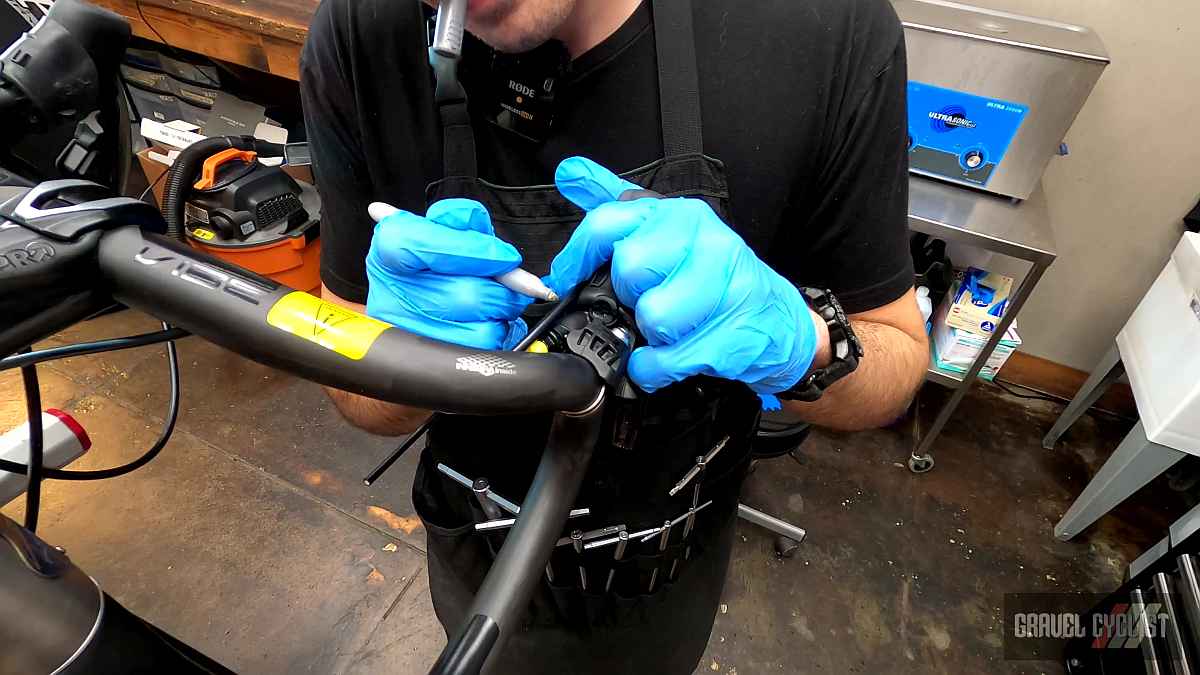

Approximately mark the brake lever location
shimano ultegra 12-speed di2 review

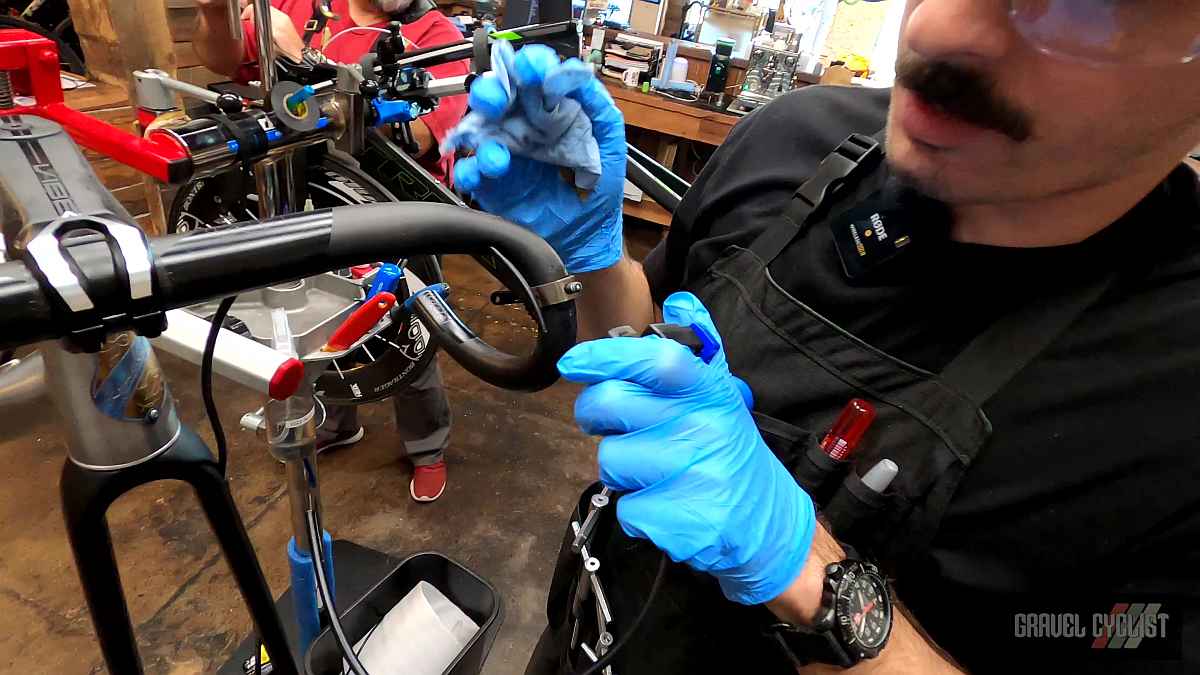

Mark the brake housing for cutting
shimano ultegra 12-speed di2 review
Cut brake housing
shimano ultegra 12-speed di2 review

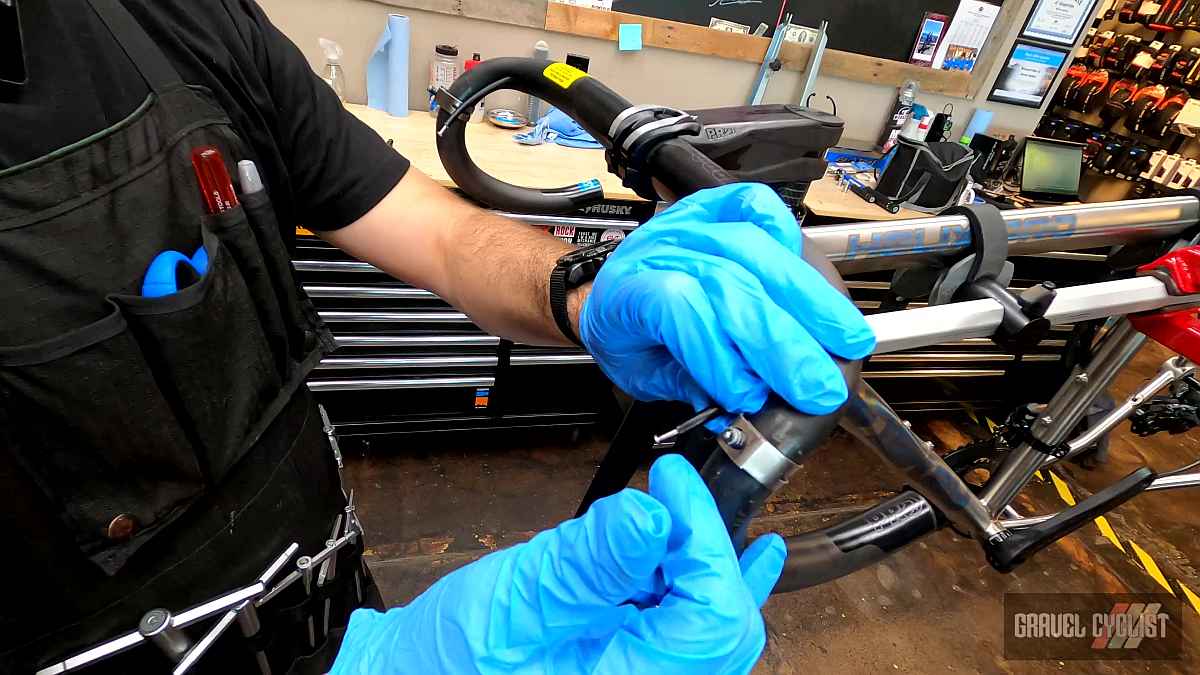

Install housing barb
shimano ultegra 12-speed di2 review

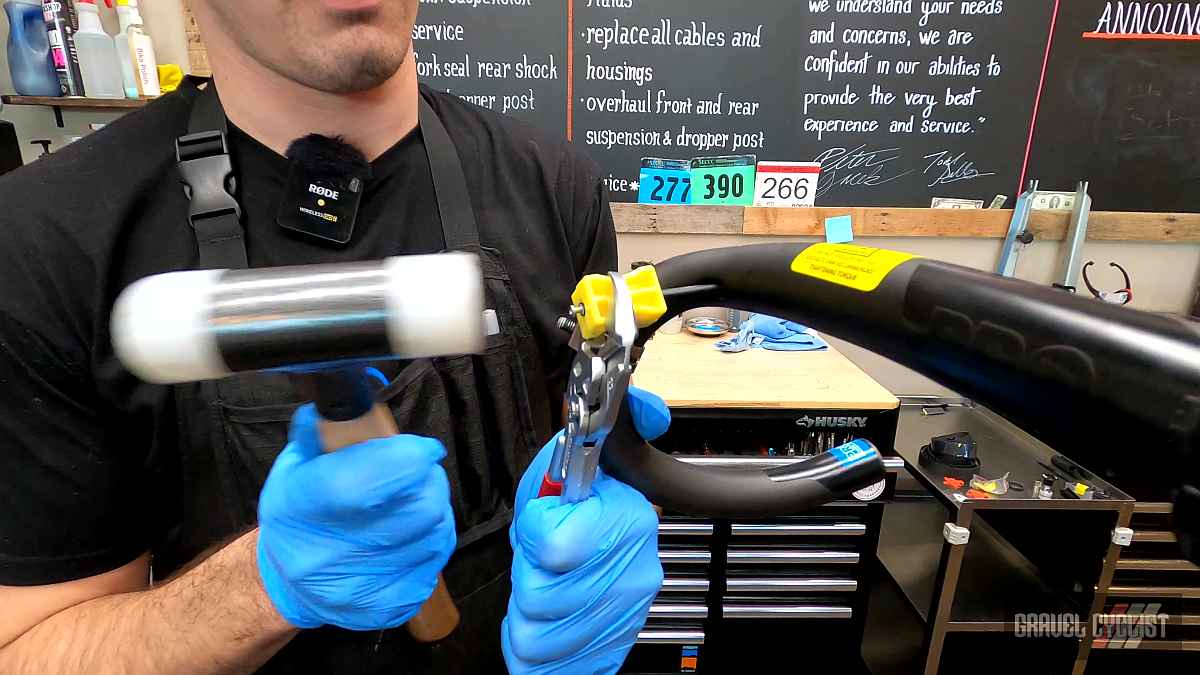

Tap barb into place
shimano ultegra 12-speed di2 review

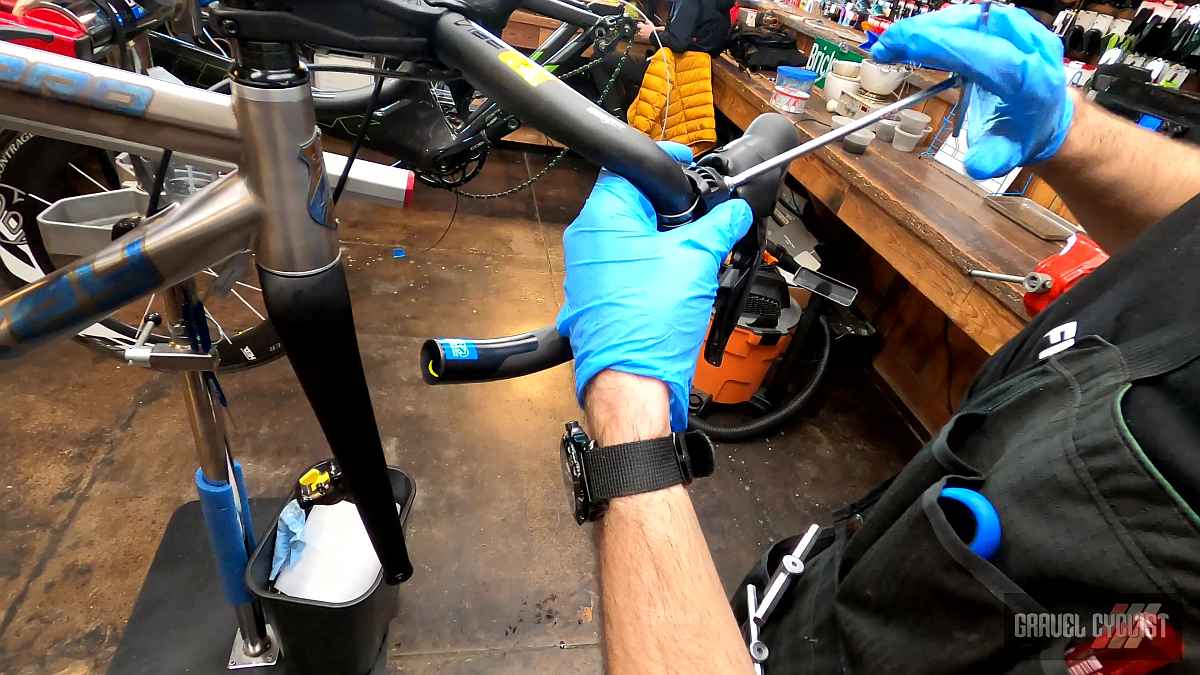

Reattach brake levers & connect brake hose
shimano ultegra 12-speed di2 review

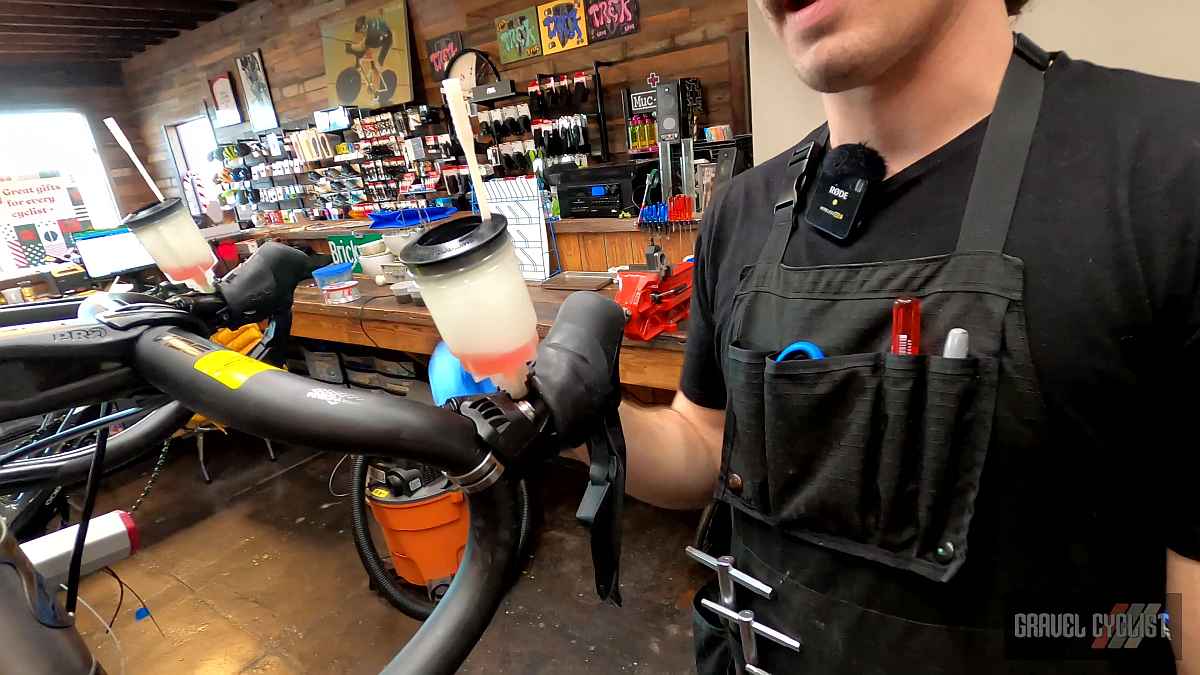

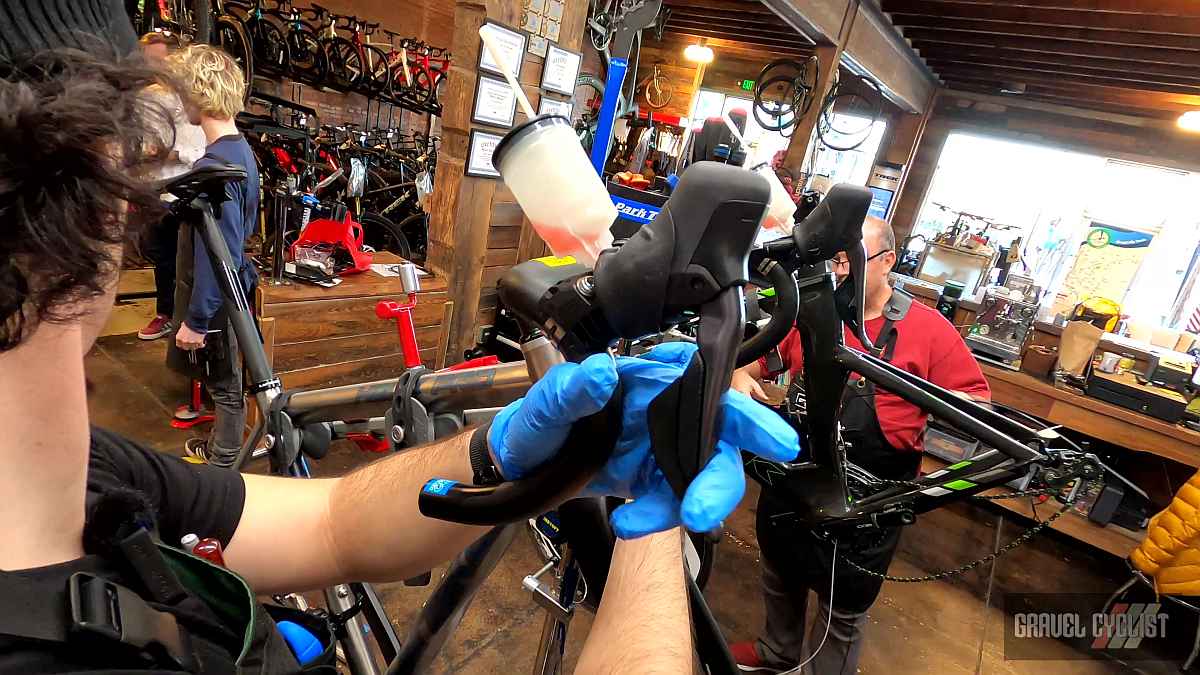

Bleed the brakes
shimano ultegra 12-speed di2 review
Bleeding air bubbles out of the line
lynskey helix pro review
Installing the wheels
lynskey helix pro review
Tastes like a bike!
lynskey helix pro review

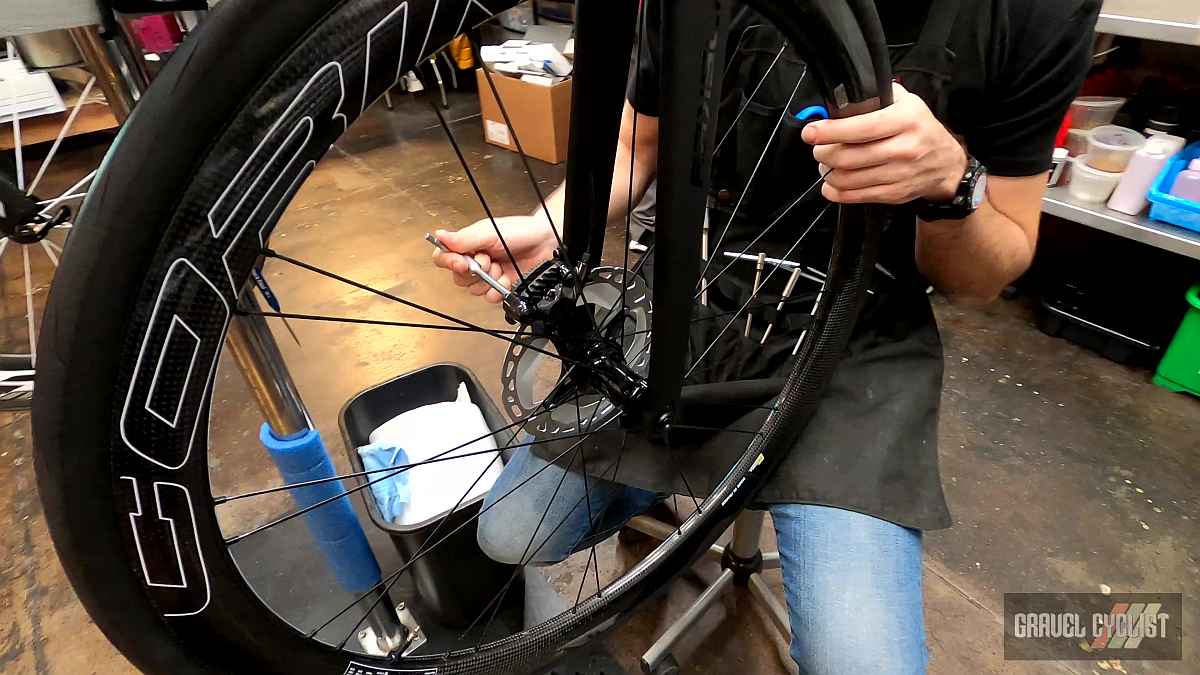

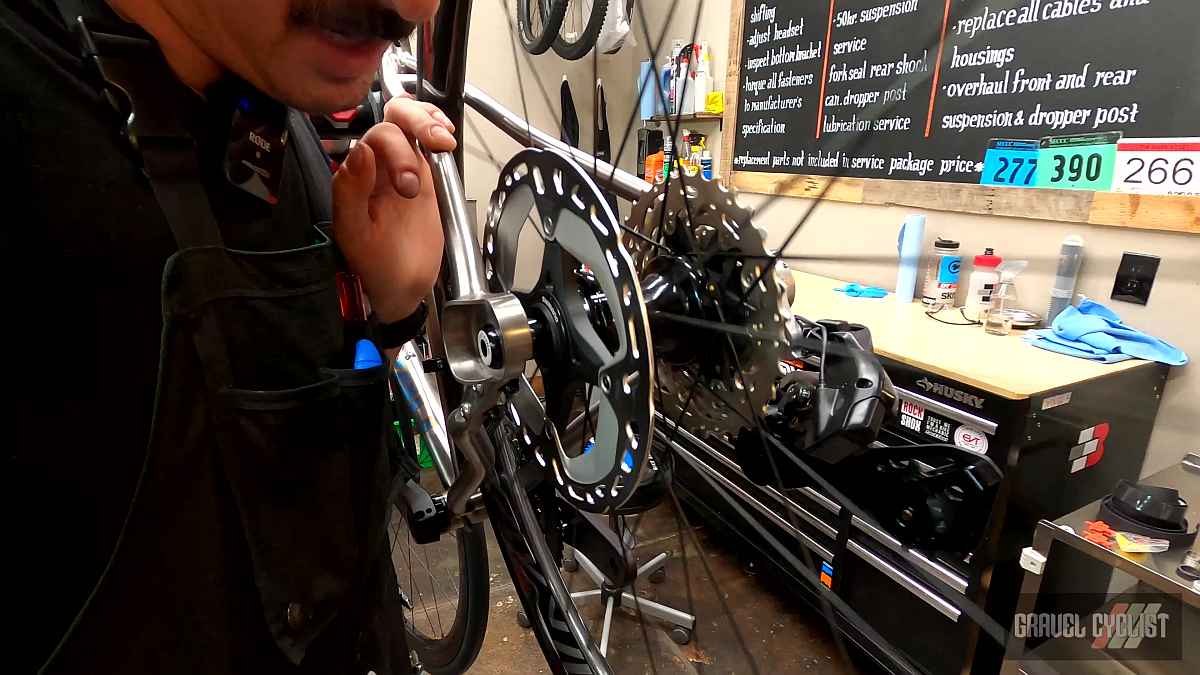

Checking for rotor trueness, make needed caliper adjustments
lynskey helix pro review

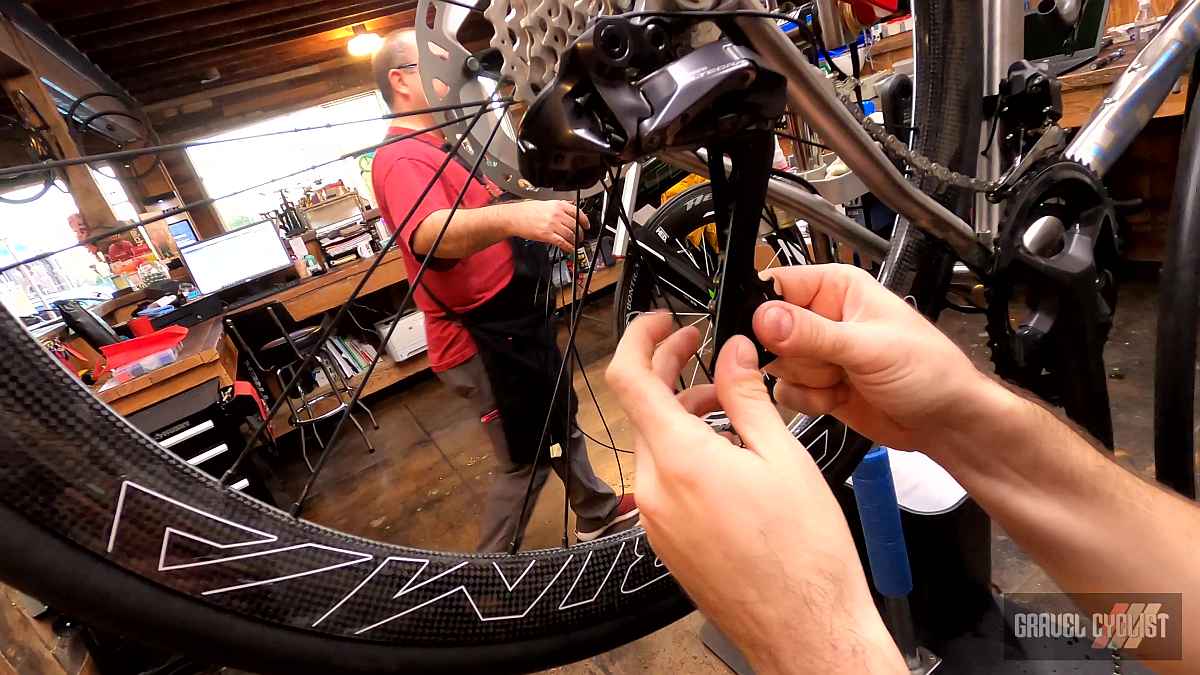

Check & straighten the derailleur hanger
lynskey helix pro review
Abbey Tools HAG, the BEST hanger tool
lynskey helix pro review
Begin setting up the R8170 Di2 derailleurs
lynskey helix pro review

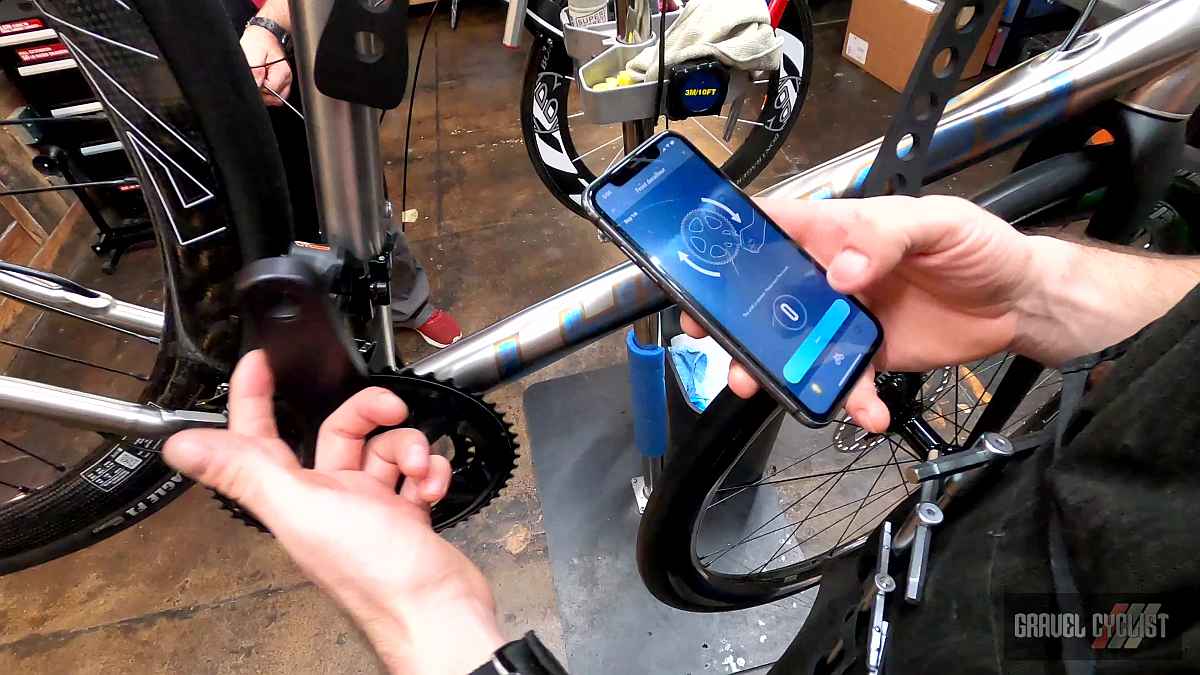

Shimano eTube software on a smartphone
shimano ultegra r8170 di2 review

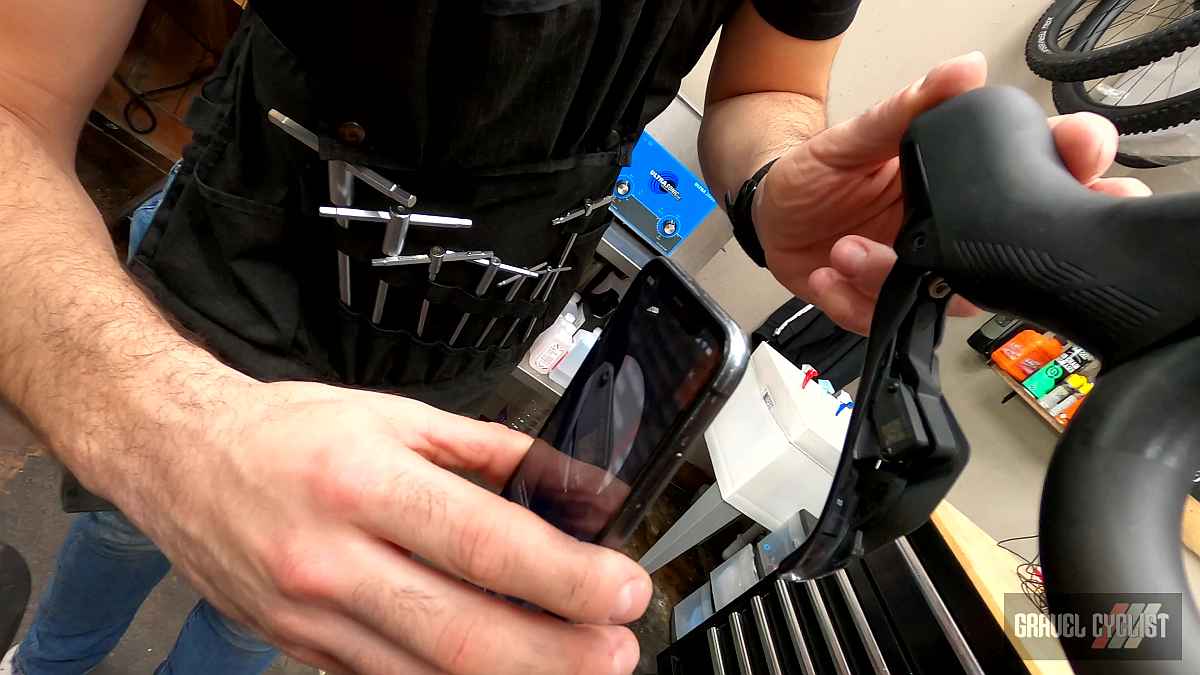

Photograph the shifter bar code, setup is a breeze
shimano ultegra r8170 di2 review
More eTube configuration
shimano ultegra r8170 di2 review
Sizing the chain
shimano ultegra r8170 di2 review

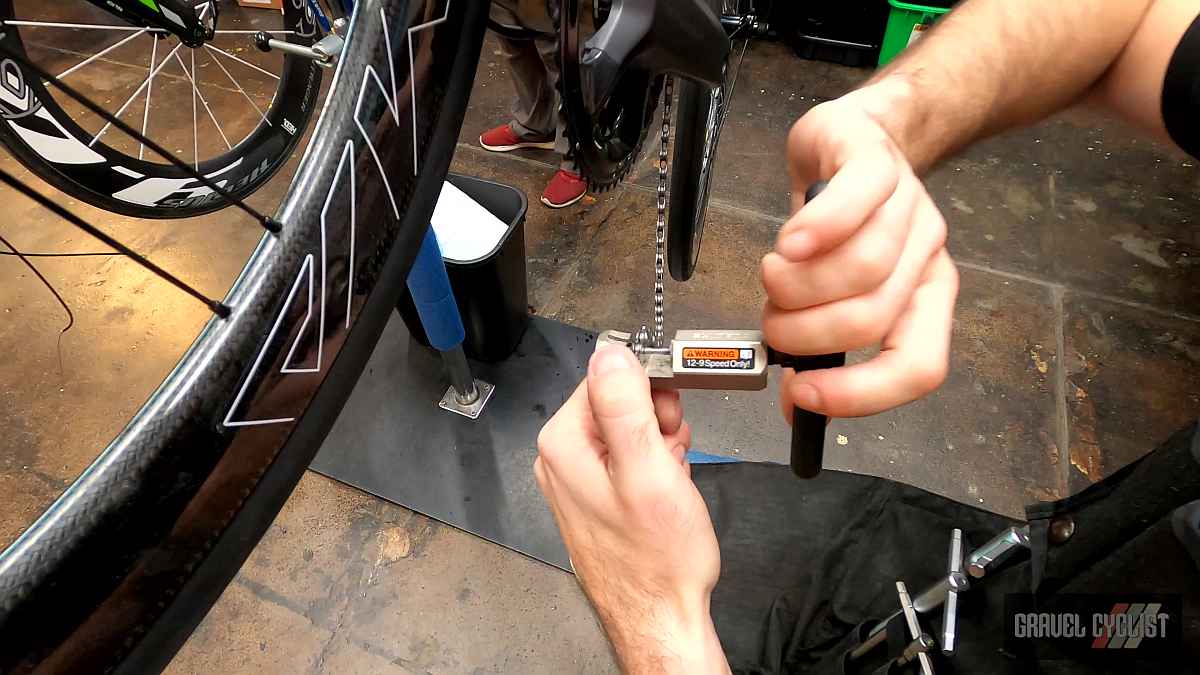

Cutting the 12-speed chain to length
shimano ultegra r8170 di2 review

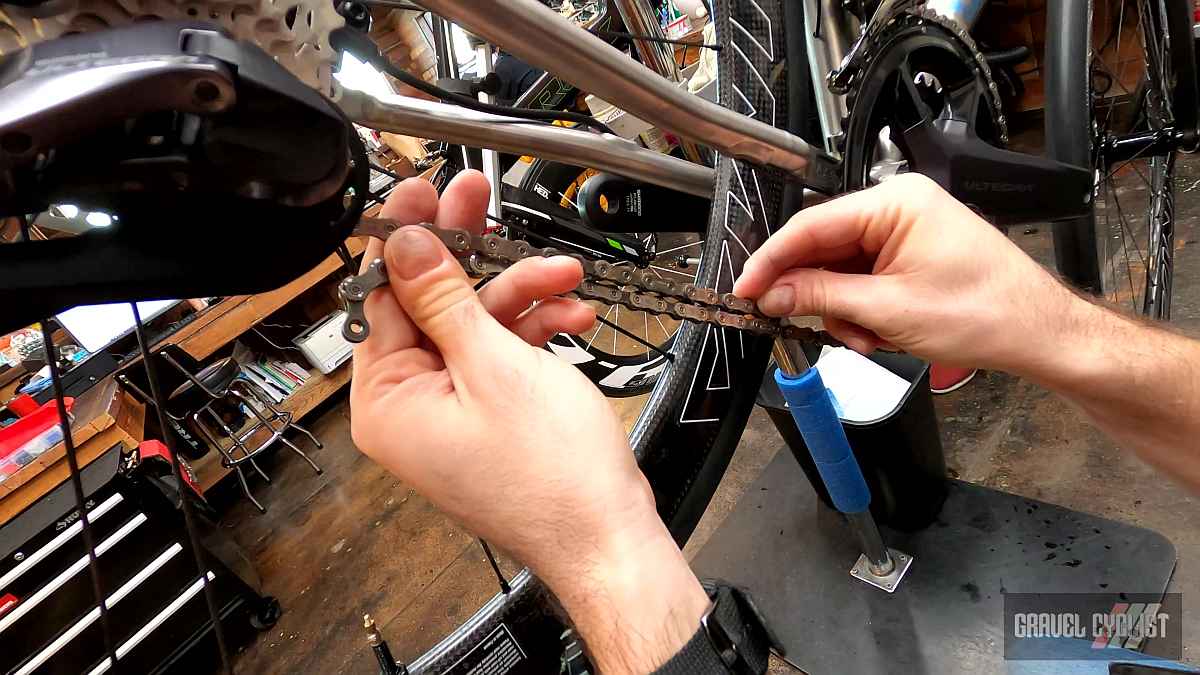

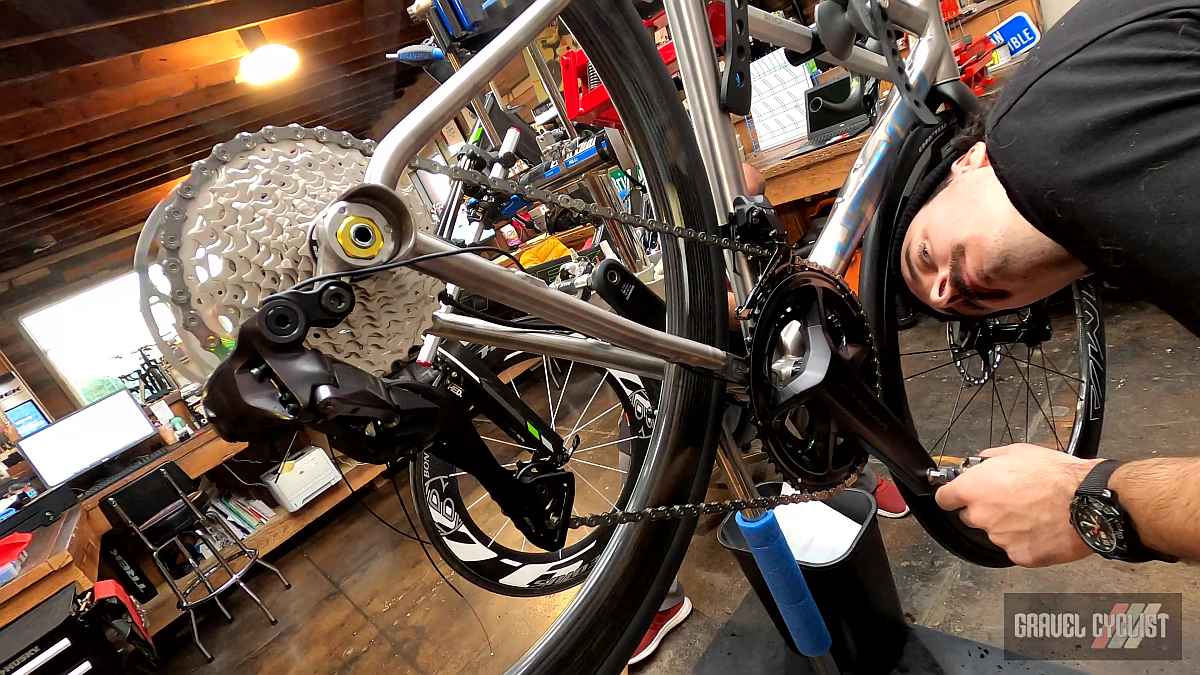

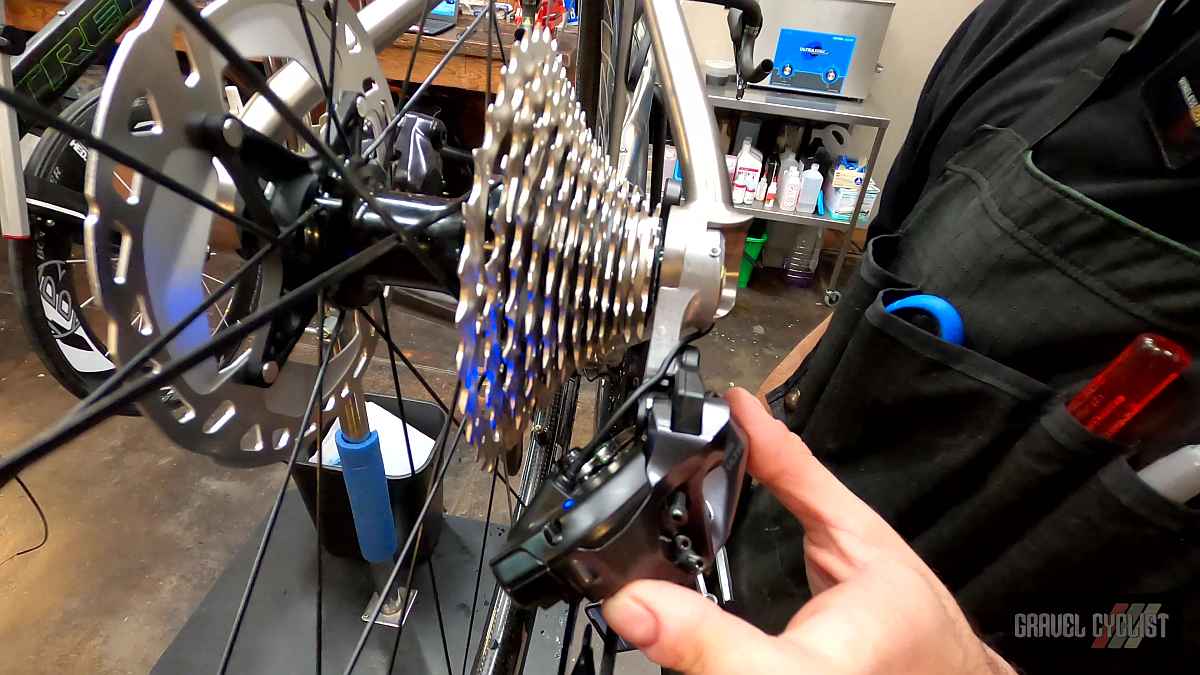

Running the chain through the rear derailleur
shimano ultegra r8170 di2 review

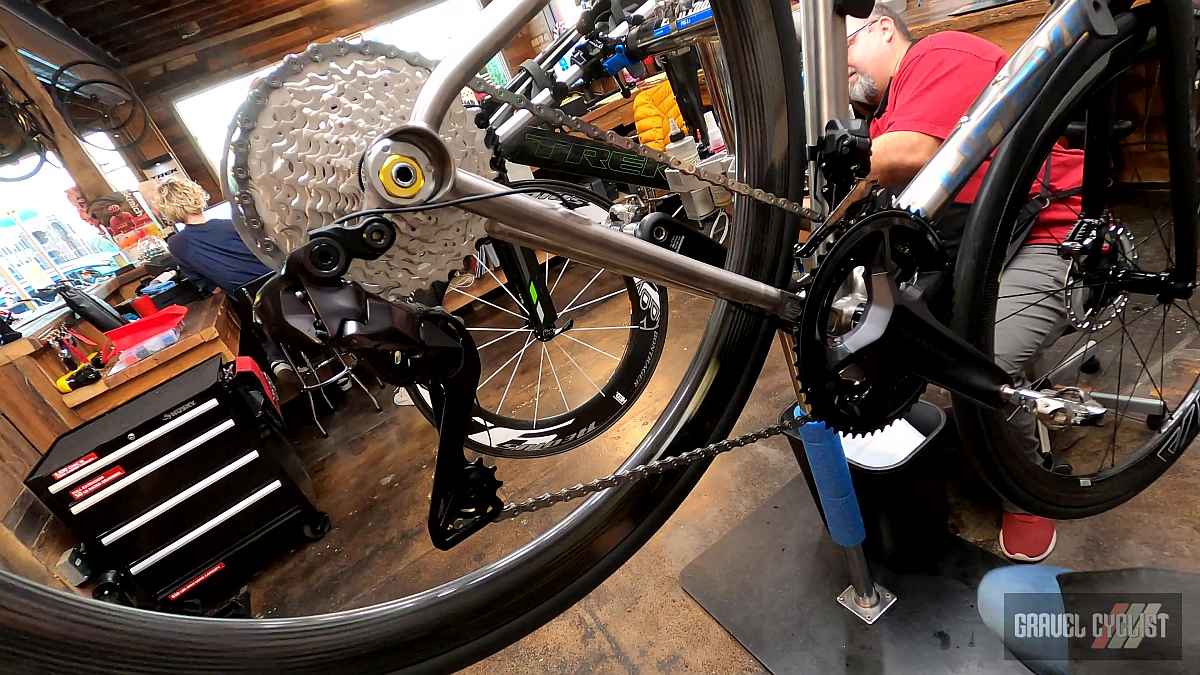

Drivetrain looking good
shimano ultegra r8170 di2 review

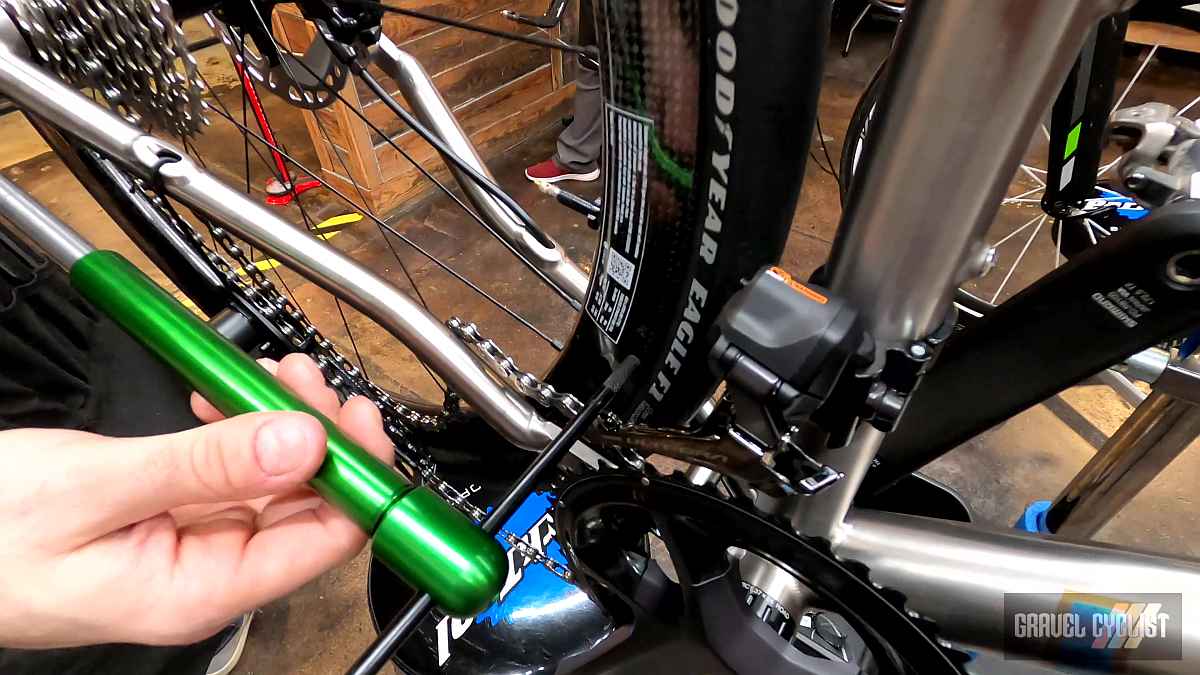

Preparing to setup the front derailleur limits
shimano ultegra r8170 di2 review
Setting the rear derailleur B-screw
lynskey titanium road bike review

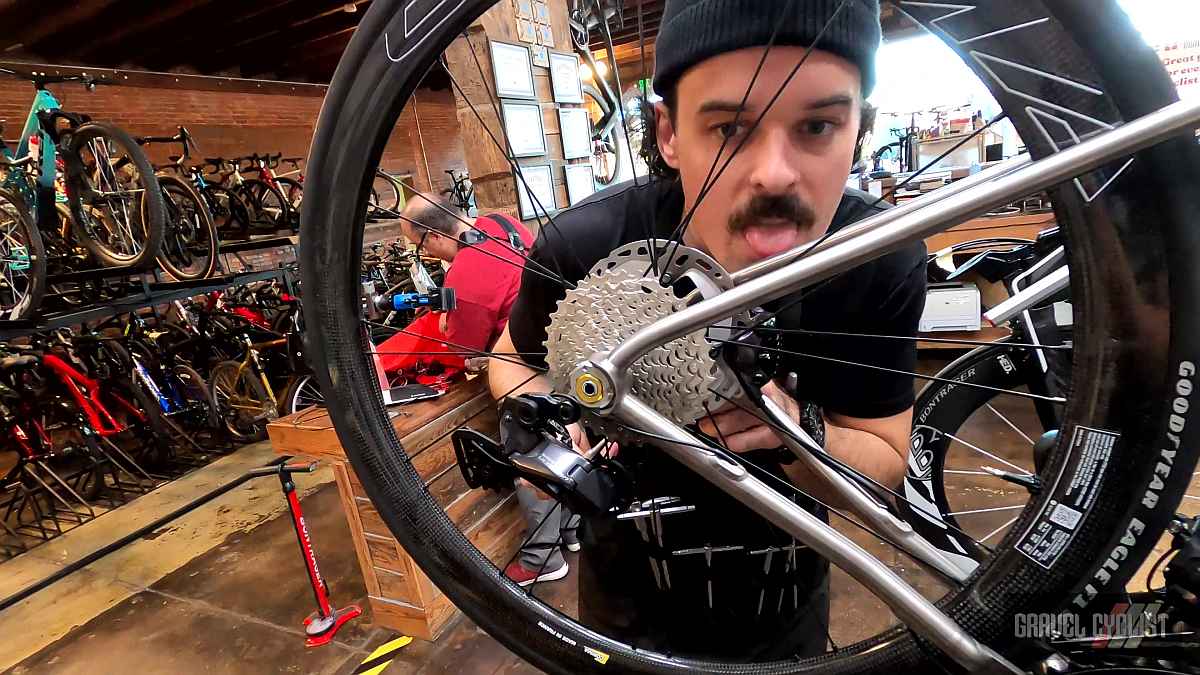

Pete eyeballs the big ring / big cog combo
lynskey titanium road bike review

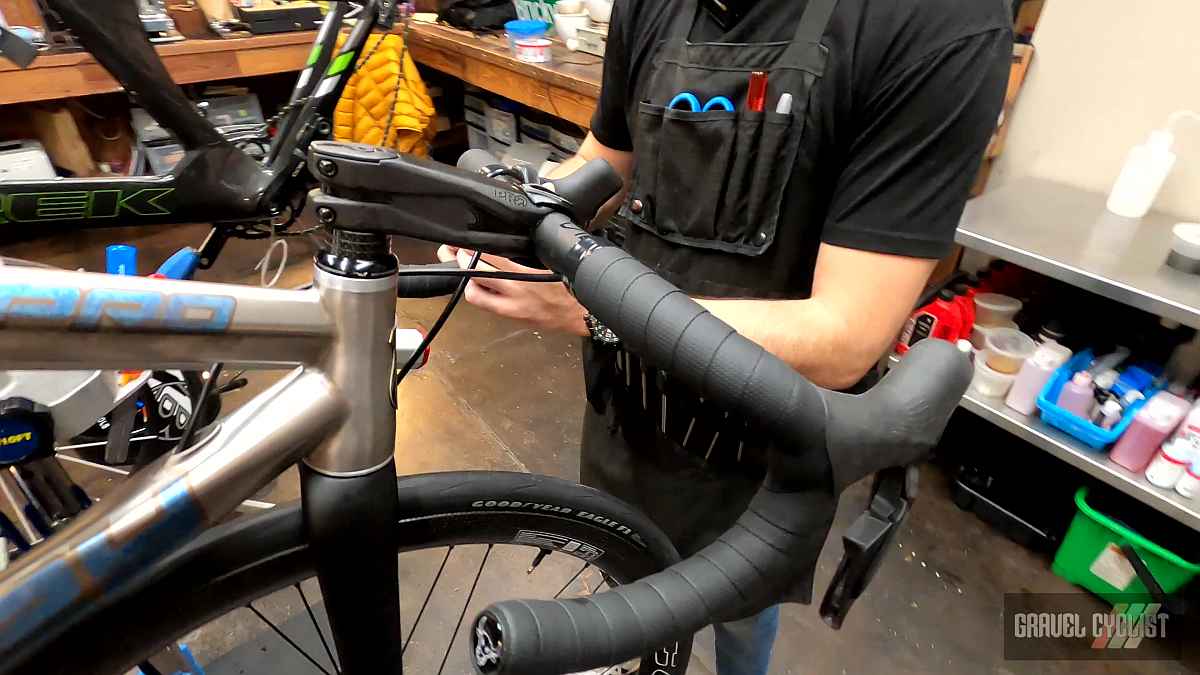

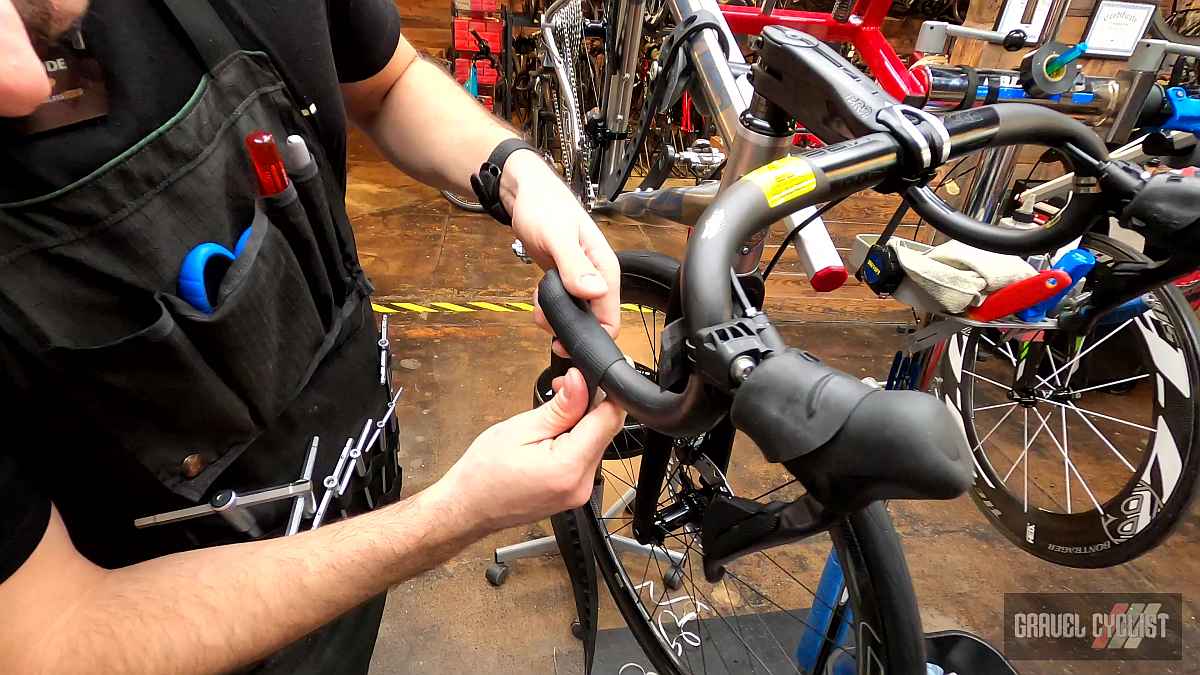

Wrapping the Handlebar tape (Holdfast Cycling)
lynskey titanium road bike review
Handlebar wrap complete
lynskey titanium road bike review
Not a superlight build, some lighter wheels / tyres will drop it some
lynskey titanium road bike review

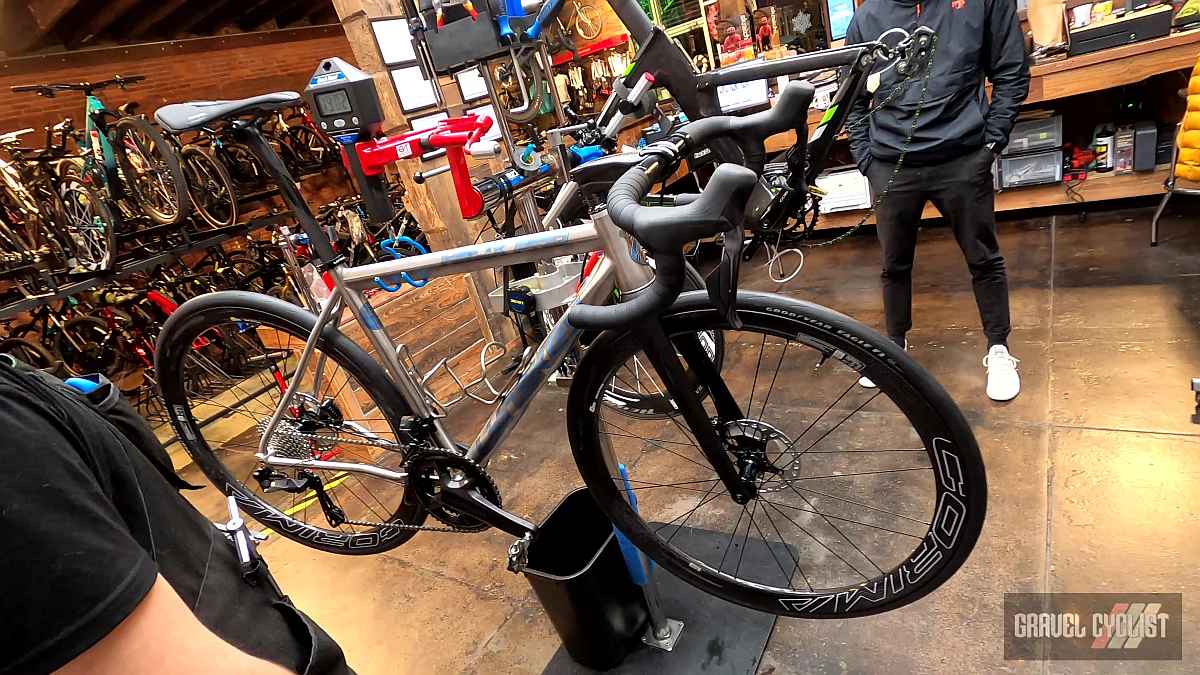

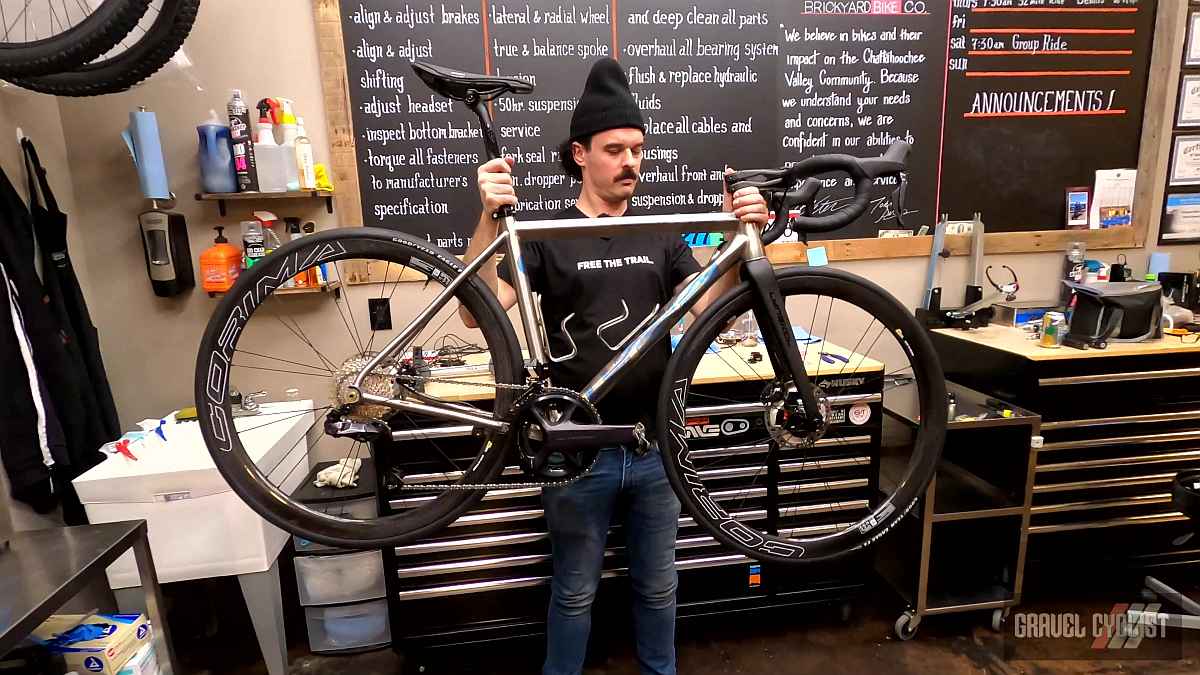

Built on Brickyard
lynskey titanium road bike review
Thank you, Pete!

Coming later, the Groupset review!
