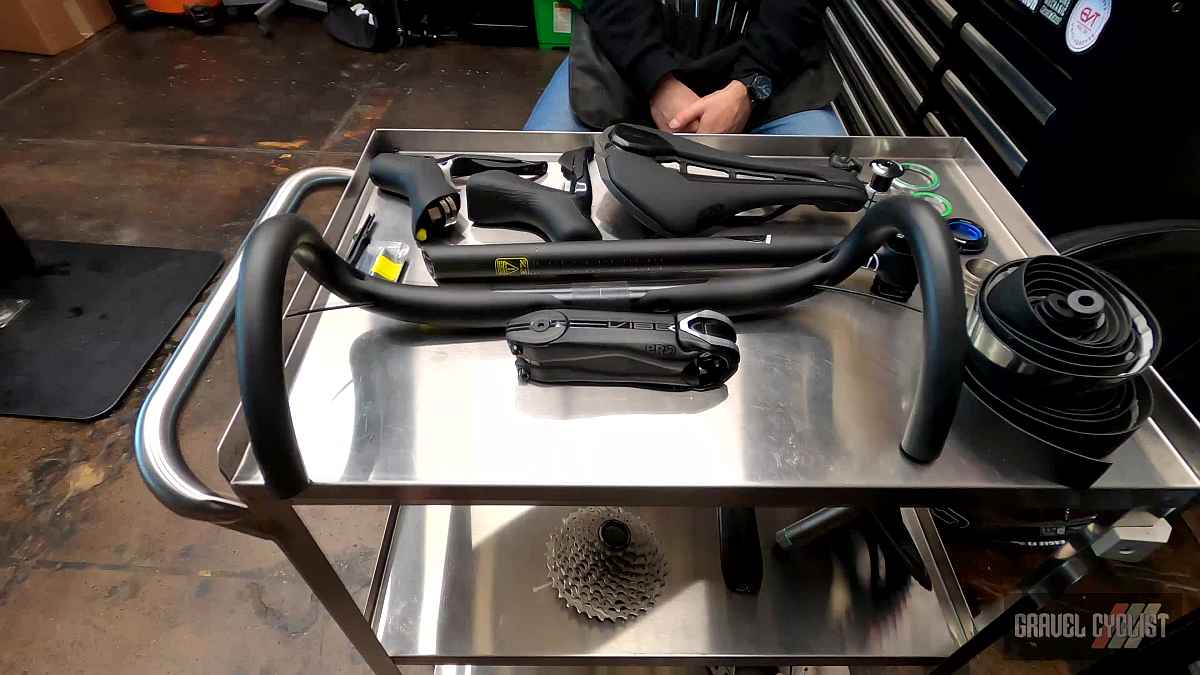

Surgical build table with parts ready to go!

The Lynskey Helix PRO titanium road bike build continues, paired with Shimano’s R8170 12-Speed Di2 groupset. A little known fact, JOM of the Gravel Cyclist crew still rides on the pavement semi-regularly, which allowed for a unique collaboration with Shimano and Lynskey Titanium Bicycles.

shimano ultegra r8170 build video

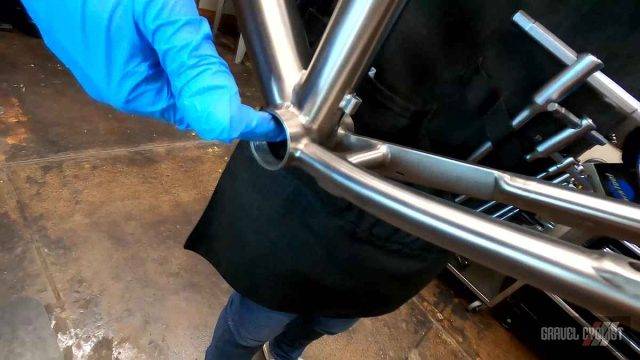

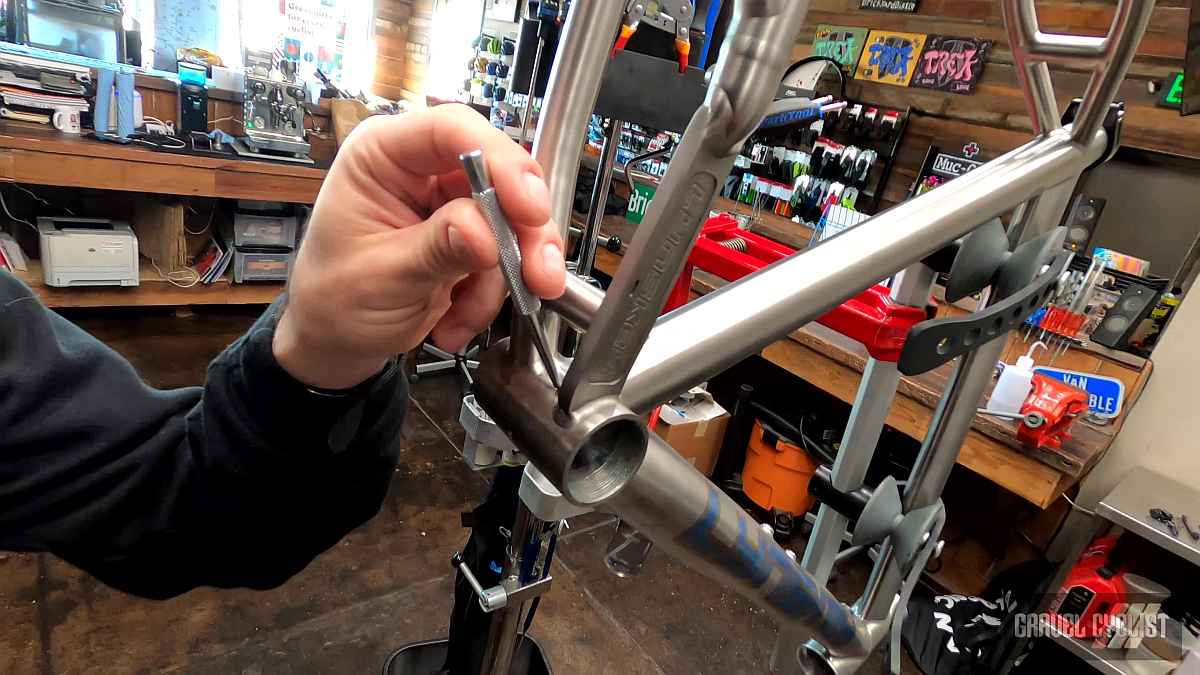

Bottom bracket preparation

Handling the build is Pete, co-founder of Brickyard Bike Co., located in Phenix City, Alabama, just across the Chattahoochee River from Columbus, Georgia. This is not Pete’s first rodeo, and marks his fourth build project with Gravel Cyclist HQ.

Shimano Ultegra R8170 12-Speed Di2 Build Project Video – Part 1

Alternative Video Link for those reading via email subscription.

In this video, JOM Of the Gravel Cyclist records Pete performing his magic building the Lynskey Helix PRO from a massive box of parts, into the bike you’ll see in Part 2 of this presentation. There are likely to be several wheelsets featured on this bike, the first of which is the Corima Essentia 40 (see link below), as featured in this video.

shimano ultegra r8170 build video

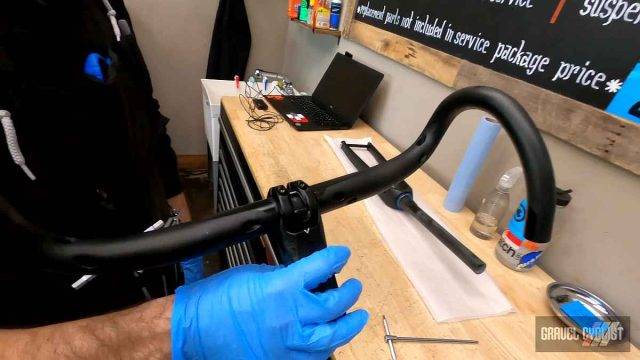

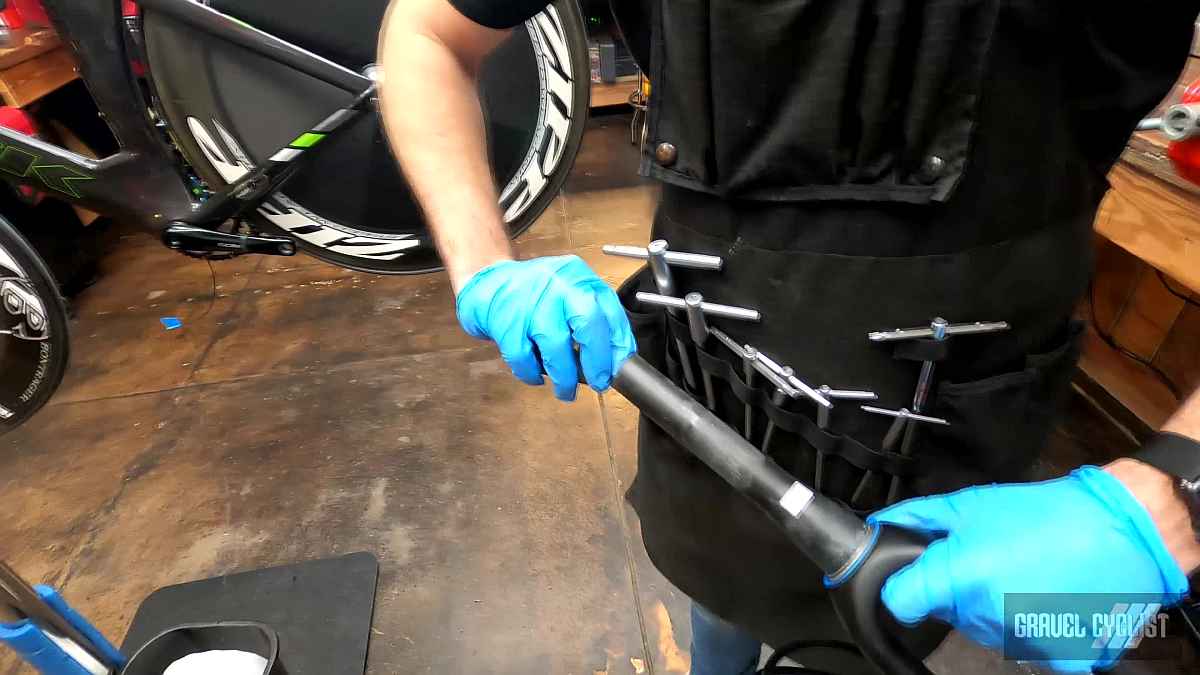

Handlebar & stem going together

Lynskey Helix Pro Disc

“The Helix Pro Disc is designed with our Race geometry and disc brakes for additional stopping power. The benefits of the Helix frame include overall frame stiffness and handling, with optimal speed and lightweight. The addition of disc brakes takes your performance to the next level. Internal downtube and chainstay cable routing lends to clean lines and aero performance. New rear end with half-yoke design allows ample clearance for 32c tires.”

Additional Photos

shimano ultegra r8170 build video

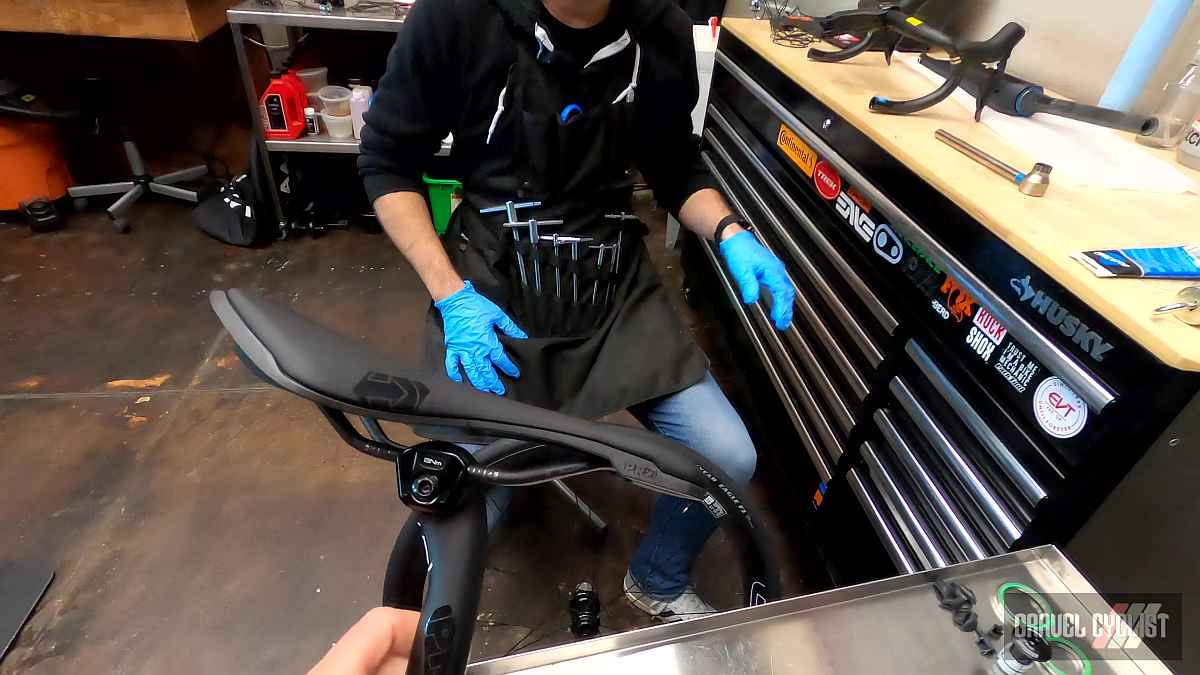

Saddle & seatpost together
shimano ultegra r8170 build video

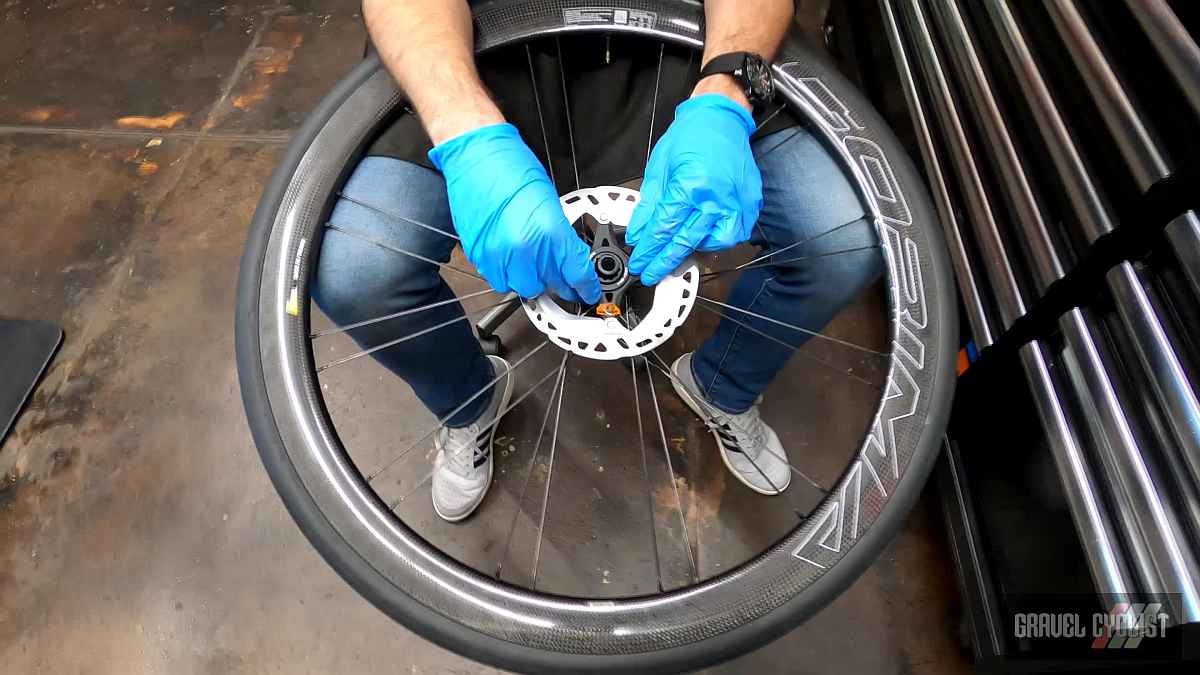

Corima Essentia 40 wheels
lynskey helix pro disc review

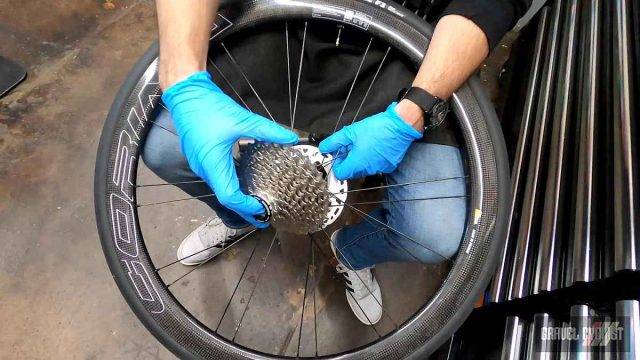

12-Speed 11-34 cassette
lynskey helix pro disc review

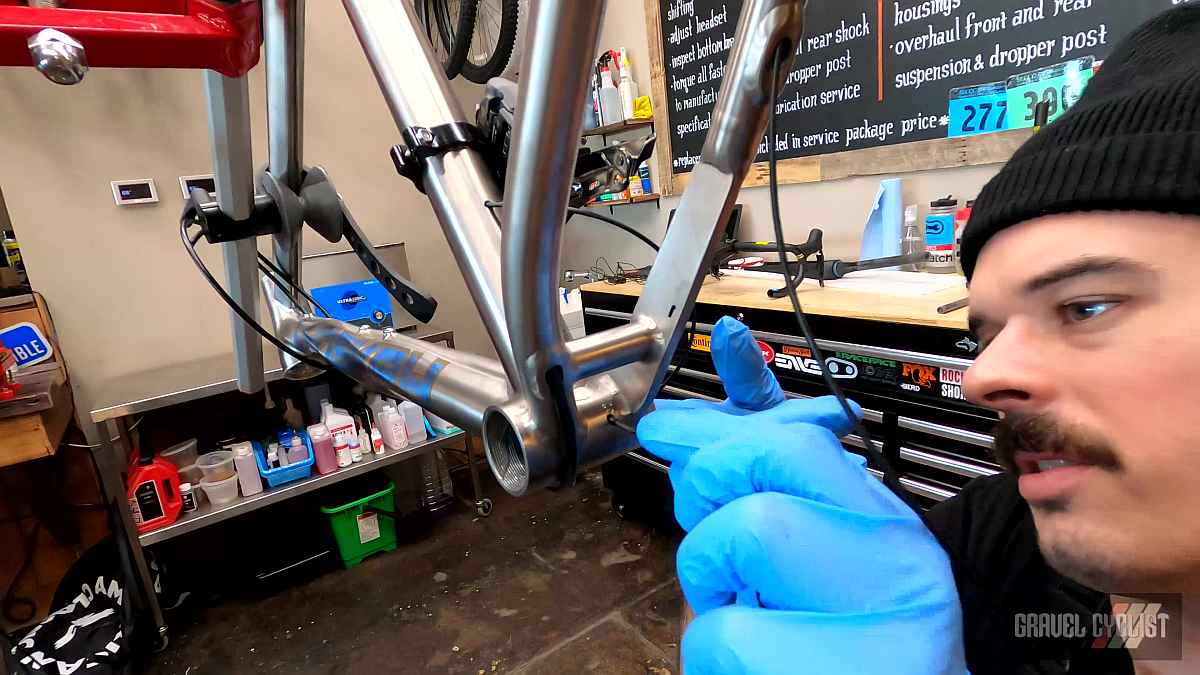

This frame was not drilled for Di2
lynskey helix pro disc review

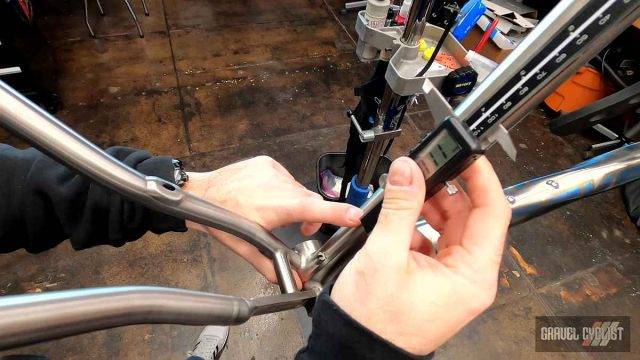

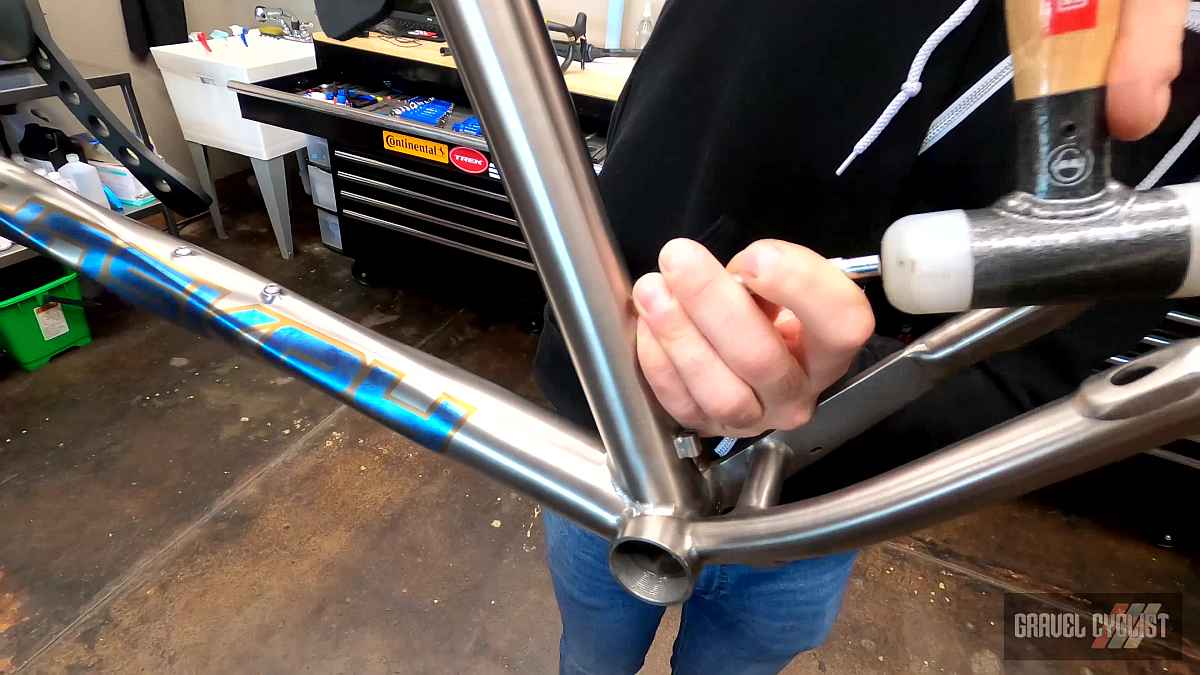

Measuring the drill hole for the front derailleur
lynskey helix pro disc review
Lynskey provided detailed instructions to drill this frame
lynskey helix pro disc review

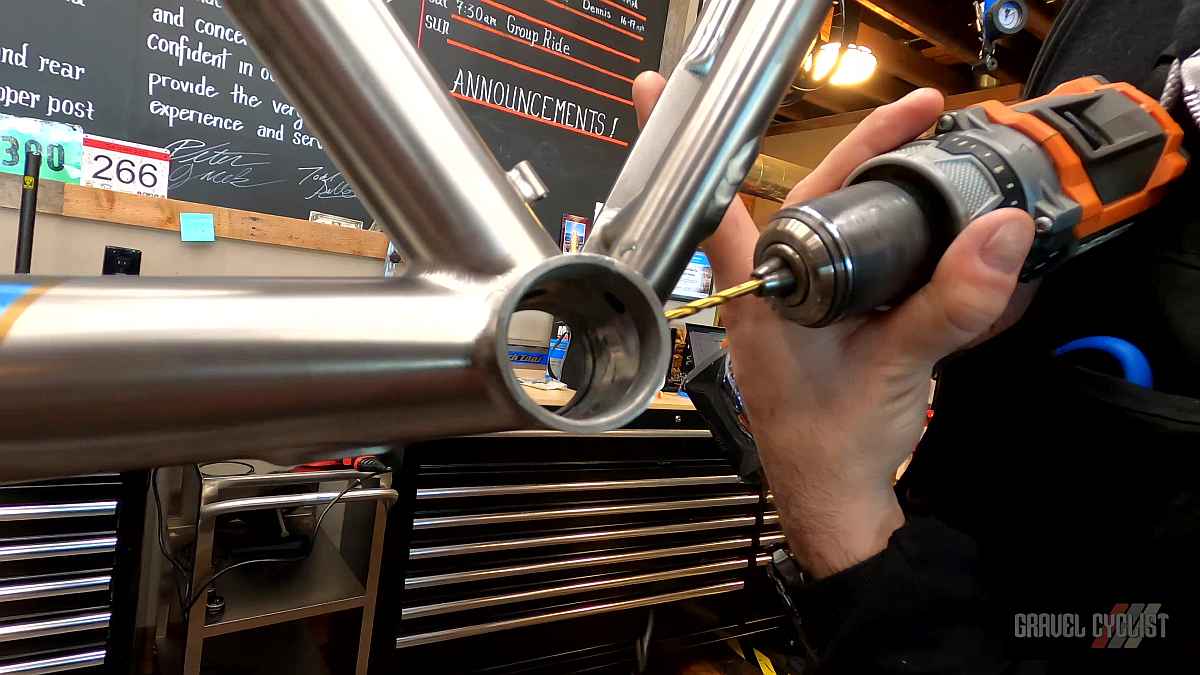

Fresh Ti Nitride bit is highly recommended
lynskey helix pro disc review

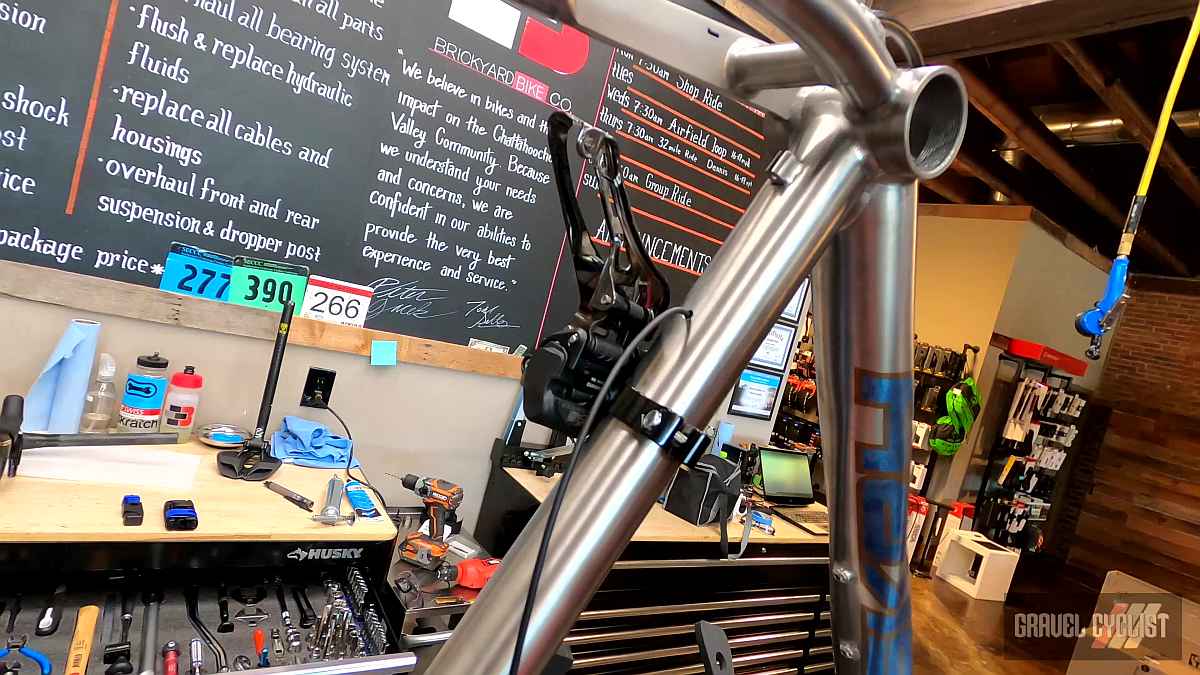

Front derailleur installed
lynskey helix pro disc review

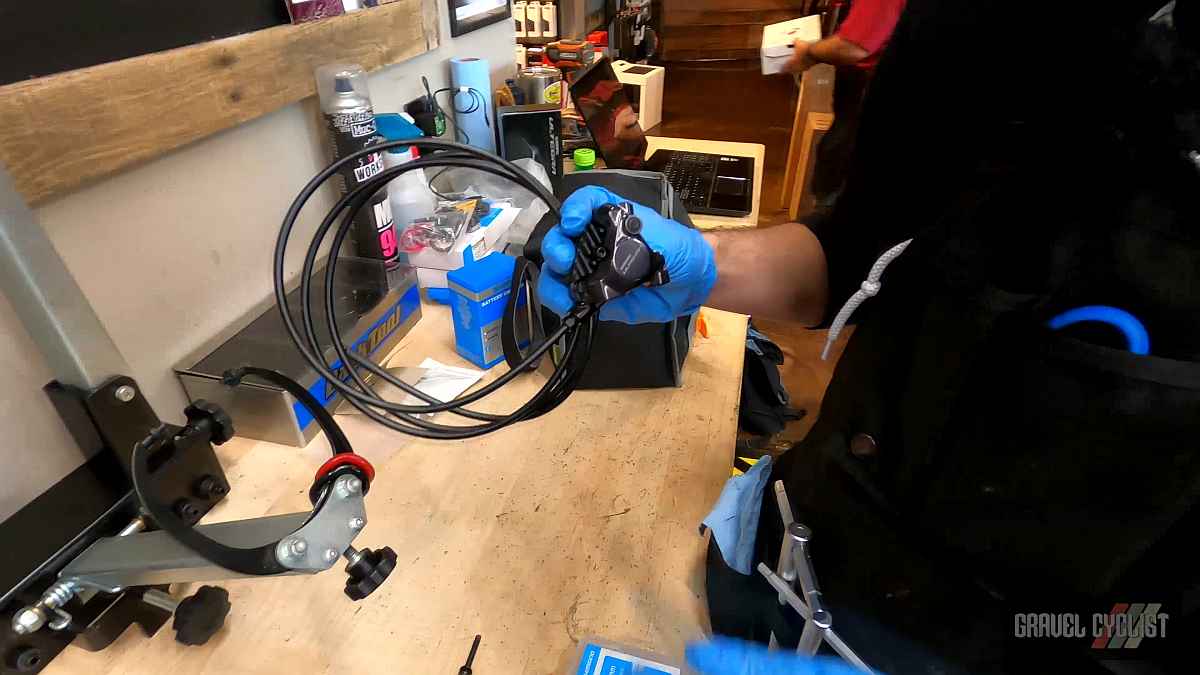

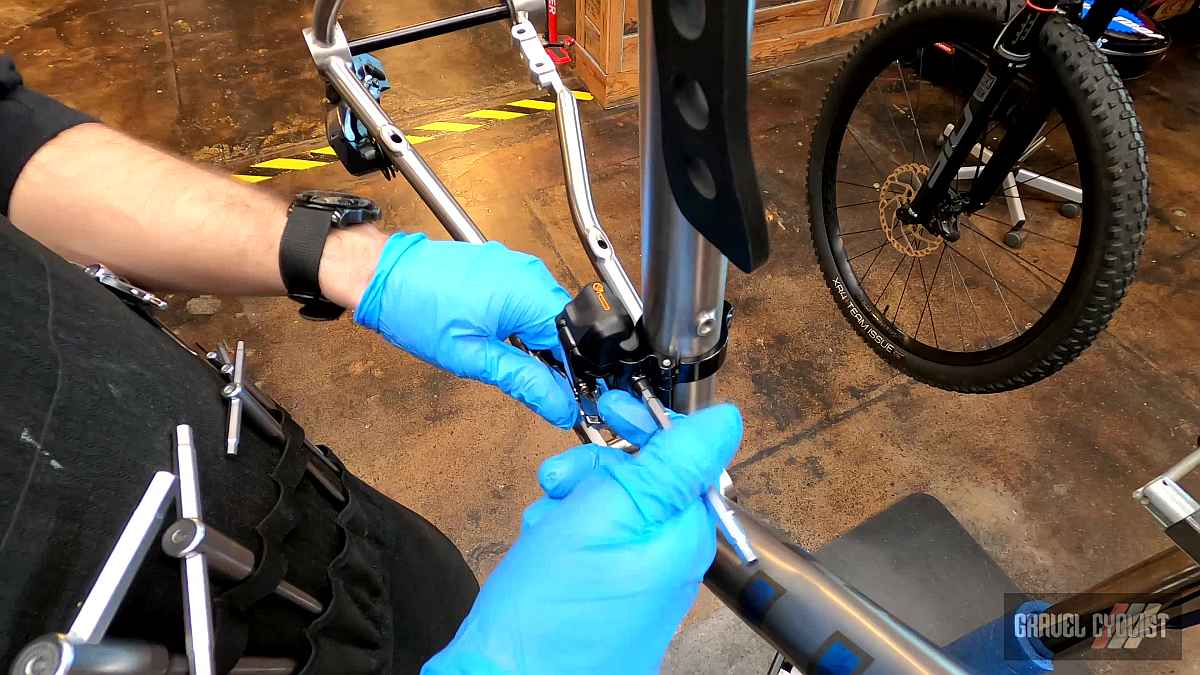

Preparing to mount hydraulic brakes
lynskey helix pro disc review

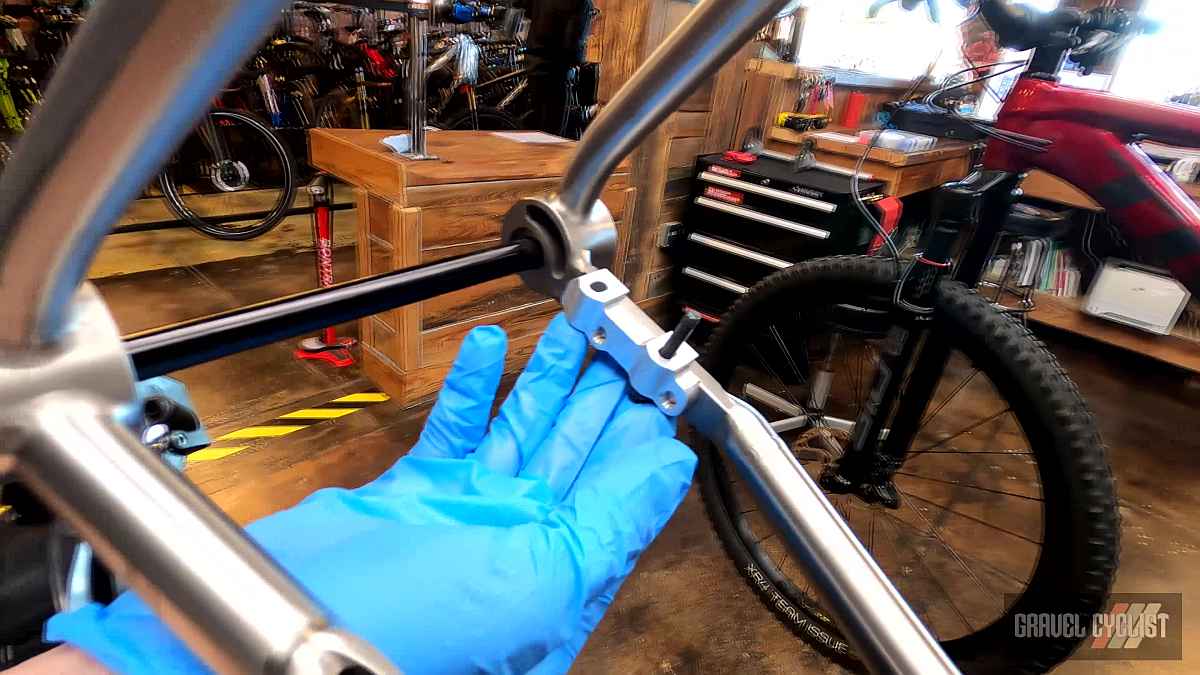

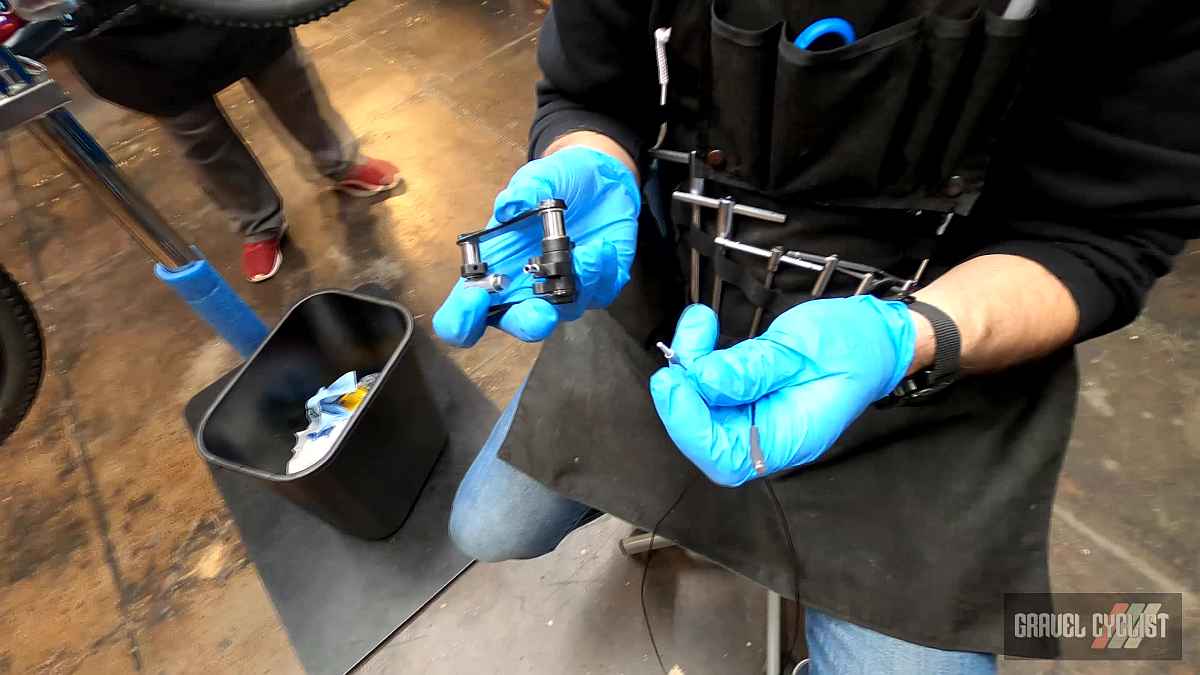

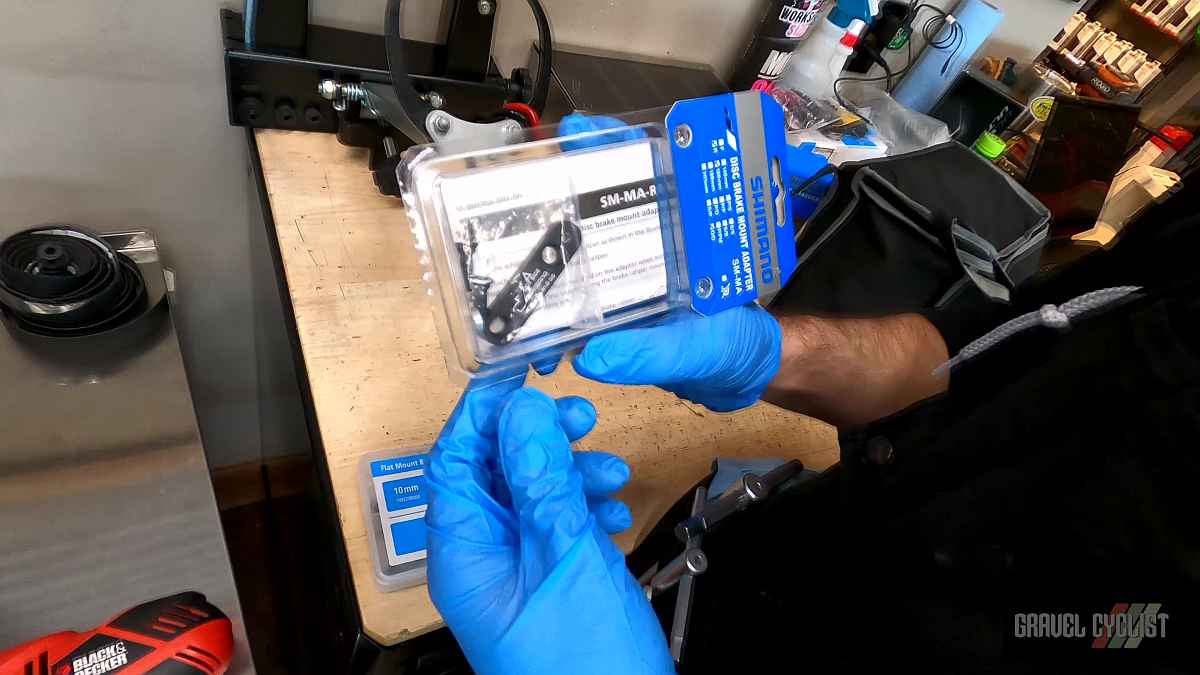

Adapter needed for rear brake, 160mm rotor
shimano ultegra 12-speed di2 review
Sizing the brake fixing bolts
shimano ultegra 12-speed di2 review
Rear hydro caliper installed
shimano ultegra 12-speed di2 review

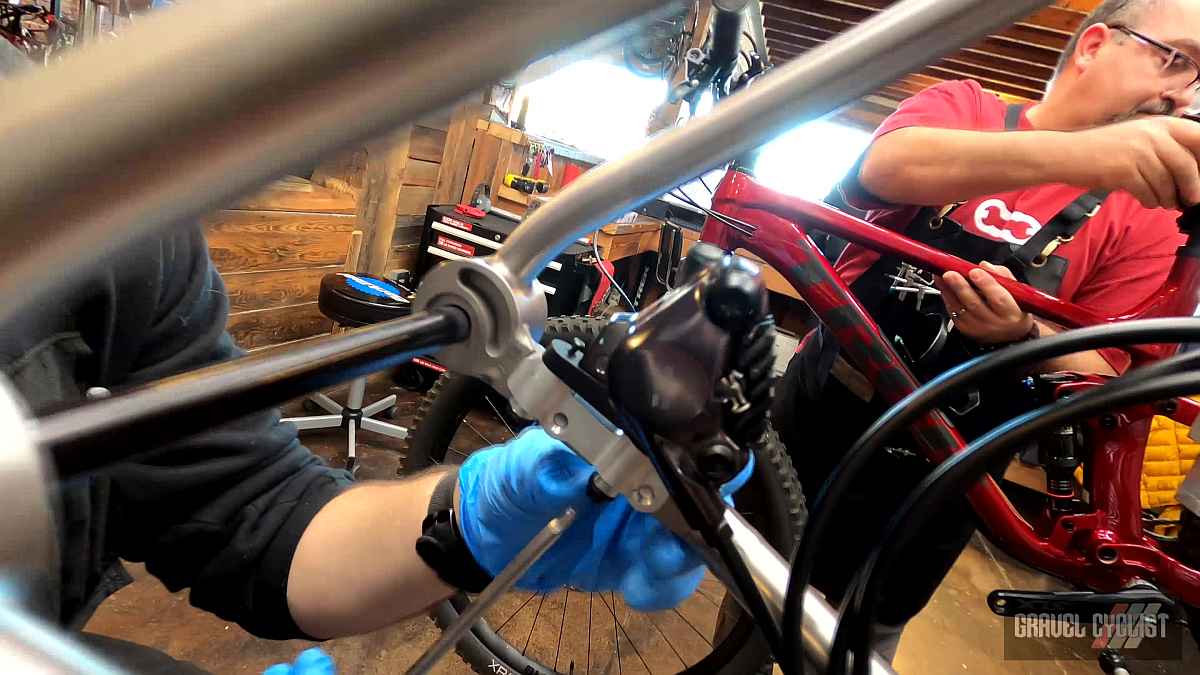

Preparing to route hydro brake housing
shimano ultegra 12-speed di2 review
Routing tool always makes this job easy
shimano ultegra 12-speed di2 review

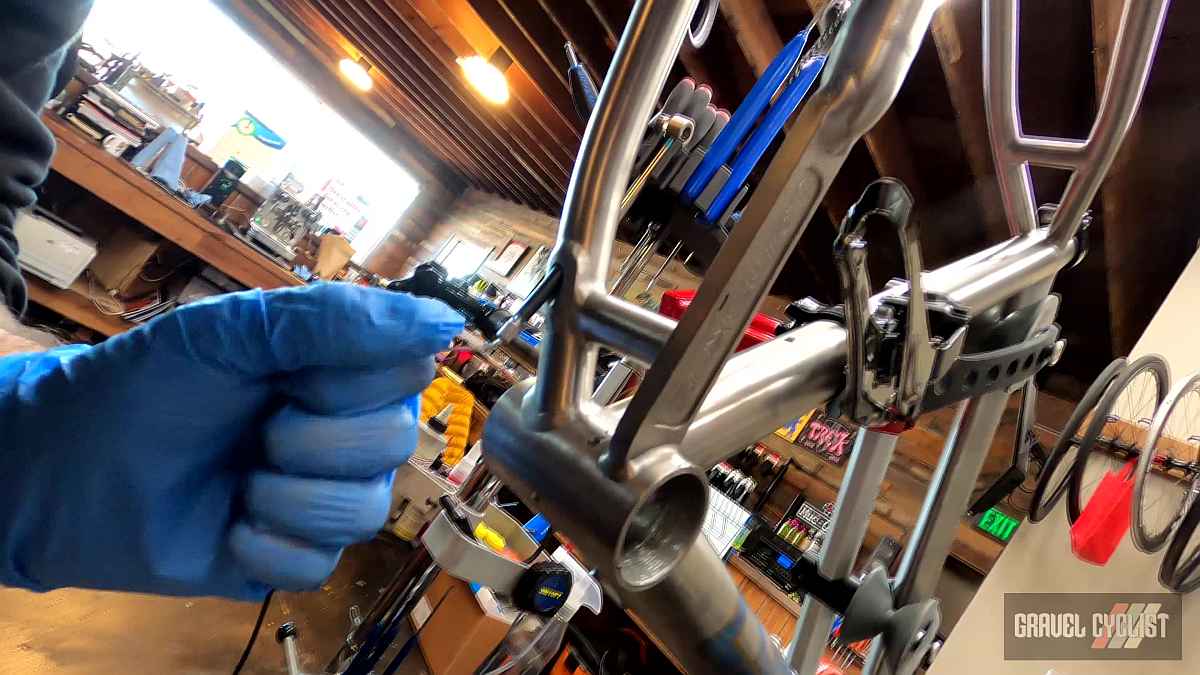

The routing fun continues
shimano ultegra 12-speed di2 review

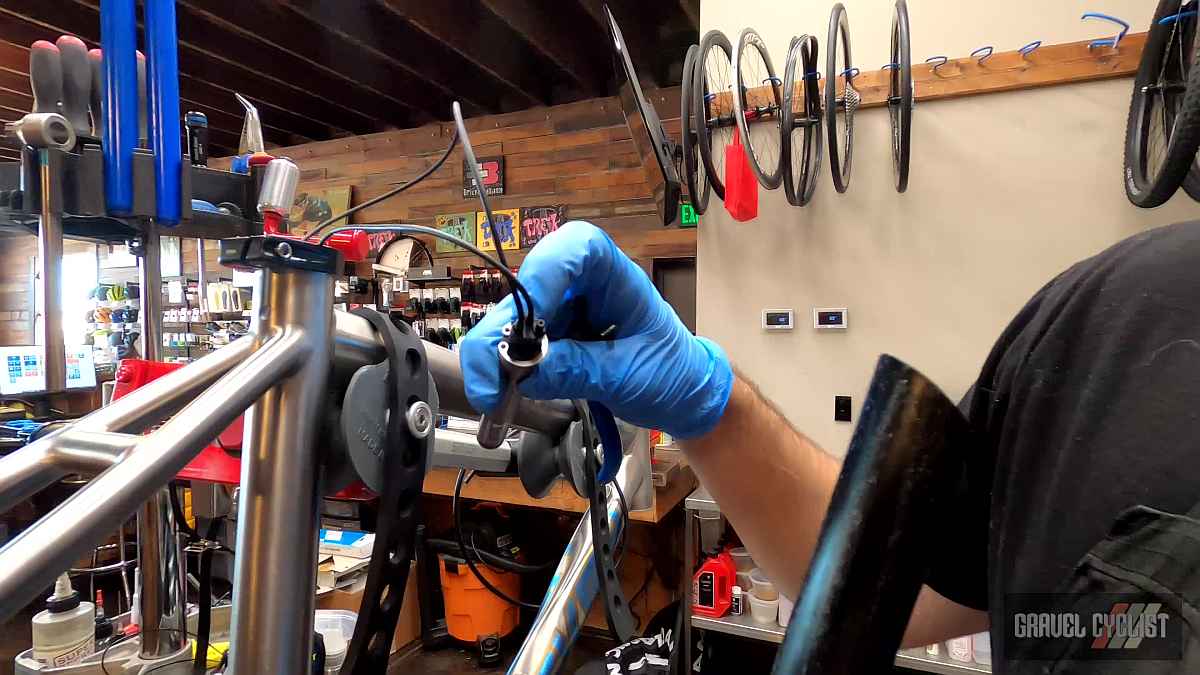

Routing Di2 cables for front & rear derailleur
shimano ultegra 12-speed di2 review

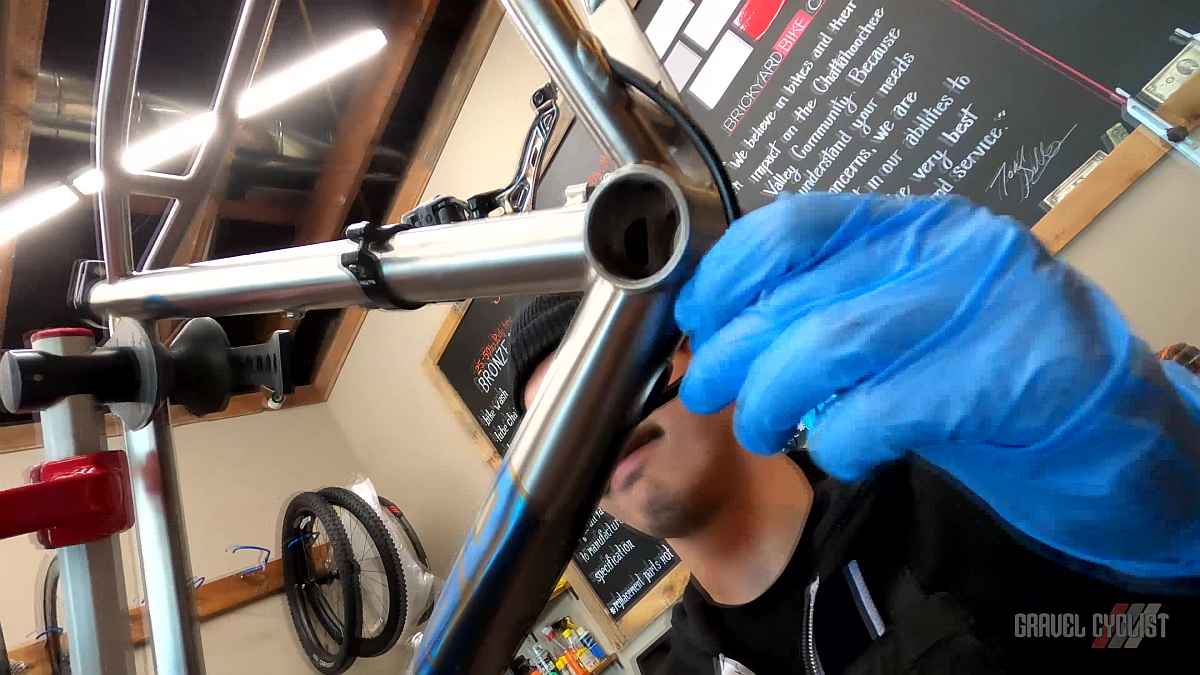

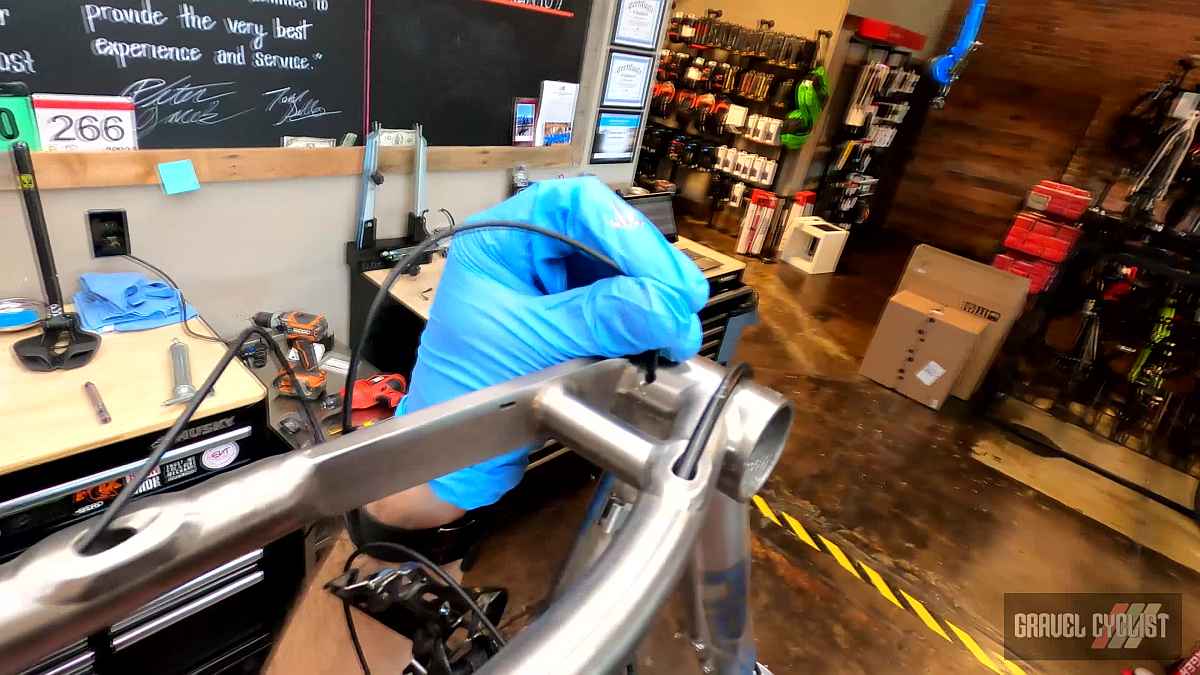

Routing Di2 wiring through the seattube
shimano ultegra 12-speed di2 review
More Di2 routing
shimano ultegra r8170 review

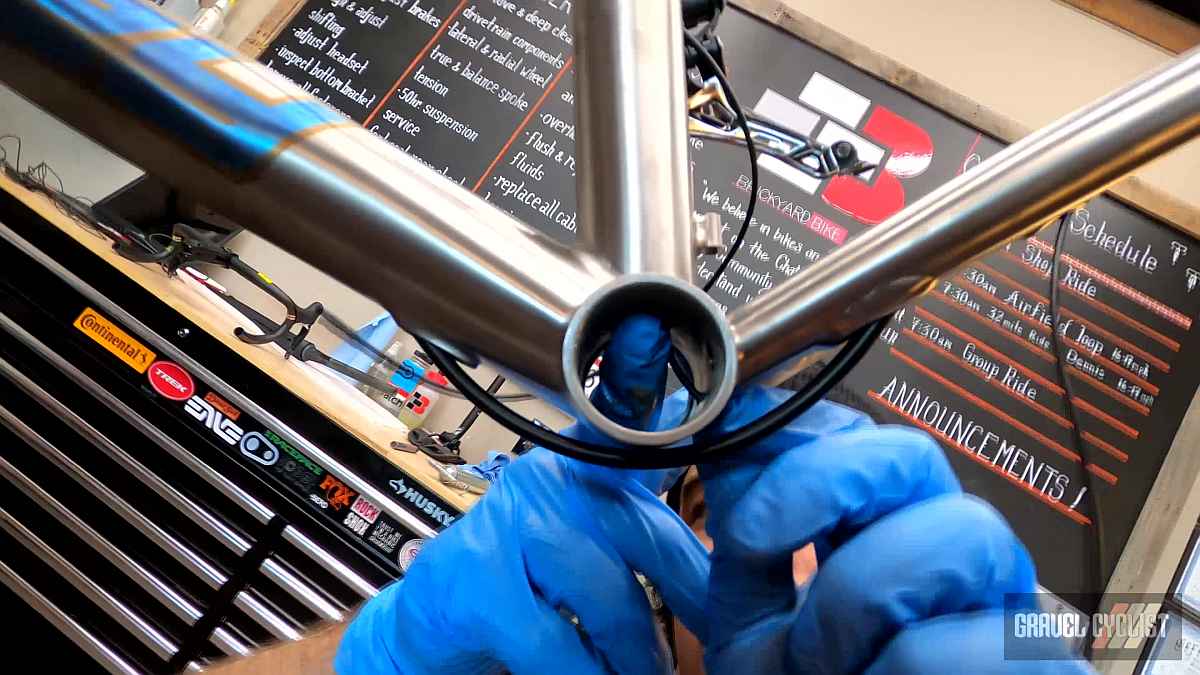

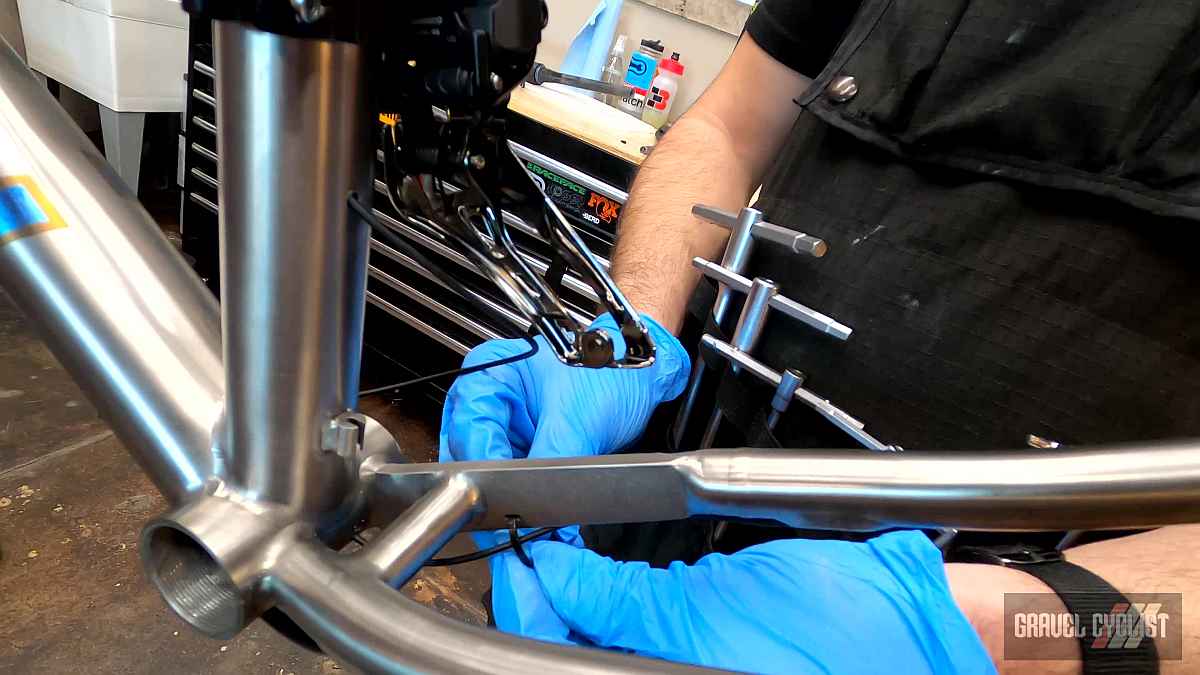

Di2 cables route around the bottom bracket
shimano ultegra r8170 review
Yet more routing fun
shimano ultegra r8170 review
Rear derailleur cable attaches externally to Lynskey’s chainstay yoke
shimano ultegra r8170 review
Di2 cables attached to the internal battery (resides inside the seatpost)
shimano ultegra r8170 review

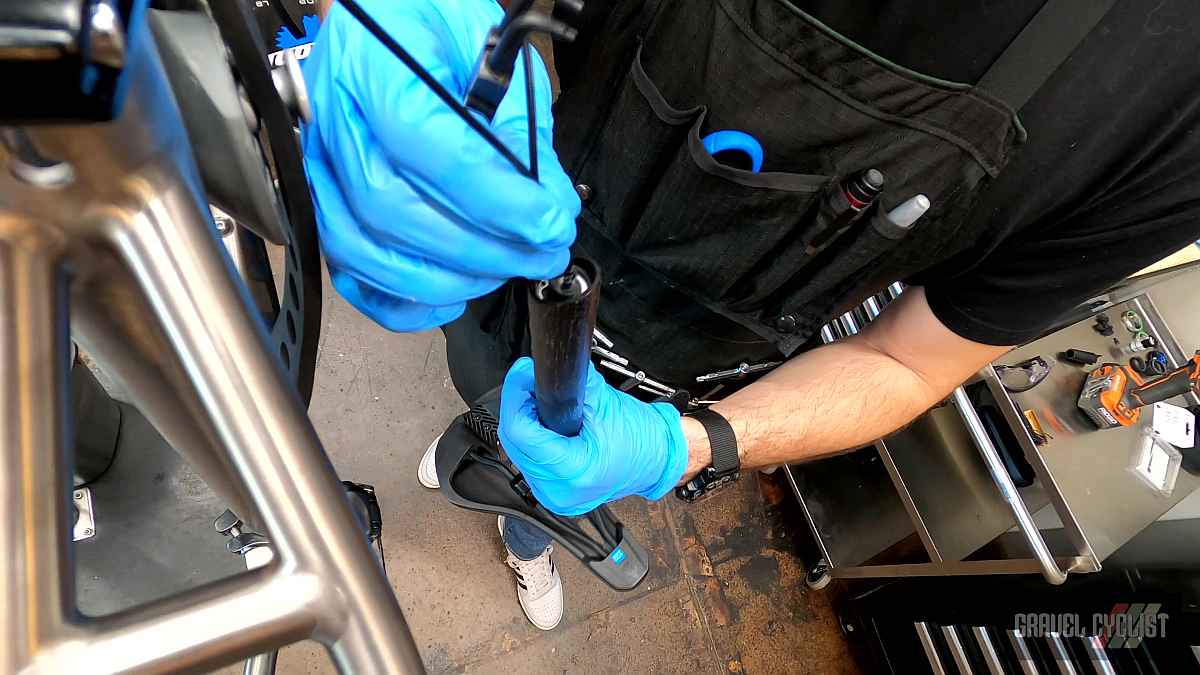

Securing the Di2 battery inside the PRO carbon seatpost
shimano ultegra r8170 review

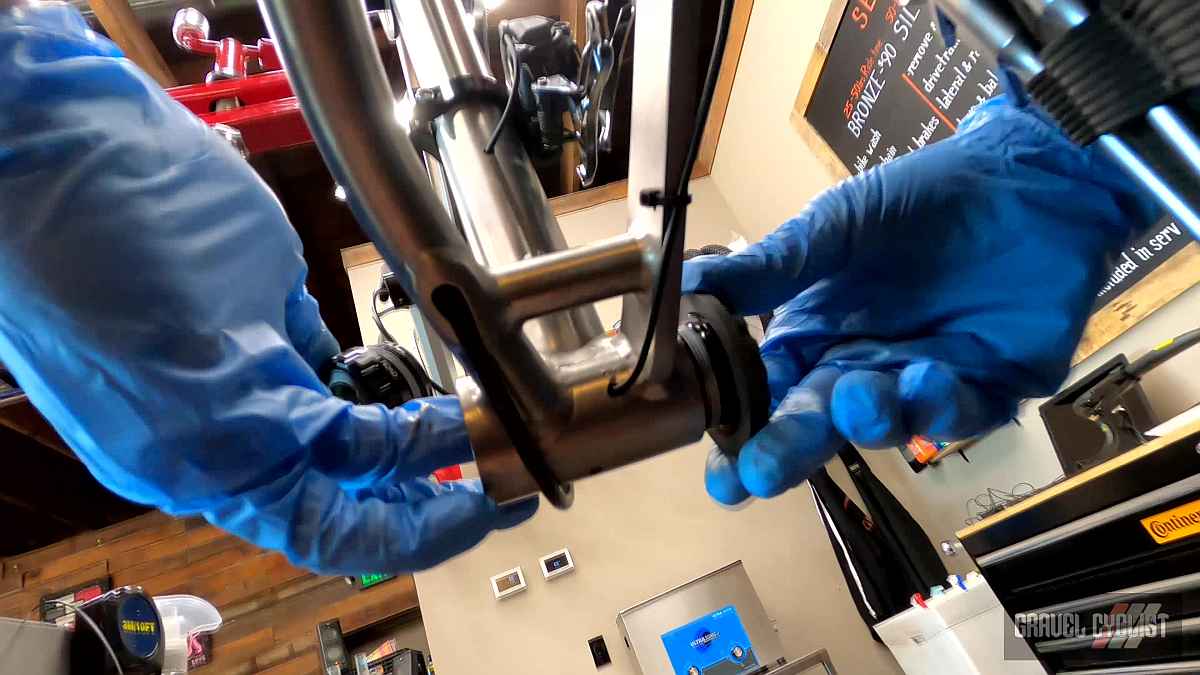

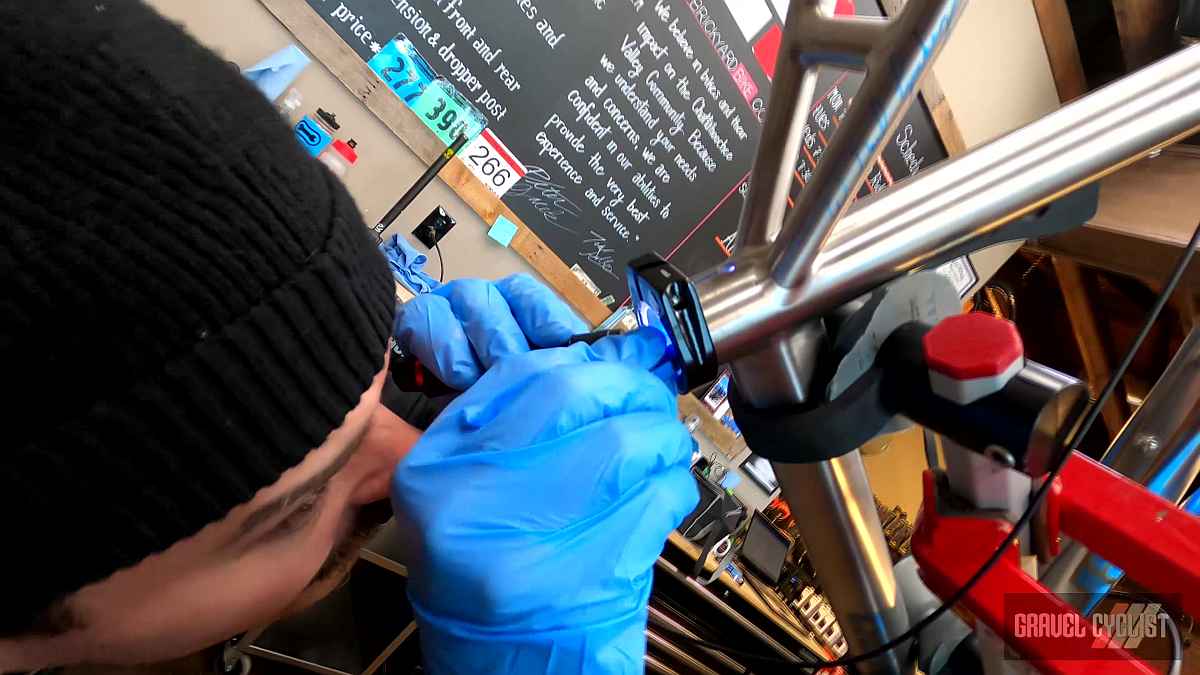

Installing the Shimano 68mm bottom bracket
shimano ultegra r8170 review

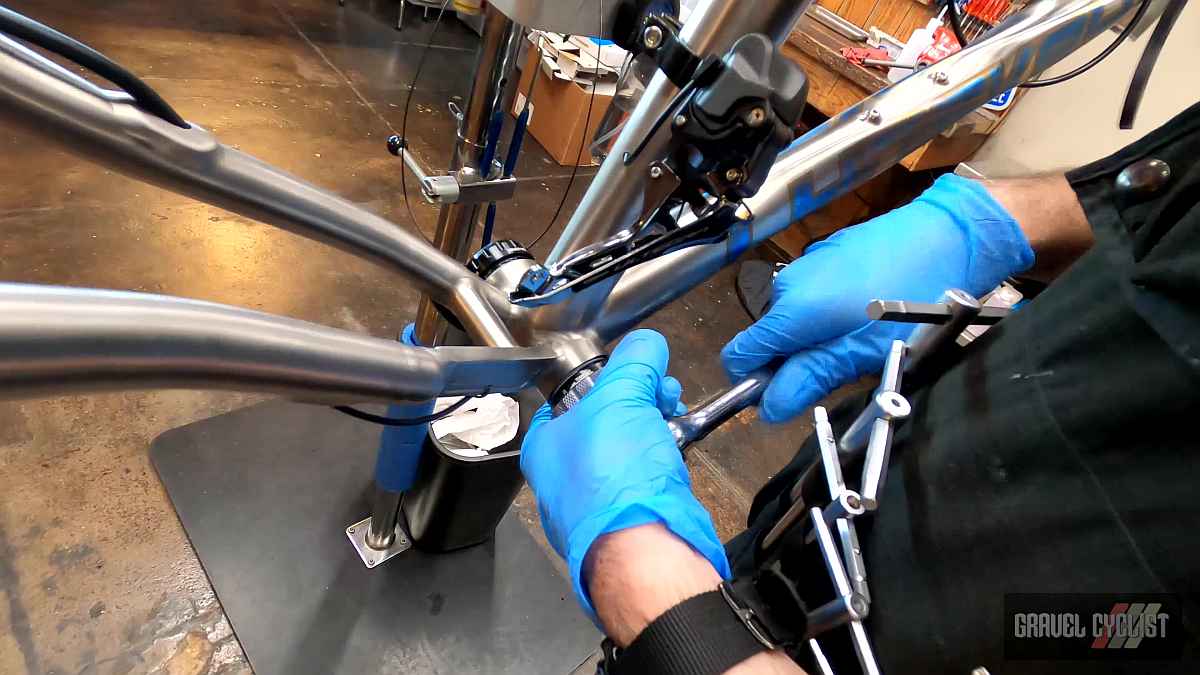

Locking down the bottom bracket, followed by setting to torque specs
shimano ultegra r8170 review

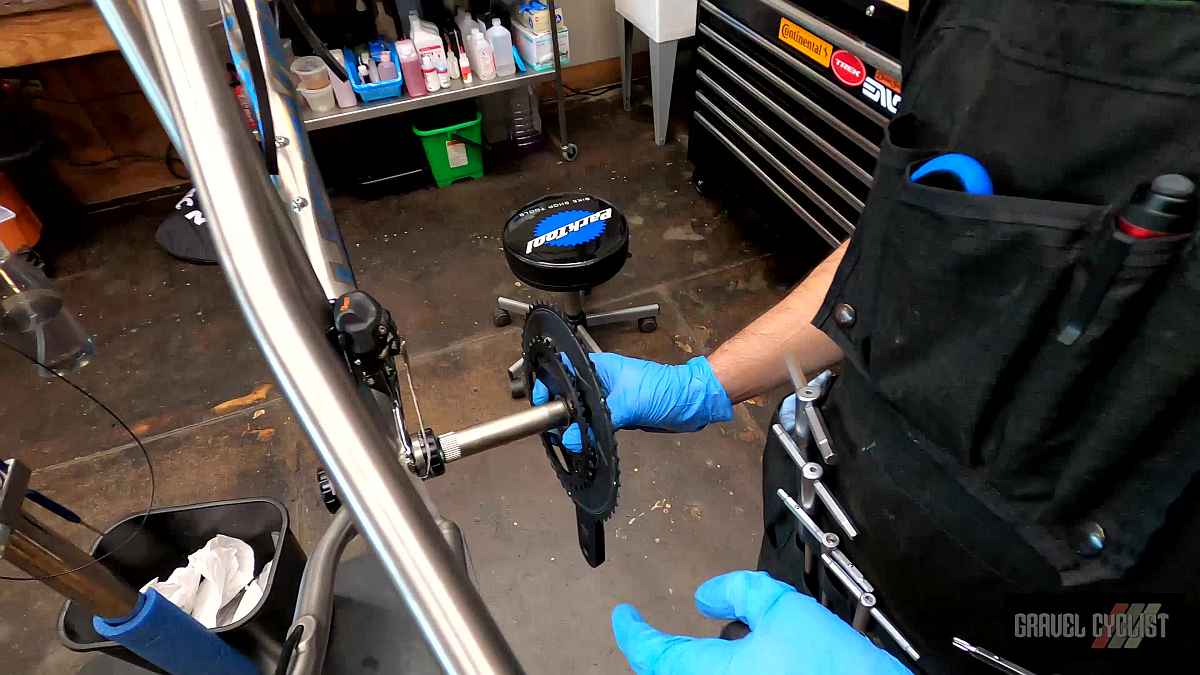

Installing the R8170 12-speed 2x crankset
shimano ultegra r8170 build video

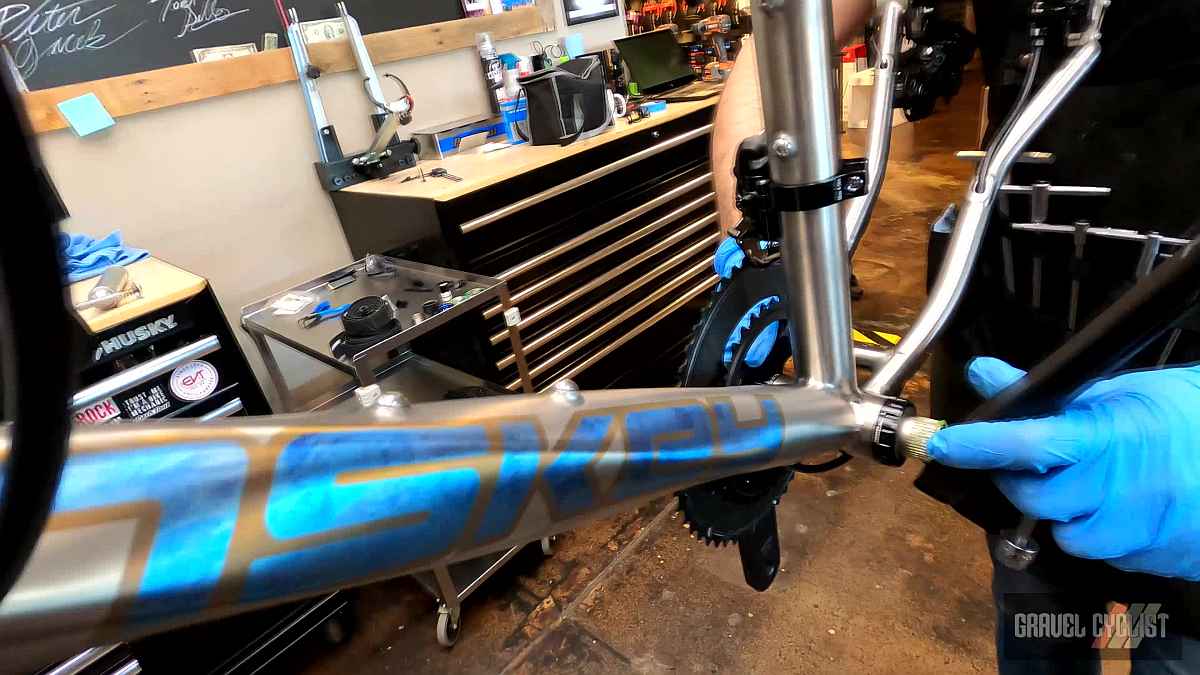

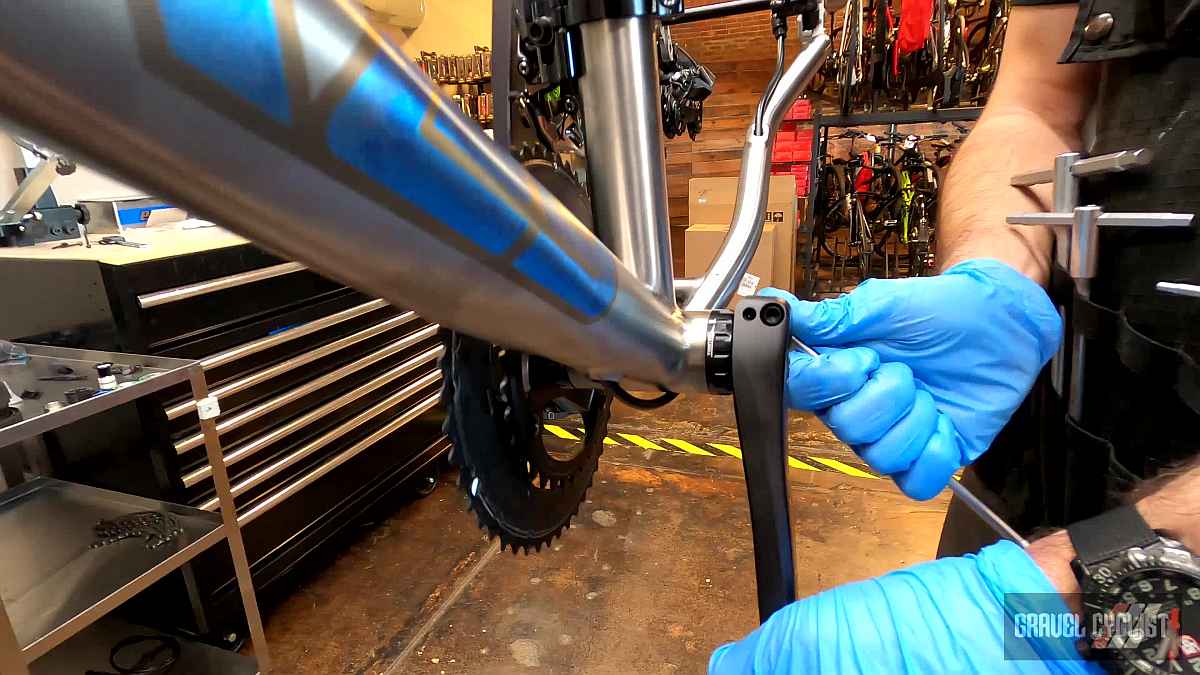

Non-drive crankarm installed
shimano ultegra r8170 build video
Tighten down appropriately
shimano ultegra r8170 build video

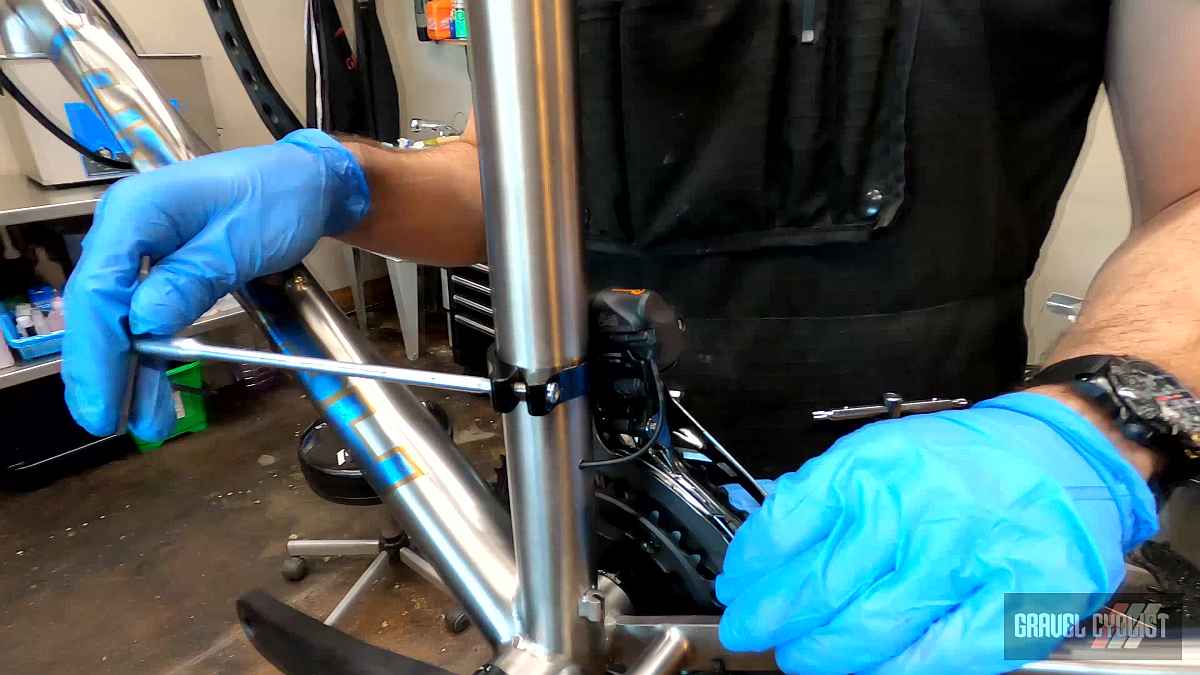

Align the front derailleur clamp
shimano ultegra r8170 build video

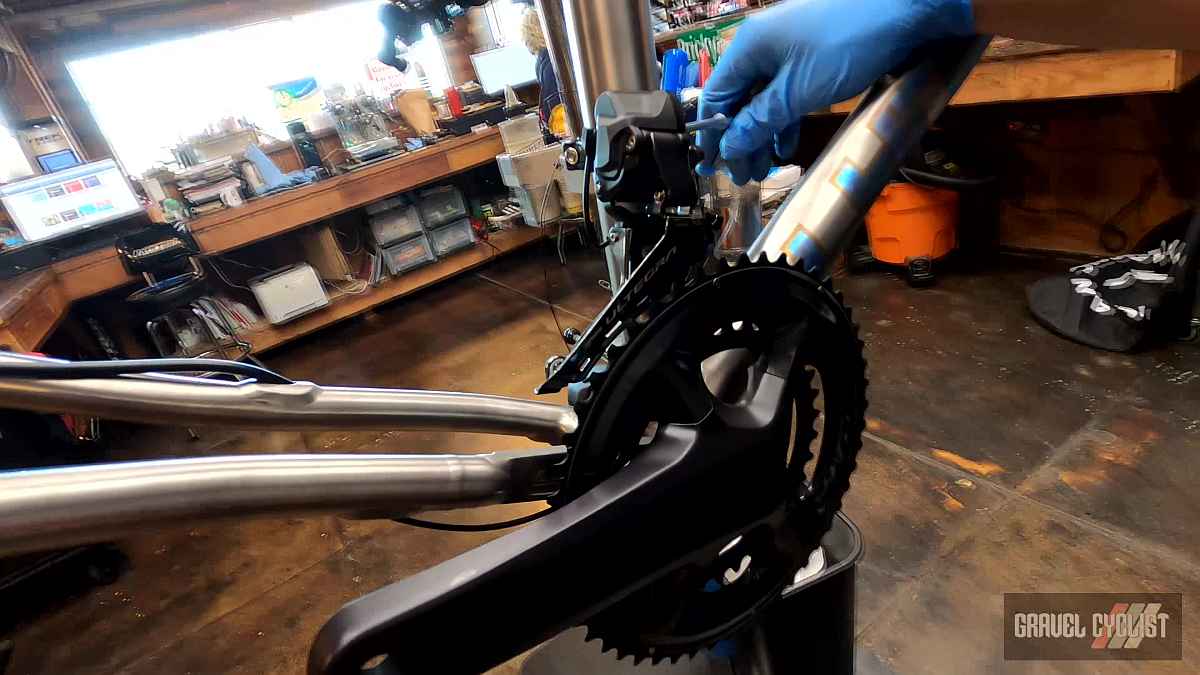

Set the front derailleur with appropriate clearance
shimano ultegra r8170 build video

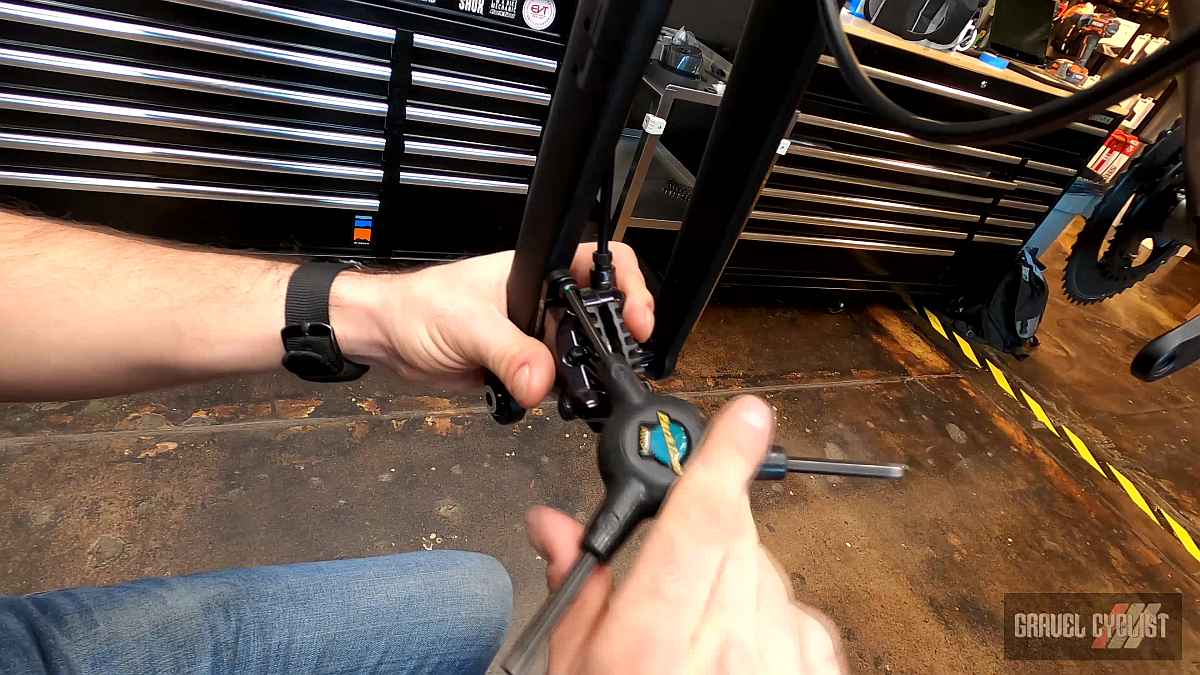

Installing the front hydraulic caliper
shimano ultegra r8170 build video

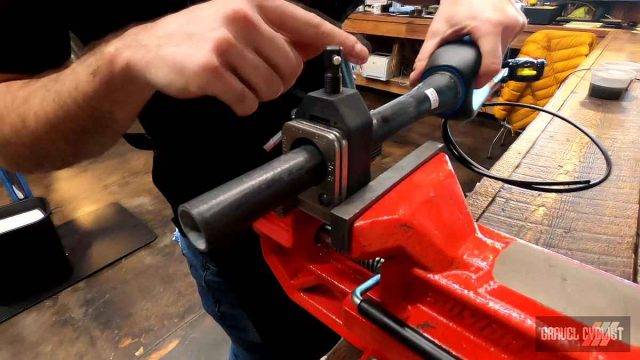

Preparing to cut the fork steerer tube
shimano ultegra r8170 build video

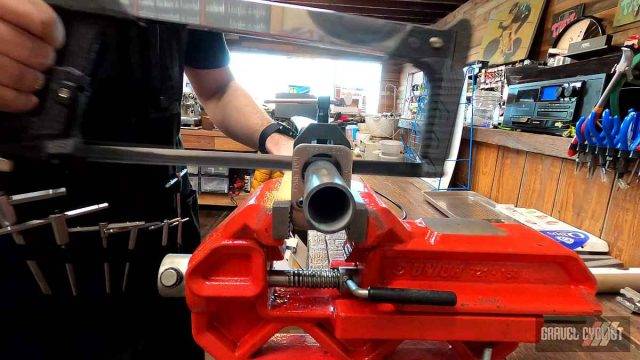

Well into the cutting the steerer tube
shimano ultegra r8170 build video
Cleanup of the cut with sandpaper

Watch this space for Part Two!
