Tech: How to Save Wear on Shimano Di2 Shifters

save wear on shimano di2
Di2 can be customized in so many ways

“Thanks to its lightning-fast, accurate, and reliable shifting performance, Di2 puts riders in complete control and ensures a seamless interface between the cyclist and bike like never before. Creating and continually improving the world’s best shifting is a complicated undertaking requiring constant technological advancements. From hardware to software, Shimano Di2 technology is on the cutting edge, striving to deliver the best rider experience possible now and in the future.” – https://bike.shimano.com

save wear on shimano di2

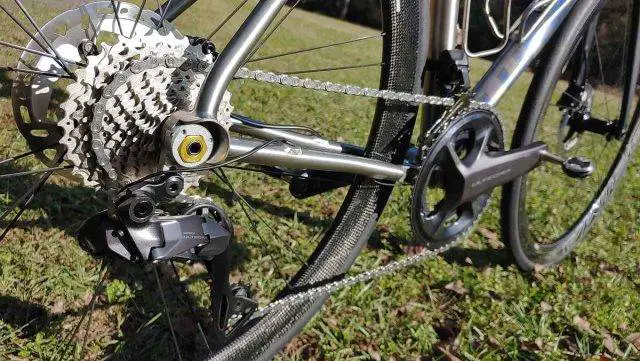

Shimano Ultegra R8170 12-Speed Di2

“While now recognized as the pinnacle of premium shifting performance, Shimano Di2 was, at its inception, designed to enhance the riding experience for all cyclists. In 2001, Di2 debuted with NEXAVE C910, a beginner-friendly comfort bicycle components that simplified riding with automatic shifting. The NEXAVE C910 system also included an electronically controlled suspension option that automatically adjusted settings according to road conditions and riding speed.”

Saving Wear on Di2 Shifters Video

Alternative Video Link for those reading via email subscription.

By default, Shimano Di2 drop bar shifters rely on the right shifter to perform the shifting duties of the rear derailleur. In a 2x system, this places a lot of wear and tear on the right shifter, while the left shifter sees much less use. In this video, JOM of the Gravel Cyclist crew explains how he splits the shifting duties of the rear derailleur between both shifters, evening out the wear and extending the life of your Di2 system. The sky is the limit for customization on Di2, have fun!

customizing shimano di2

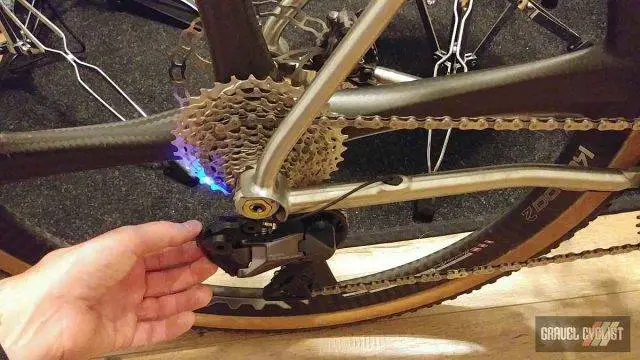

Bluetooth connection on R8170 Ultegra Di2 to Shimano’s eTube app

Continued from Above:

Shimano Di2 Hardware Technology

“Comprised of small junctions, wires, batteries, and mechanical units, Shimano Di2 looks and feels like a simple system, but it’s packed with intricate functions and leading-edge technology. The Di2 platform is complex with many important pieces that must work seamlessly together to achieve Shimano’s hallmark precise shift action.”

save wear on shimano di2

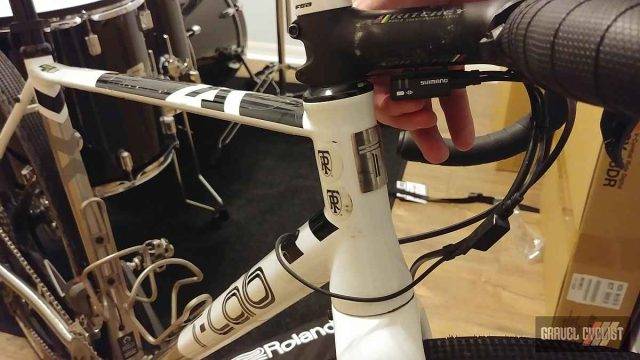

Bluetooth connection with EW-WU111 in-line Di2 module

“Mechanical units – The small Di2 mechanical units in the front and rear derailleurs precisely control the movement of each derailleur to provide a perfect, crisp shift every time. The powerful, lightweight motors deliver faster and more reliable shifting in all conditions and all terrain.”

save wear on shimano di2

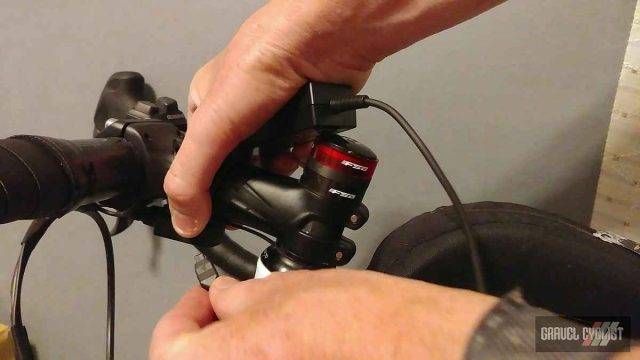

Physical connection to eTube with the SM-BCR2 Charger (no Bluetooth)

“D-FLY: Shimano D-FLY is the bridge between Di2 hardware and software technology. They enable connectivity between Di2 systems and ANT+/Bluetooth®LE compatible accessories like cycling GPS computers and lights. They also create a wireless connection with Shimano’s E-TUBE PROJECT Cyclist for smartphones and so riders can customize shifter setup, check for firmware updates, and troubleshoot any component issues.”

customizing shimano di2

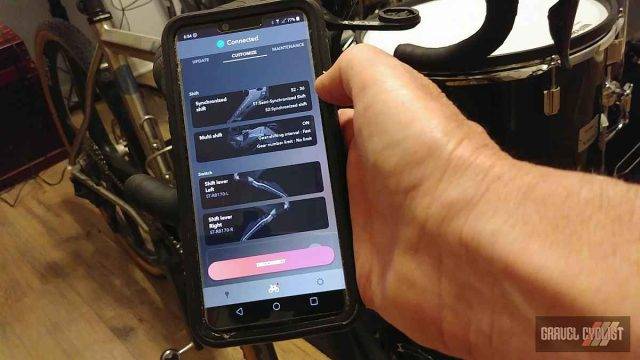

Connected to eTube
customizing shimano di2
Let the Customizing begin!
customizing shimano di2

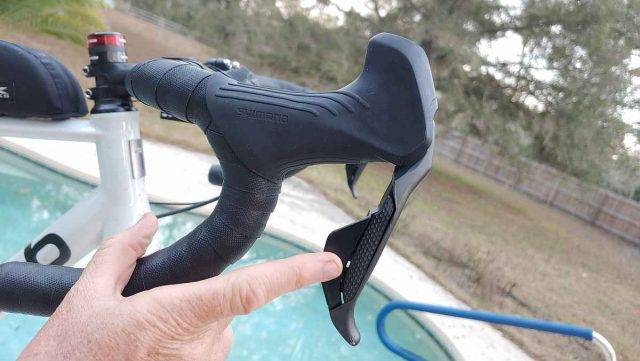

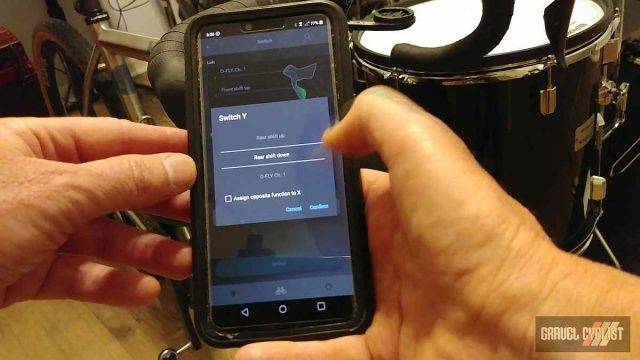

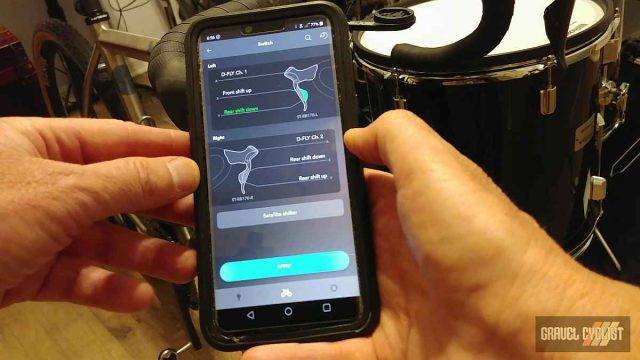

Left side big paddle will now shift the rear derailleur up the cassette

customizing shimano di2

save wear on shimano di2

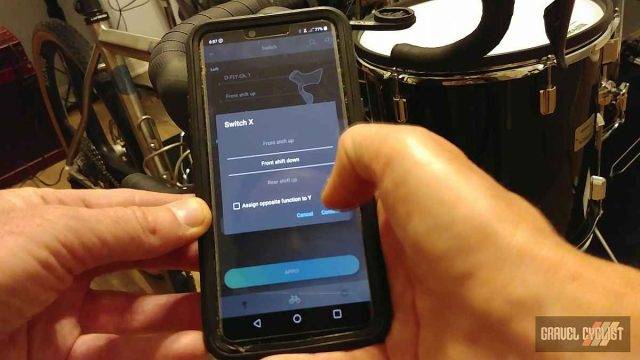

Next, switch the small right paddle to handle the chainring drop
save wear on shimano di2
Change made. Customize to your own specs!
