INSIDE BERD SPOKES: World’s Lightest Bicycle Spokes

berd spokes factory tour

“Berd spokes are made from an advanced polymer called Ultra High Molecular Weight Polyethylene (UHMWPE). UHMWPE has 12 times the strength-to-weight ratio of steel and floats on water. Berd spokes have an improved fatigue life over steel and are impervious to the elements. This is what makes Berd spokes the lightest, strongest, and most durable spokes ever invented.” – https://berdpokes.com

Inside Berd Spokes Video

Alternative Video Link for those reading via email subscription.

In this video, JOM Of the Gravel Cyclist crew joins the crew of BERD Spokes for a tour of the production facility in Hopkins, Minnesota.

Learn more at https://berdspokes.com

berd spokes tour

Continued from Above:

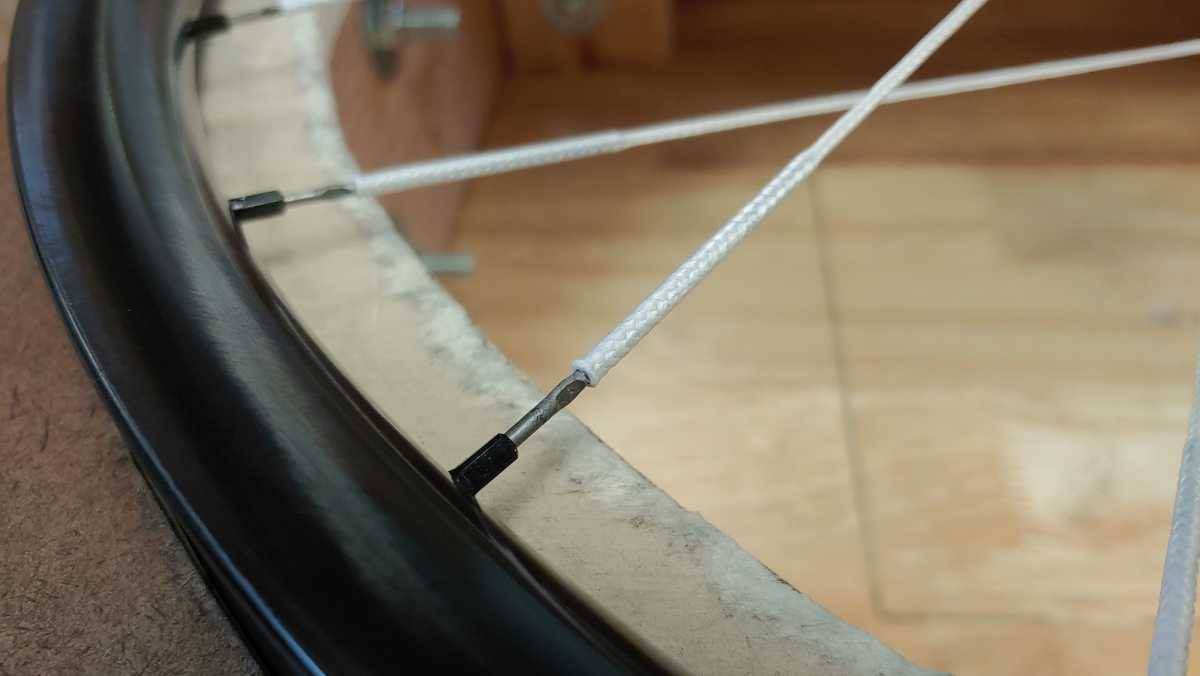

“Berd spokes use 14 gauge threads to connect to standard nipples the same way metal spokes do. Opposite the threads is a loop, which is pulled through the hub hole and secured with a rod. Berd spokes feature a 1.8 mm diameter in the midsection and are 2.5 grams per spoke.”

berd spokes tour

“Berd spokes also damp vibrations much more effectively than steel spokes. This results in a more comfortable, smoother, ride. The graphs above demonstrate that wheels with Berd spokes provide 200% better vibration damping than wheels with metal spokes.”

berd spokes tour

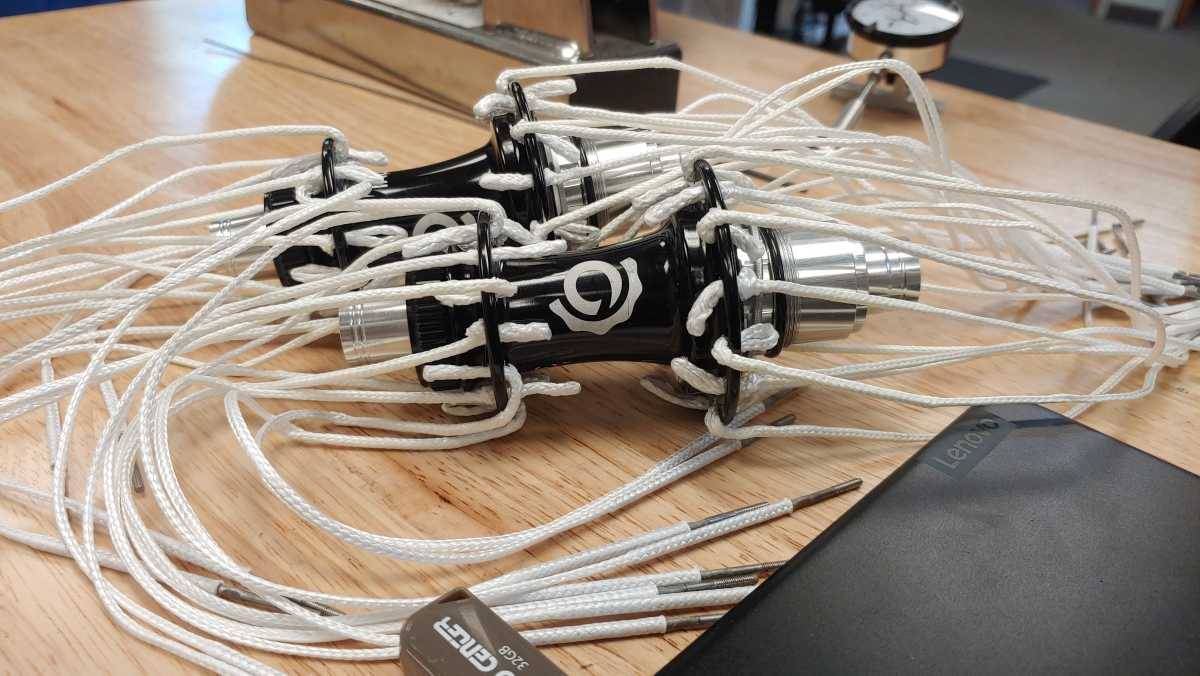

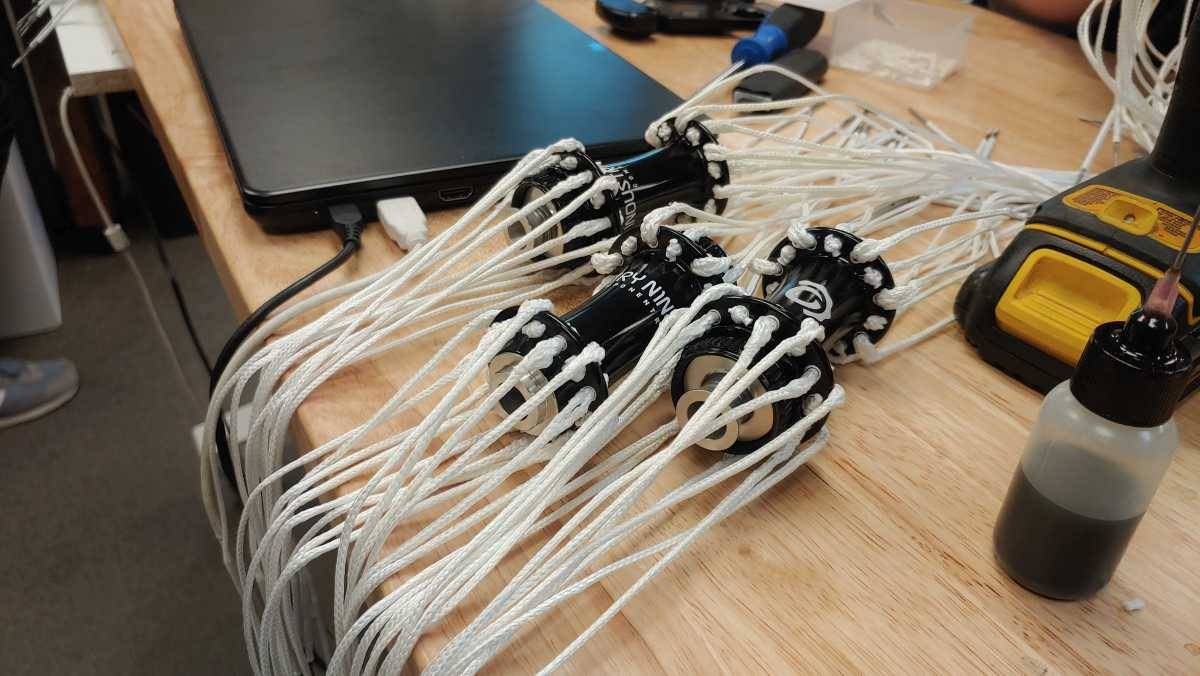

“Berd spokes work with all J-bend and most straightpull hubs. The spoke is connected to the hub by pulling the loop through the hub hole and inserting a rod into the loop. Once this is done, the spoke cannot pull back through the hub hole.”

berd spokes factory tour

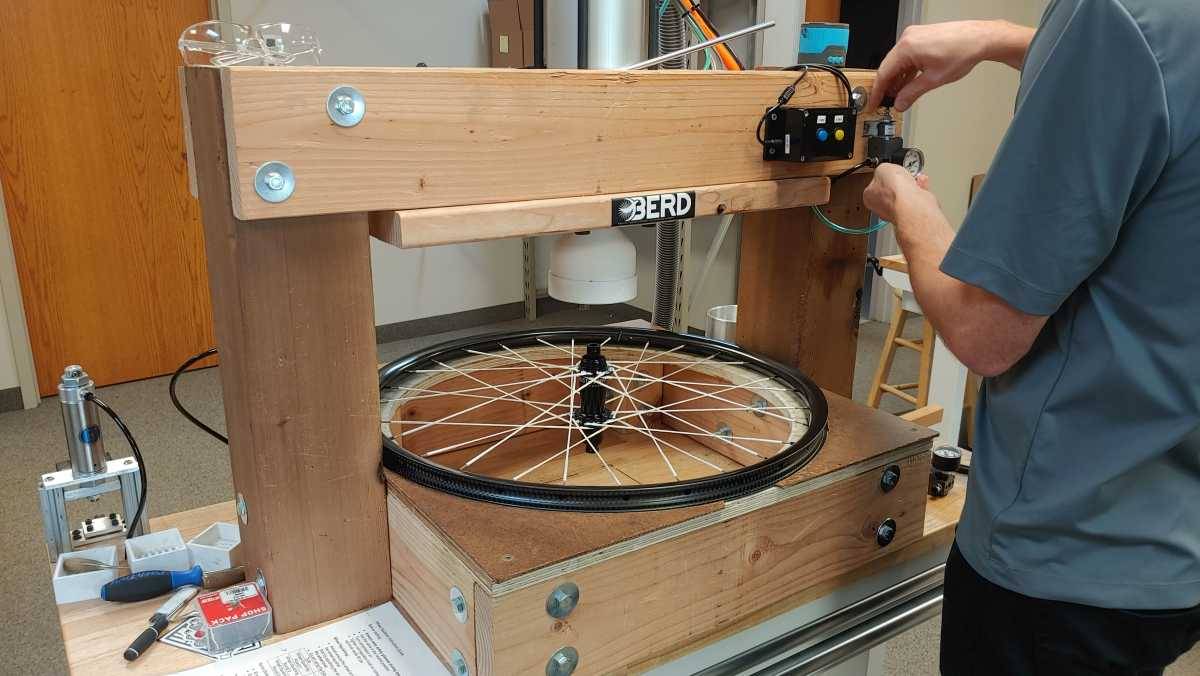

Wheel stressing machine used during the build process

“Wheels built with Berd spokes perform better than steel spokes when subjected to impacts. This is due to how Berd spokes distribute the impact energy across more spokes, which causes lower stress in the rim, spokes, hub, and nipples. In the video above, the first impact is a metal spoked wheel with a 101 Joule impact.”

berd spokes tour

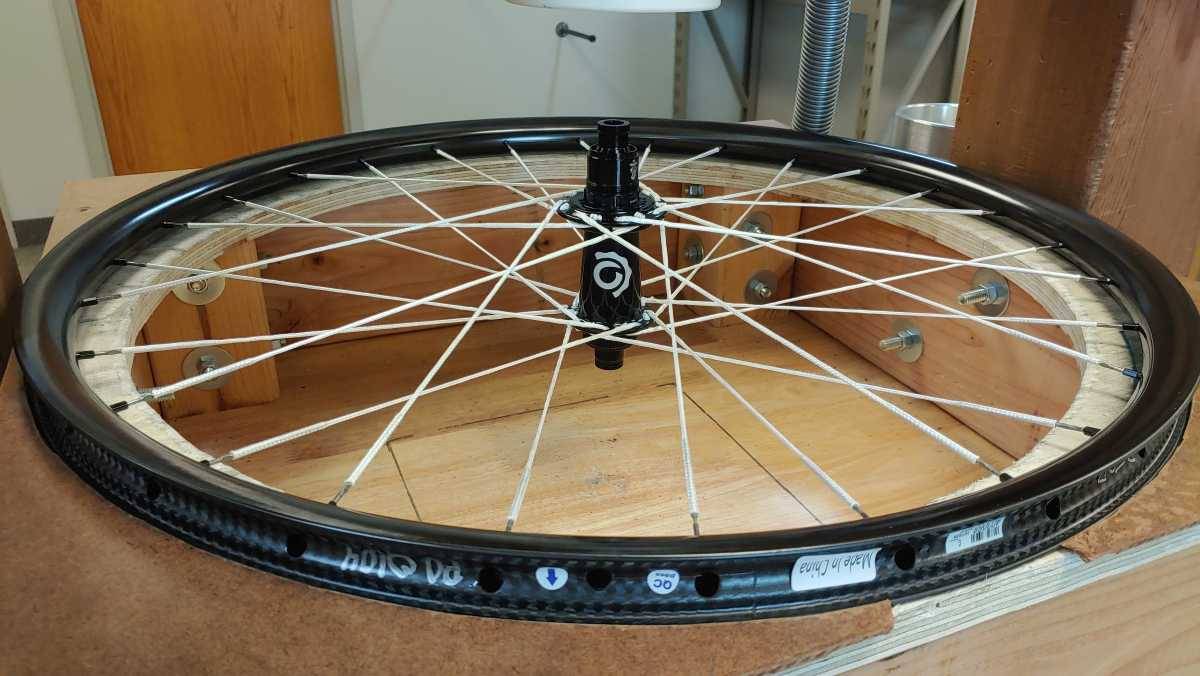

This wheel has been stressed a wee bit

“Two spokes pull through the rim in this test resulting in the need to replace the whole rim and spokes. In the second impact, a wheel with Berd spokes (same type of rim, hub, and nipples) is subjected to a 116 Joule impact, which is over 10% more than the metal spoked wheel, but no damage occurs. This demonstrates the robustness of Berd spokes and wheels to impacts.”

berd spokes tour

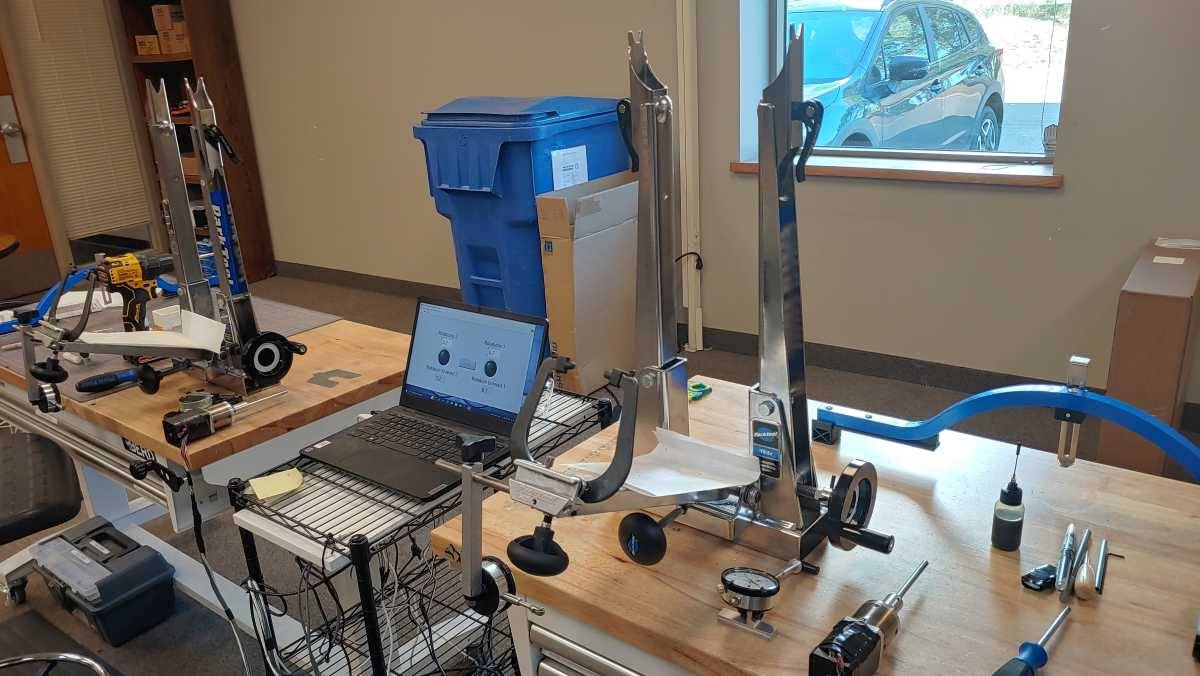

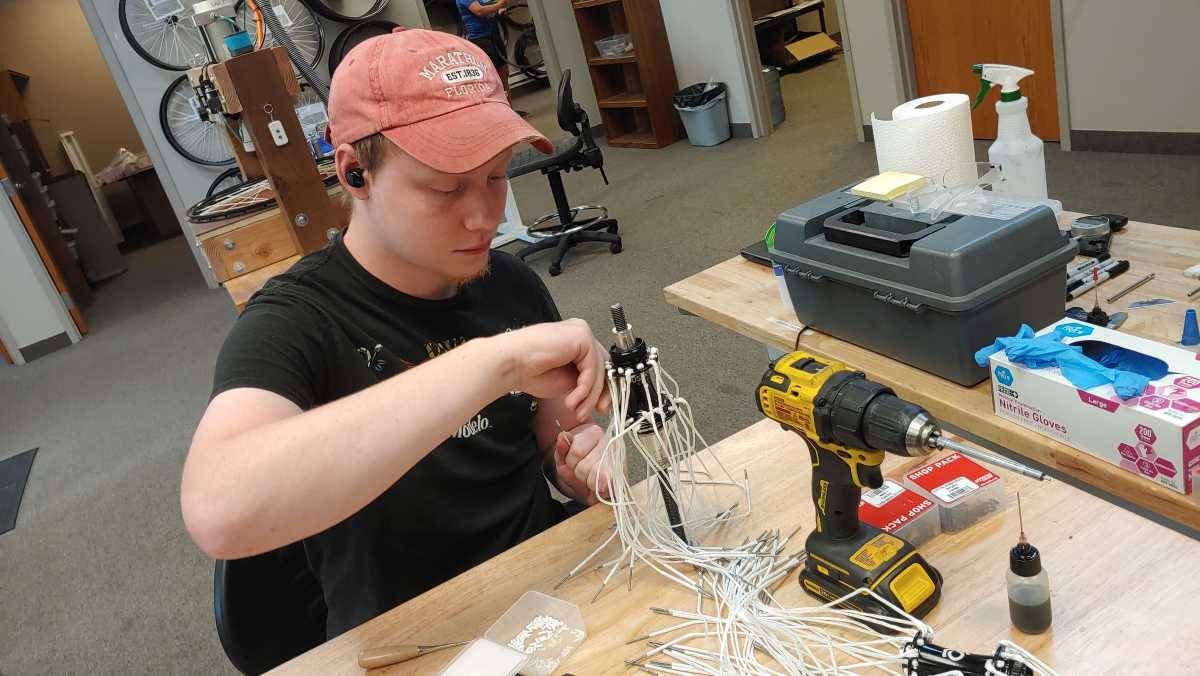

Plenty of tools and fixtures to build wheels

“Berd spokes also excel in torque fatigue performance due to the material properties of UHMWPE. The torque fatigue test is an accelerated test to evaluate long-term wheel performance related to both pedaling and braking. In this test, we apply 250 Nm of torque (much more torque than wheels are subject to during riding) for tens of thousands of cycles.”

berd spokes factory tour

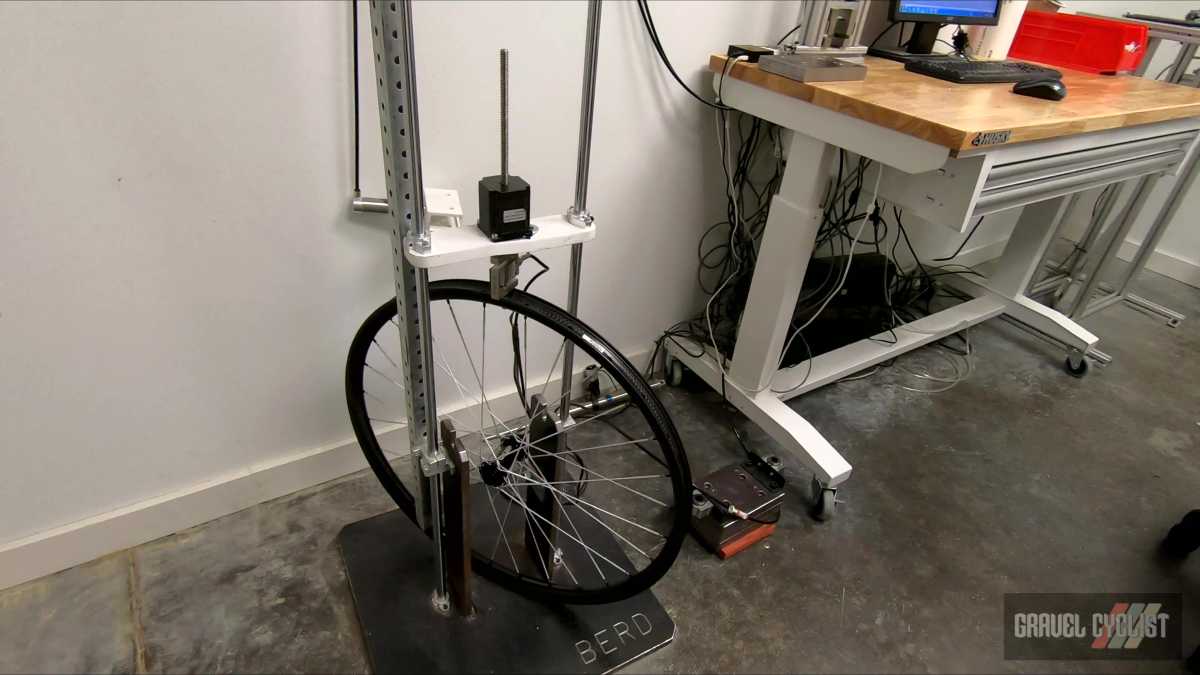

Wheel stress test (see video above)

“This test is one of the best tests to evaluate spokes and hubs for long-term reliability. All new Berd wheels undergo this testing during the development phase. An example of this in real life riding: 30 miles per hour and a power of 1,000 W, a wheel will see only 25 Nm of torque.”

berd spokes factory tour
Spoke test to fail (see video above)

“Berd spokes also resist damage from blunt force impacts made directly to the spokes. In the slow motion video above, a metal rod is shot into a wheel spinning at high speed to simulate a stick or other object that could be encountered on the trail.”

berd spokes tour

“In the metal spoked wheel test, one spoke completely fails by pulling through the rim, which would require full rim replacement, while another spoke is badly bent. In the wheel built with Berd spokes, no damage occurs as the spokes absorb the impact. Just another way Berd spokes keep you on the trail.”

berd spokes factory tour

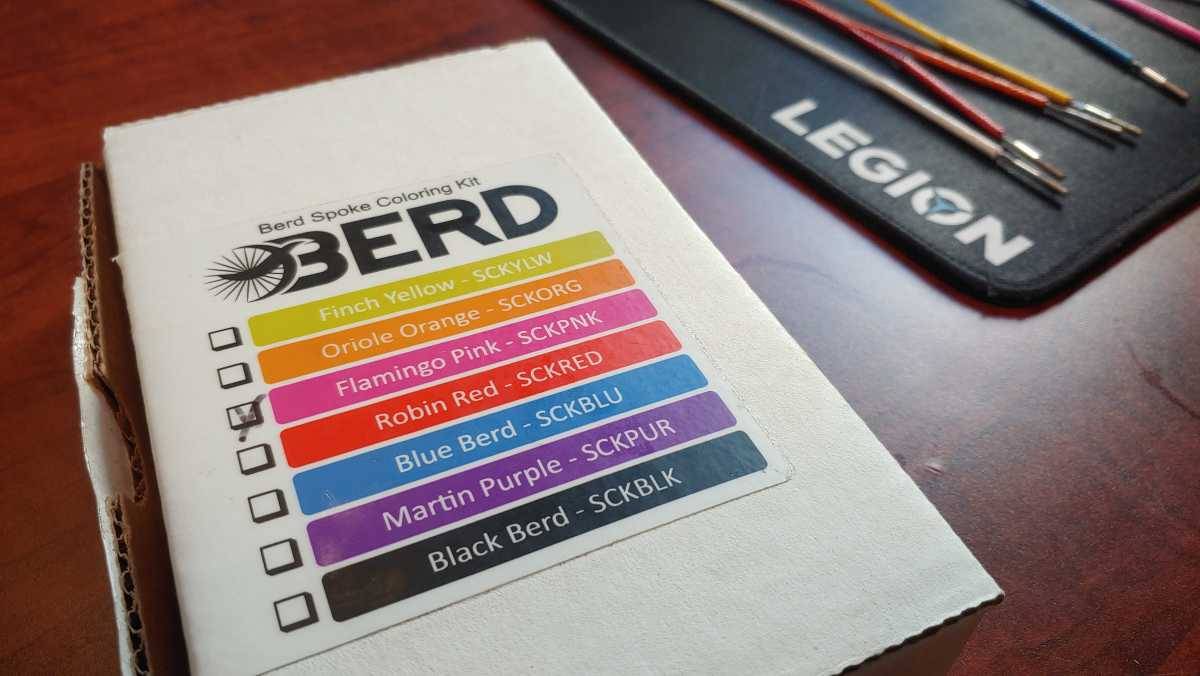

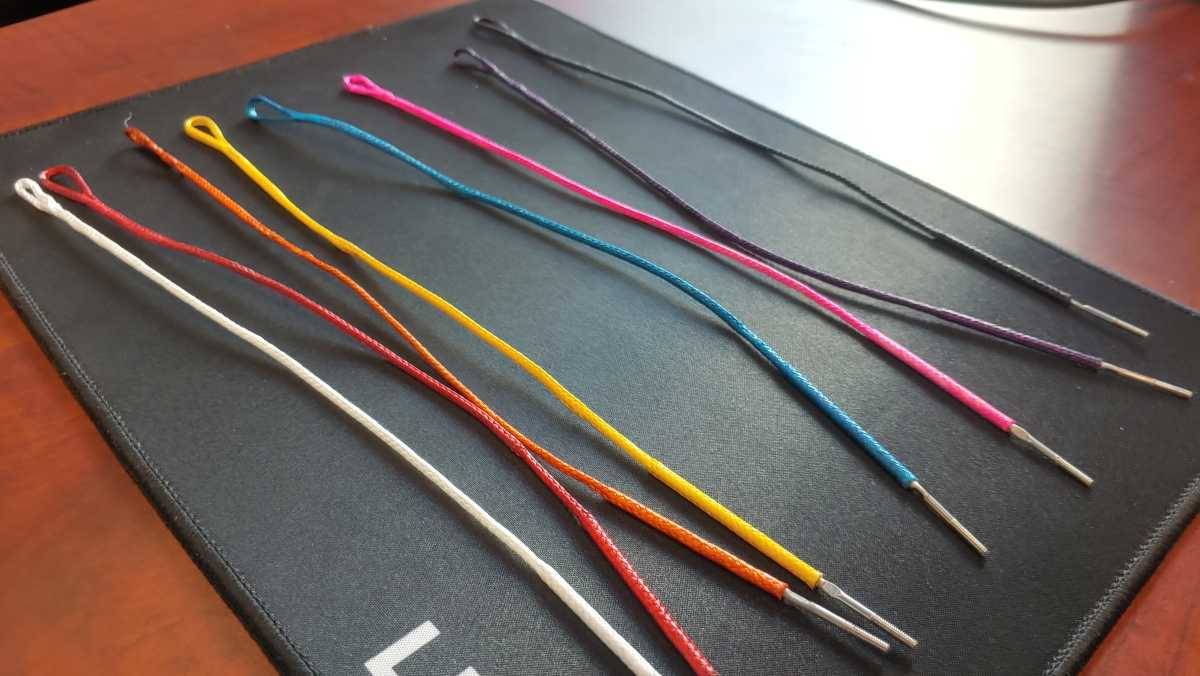

Spoke coloring kits are available for purchase

berd spokes factory tour

berd spokes tour

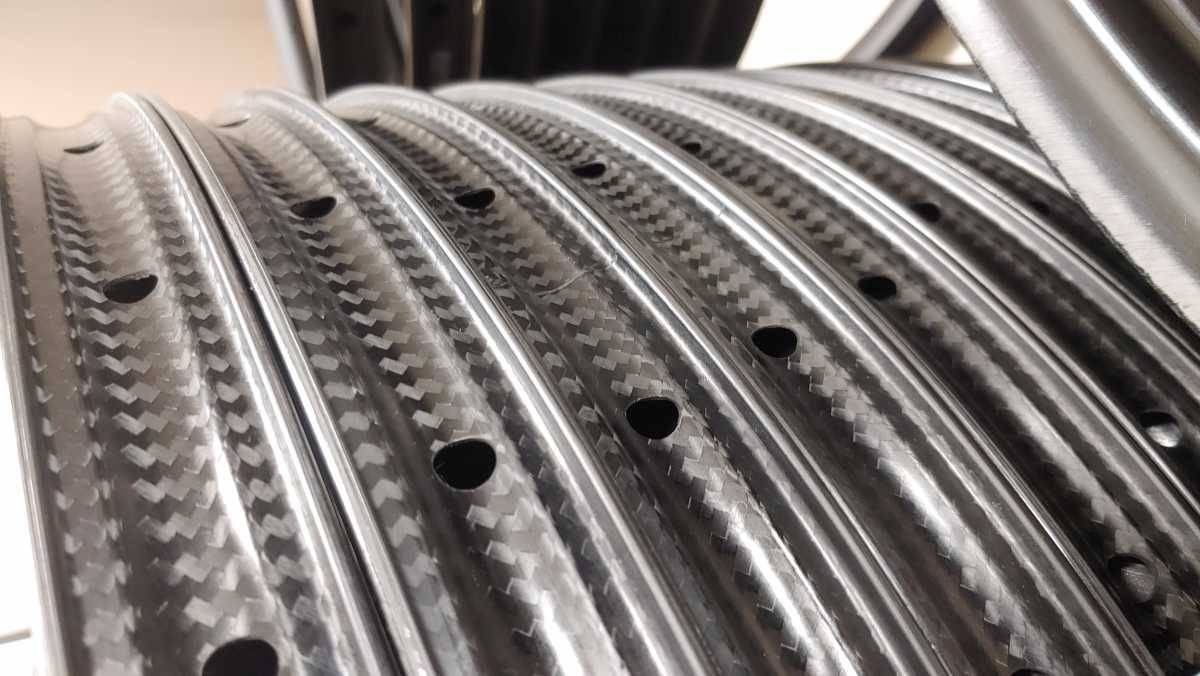

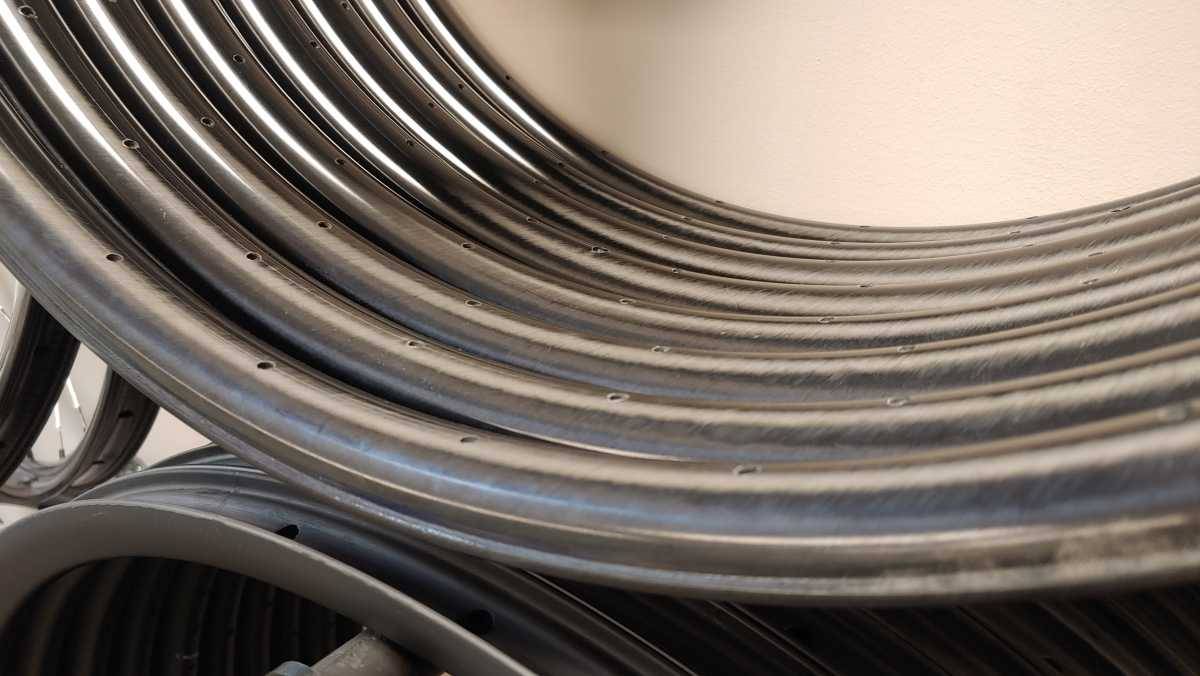

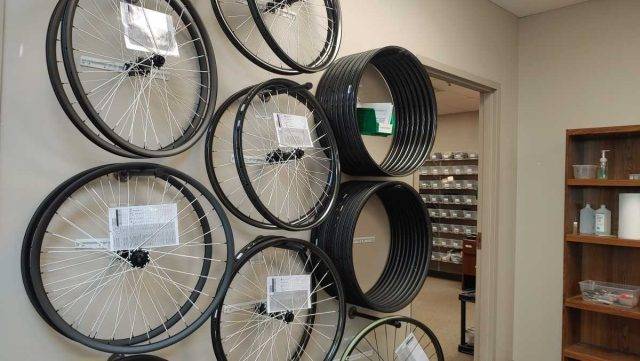

Rims galore in stock, ready to build

berd spokes tour

berd spokes factory tour
