“Moots Cycles has been handcrafting bicycle frames in Steamboat Springs, Colorado since 1981. The company is known for building the finest quality titanium road, mountain, cross, and specialty bicycle frames, and select components from its facility in the Rocky Mountains. Moots bikes are enjoyed by cycling enthusiasts for their unsurpassed ride quality, attention to details and superior craftsmanship.”
“In recognition of Moots’ business leadership, product innovation and corporate/environmental responsibility Moots has been recognized as a Colorado Company to Watch. Moots frames and components are available from high-end bicycle dealers worldwide.”
The very first Moots, a custom steel road frame, rolled out the front door in Steamboat Springs, Colorado, in 1981.

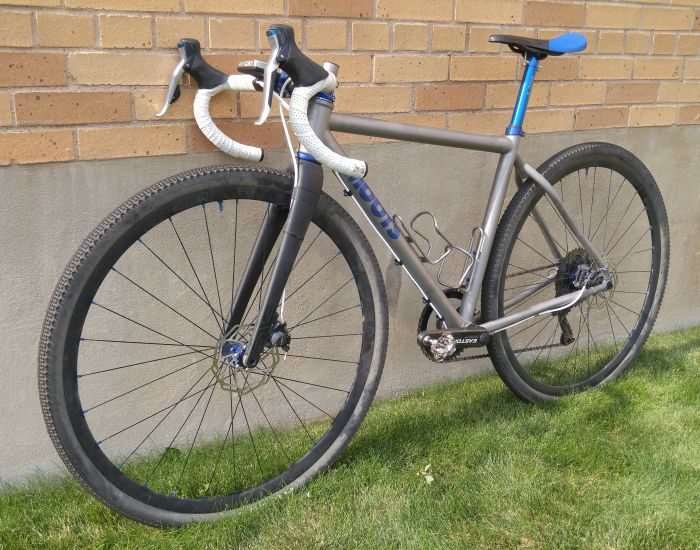

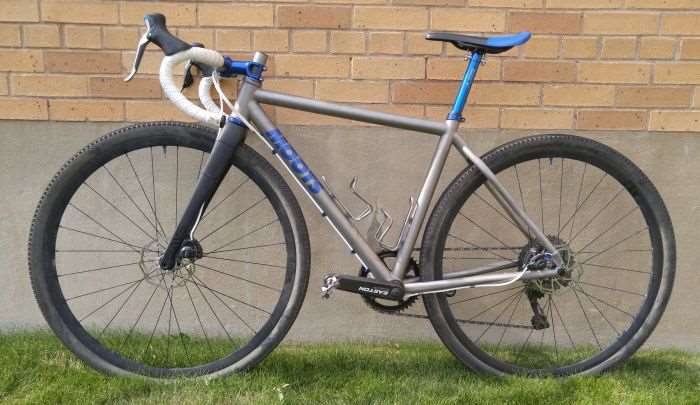

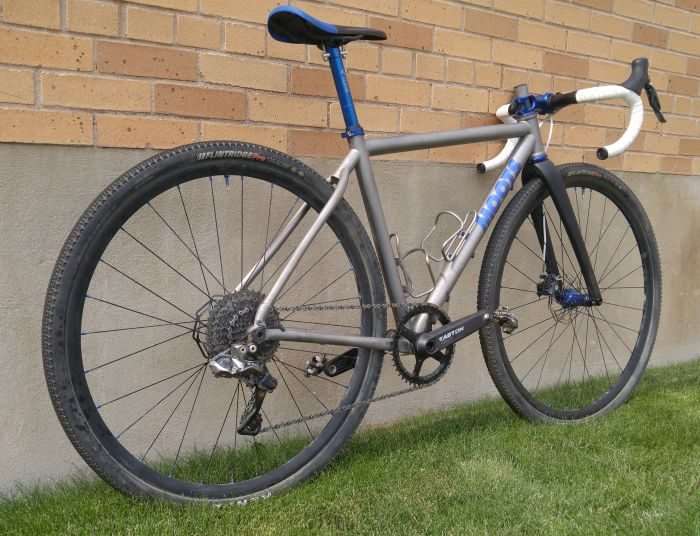

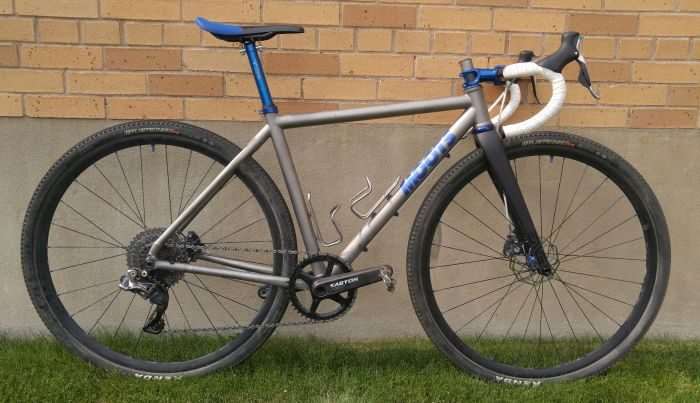

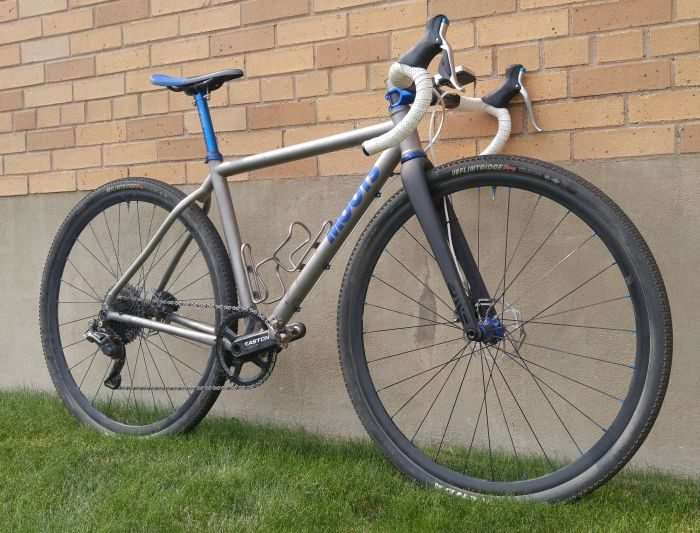

This example of the Moots Routt RSL belongs to Jeremiah Gantzer, the gentleman responsible for Moots sales in the Midwest and Rocky Mountains regions of the United States. This bike isn’t all show and no go. Jeremiah raced this lovely machine at the recent Crusher in the Tushar in Beaver, Utah.

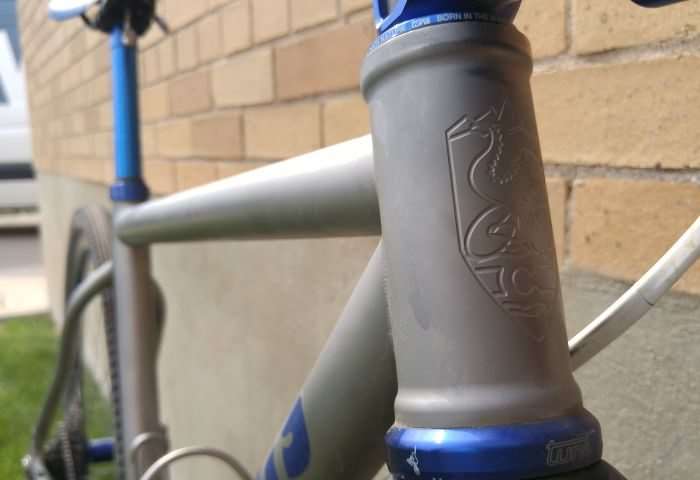

Working for a company such as Moots has its perks. Rather than sticking with the headtube badge that adorns every Moots frame that departs their Steamboat Springs facility, Jeremiah requested the company logo be engraved into the headtube – all in the name of saving a few grams. Tricky.

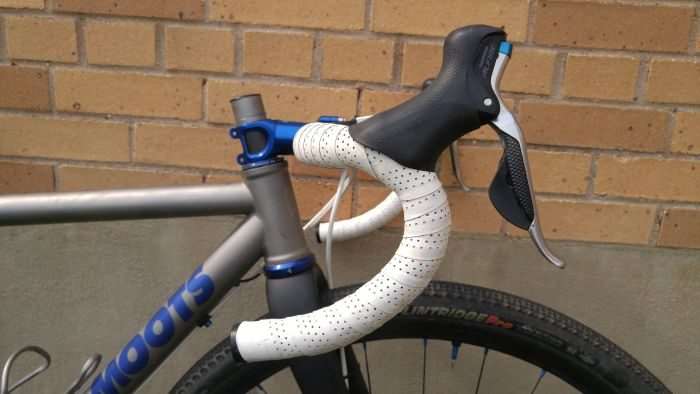

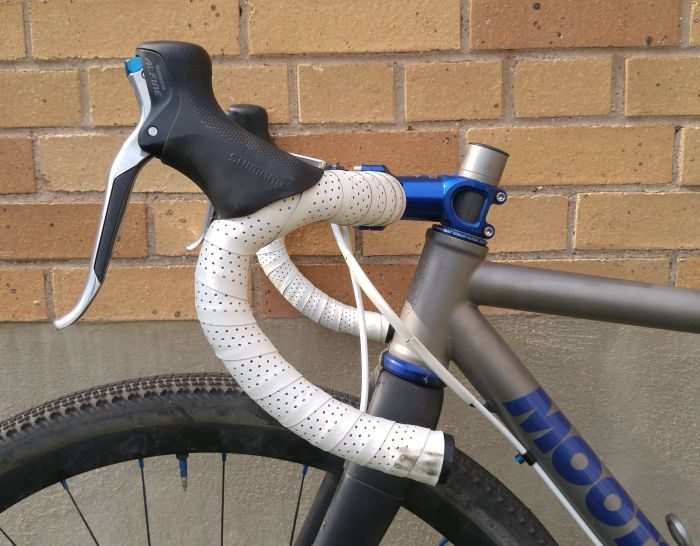

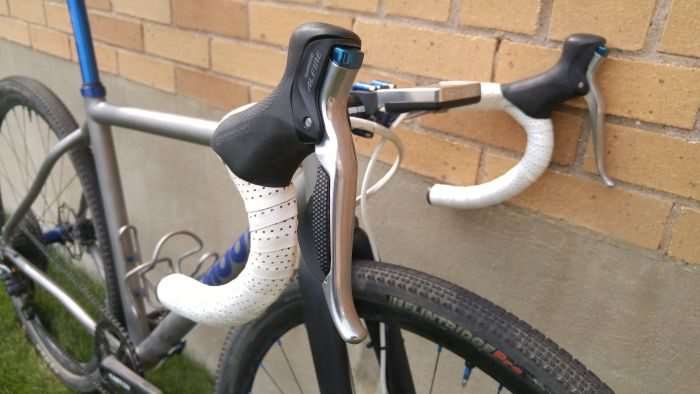

Jeremiah has carefully chosen parts for his Moots that are both lightweight and durable. Jeremiah’s bike relies on a 1X XTR Di2 drivetrain (more photos below), and has selected the rarely seen Shimano Alfine Di2 shifters.
With just one functioning shifter lever required, Alfine Di2 levers are a good choice if you’re looking to save a few grams on a 1X drivetrain, and don’t have a requirement for hydraulic brakes. Shimano’s Alfine Di2 levers are for mechanically actuated brakes only. Jeremiah informed me he’ll be upgrading to Shimano Dura-Ace 9170 Di2 levers in the future – for a few more weight savings.

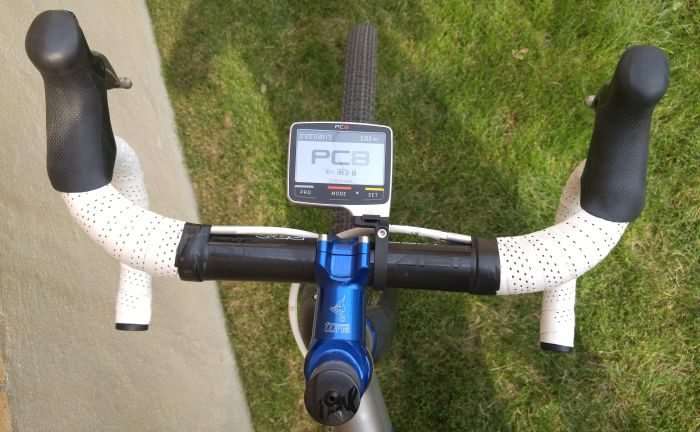

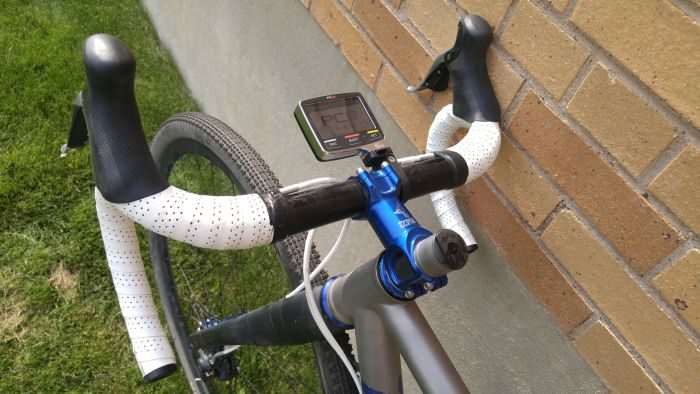

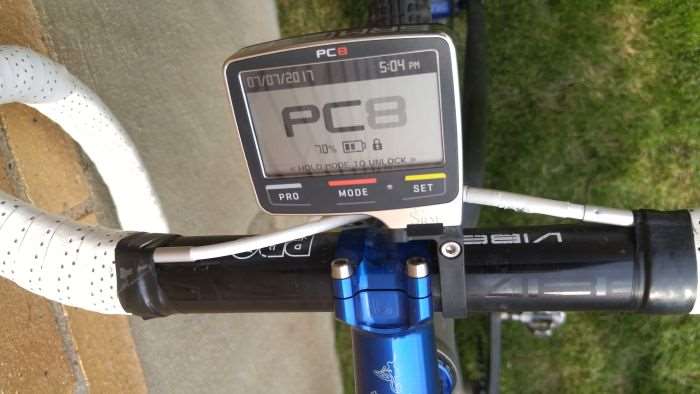

The venerable SRM PC8 head unit mates wirelessly to the Easton crank based power meter.
Lightweight parts from German manufacturer Tune are all over Jeremiah’s bike.

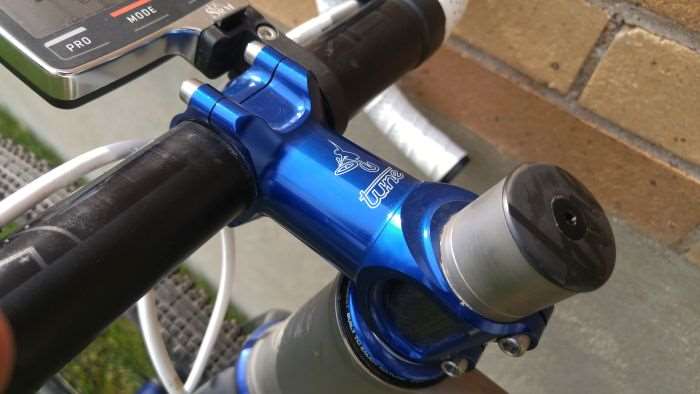

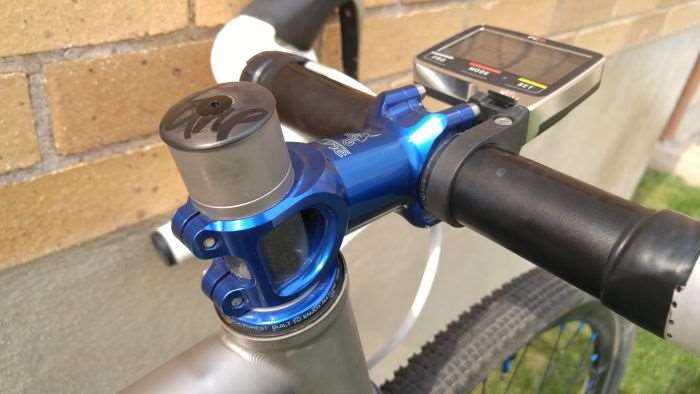

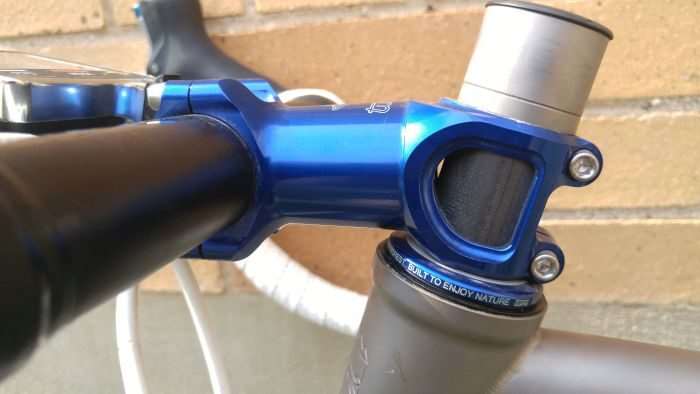

Above, a Tune Babo headset is matched to a -17 Tune Geiles Teil 4.0 stem. “Geiles Teil” literally means “Horny Piece”.
The anodized blue of the Tune parts contrast nicely with the bead blasted finish of the Moots titanium frame and white handlebar tape.

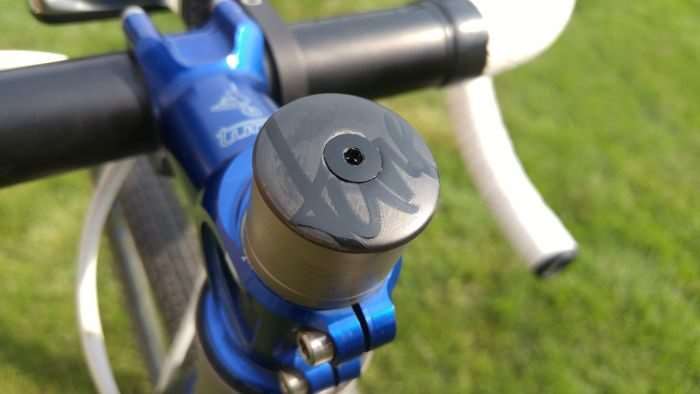

More gram chasing – The Tune Deckel (headset cap) + Schraube (aluminium bolt), a combination that weighs a paltry five grams. Hidden beneath these two items, inside the fork steerer tube is the Tune Gum Gum. The Gum Gum is Tune’s ultra lightweight fork / steerer expander.

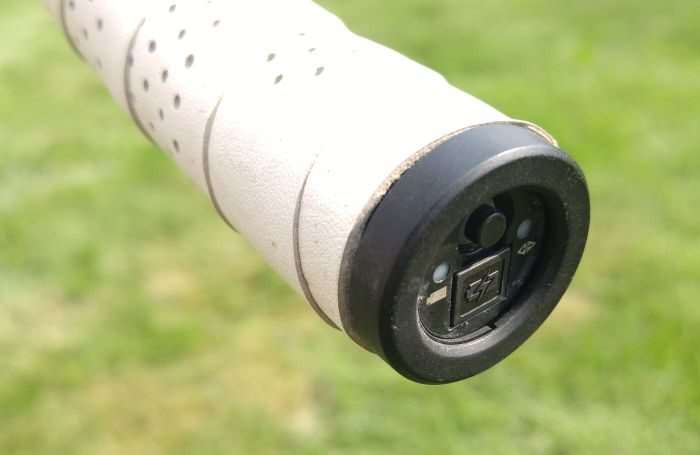

The trickery continues, this time with Di2. This is a very recent addition to Shimano’s Di2 product line, the EW-RS910 Junction A box. Rather than being slung beneath the stem, this version of the junction box resides inside the end of one’s handlebar. If you look at the photos above, you won’t see any Di2 wiring present around the handlebars. The wire from the EW-RS910 unit is routed discreetly inside the handlebar, and exits through a port on the bar beneath the handlebar tape. Then, Jeremiah uses the pro-mechanic trick of heat shrink tubing to hide the Di2 wiring.

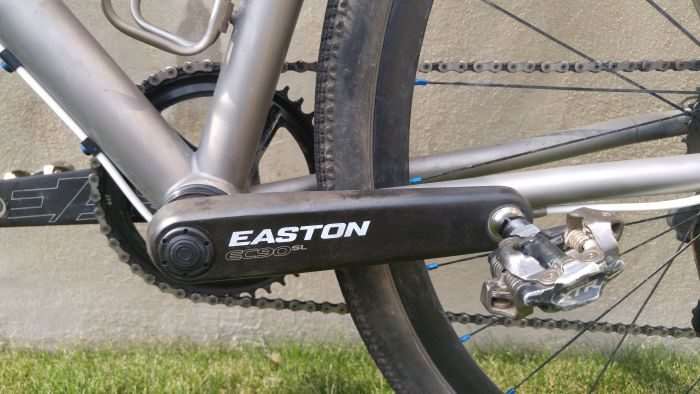

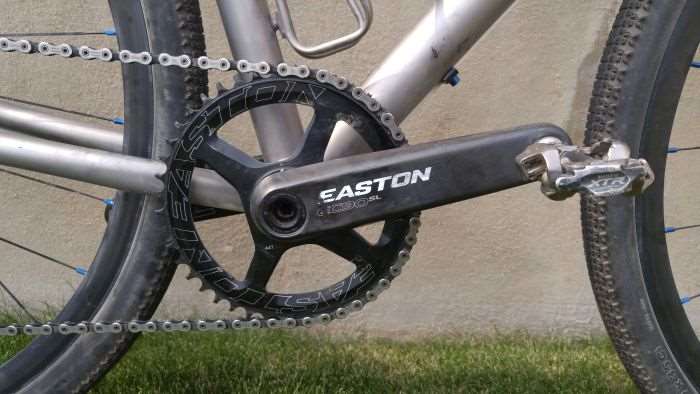

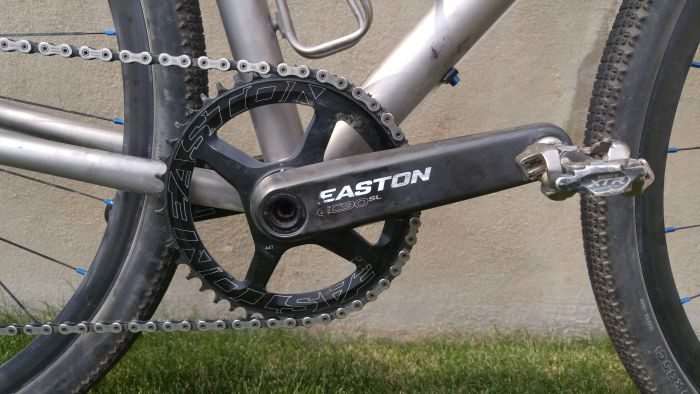

Power measurement is handled by Easton’s EC90 SL crankset, which utilizes the company’s Cinch technology (30mm bottom bracket spindle). In addition to the new Cinch power measuring spindle, hidden away from view, the crankset can be setup as a 1X or 2X.
In Jeremiah’s case, he has chosen 1X and a 44 tooth chainring, which is directly mounted to the crankset. Pedals are Shimano’s ultra reliable XTR PD-M980 pedals.

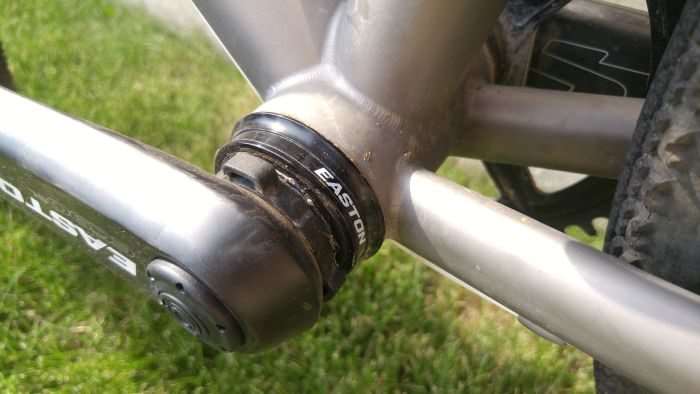

Above, Easton PF30 compatible bottom bracket.

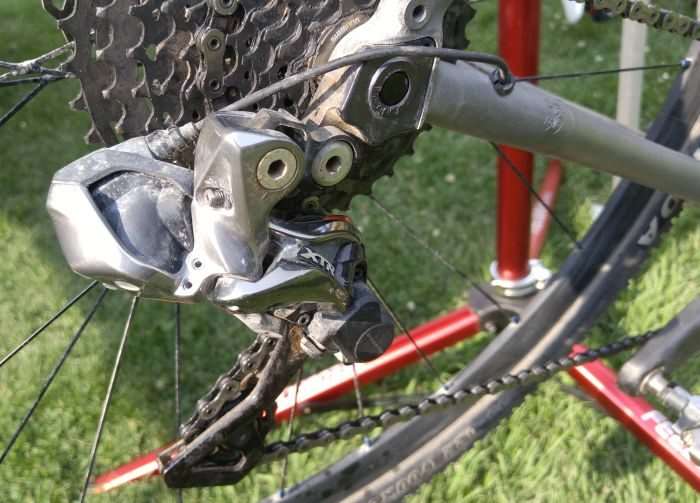

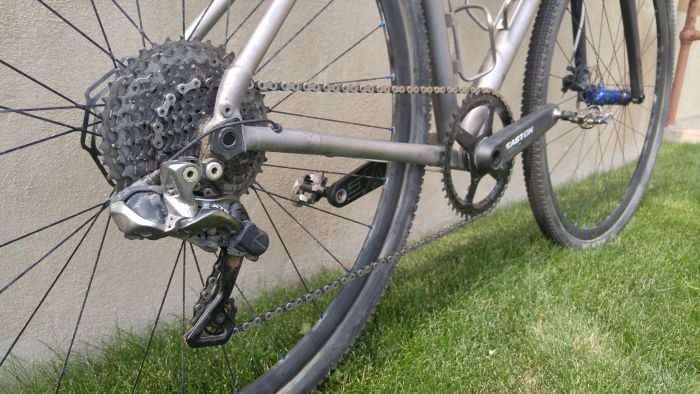

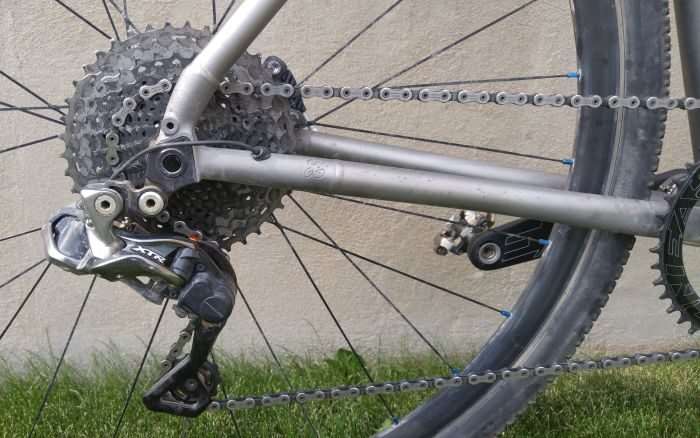

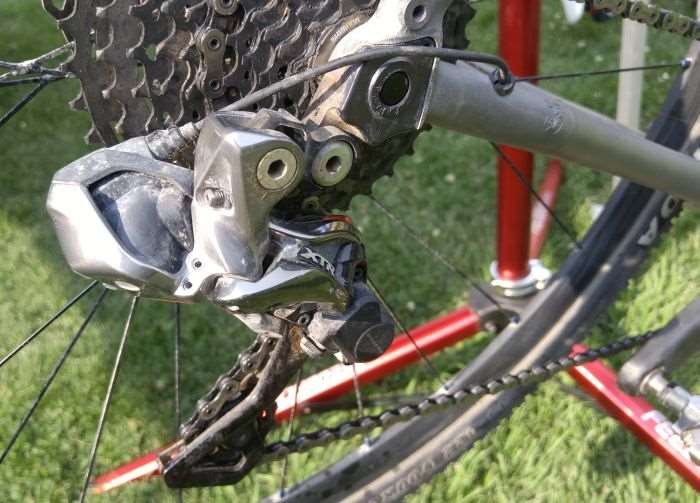

Shimano’s superb XTR Di2 rear derailleur handles the chores of shifting. Unlike the road versions, this derailleur is fitted with a clutch, for handling the nastiest of conditions.
Di2 wiring is routed inside the right chainstay.

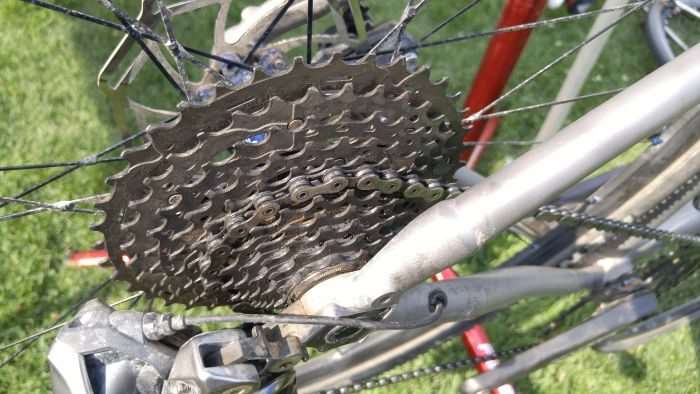

Shimano XTR 11-speed 11-40 cassette.

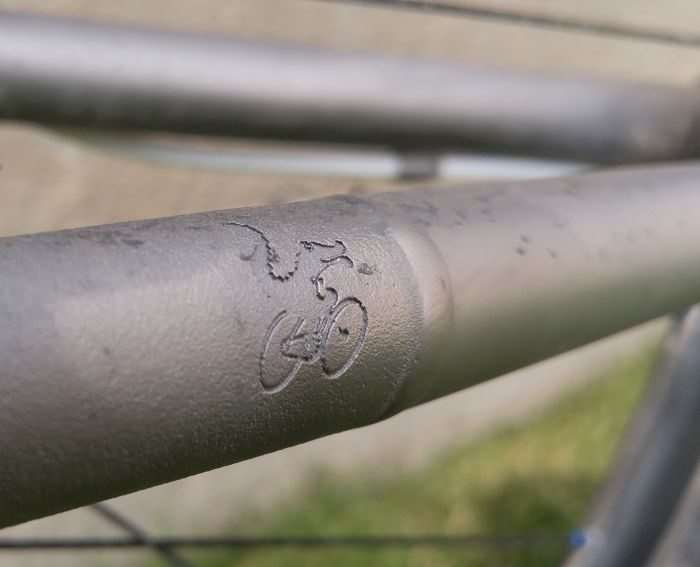

Great attention to detail in the chainstay – the Moots logo is engraved – and a little weight is saved.

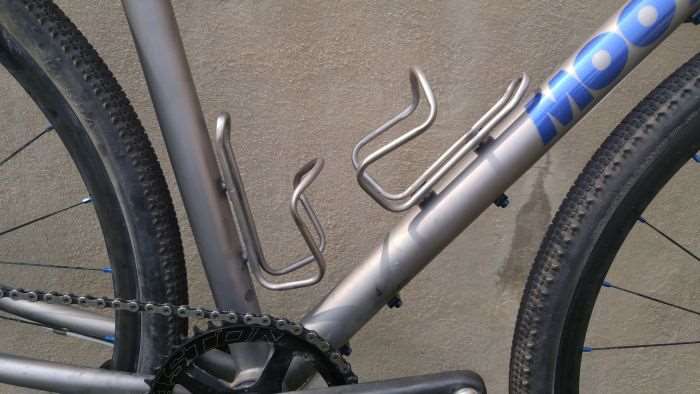

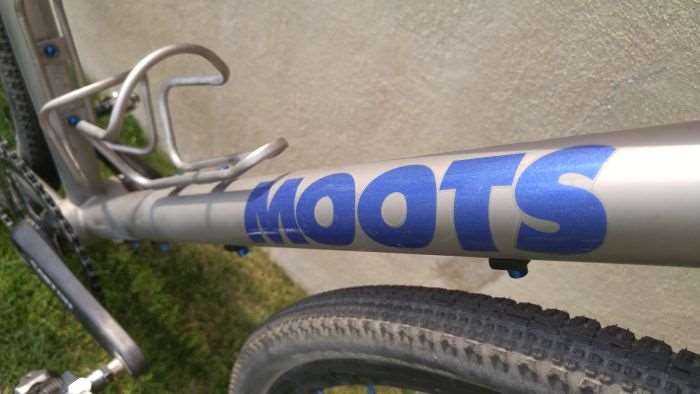

A titanium frame should always be fitted with the best bottle cages going – King Cage Titanium – these cages never eject bottles, and the variant sold by Moots is bead blasted, providing a perfect match to the frame.

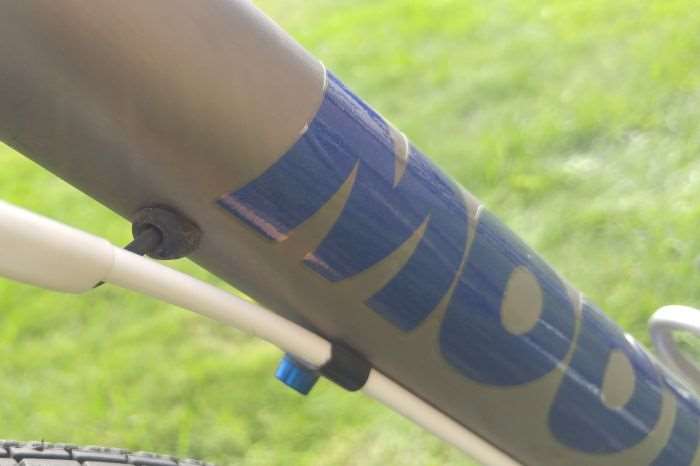

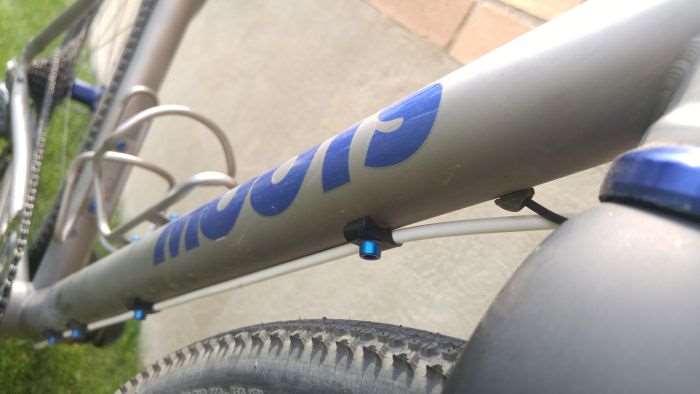

The rear mechanical brake cable is routed cleanly beneath the frame’s downtube. Note the anodized blue aluminium bolts.
Above, one of the few places Di2 cabling can be spotted on this bike. Hidden beneath the heat shrink tubing, the cable enters the frame and is run internally towards the bottom bracket area.

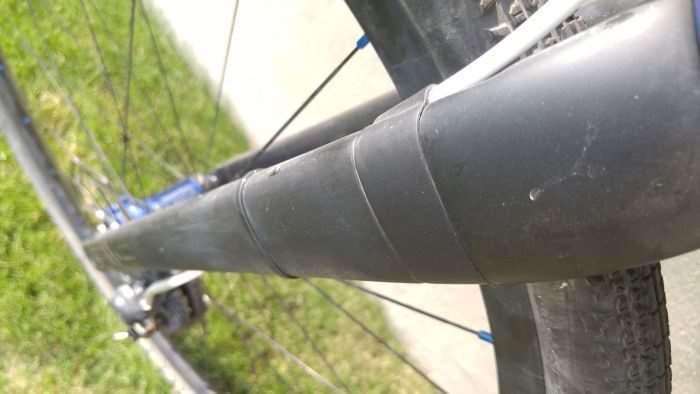

Above, an Enve all carbon tapered fork.

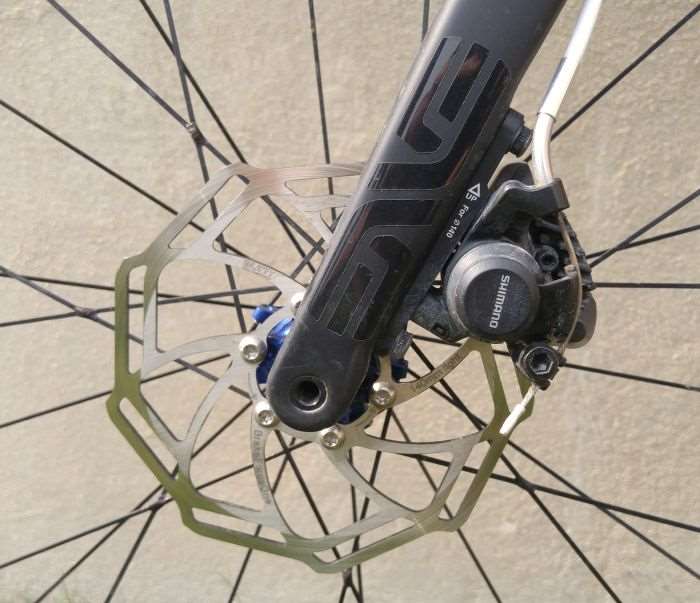

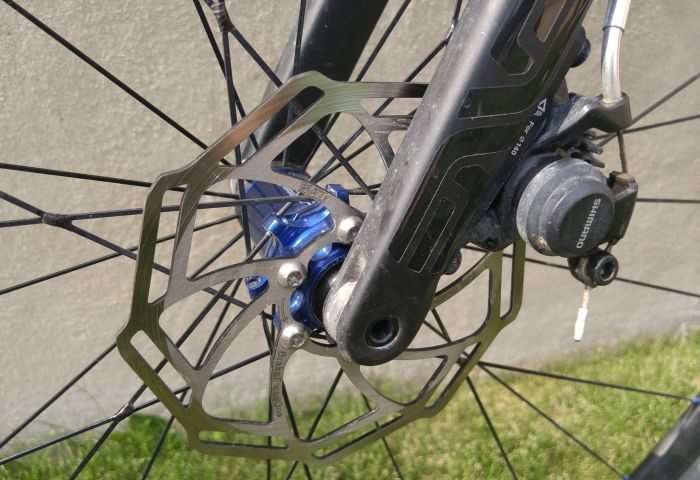

Enve fork with the rarely seen Shimano BR-RS350 flat mount mechanical disc brake. These calipers are a single piston design, but offer plenty of braking power. Tune’s 6-bolt rotors in 140mm, fitted with titanium bolts, help bring Jeremiah’s Moots to a halt.

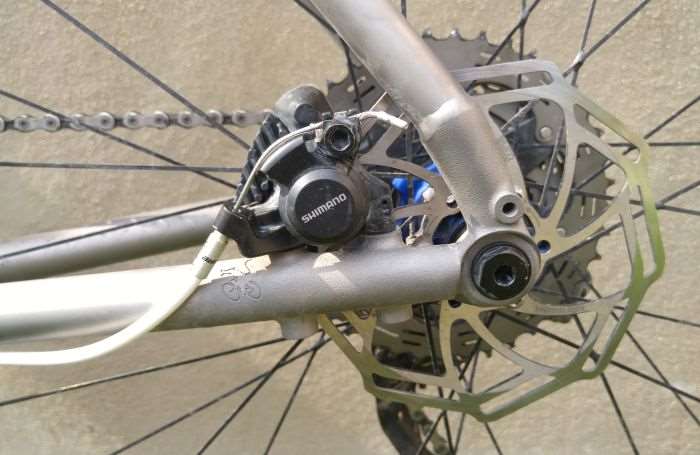

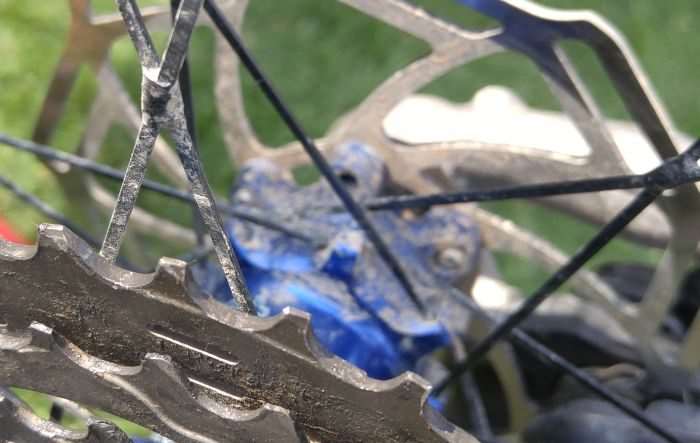

Tune 140mm rotor at the rear of the bike – observant types will notice Jeremiah has resorted to a classic weight weenie trick. Only three of the six mounting bolts are used to mount the rotor. This isn’t recommended, but if you’re chasing a few grams…

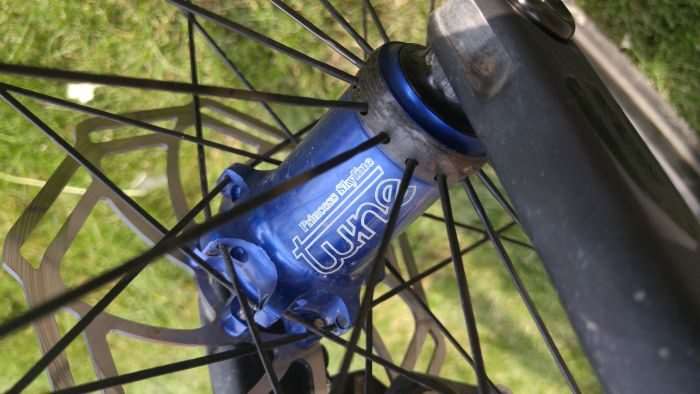

The wheelset on Jeremiah’s bike is very special. The stock build is very light at 1,370 grams the pair, but this pair of Tune Skyline road disc wheels have been further tweaked, to reduce the weight to 1,150 grams for the pair! Tune’s Princess Skyline hub and straight pull spokes are featured on the front wheel.

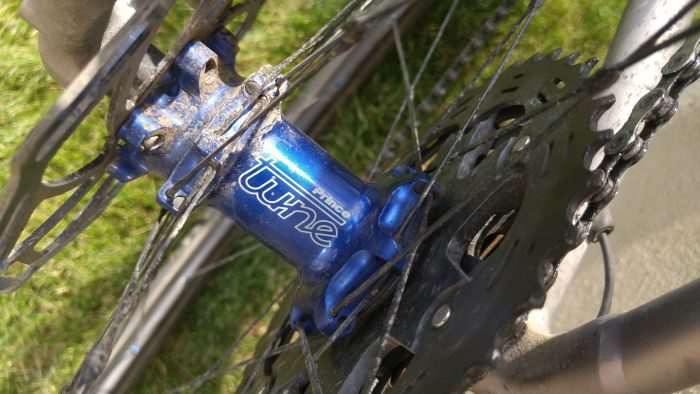

On the rear, Tune’s Prince hub.
To ensure these lightweight wheels remain relatively stiff and stay round and true, the spokes are carbon wrapped where they cross. This is an improvement upon the old trick of tying and soldering spokes.

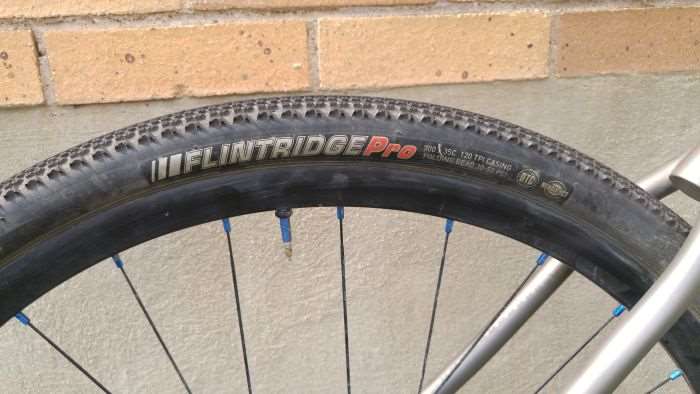

Kenda’s Flintridge Pro tyres are tubeless compatible and feature a 120TPI count.

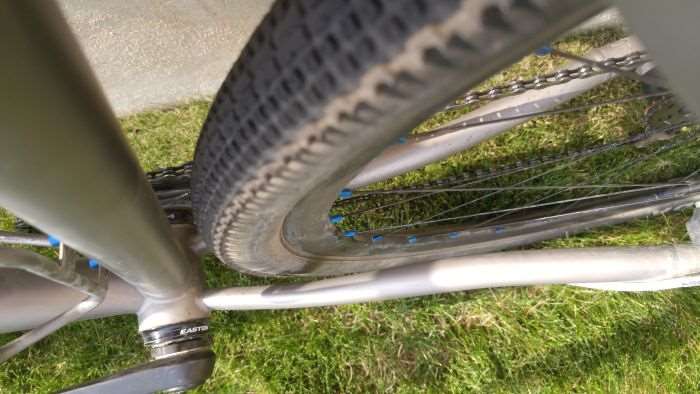

The Routt RSL frame will clear a 700c x 40mm tyre.

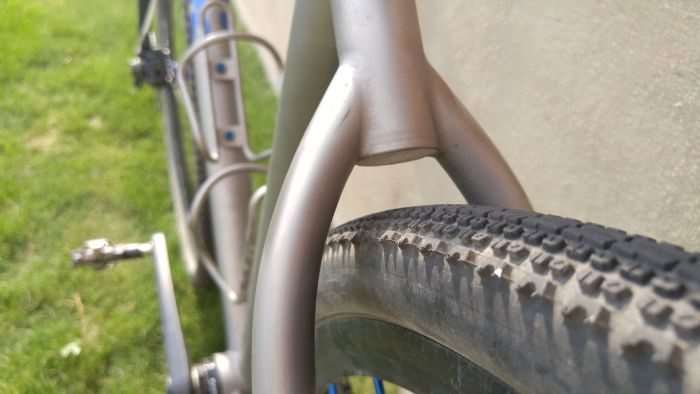

The unique chainstay bridge.

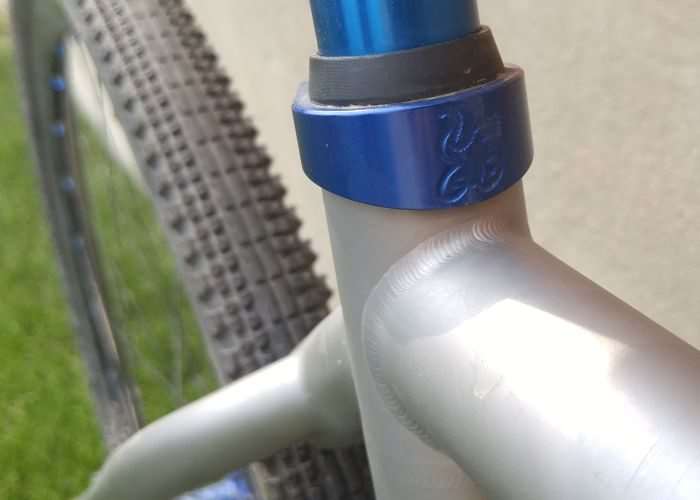

More attention to detail with the blue anodized seat collar and engraved Moots logo. A USE 30.9mm – 27.2 shim downsizes the 27.2mm Tune seatpost to the Moots.

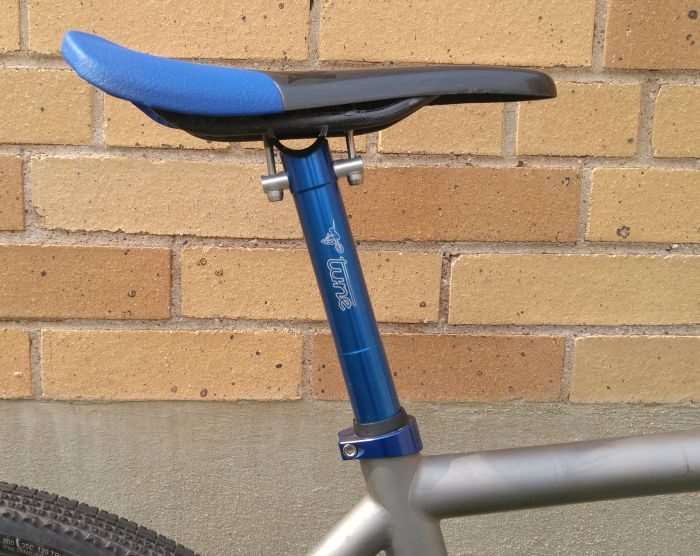

Above, a zero setback Tune Starkes Stück seatpost.

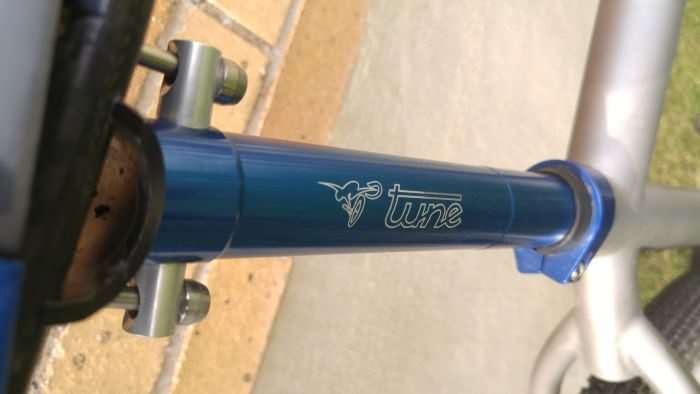

This seatpost features titanium bolts and a carbon fiber support cradle.

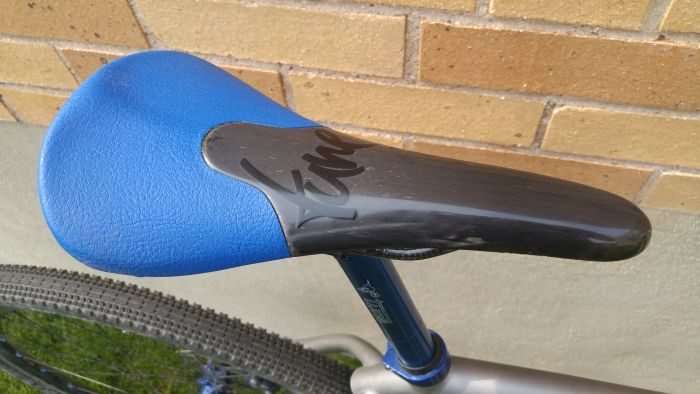

Jeremiah perches upon the Tune Komm-Vor saddle. The lightweight leather padding and full carbon fiber construction adds up to 95 grams. Don’t judge a book by its cover – this and saddles like the Tune are extremely comfortable. Remember, modern shorts feature plenty of padding, so saddle padding can be skimped upon if you’re serious about saving weight.

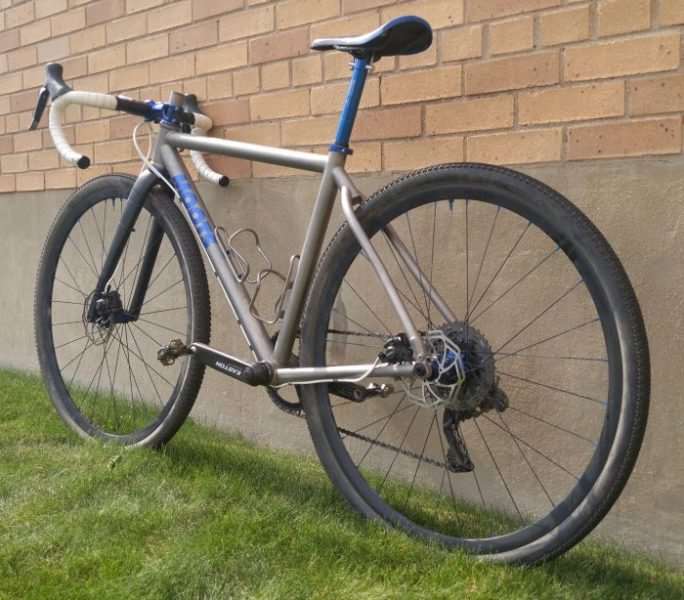

Jeremiah Gantzer’s Moots Routt RSL Titanium Gravel Bike:
- Frame: Moots Routt RSL, custom machine on the headtube.
- Fork: Enve Cross Fork Disc, 12mm thru-axle.
- Headset: Tune Babo 44mm.
- Stem: Tune Geiles Teil 4.0 stem.
- Handlebar: Shimano Vibe.
- Bar Tape: Fizik 2mm.
- Brakes: Shimano BR-RS350 flat mount mechanical disc.
- Brake Rotors: Tune 140mm.
- Brake / Shift Levers: Shimano Alfine Di2.
- Front Derailleur: N/A.
- Rear Derailleur: Shimano XTR Di2.
- Cassette: Shimano M9000 11-speed 11-40.
- Chain: Shimano HG X11 11-speed.
- Crankset: Easton EC90 SL with 1X 44 tooth chainring.
- Bottom Bracket: Easton PF30.
- Pedals: Shimano XTR PD-M980.
- Wheelset: Tune Skyline road disc wheels with Skyline Prince and Princess hubs, tubeless.
- Tires: Kenda’s Flintridge Pro, 700c x 35mm.
- Saddle: Tune Komm-Vor.
- Seatpost: Tune Starkes Stück, 27.2mm.
- Collar: Moots.
- Bottle Cages: King Cage Titanium.
