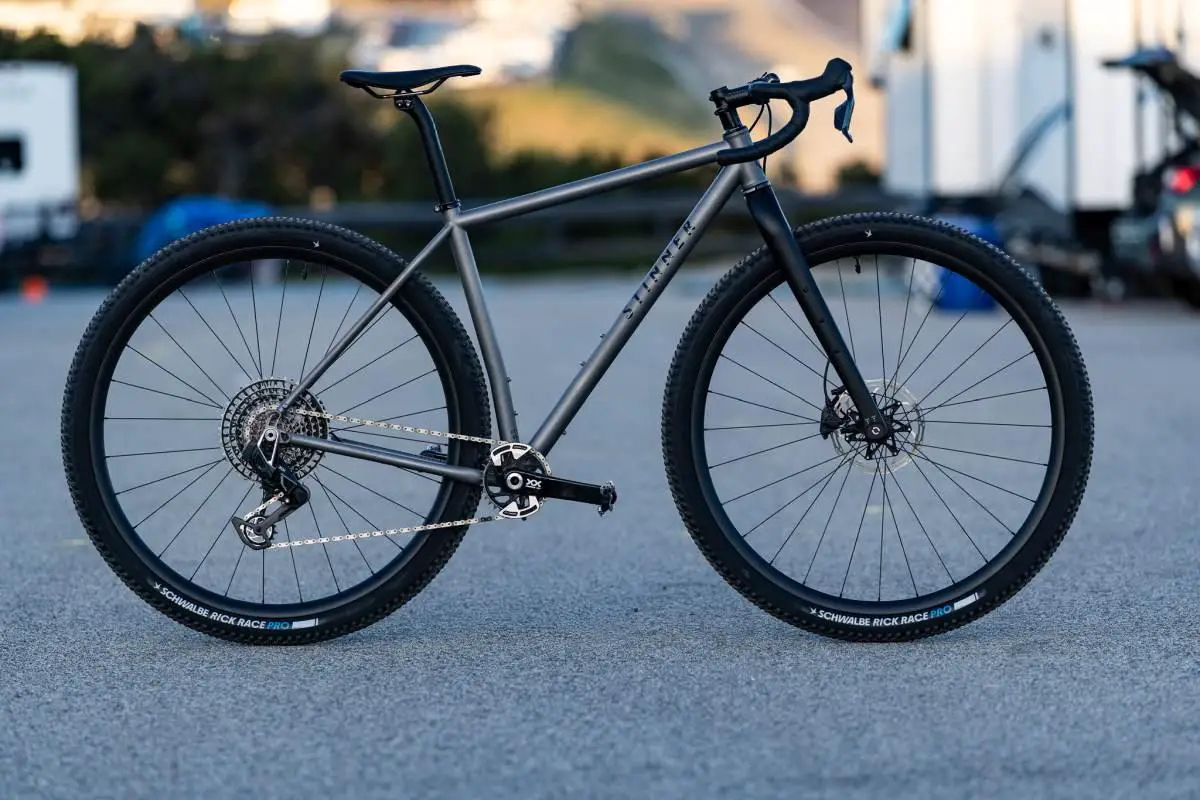

Stinner launches the Refugio 32: Big Wheels, "Smooth is Fast, Fast is Fast"

stinner refugio 32 review — Stinner Refugio 32

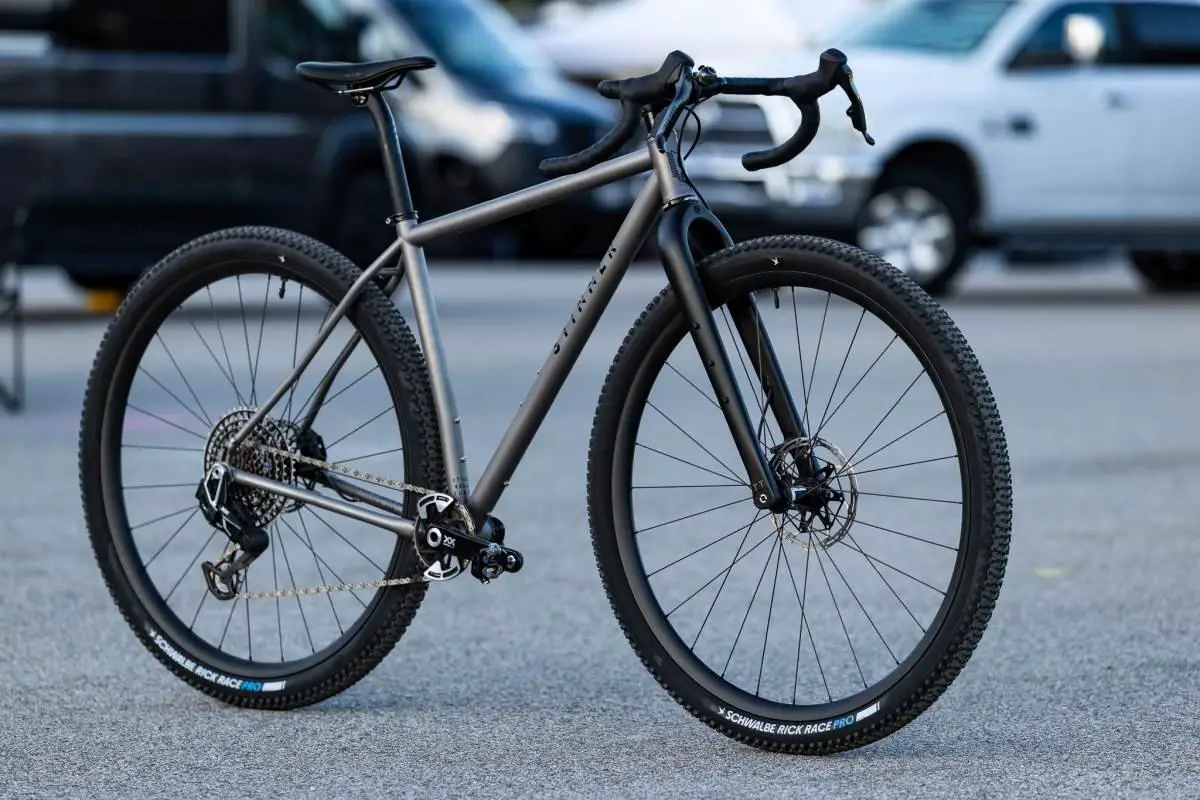

“Designed to accommodate and optimize the emerging 32” platform, the Refugio 32” carries momentum over rough terrain with ease. Roots and trail chatter disappear beneath it, handling stays calm and precise, and when the trail tips down, it absolutely comes alive.” – Stinner Frameworks

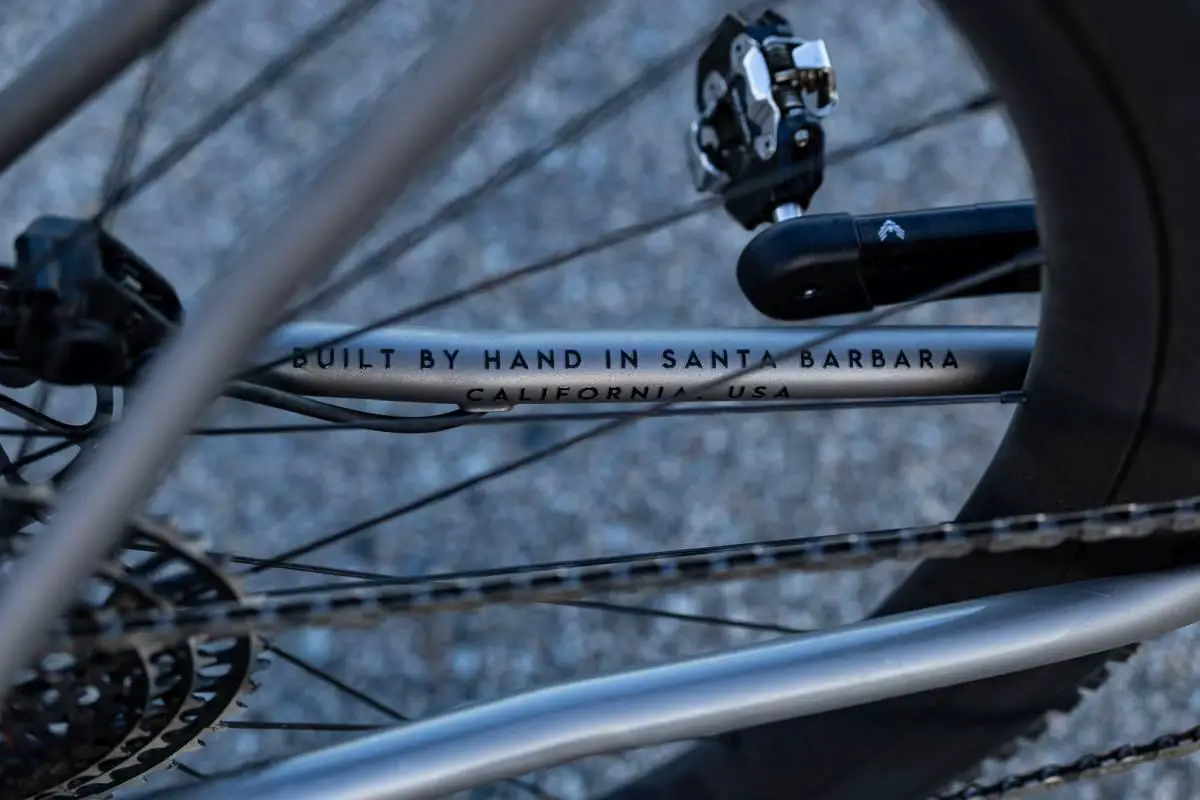

“The Refugio 32 is a Limited Edition batch of 50 frames in sizes Medium-XL, with delivery scheduled for August. Custom Geometry is available at an additional cost, helping to further dial in fit. Handmade in Santa Barbara, available as a frameset, frame and wheels, or complete build.”

Refugio 32 Frame Specifications

Frame:

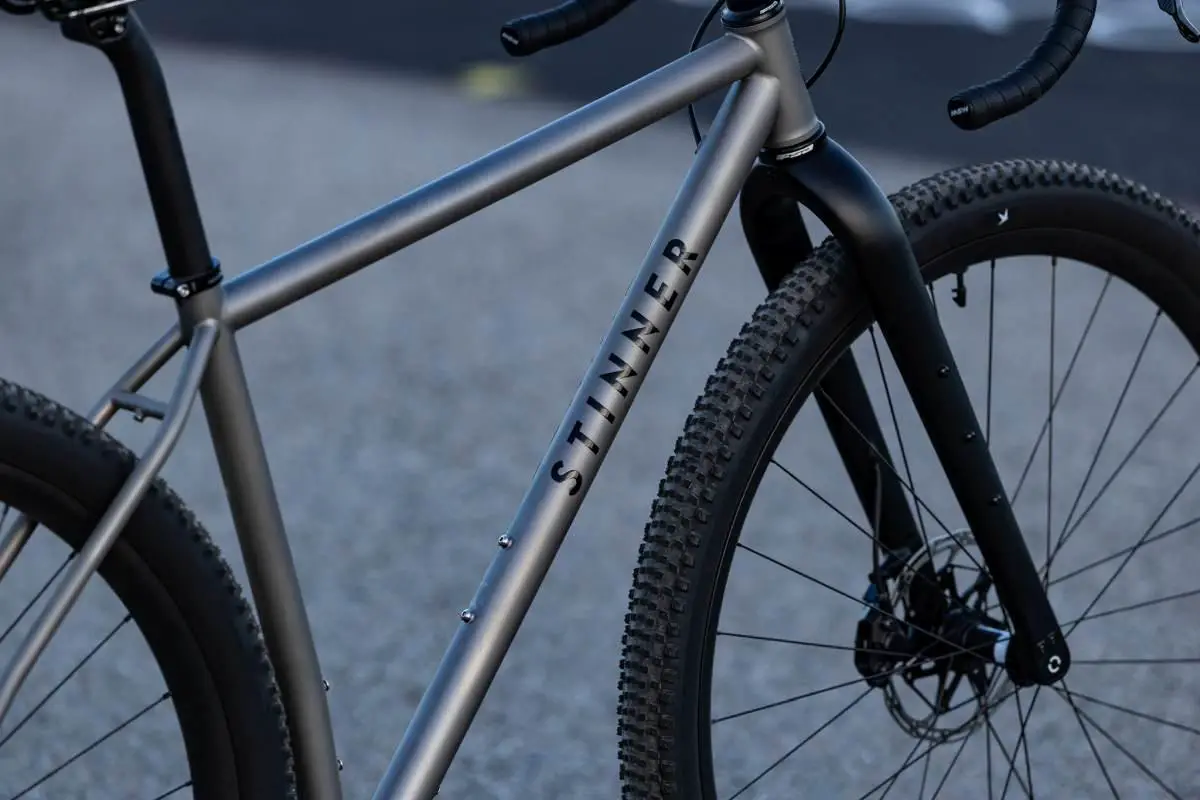

Material // Titanium – Straight Gauge Tubeset
Finish // Bead Blasted Raw Ti with either Polished Ti or Black Decals

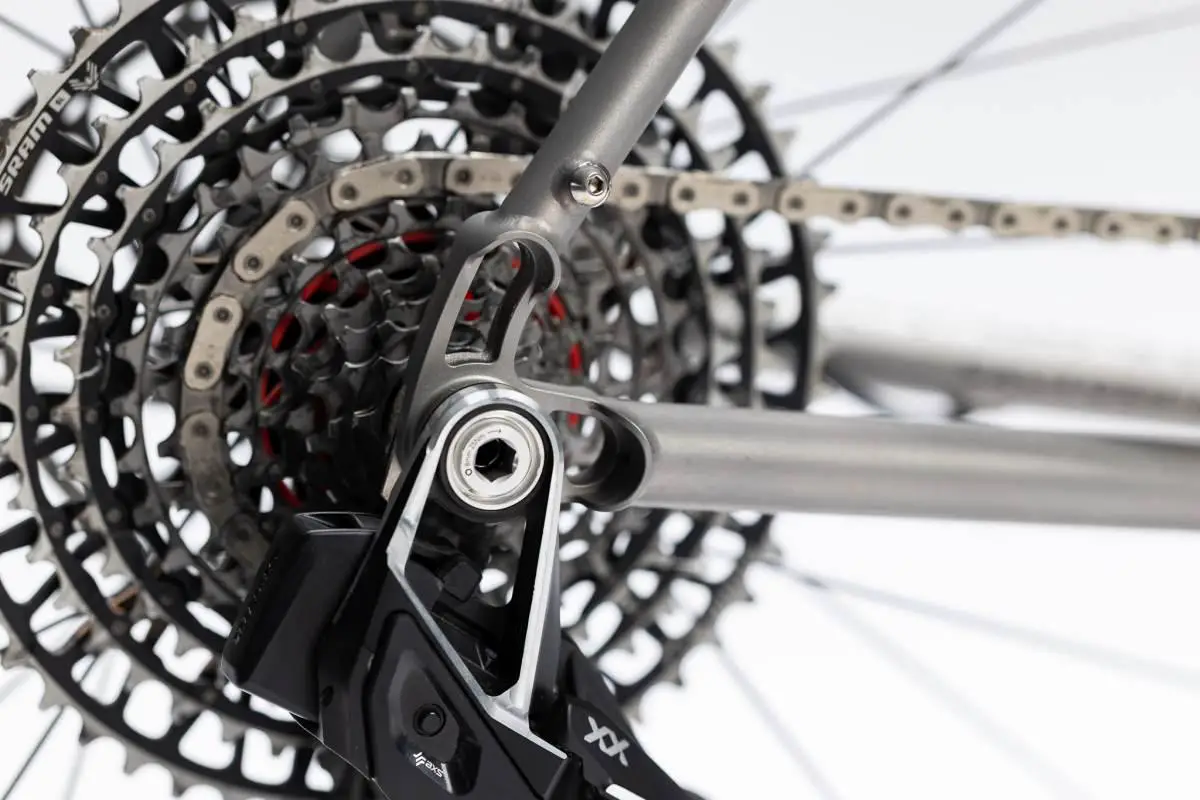

Dropouts // Stinner UDH 160mm Flat Mount CNC Ti Dropouts
Drivetrain Compatibility // Wireless Only 1x w/ 55mm CL – Transmission/Full Mount compatible

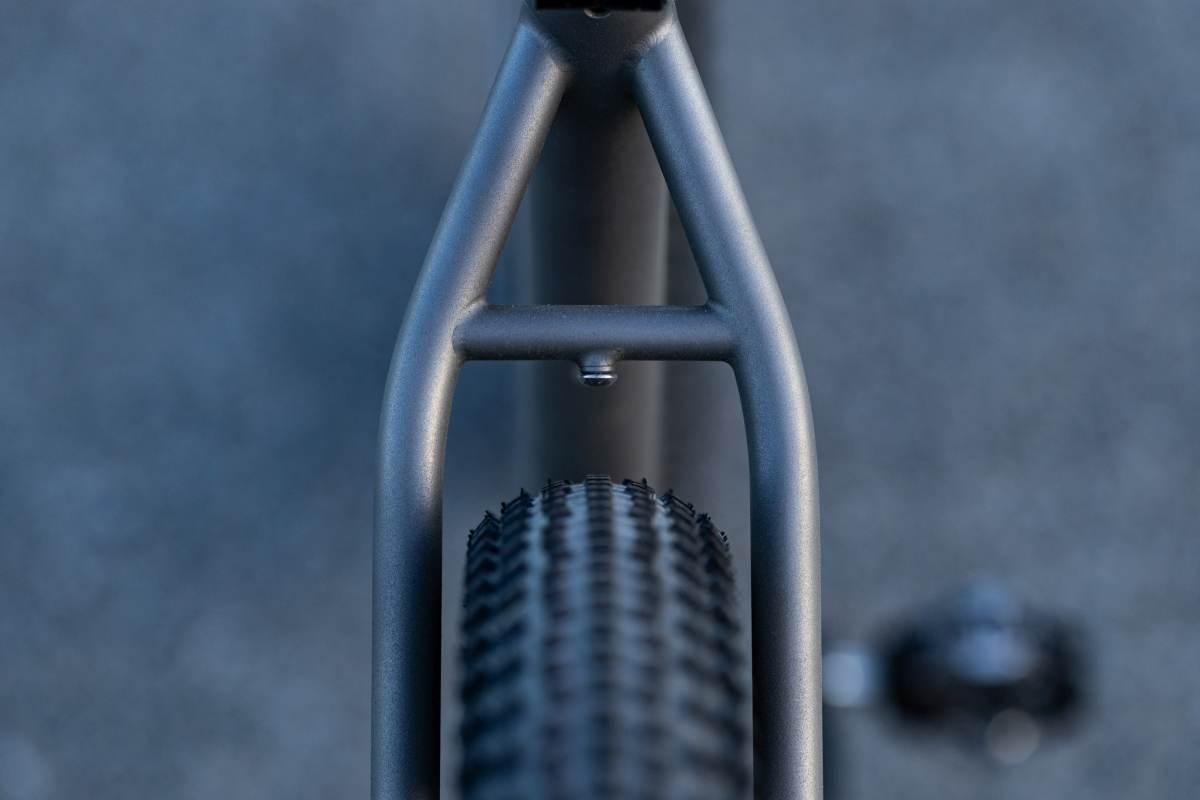

MAX Tire Clearance // 32″ x 2.4″
MAX Chainring Clearance // 1x: 38t (55mm chainline)
Dropout Spacing // 148 x 12mm
Rear Axle // M12 x 174mm x 1.0
Brake Mount // Rear – Flat Mount 160mm, Front – Post Mount 160mm
MAX Rotor Size // 180
Brake Routing // Internal through frame – Hose enters the downtube just behind the headtube
Seatpost Diameter // 31.6mm

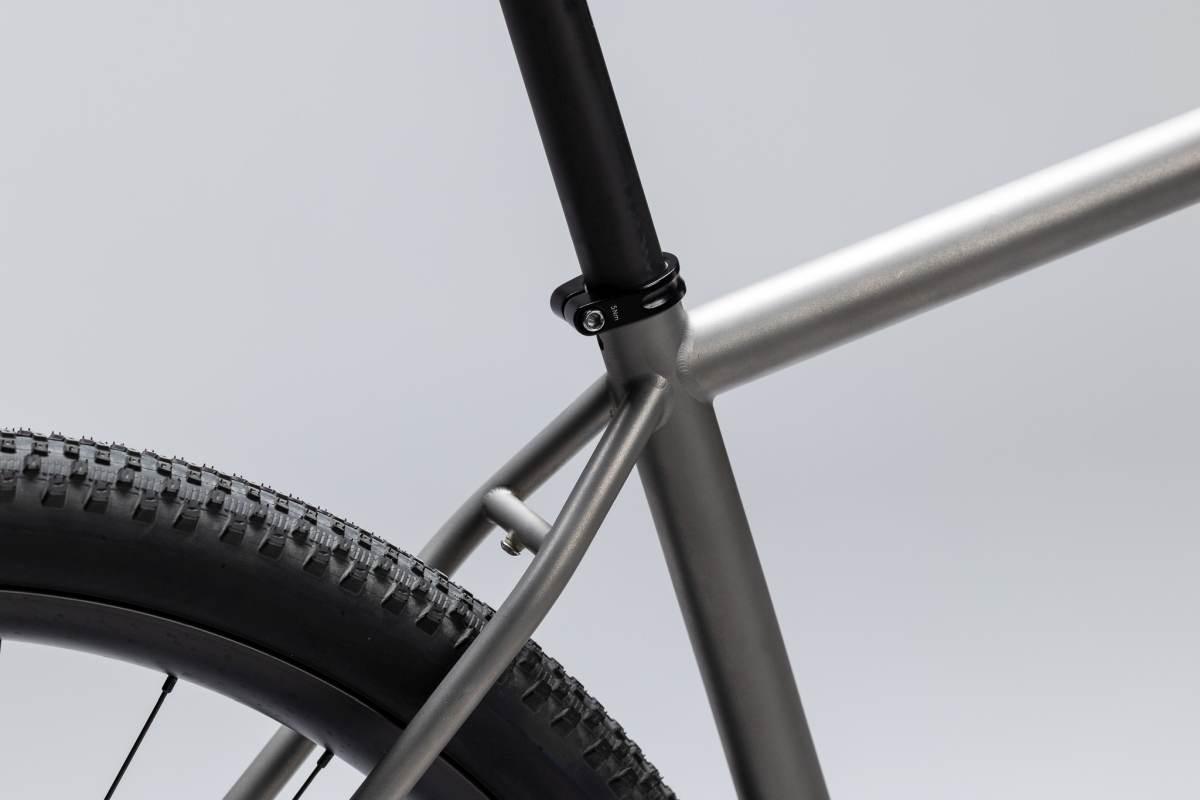

Seatpost Clamp Diameter // 34.9mm
Bottom Bracket // T47 73mm wide shell

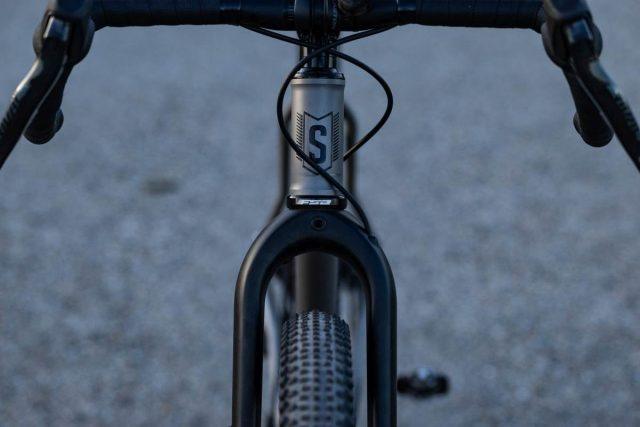

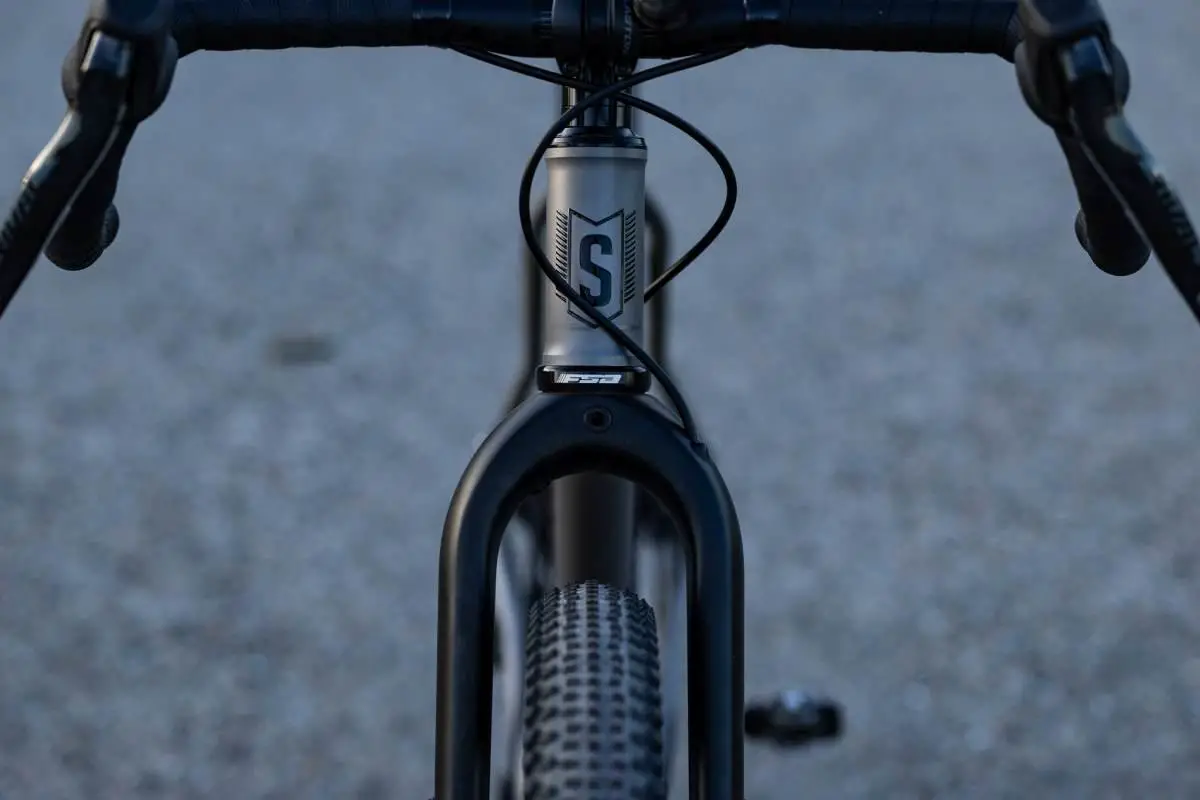

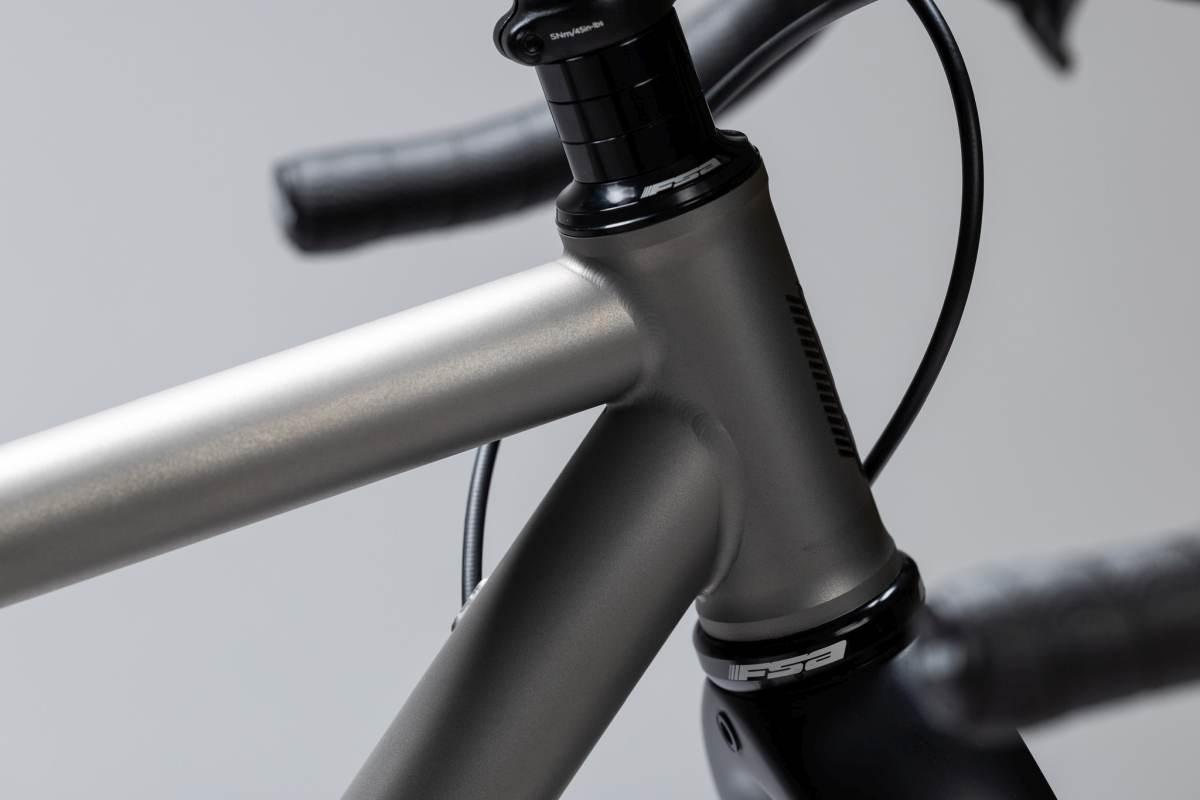

Headtube Diameter // 44mm Internal Top and Bottom
Headset Specs // Upper: ZS44/28.6 – Lower: EC44/40
Mounts // 3 bottle cage locations

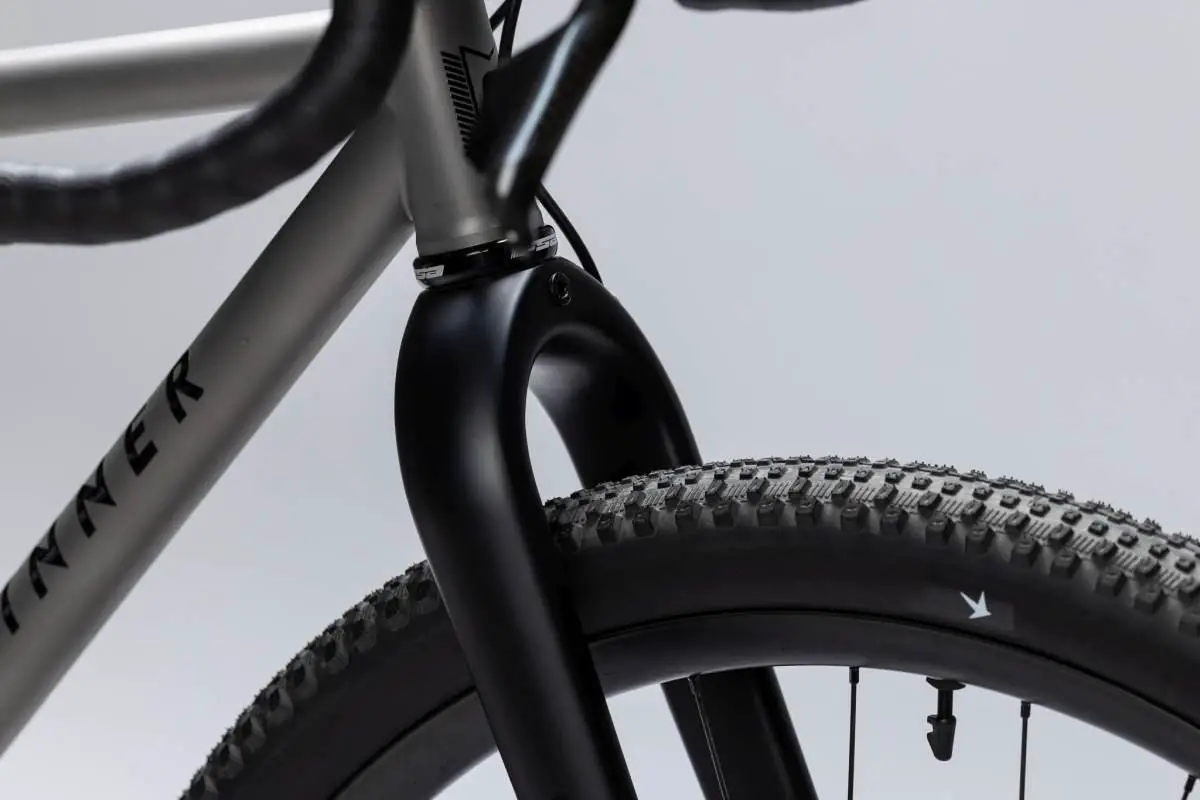

Fork:

Material // Full Carbon
MAX Tire Clearance // 32″ x 2.4″
Dropout Spacing // 110 x 15mm
Front Axle // 139mm – M15 x 1.5
Brake Mount // Post Mount 160mm
MAX Rotor Size // 180mm
Brake Routing // External (Internal through non-drive leg)
Steerer // 1.5″ Tapered
Steerer Length // 280mm
Crown Race // 40mm
Axle to Crown // 490mm
Rake // 44/52mm
Mounts // Fender Mounts – Triple mounts on each fork leg (maximum load of 6lbs per fork leg) – Front light mount with internal dynamo wire routing

Wheelset:

Front Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, 110x15mm, 32h, Center Lock
Rear Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, 148x12mm, 32h, Center Lock, XD or Microspline Driver

Complete Refugio 32 Specifications

Cockpit:

Stem // Teravail Radia Stem, 6°, 60mm length
Headset // FSA Orbit – Upper: ZS44/28.6, Lower: EC44/40

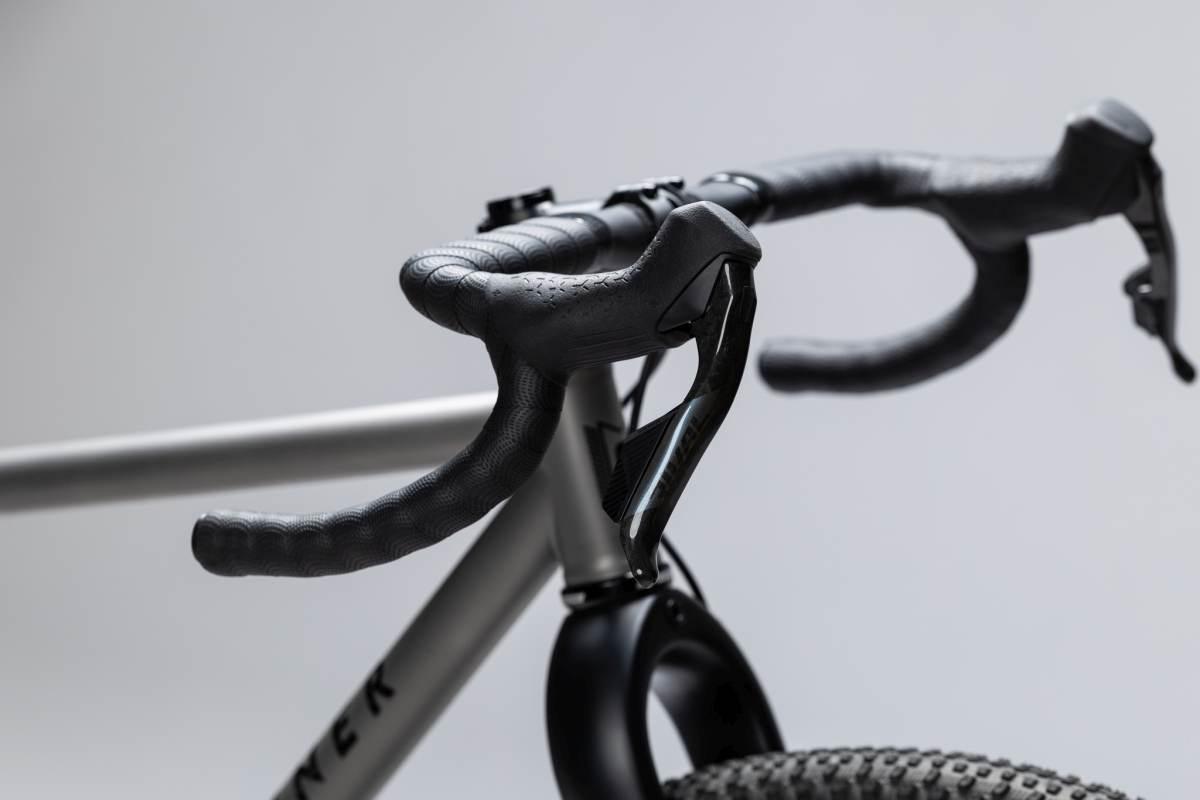

Handlebar // Stoic Gravel HB
Bar Tape // MSW HBT-210
Seatpost // Teravail Stratum Seatpost, 31.6mm diameter, 400mm length, 0mm setback
Seat Collar // Kalloy SC-201 Bolt-on
Saddle // WTB Silverado 265 Medium 142mm, Steel Rails
Pedals // Not Included

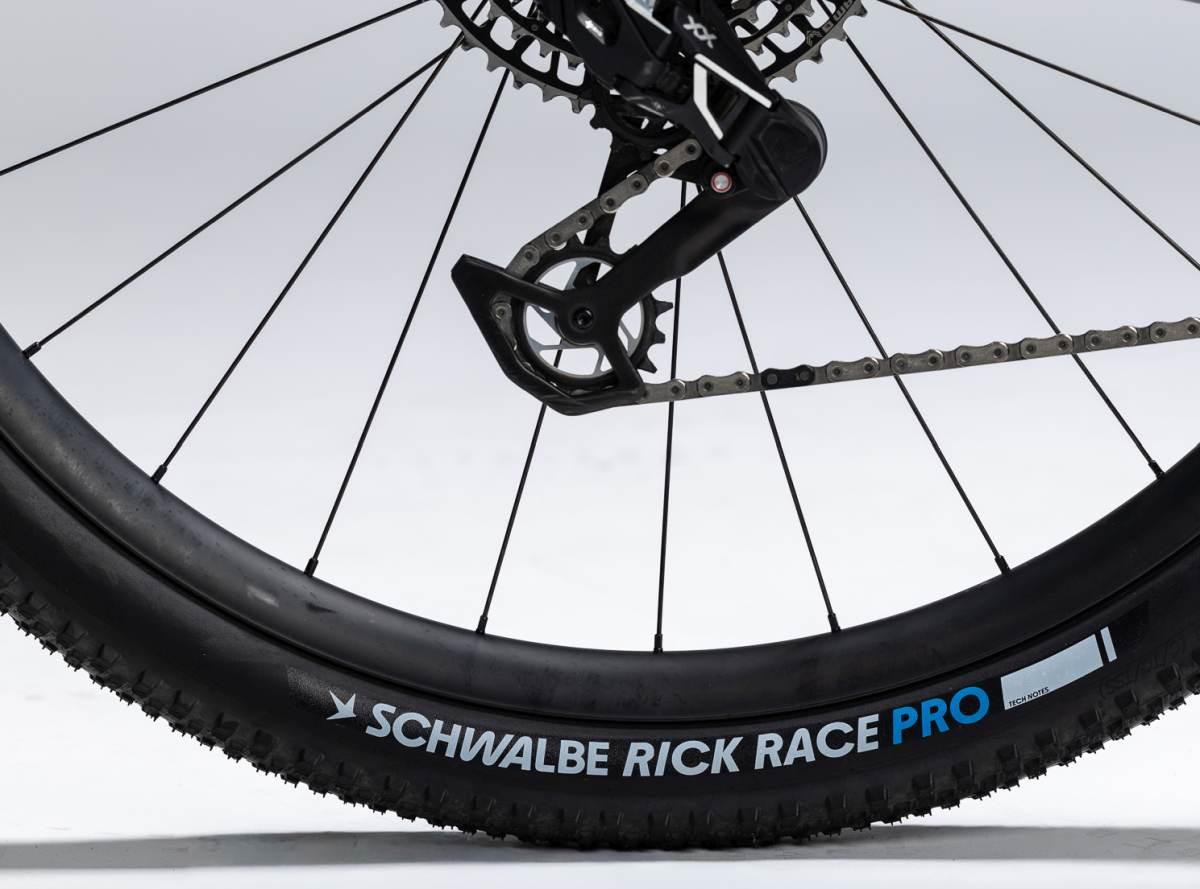

Drivetrain:

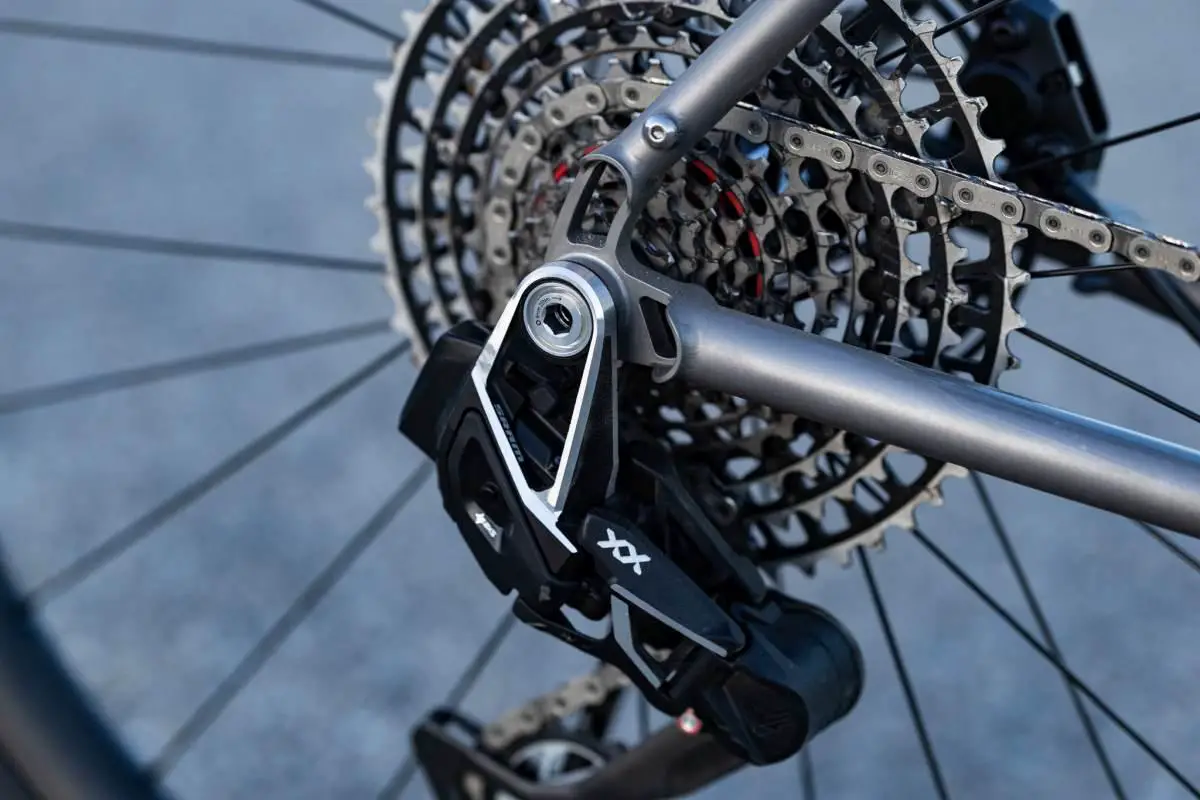

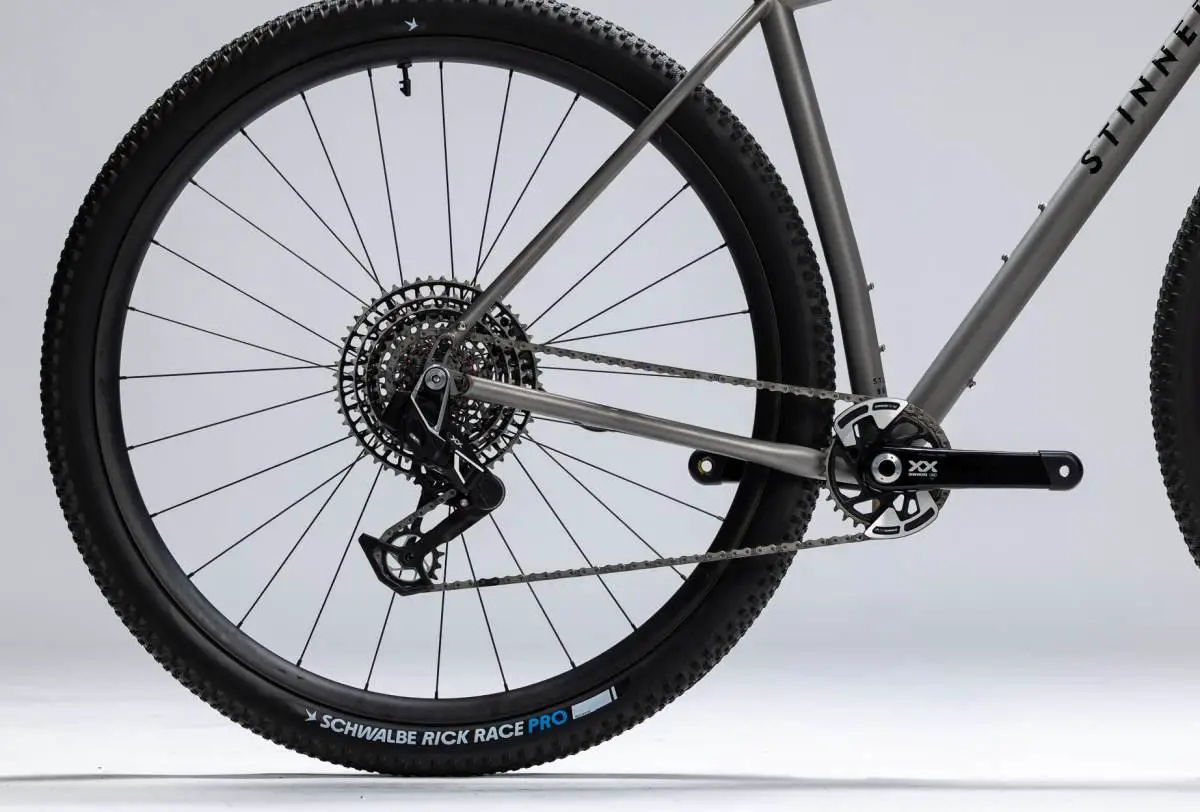

Rear Groupset // SRAM GX T-Type Transmission AXS – 165mm cranks, 32t chainring
Shift/Brake Levers (Rear) // SRAM Rival AXS E1
Shift/Brake Levers (Front) // SRAM Rival AXS E1
Flat Mount Adapter // Wolf Tooth Post to Flat Mount Adapter

Brakes:

Front Rotor // SRAM Centerline 180mm
Rear Rotor // SRAM Centerline 160mm

Wheelset:

Front Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, Boost 110x15mm, 32h, Center Lock
Rear Wheel // Stoic Carbon Rim, Hookless 32mm internal, 25mm depth, Tubeless, DT Swiss 350 Classic Hub, Boost 148x12mm, 32h, Center Lock, XD Driver
Front Tire // Maxxis Aspen 32″ x 2.4″
Rear Tire // Maxxis Aspen 32″ x 2.4″
