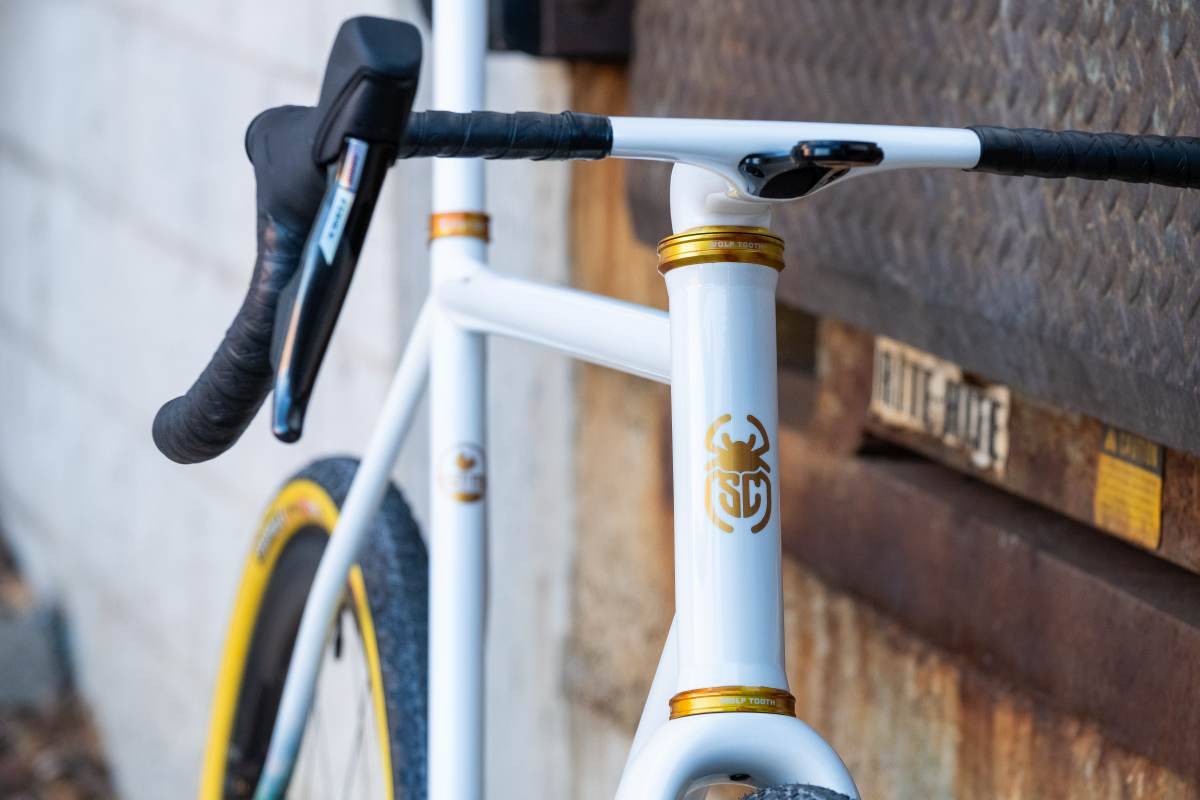

“The new Wolf Tooth Premium Integrated Headset was developed for frames using the ENVE IN-Route System of cable integration with a 44mm head tube. It was made for cyclists who want a clean, aero cockpit that keeps cables and brake lines out of sight. This integrated headset contributes to aerodynamics by hiding cables from airflow and is extremely lightweight at only 113g. It is fitting, then, that Wolf Tooth headsets are machined with aircraft-grade 6061 aluminum at Wolf Tooth in Minnesota, USA.” – Wolf Tooth Components

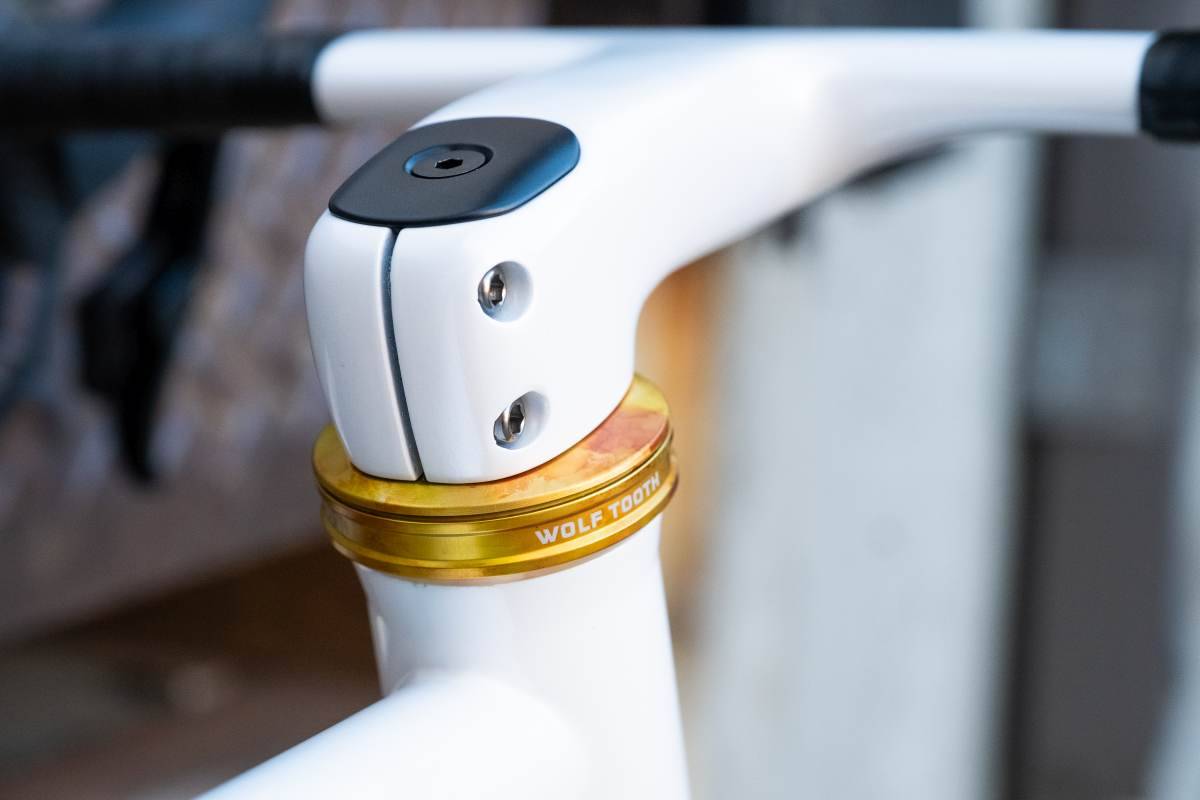

“The new Premium Integrated Headset features an ultra-low stack height (15.65mm) top cap for a smooth transition from cockpit to headset to frame. This is among the shortest stack heights of any integrated EC headset on the market. Like all Wolf Tooth headsets, this new option features Wolf Tooth’s best-in-class triple-sealed system to protect bearings from the elements. It also includes Enduro stainless steel bearings that use the largest possible ball size and are filled with high-pressure waterproof lubricant.”
“Machined aluminum 5mm split spacers in color-matched anodizing will be also available to dial in fit. Like all Wolf Tooth components and accessories, the new Premium Integrated Headset for Enve IN-Route System is covered by the Wolf Tooth Right to Repair program that offers replacement parts and installation guides. Wolf Tooth Premium Headsets carry a lifetime warranty.”
Features

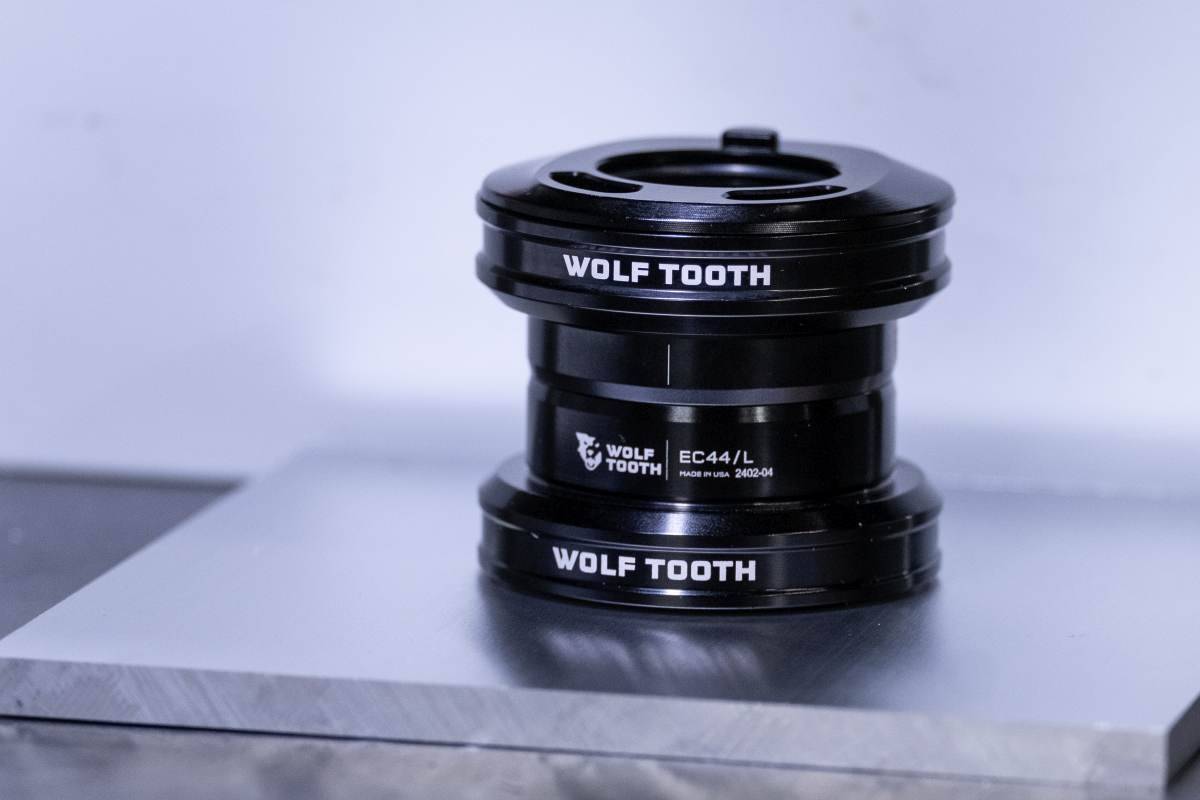

- Designed specifically for the ENVE IN-Route System
- Headset is machined in Minnesota, USA with 6061 aircraft-grade aluminum
- Compatible with any bike that uses a 44mm headtube internal diameter
- Designed with the Wolf Tooth triple-sealed system present on all other Wolf Tooth headsets:
- Internal o-ring top cap seal prevents water intrusion around the steerer tube
- Custom-molded upper cup lip seal provides additional protection for the upper bearing

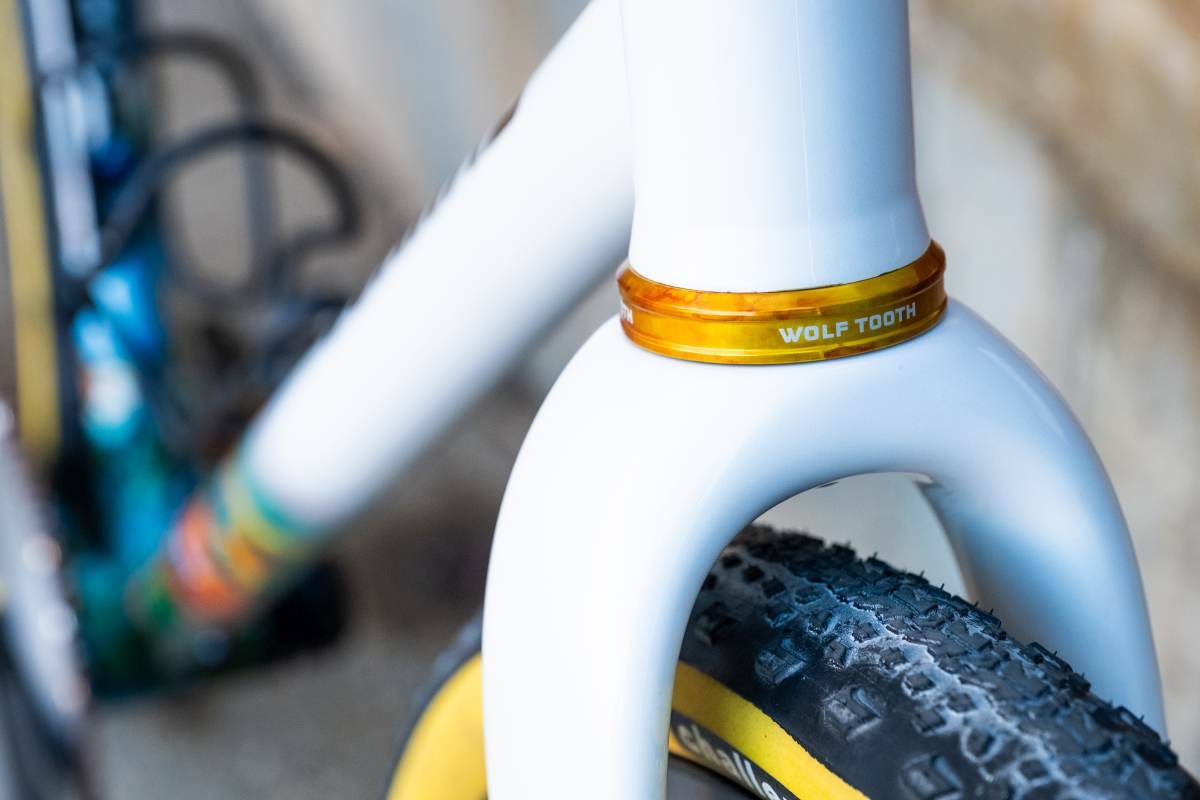

- Custom molded dual-lip seal on the crown race to protect lower bearing in the toughest conditions
- Machined aluminum 5mm split spacers anodized to match headsets
- Available in core Wolf Tooth anodized colors to match other Wolf Tooth components
** Price and Availability to be Determined **
Wolf Tooth Factory Tour Video
Dimensions:
- Total Stack Upper Headset – 15.65mm
- Total Stack Lower Headset – 12.25mm
- Spacer Stack – 5mm
- For headtube internal diameter – 44mm
- Cup External Diameter – 56.5mm
Weights*:
- EC44U Headset – 68g
- EC44L Headset – 45g
- Complete EC44U/L Headset – 113g
EC44U INT Headset Individual Weights:
- EC44U Cup – 20g
- Compression Ring – 6g
- Top Cap – 18g
- 52mm Stainless Steel Enduro Bearing – 24g
- 5mm Split Spacer Set – 10g
