New Thesis Prototype adapts from Road to Gravel & EVERYTHING In-Between

thesis adaptable-geometry gravel bike

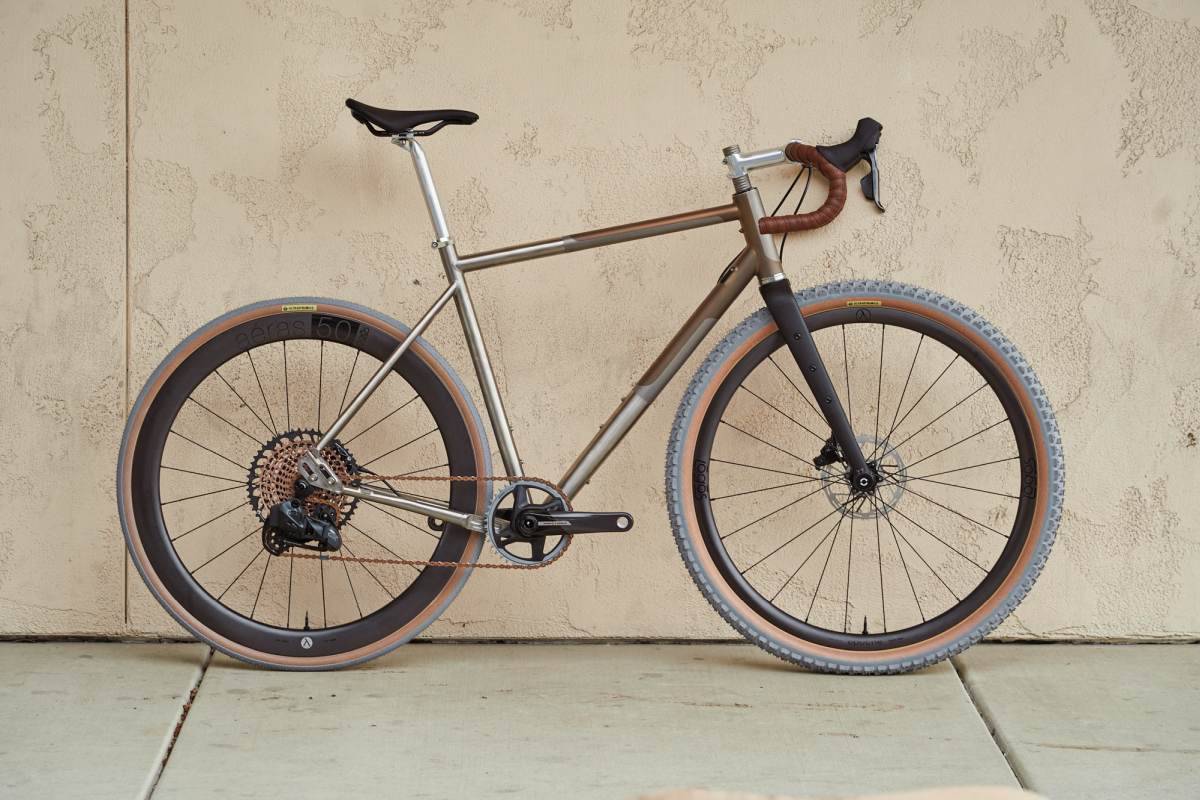

Thesis Adaptable-Geometry Prototype

Thesis has unveiled a novel adaptable-geometry prototype that transforms from a fast and responsive road bike into a stable and capable gravel bike and everything in-between. Featuring classic road aesthetics, generous tire clearances, extensive component-compatibility, and thoughtful design to make setup and service a breeze, it may be the only drop-bar bike you’ll ever need.” – Thesis Bike

thesis adaptable-geometry gravel bike

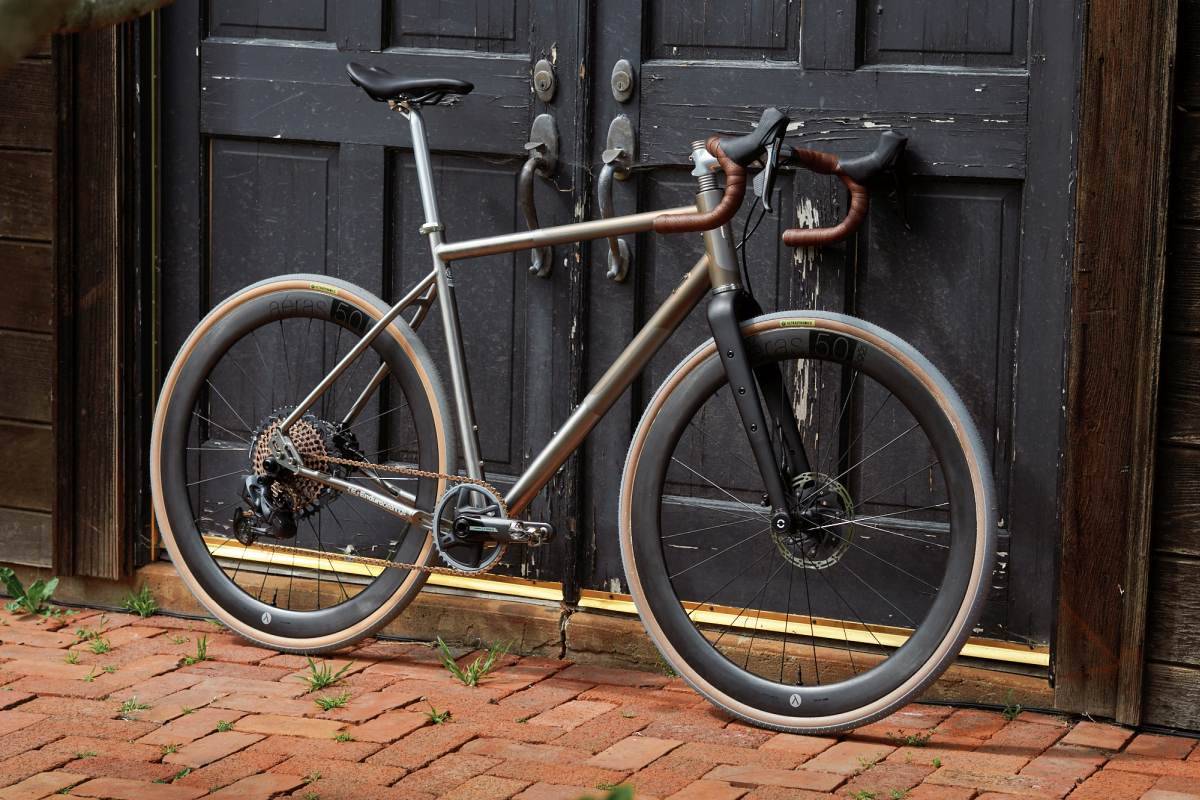

Thesis Adaptable-Geometry Prototype

Relative to road bikes, gravel bikes are characterized by slacker head tube angles, increased fork offsets, longer wheelbases, bigger tires, and dropped bottom brackets. While components and fit are substantially similar, considerable differences in positioning, handling, and tire clearance have long meant choosing between a terrain-specific bike, a blended all-road bike, a partially-adjustable bike that compromises some geos for others, or an entire stable of single-purpose bikes. This is part of what gave rise to the belief that the optimal number of bicycles is always one more than you currently have – N+1.”

thesis adaptable-geometry gravel bike

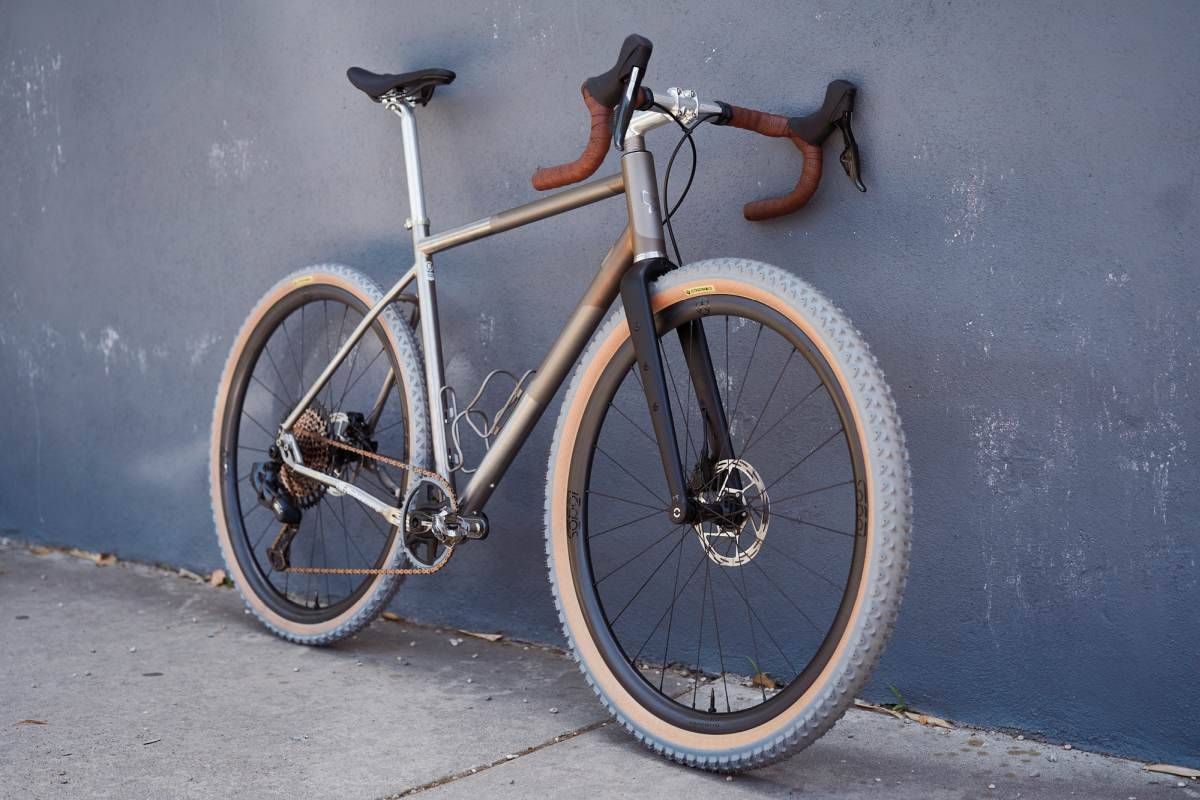

Thesis Adaptable-Geometry Prototype

But what if one bike could be many bikes?

That was the inspiration behind “Project N1”, the code-name for Thesis’ effort to create the first bicycle that adapts quickly and completely from road to gravel and everything in between.

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

Rotate, Stretch, Drop

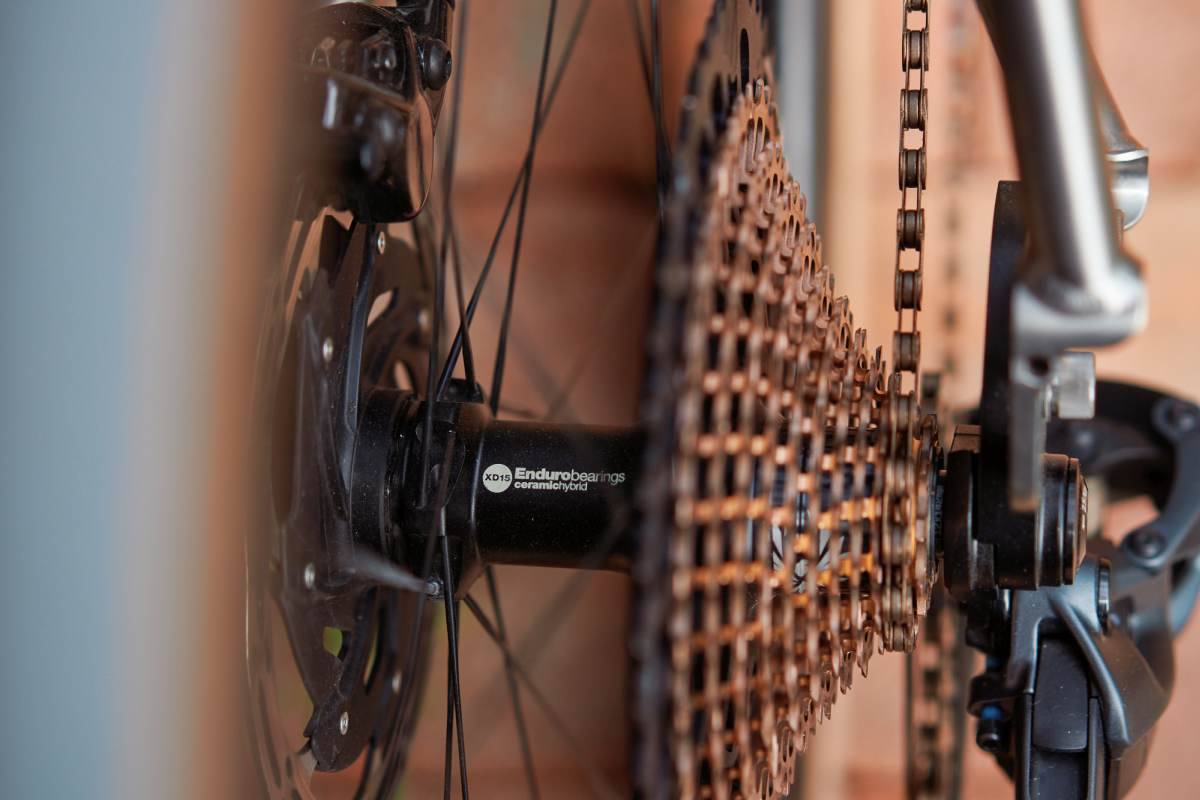

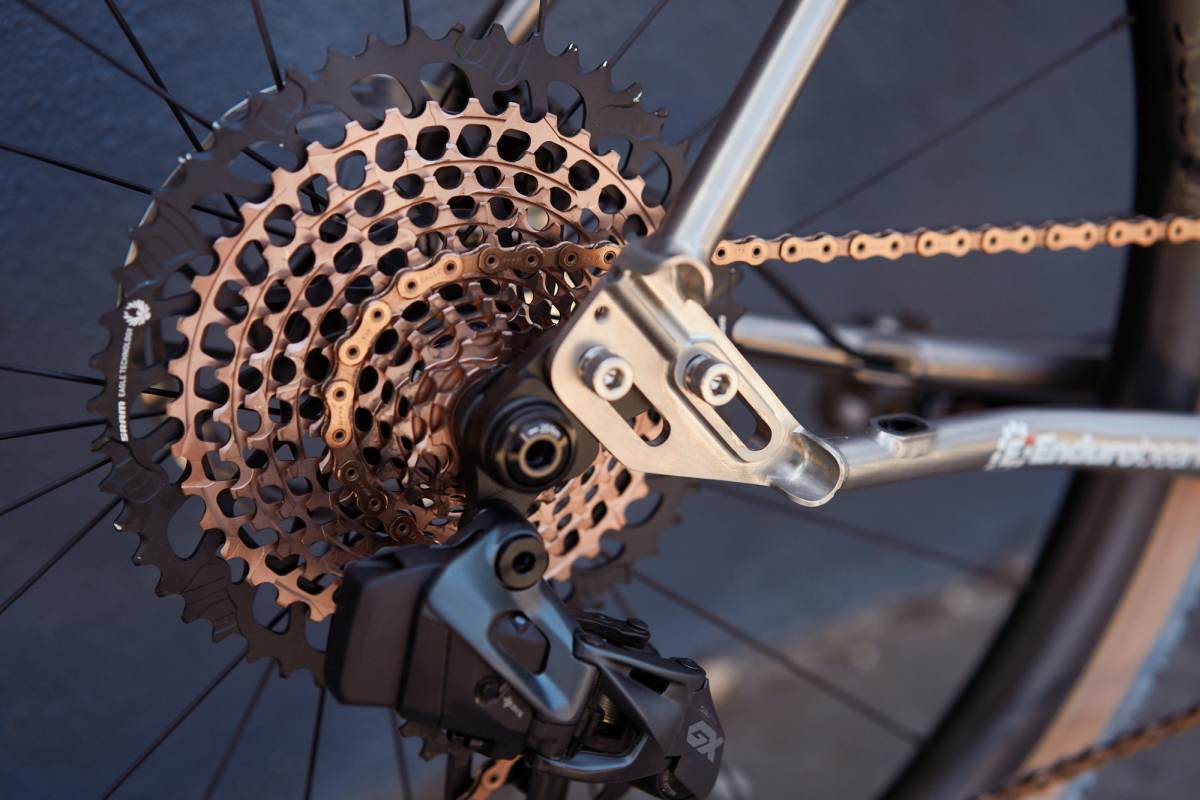

Thesis’ Project N1 prototype switches from gravel geometry to road in just a few minutes with nothing more than a hex wrench. When swapping wheels, the rider loosens Thesis’ unique diagonally-sliding rear dropouts to completely transform the bike’s character. To switch into gravel mode, the rider slides the rear axle up and back. This slackens the head tube angle while increasing the wheelbase for stability, and drops the BB to correct for larger tires (making the rider feel more in the bike than on top of it).”

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

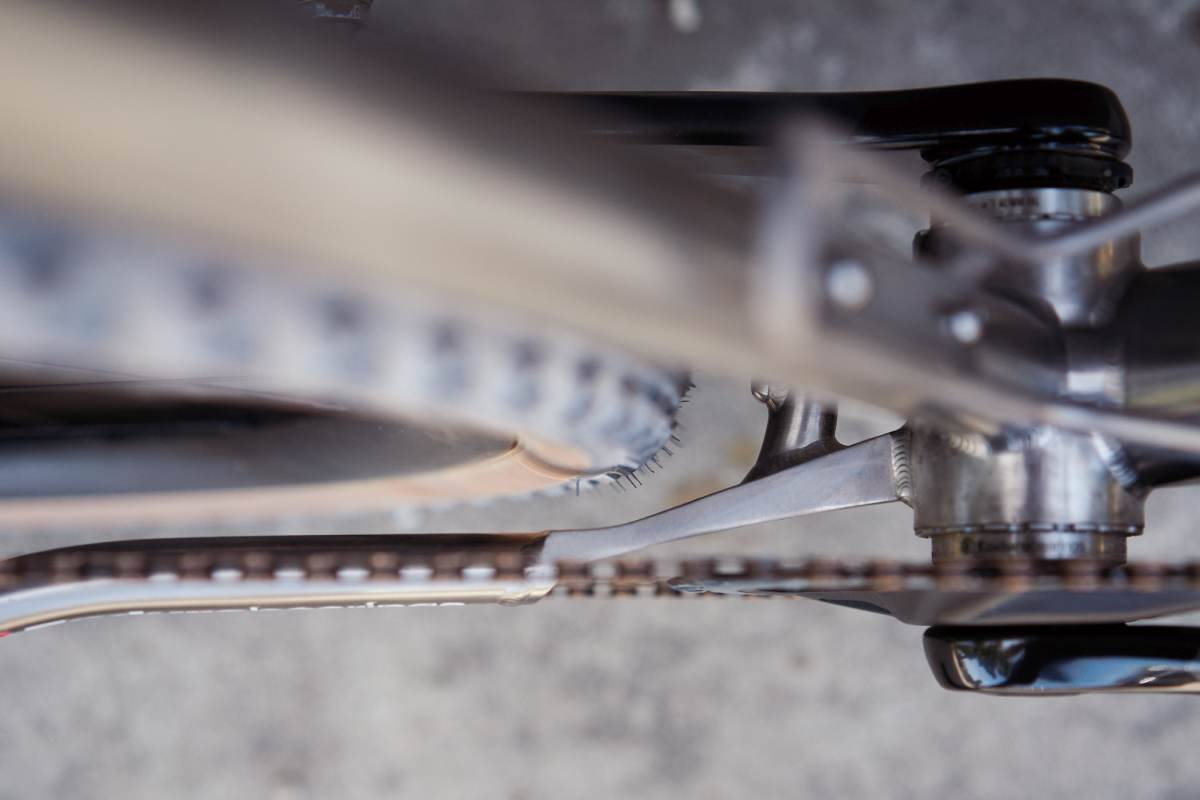

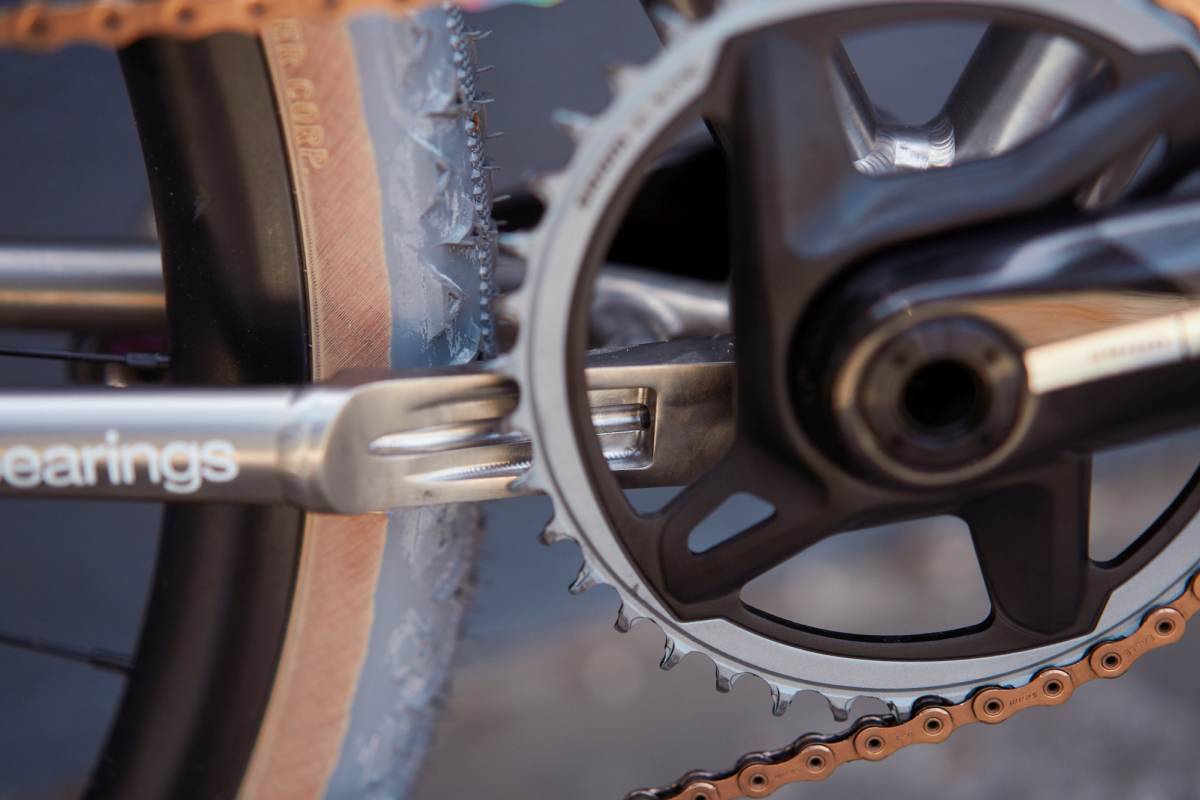

The lengthened chainstays enable generous tire clearances of 700x51mm (29×2.0”) and 650x57mm (2.25”) with a 68mm road BB for chainline and q-factor, without having to revert to dropped chainstays.”

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

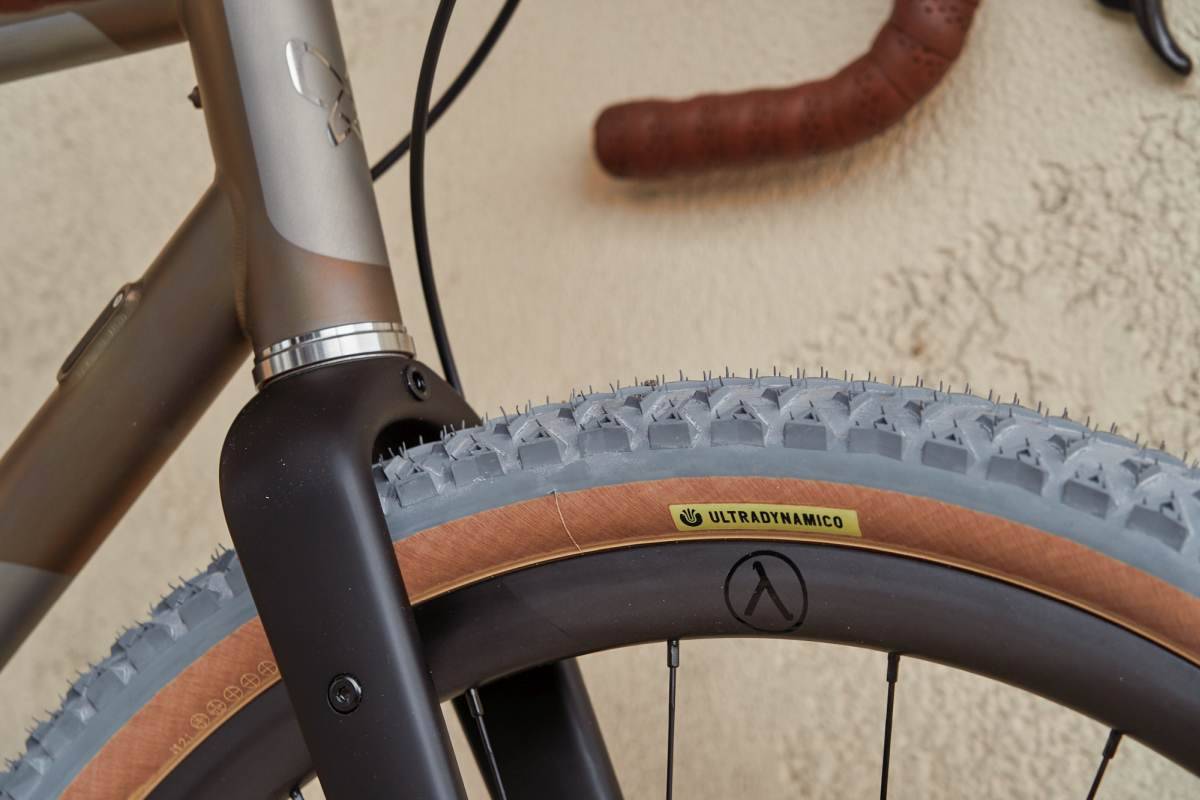

To finish the transformation, riders invert the flip-chips in the fork (currently under development) to move the axle 10mm away from the caliper. This extends the fork’s axle-to-crown distance, further slackening the head tube angle. At the same time, it allows fork offset to be corrected and front-center to be increased for bigger tires. Utilizing a 160mm rotor on their road wheelset and a 180mm rotor on gravel eliminates the need to move the caliper when swapping the flip chip, while providing enhanced braking power off-road.”

thesis prototype gravel bike

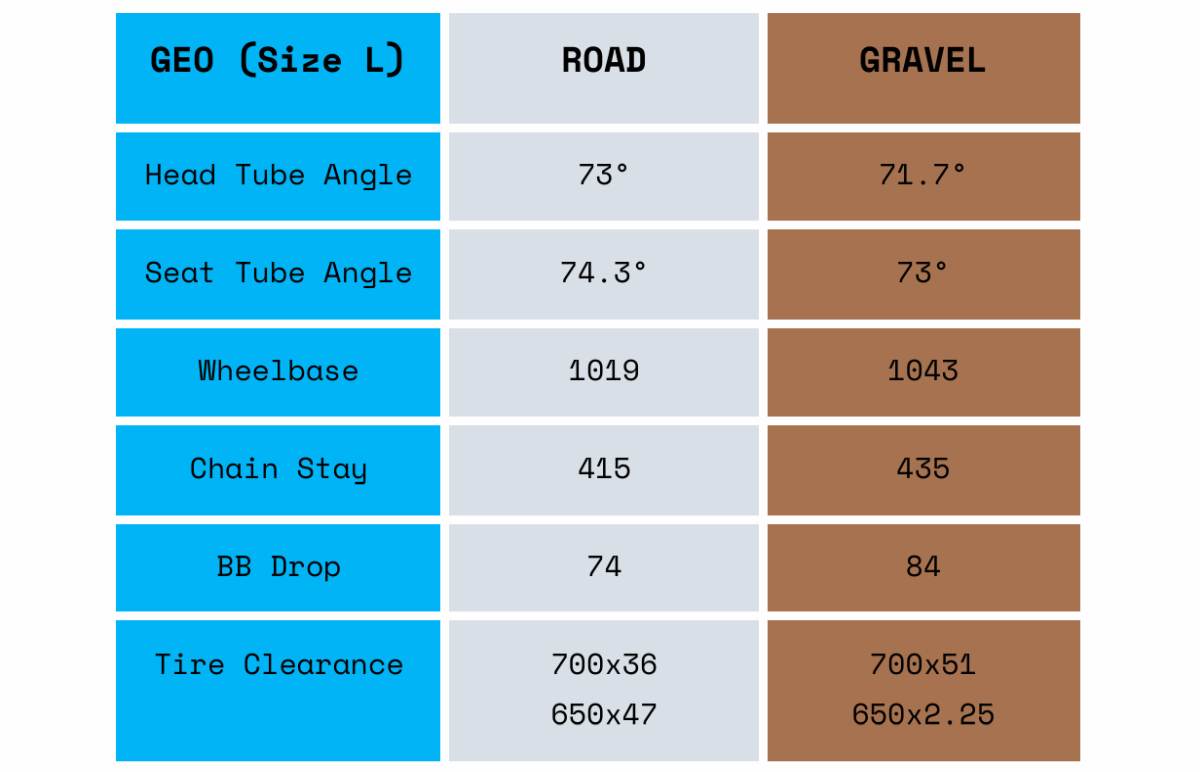

Geometry for Size Large

“Figuring out how to make the swap between modes simple and approachable for novice riders with limited mechanical knowledge was essential to the success of the design. We’re happy to say that it’s incredibly easy to switch the bike between gravel and road setups; going from end to end on the rear sliders completely transforms the bike without any need to tinker with the brake caliper. This is truly a do it all bike that people will be able to swap between a road and gravel bike as frequently as they want to, enabling an immense amount of latitude within one bike. The idea was to vary the handling from Land Cruiser to Lamborghini, and without a doubt it delivers.”

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

A Rider-Centric Approach

While Thesis designed the geos and features for each ride experience, they engineered the platform for reliability, serviceability, and adaptability to make sure it delivers those experiences for years if not decades to come. This philosophy is reflected in their commitment to proven open standards, extensive component-compatibility, and future-proof design.”

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

Highlights Include:

  • Threaded T47 68mm BB
  • Straight 44mm head tube
  • Round 27.2 seatpost secured by a traditional collar
  • Future-proof UDH & Transmission-compatible dropout system
  • Micro-adjustment screws the rear dropouts
  • Compatibility with 1x/2x mechanical & electronic, internally-geared hub, & single-speed drivetrains
  • Support for fenders, racks, dynamos, wired lights, droppers as well as partial-internal, full-internal, & full-external (fork-only) routing.
thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

The Road Ahead

While pricing has yet to be announced, Thesis will be providing updates and a special pilot-program offer via its newsletter and dealers. Titanium production is slated for late summer, followed by a high-value performance steel version currently under development.”

thesis adaptable-geometry gravel bike
Thesis Adaptable-Geometry Prototype

Learn more at the Thesis Bike Website
