From Speedplay’s Facebook presence – “Founded in San Diego, California

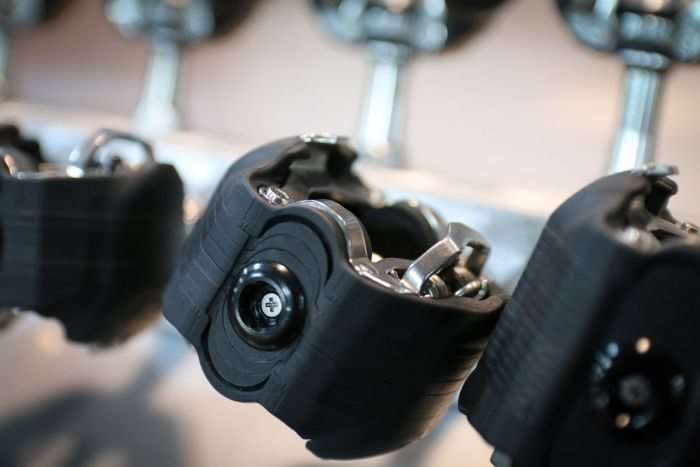

Unlike other pedal systems, a rider’s power is transferred directly to Speedplay’s Syzr pedals through the cleats – whereas other systems rely on the spongy rubber lugs of the shoe sole to accomplish the same feat. Additionally, Speedplay use “Active Cleat Stabilization Technology” – in a nutshell, through much tighter tolerances, the connection between cleat and pedal virtually eliminates the play so common to many off-road / gravel pedal systems.
Speedplay’s Syzr pedals are the first off-road system to offer user adjustable float – up to 10 degrees. For those folks riding Speedplay’s Zero pedals, the float adjustment works in a similar way and is adjusted directly at the cleat.

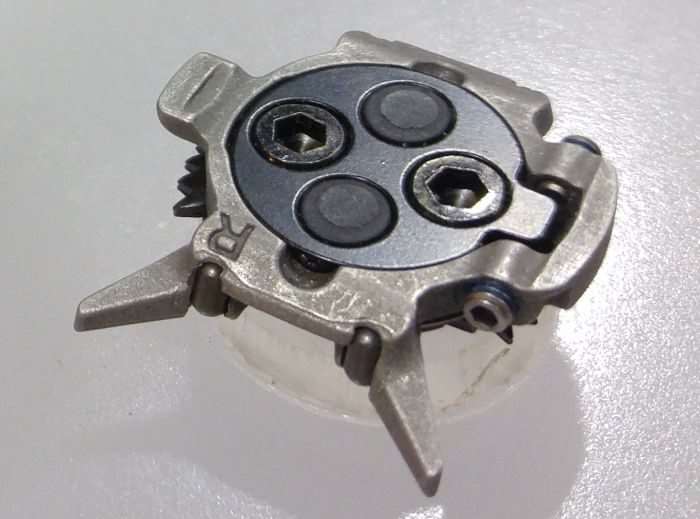

Roller-cam technolgoy features in the Syzr cleat design to ensure consistent release, no matter the conditions. Because there is no metal-to-metal contact like other pedals, the ceramic roller-cams in Syzr cleats do not seize during release – additionally, the ceramic contact points are very durable.
Engagement – Speedplay’s Syzr use “target acquisition technology” – funnel shaped guides to steer the cleat into the pedal’s latching mechanism. Speedplay have optimized security engagement as well, by reversing the typical orientation of the pedal’s pivoting latch. This new design prevents accidental release during hard efforts because the rider is no longer pulling up against the latch gate.
When conditions turn bad, the Syzr pedals use Speedplay’s “Open Architecture Design”. This design feature prevents mud on the shoe sole from interfering with engagement and preventing the cleats from clogging or binding.
The Syzr system is best explained in our short video with Speedplay Founder and Inventor, Richard Byrne.
New for 2017 – Fixing Leg Length Discrepancies

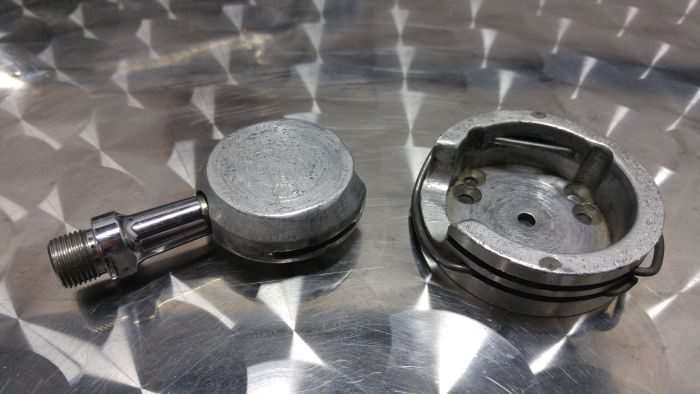

Because of the unique design of the Speedplay Syzr pedal – two separate metal plates attached to a composite body – this separation between the two halves of the pedal allow for a system of shims to enlarge the pedal body.
Shims measure between 1mm – 2mm in depth and shouldn’t affect pedal engagement. The only limitation on such a system would be ground clearance.
Syzr pedals use precision needle and cartridge bearings and feature a convenient built-in grease-port for easy routine maintenance – just like their road pedals.
Available with five different spindle lengths for optimal pedal tuning and three spindle material choices – Chromoly ($US 165.00), Stainless Steel ($US 199.00) and Titanium ($US 389.00). Pricing is not yet available on the shim system.
6 comments on “2016 Interbike: Speedplay Syzr Pedals – And Interview with Speedplay’s Founder”
As a coincidence, Road Bike Action has a review of the Syzr pedals up today.
Haha nice. We don’t have a pair of the pedals in our possession yet, but expect to a little later on. Good guys at RBA.
I’ve had a pair since late March of this year. Just read the review. I would add that dismounting and walking multiple times in dry sand as well will make further dismounts during a ride “interesting”.
Good to know… thanks for chiming in Erik.
I’ve been using Speedplay Frogs since 1997 and I haven’t found a better pedal, damn near indestructible, no moving parts, super easy entry/exit in even the worst conditions. Would love to try the new Syzr pedals though.
Nice Ryan, I have never used Speedplay MTB anything, but been on the road pedals, nowadays Zero’s, since 1996. Hope to review a set of Syzr’s if Speedplay were to read this.
