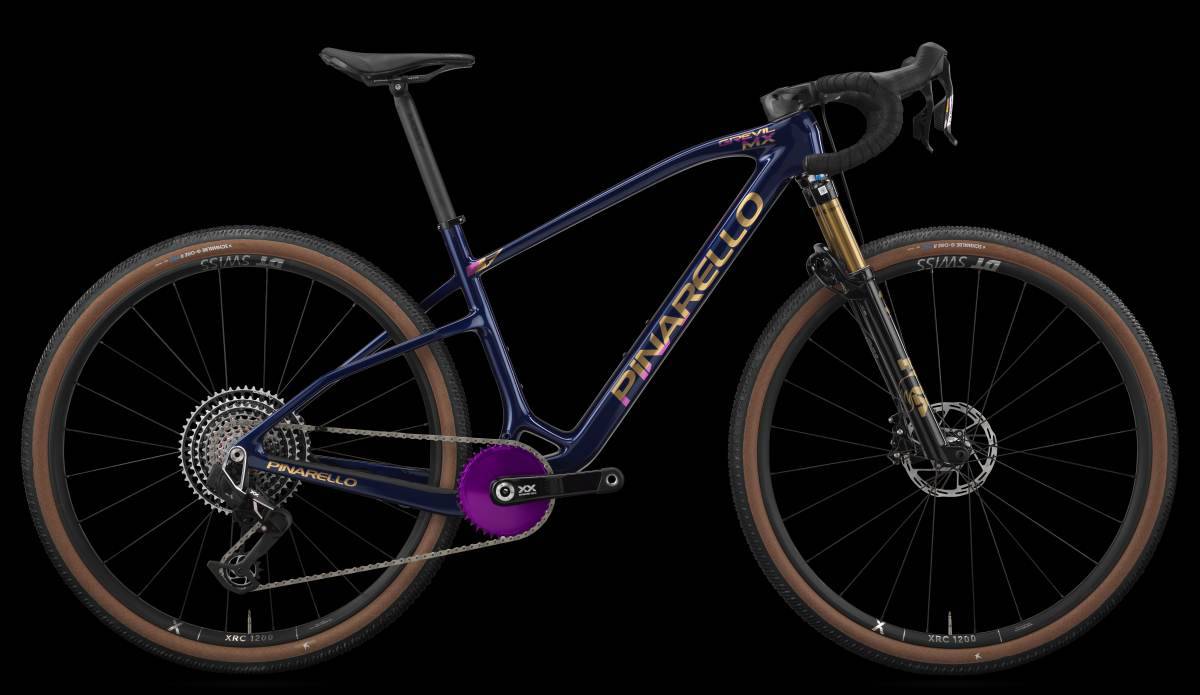

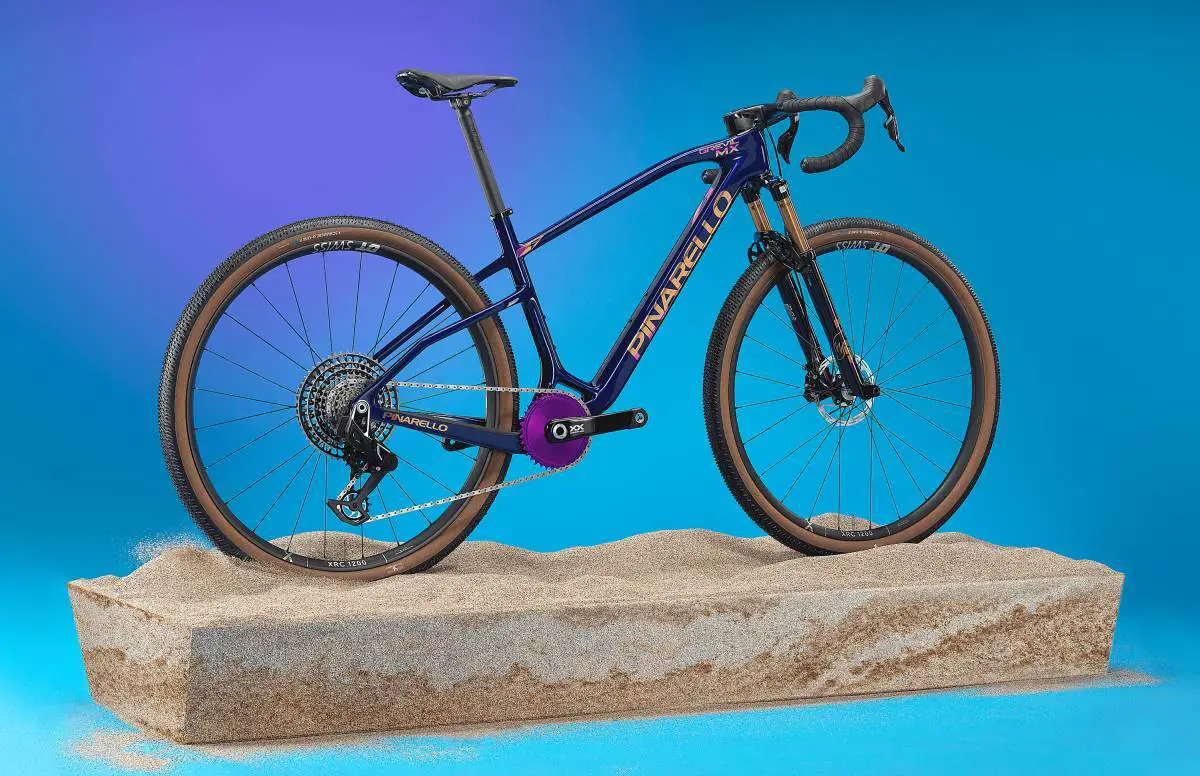

Pinarello has unveiled the GREVIL MX, a new, targeted addition to its popular GREVIL range, engineered to conquer terrain beyond the limits of traditional gravel bikes.

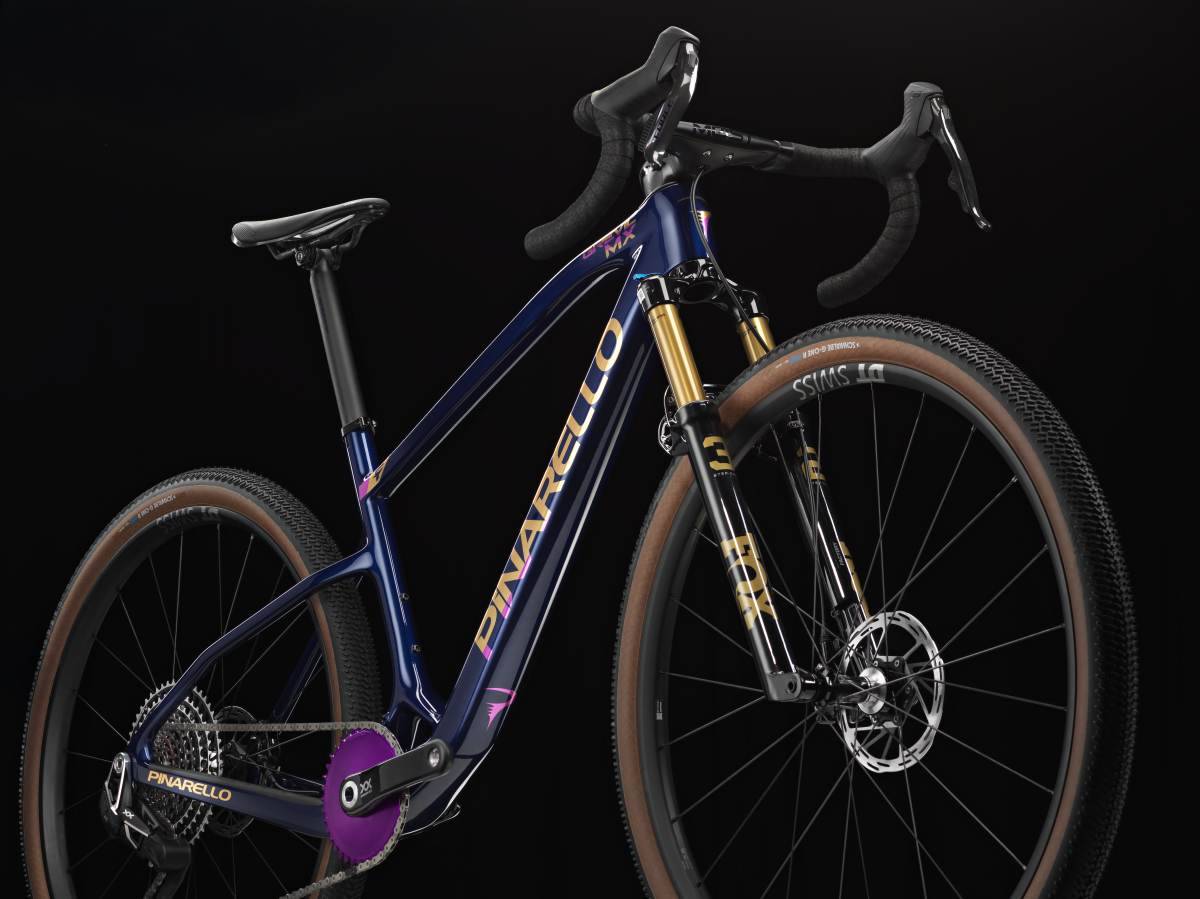

The GREVIL MX combines the aerodynamic efficiency of a road bike with the stability and control of a MTB, enabling it to excel on steep climbs, rugged trails, technical descents and long endurance routes without compromising responsiveness or stiffness on hardpack ground.

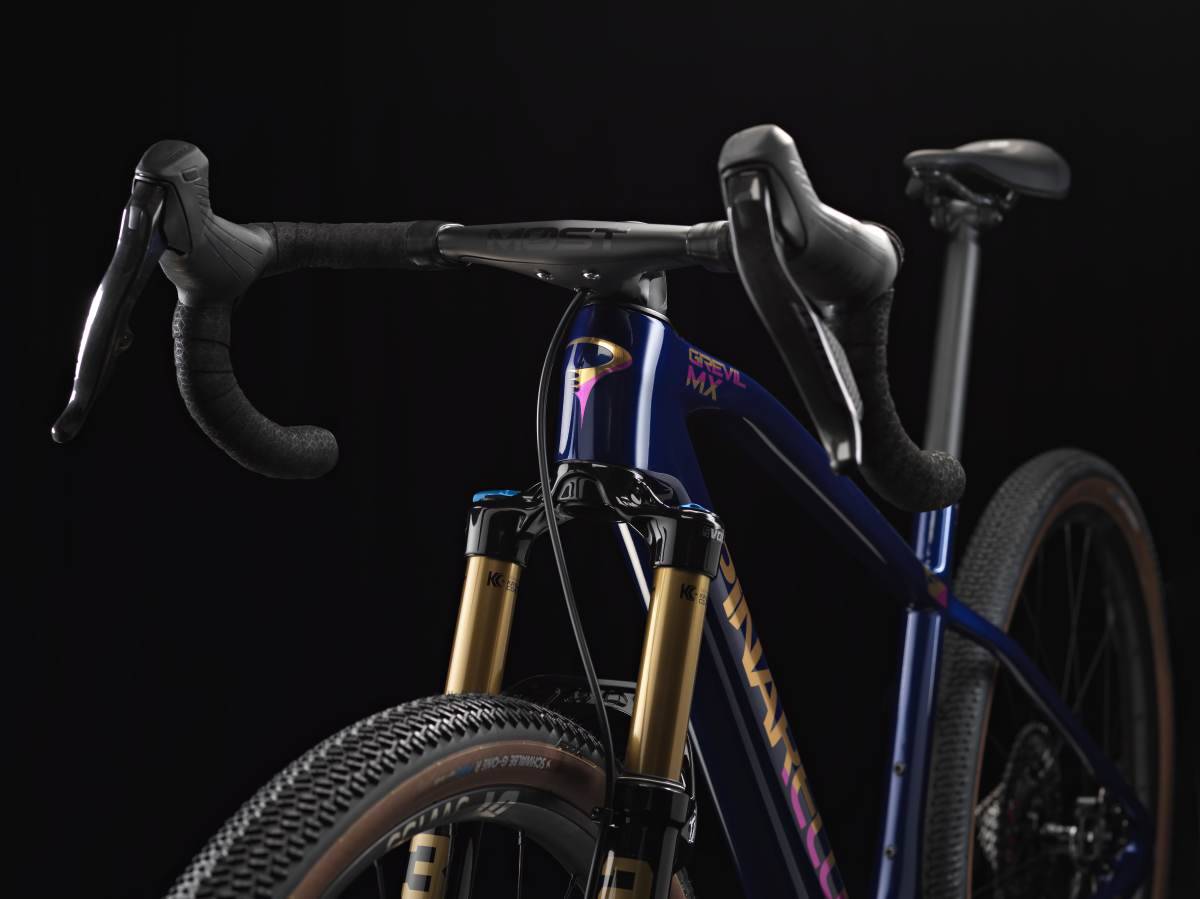

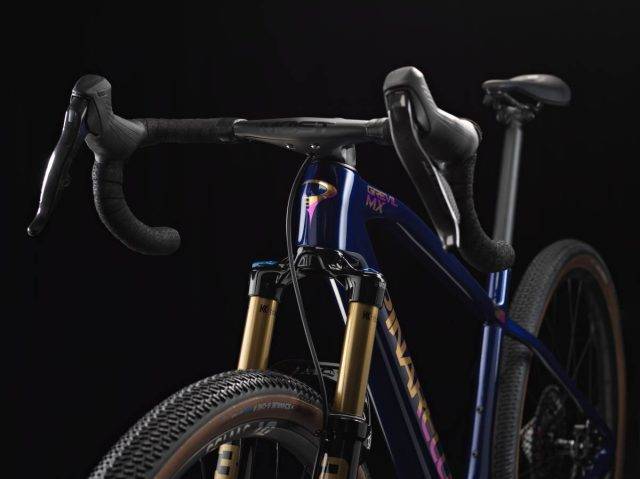

Its geometry takes the head angle (67.75°) and trail (101mm) of the hardtail DOGMA XC and pairs it with the MOST Talon Ultra Light cockpit found on Pinarello’s flagship road bikes, enabling a lower, more compact and faster position. The inclusion of a front suspension fork adds further comfort, providing a combination that delivers superior performance across vastly different terrains.
Best of Both Worlds

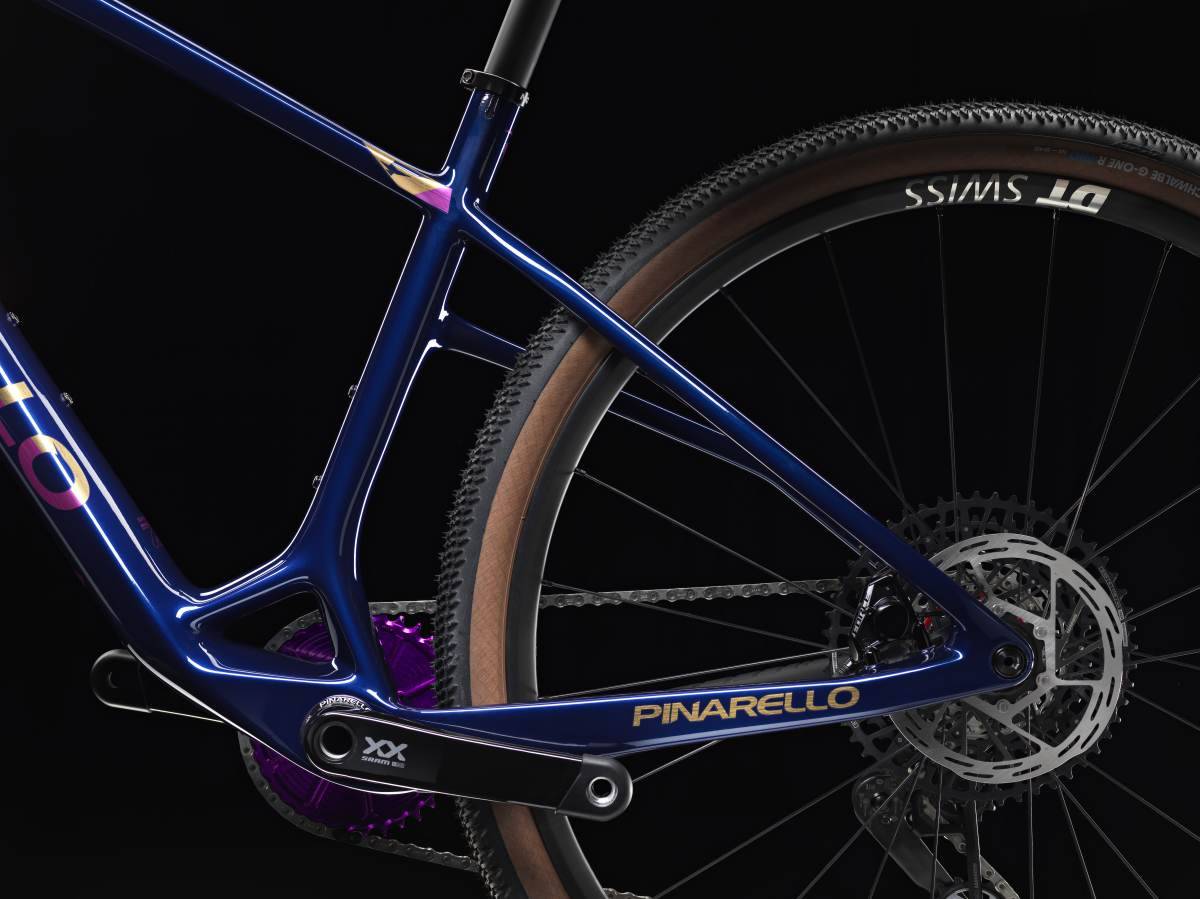

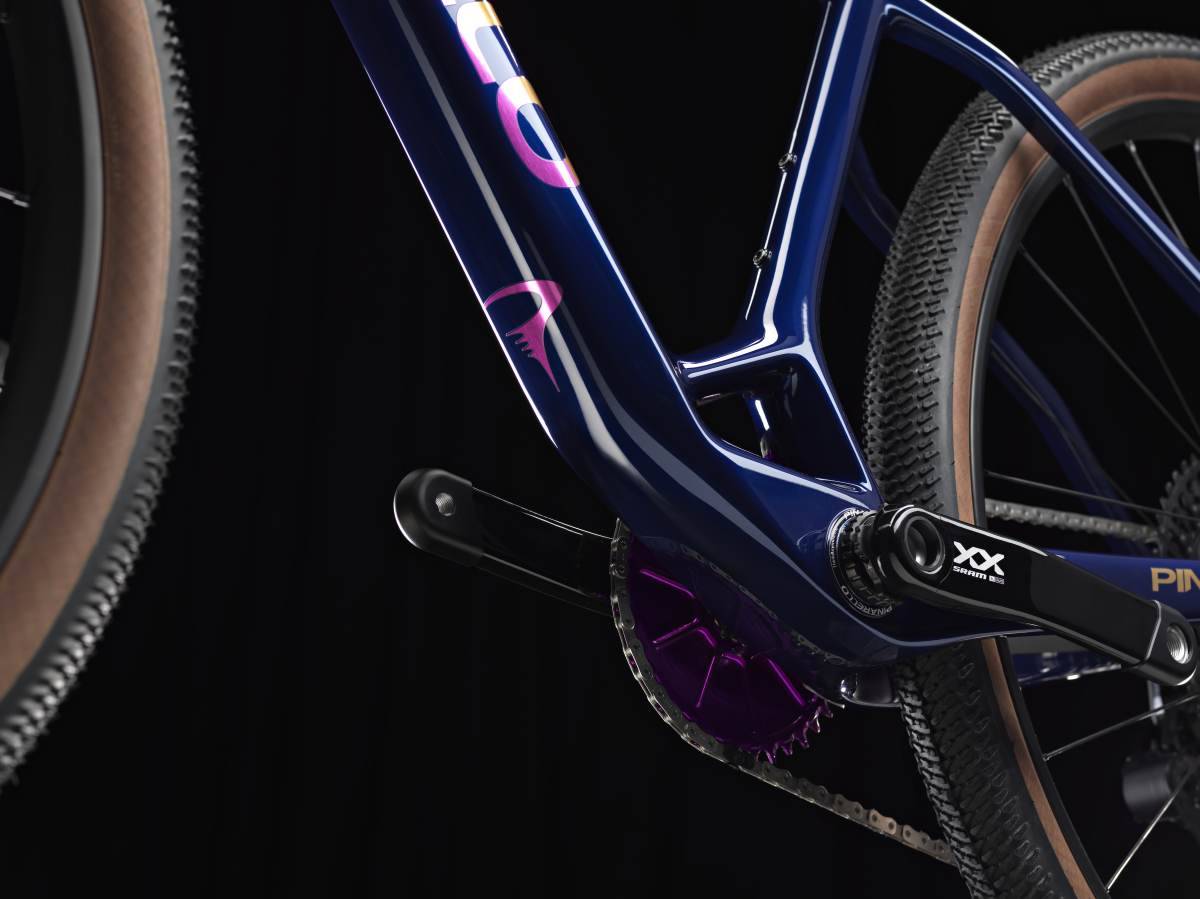

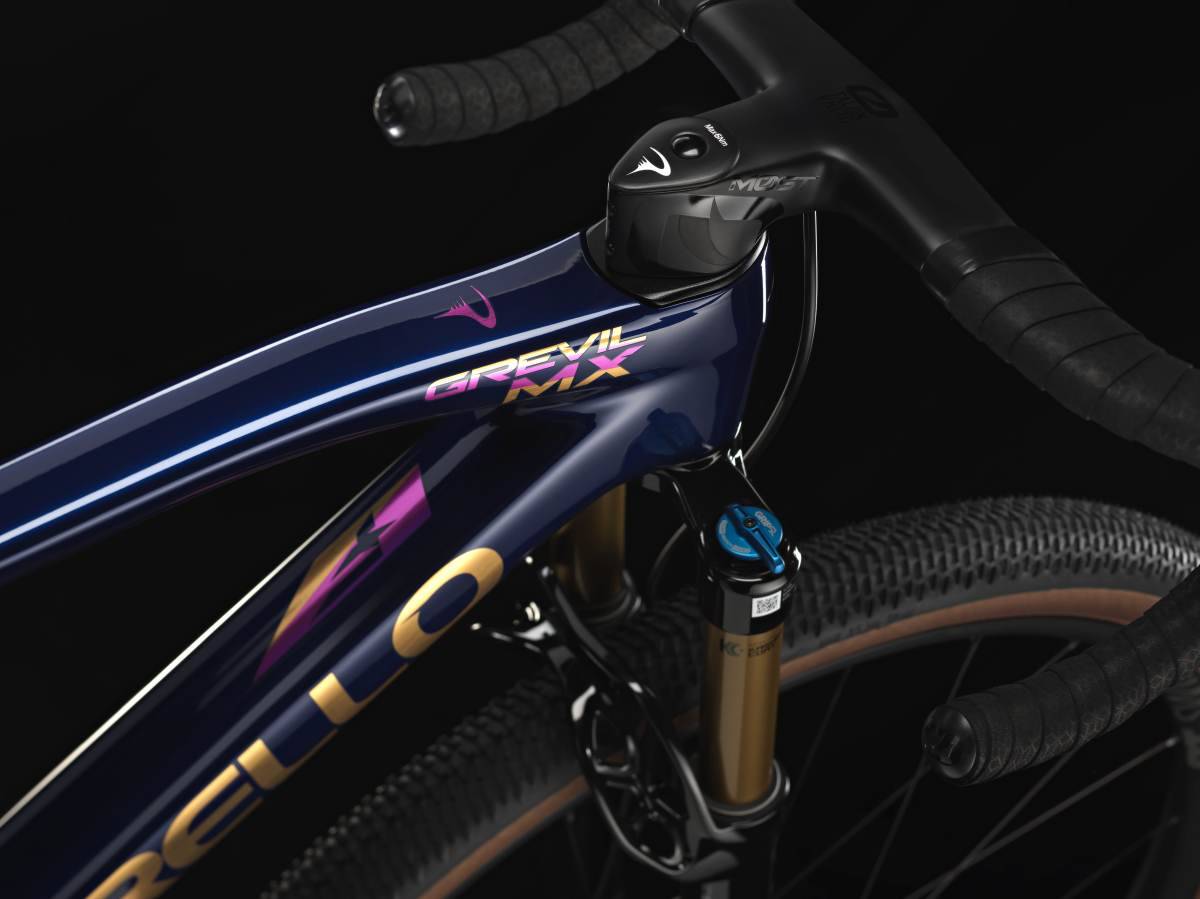

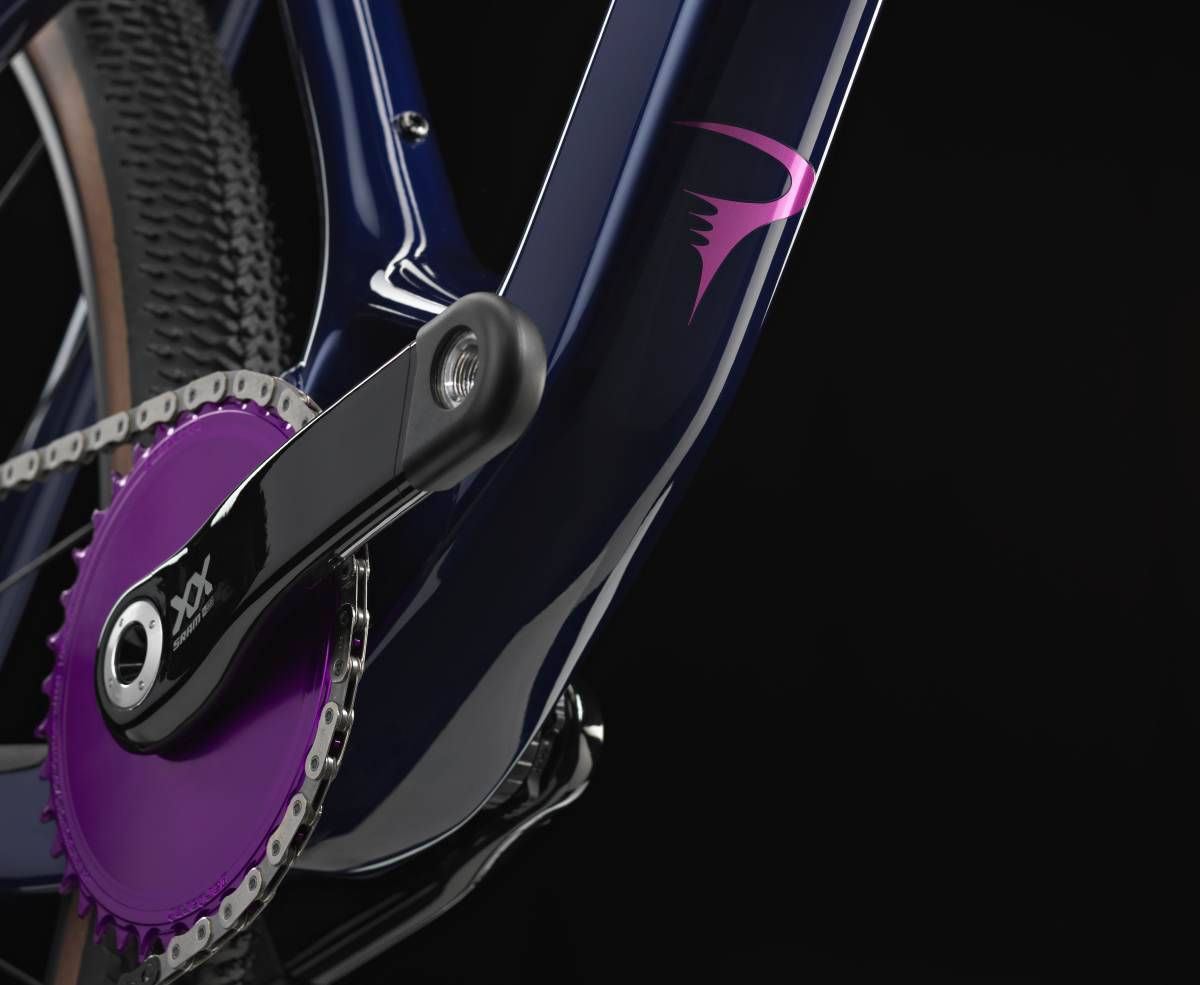

The GREVIL MX frame is constructed from best-in-class Toray M40J carbon fiber and features fully integrated TiCR cable routing and a threaded BB. The BB area comprises an ultra-stiff triangular structure, while the rear triangle incorporates Pinarello’s patented asymmetric design, with the left side structurally reinforced to counterbalance the higher loads generated on the drivetrain side. This architecture creates more balanced energy transfer and improved traction and acceleration on loose or variable surfaces.

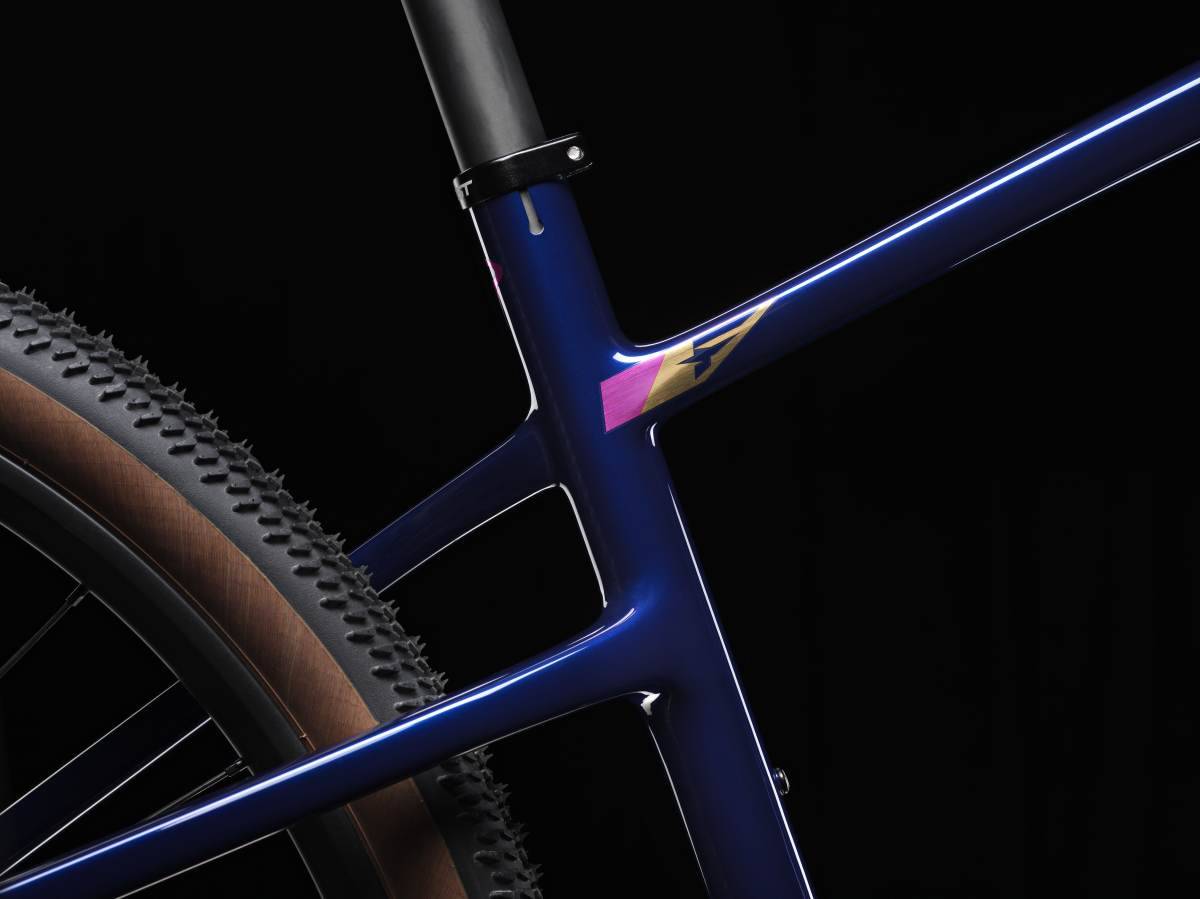

The chainstays and seatstays have both been specifically shaped and reinforced to withstand the high torsional forces typical of aggressive gravel riding, steep off-road climbs and explosive accelerations.
The GREVIL MX is optimised for 50mm gravel tires, achieving an optimal blend of traction and fatigue reduction, while the 100mm suspension fork travel provides the best weight to ratio solution. The 38T–10/52 transmission system delivers significantly better climbing ability than standard gravel chainsets and improved descending cadence than regular MTB setups.
Pinarello President Fausto Pinarello said: “The GREVIL MX is designed for riders who push gravel beyond its typical boundaries. It’s a very versatile bike, perfectly suited for races or adventures where you’re riding into the unknown. It can handle long climbs and rocky descents with ease and combines the feeling of a MTB with the ergonomics of a road bike. It’s a unique addition to our gravel range.”
Compatibility & Specification
- Transmission – Compatible with electronic and mechanical groupsets (with internal cable routing), and UDH hanger compatible
- Groupset – SRAM XX SL Eagle AXS 1×12 DB
- Chain Line – 55mm with zero offsets chainrings
- Chainrings – Aero profile, 32 to 38 tooth
- Brake setup – PM 160 front rotor and FM 160 rear rotor. The front fork can accommodate up to 180mm rotors
- Wheels – DT Swiss XRC 1200 110/148 XDR

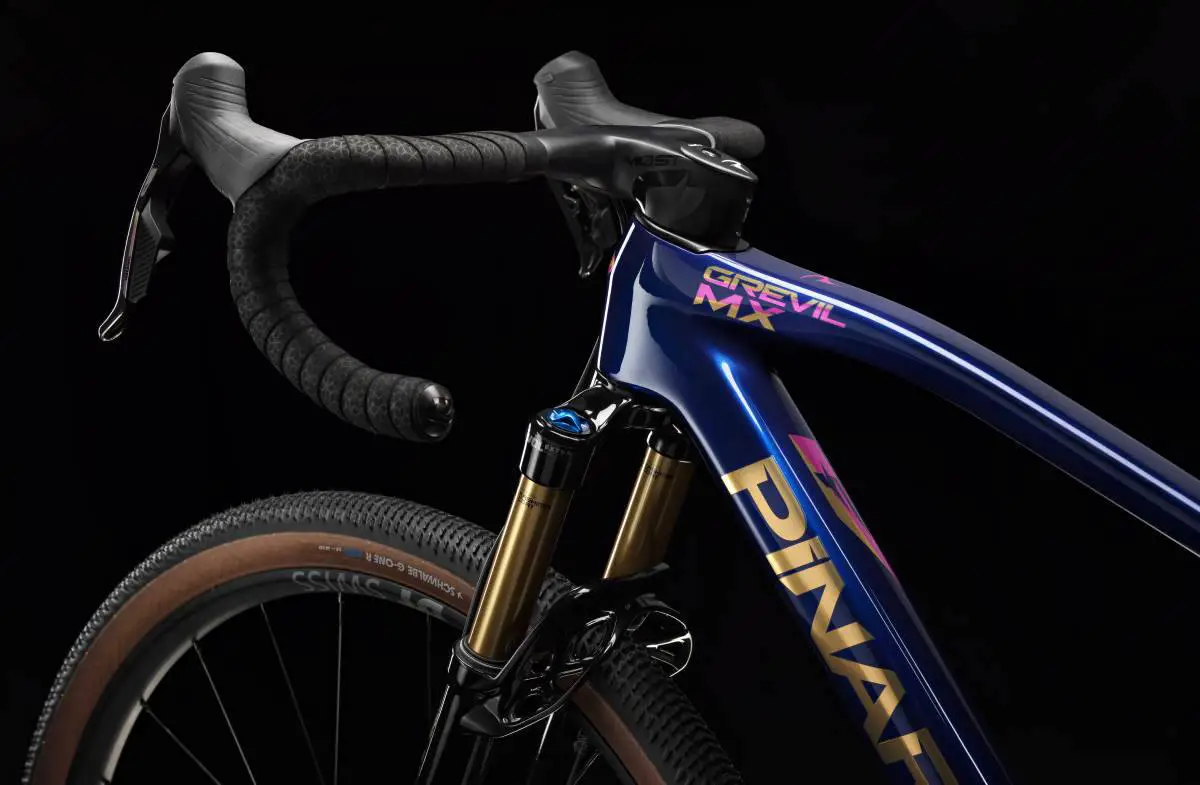

- Suspension Fork – FOX 32 Float Step Cast Factory Kashima, 100mm travel
- Tyres – Schwalbe G-One R Pro, 50mm front and rear
- Saddle – Lynx 2.0 XC Superflow S Carbon
- Handlebar – MOST Talon Ultra Light
- Seatpost – 400mm 30.9 seatpost with oval carbon rails
- Weight – 9.04kg (size M)
- Colour – Midnight Blue
- Sizing – Available in four size options
- Price – €8,500
The GREVIL MX has been designed as an adaptable platform offering a 30.9mm dropper post option and full compatibility with a MOST Talon XC cockpit for a more MTB-oriented setup.

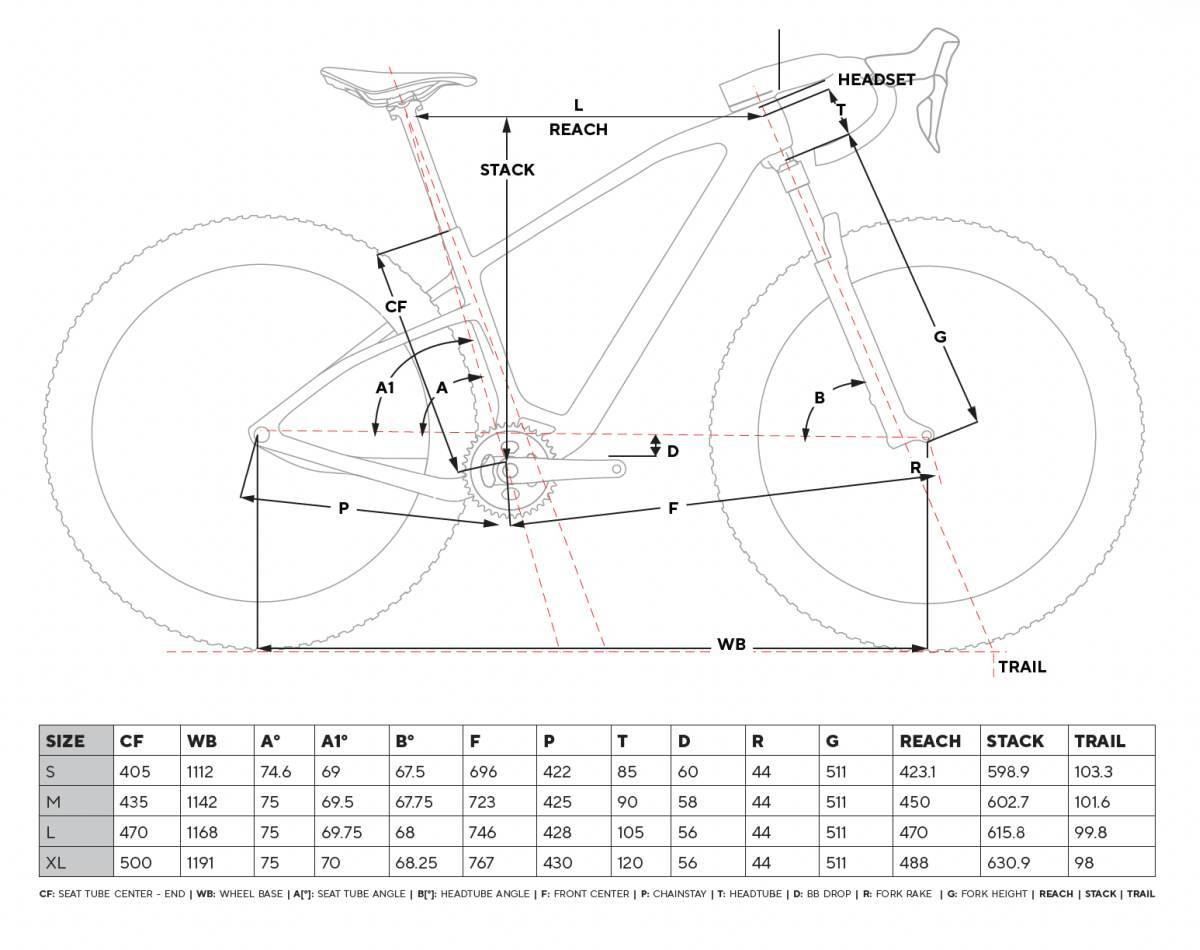

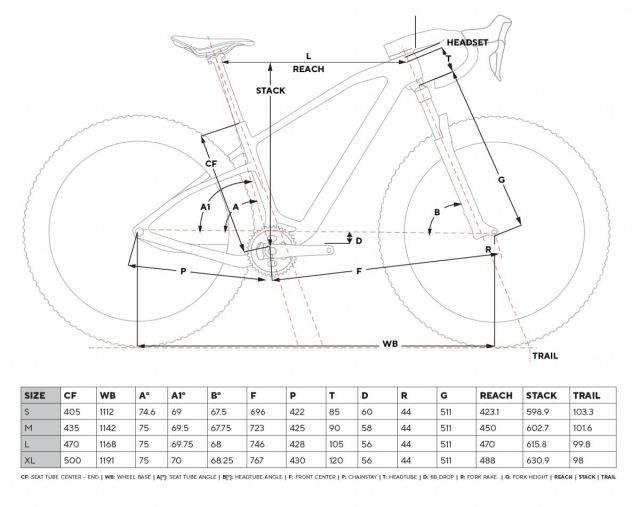

Geometry
The bike is available in 28 countries across Europe, and South Africa, although not currently available elsewhere (including the UK and North America). For more information please contact your local Pinarello dealer.
