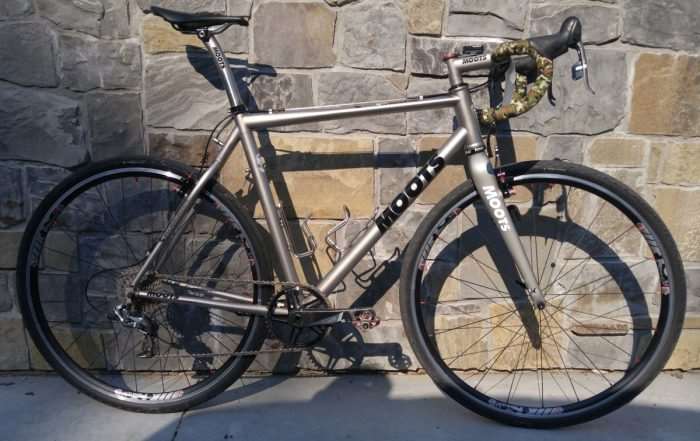

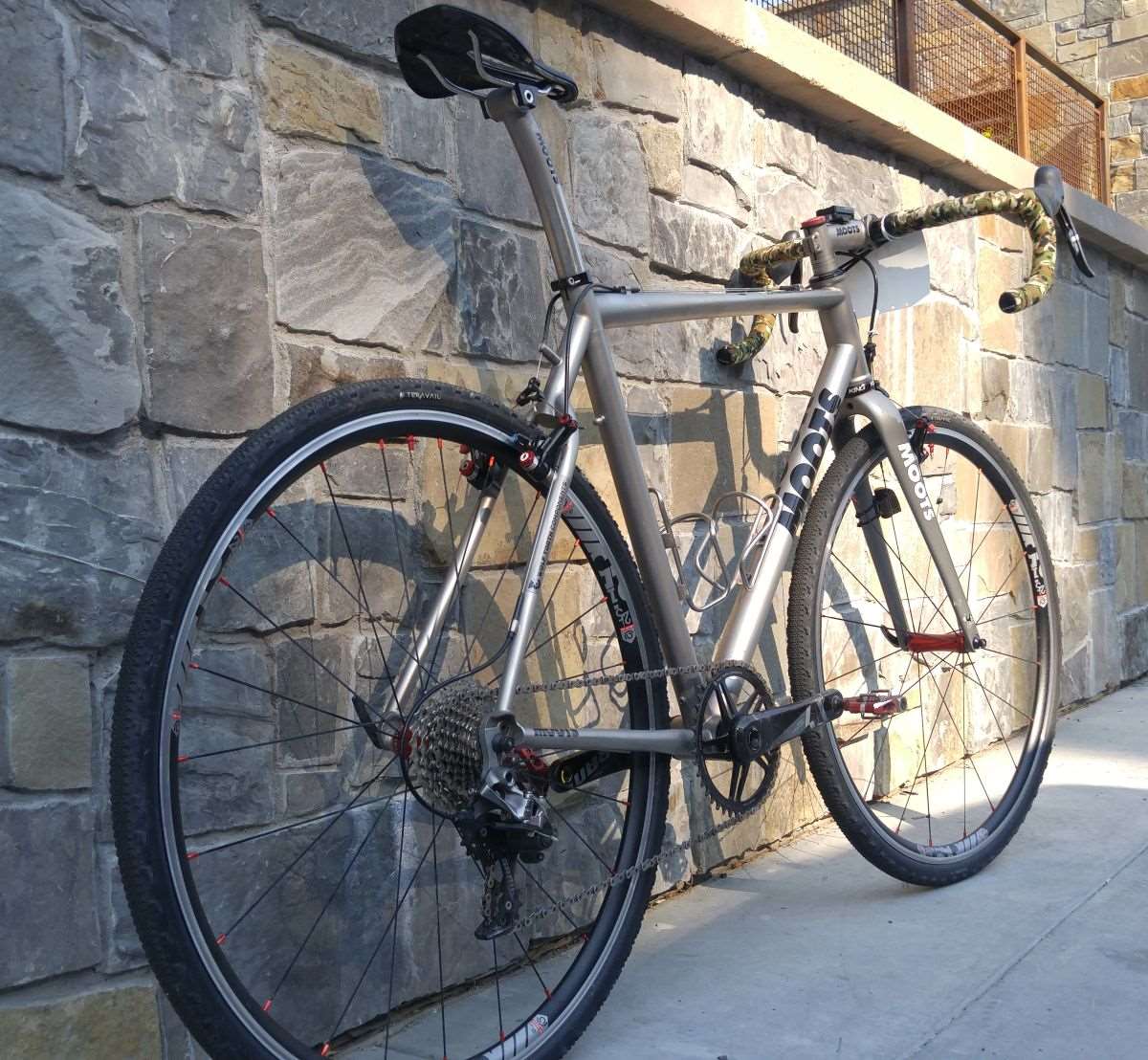

Featured Bike: Jimmie Vaughan’s Moots PsychloX RSL Titanium Cross Bike turned Gravel Bike

moots psychlox rsl review

About Moots

“Moots Cycles has been handcrafting bicycle frames in Steamboat Springs, Colorado since 1981. The company is known for building the finest quality titanium road, mountain, cross, and specialty bicycle frames, and select components from its facility in the Rocky Mountains.”

moots psychlox rsl review

“In recognition of Moots’ business leadership, product innovation and corporate / environmental responsibility Moots has been recognized as a Colorado Company to Watch.”

The very first Moots, a custom steel road frame, rolled out the front door in Steamboat Springs, Colorado, in 1981. Since that time, the company has become renown for its production of titanium bicycles covering all genres of cycling.

moots psychlox rsl review

The Moots PsychloX RSL cyclocross bike made its first appearance in pre-production form at the 2011 Interbike trade show. Jon Cariveau, Moots’ marketing director, rode his prototype PsychloX RSL to a fine second place finish in the Men’s 45 – 49 age group at the 2012 USA Cycling National Cyclocross Championships.

moots psychlox rsl reviewMoots utilize US-made seamless 3/2.5 titanium tubing in the construction of the PsychloX RSL. The tubing is heavily manipulated to drop the frame’s weight to about 3lbs / 1.36kgs.

moots psychlox rsl review

Disc brakes are across the board on virtually every new cyclocross and gravel bike circa late 2017, but this particular Moots PsychloX RSL came from a time period (just five years ago!) when disc brakes weren’t quite mainstream in these genres.

moots psychlox rsl review

If you’re new to the Gravel Cyclist website, you might be thinking:

  1. Hang on a minute. How can you possibly use a cyclocross bike as a gravel bike?!
  2. This Moots PsychloX RSL has cantilever rim brakes? Don’t they suck? What the eff?

Your answer to those questions and more can be seen in our video, using a cyclocross bike as a gravel bike (real world experiences).

moots psychlox rsl review

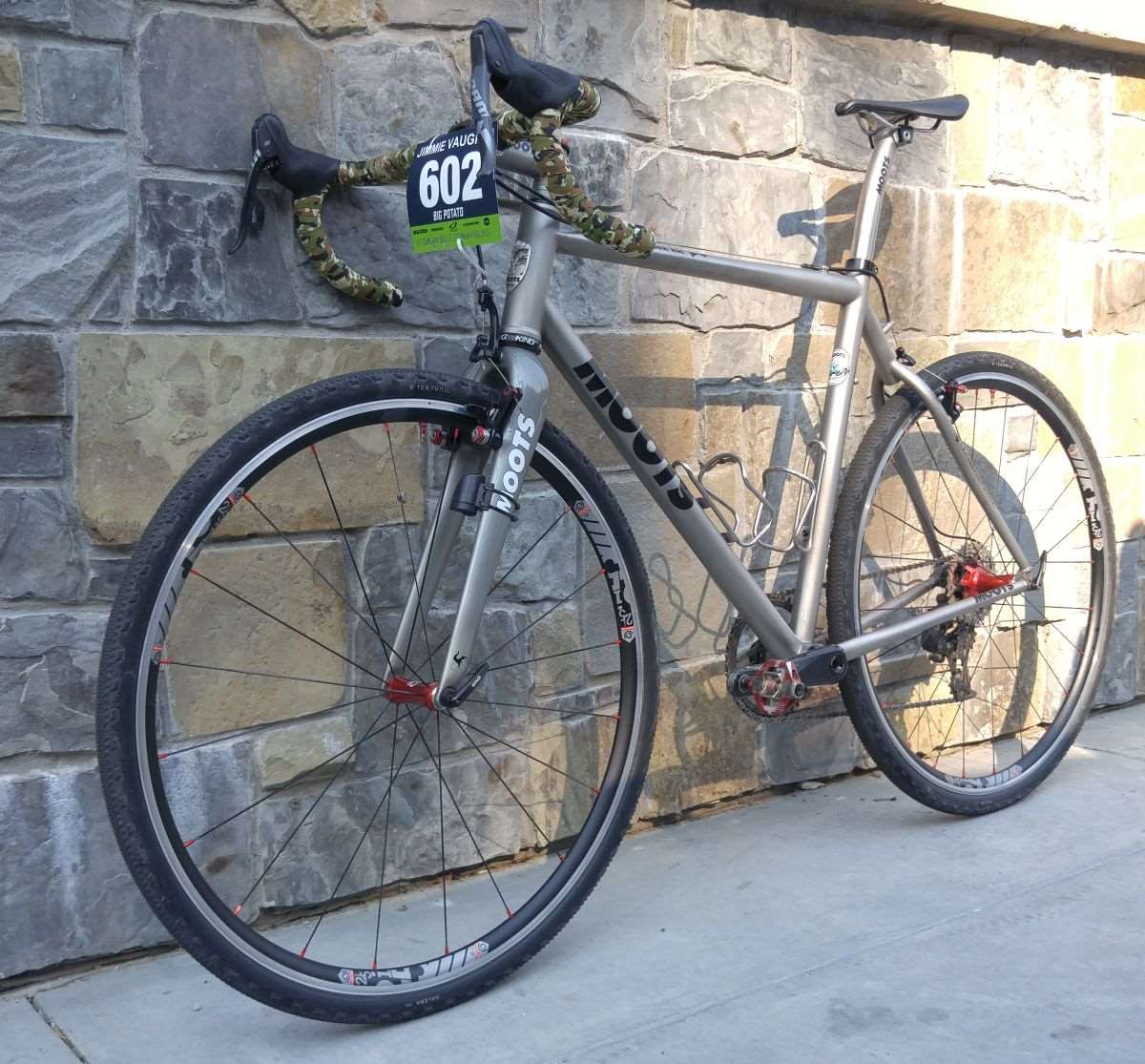

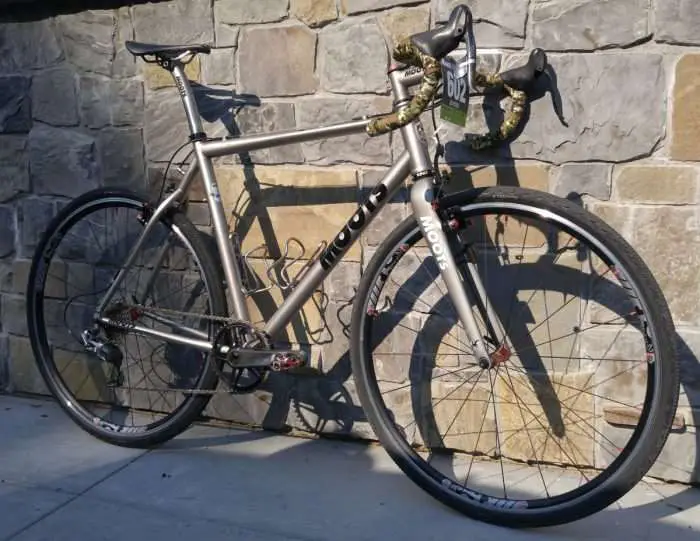

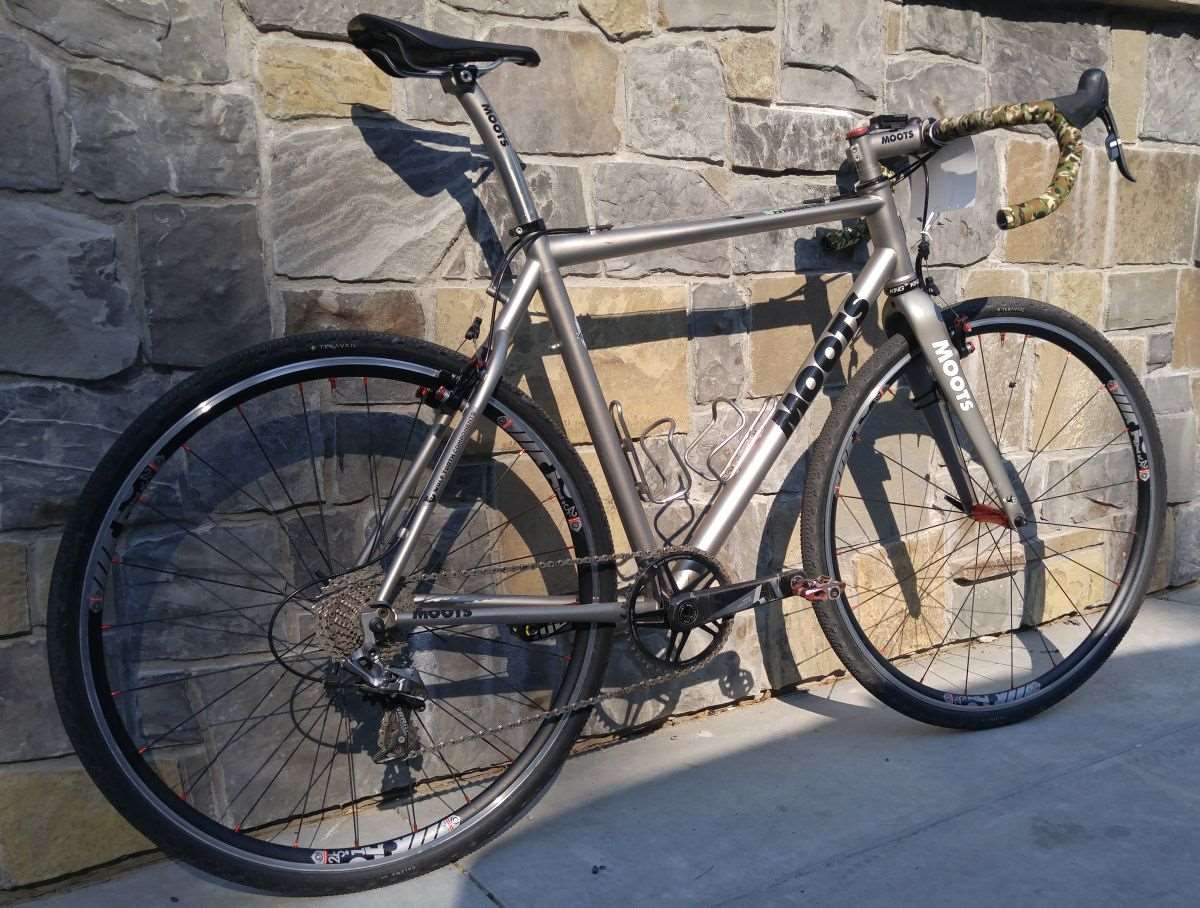

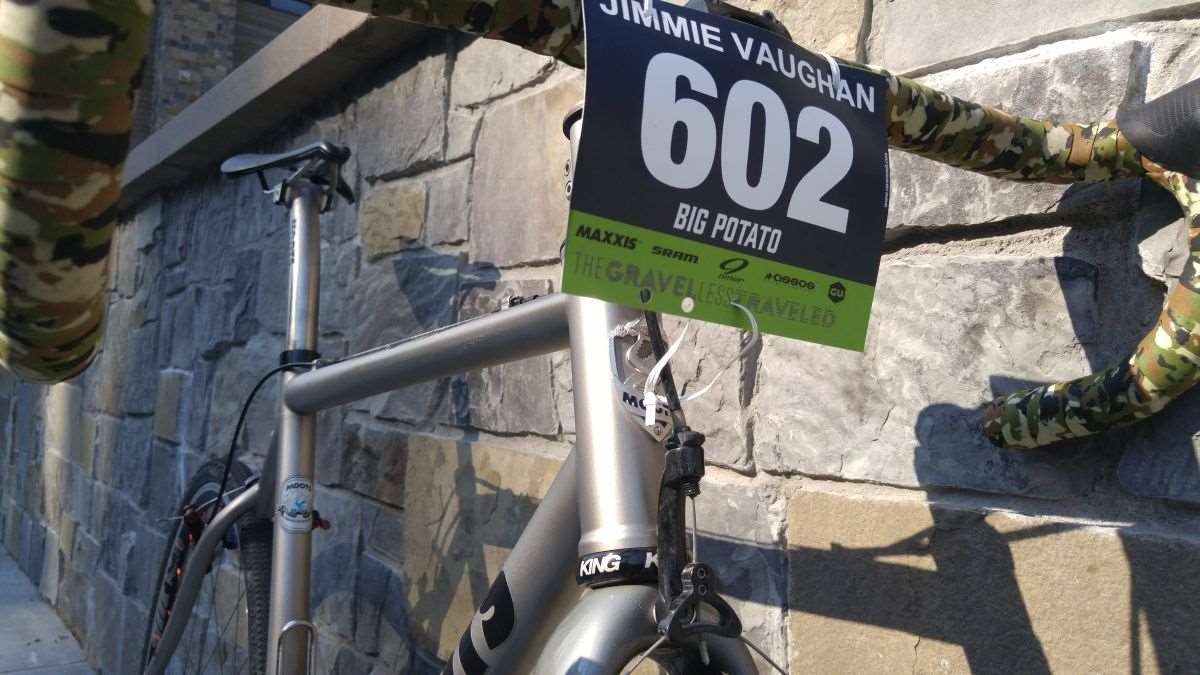

This example of the Moots PsychloX RSL belongs to Jimmie Vaughan of San Antonio, Texas. Jimmie rode this bike to greatness at the 2017 Queen’s Stage Race – a pilot event at the 2017 Rebecca’s Private Idaho. Be sure to check out our videos from that event – Stage 1 and 2Stage 3 (The Big Potato).

moots psychlox rsl review

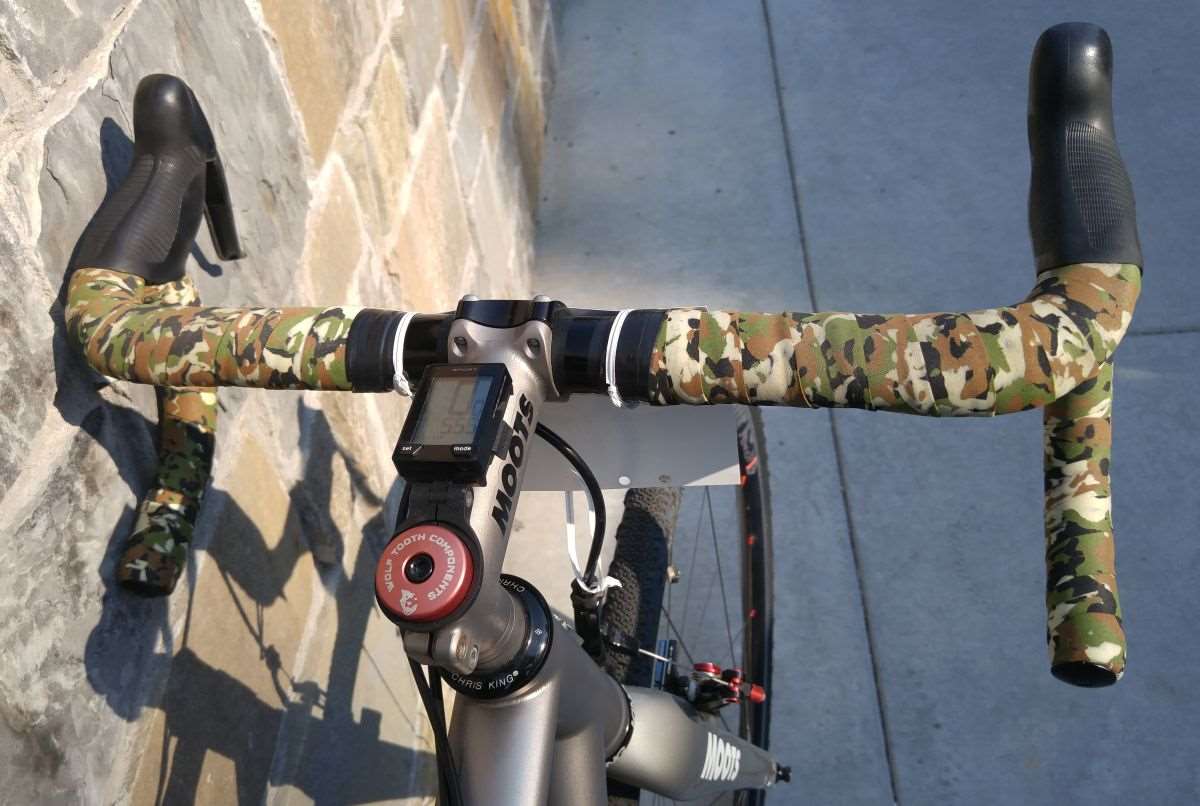

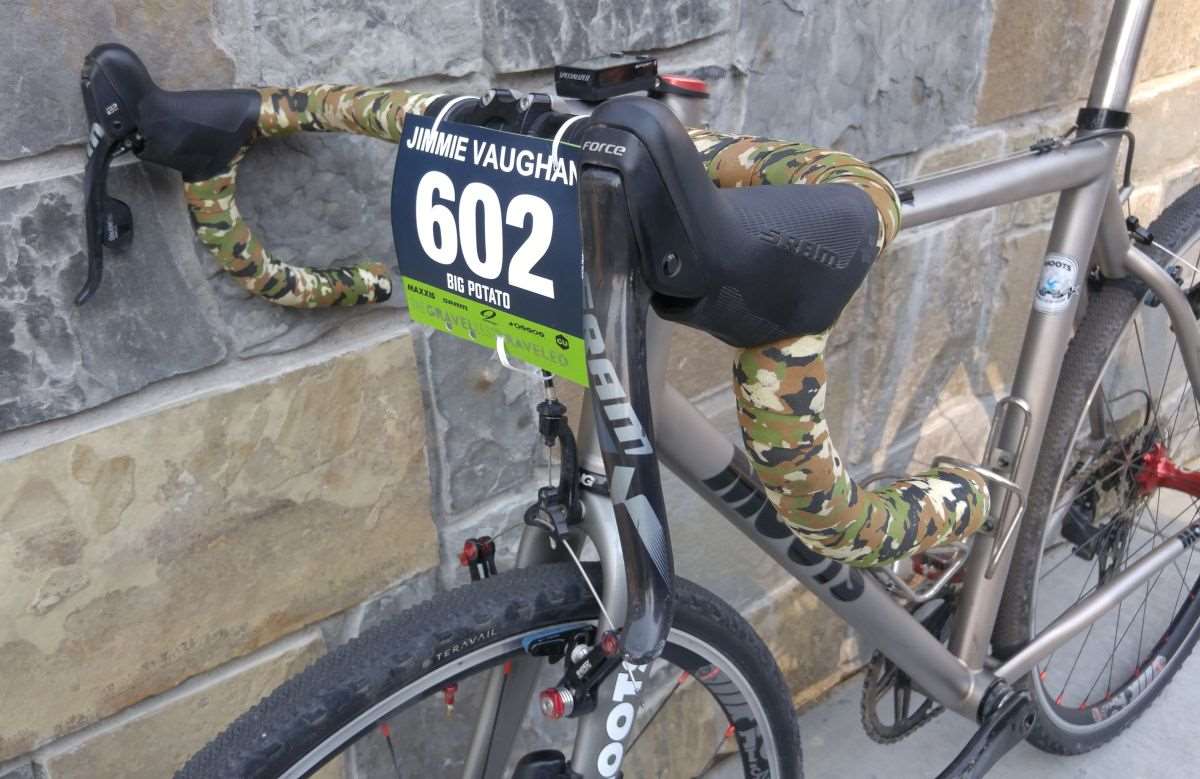

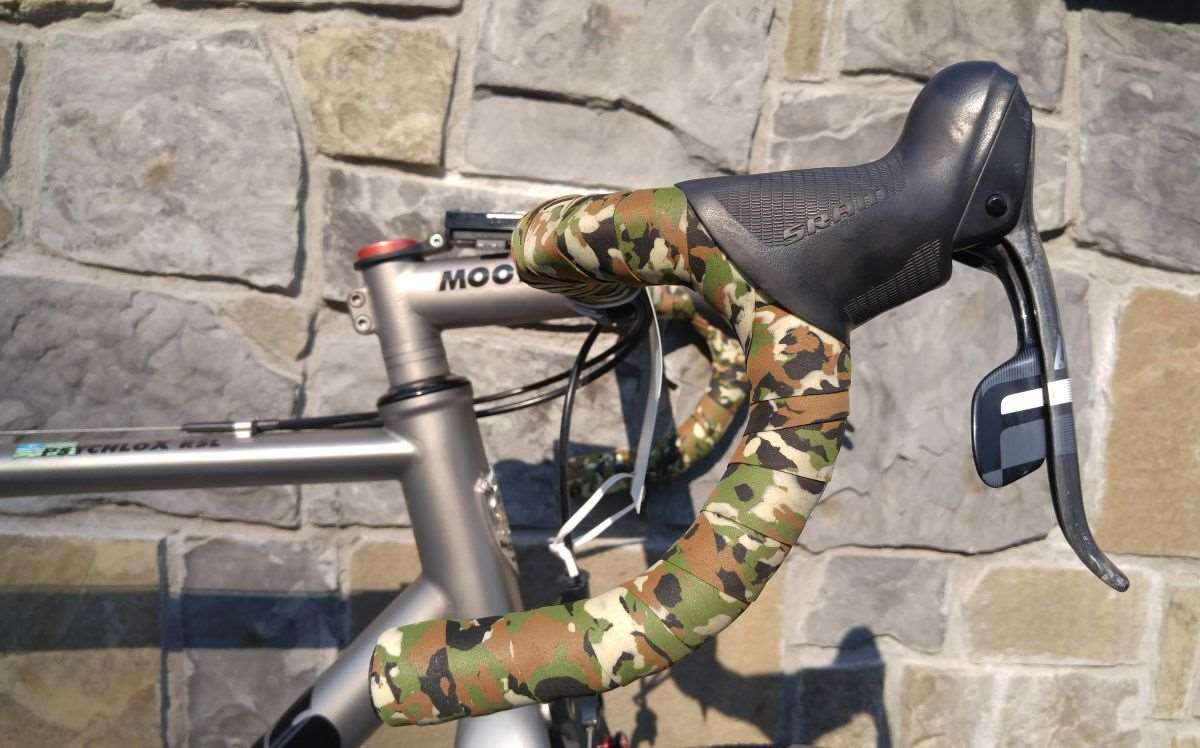

Starting at the front end, Jimmie’s bike features a relatively traditional type drop handlebar – not flared – not compact drop – but just a little bit ergonomic. The duties of shifting are handled by SRAM Force 22 11-speed mechanical shifter / brake levers.

moots psychlox rsl review

moots psychlox rsl review

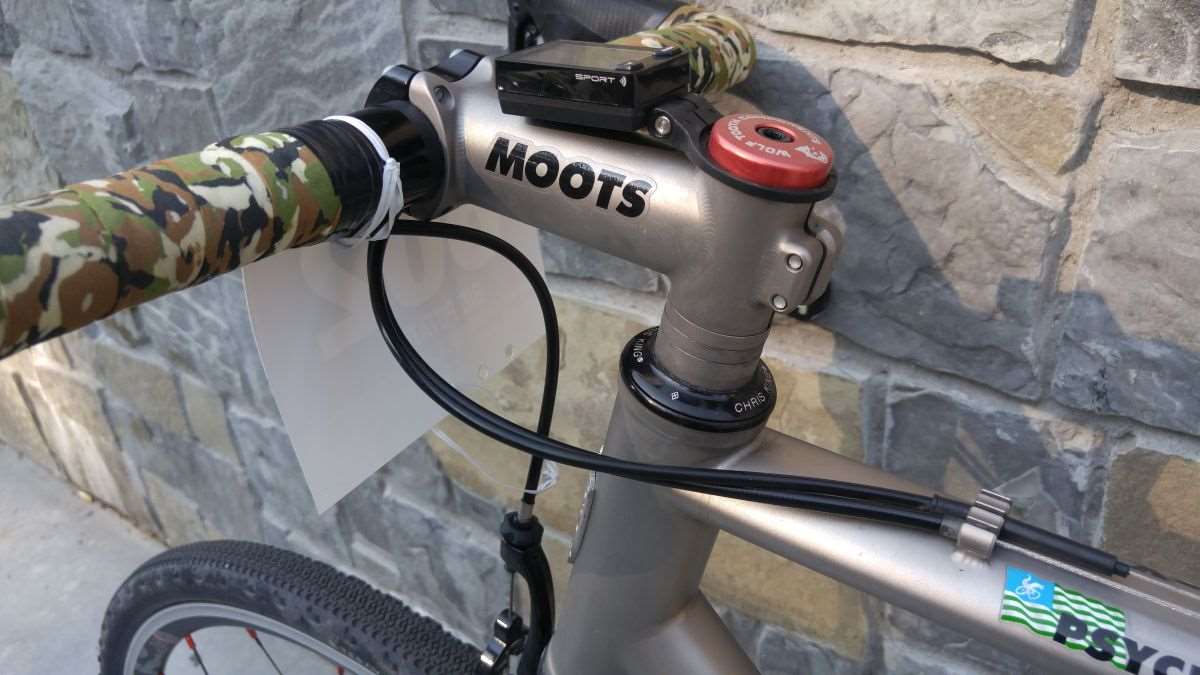

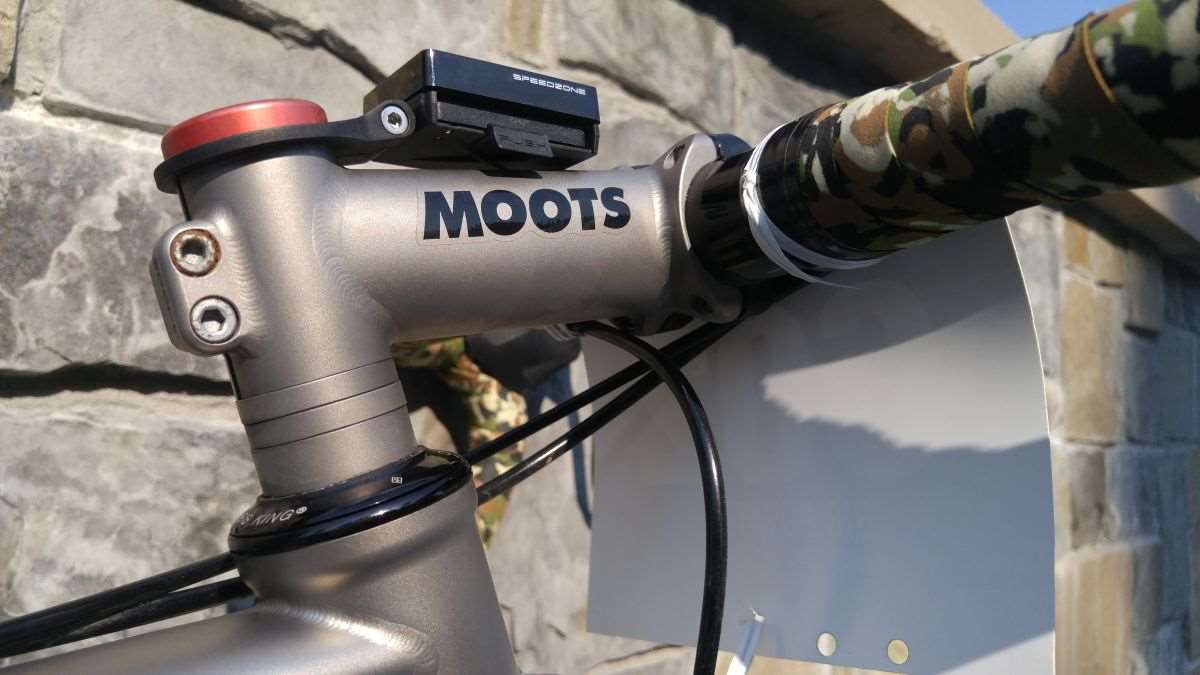

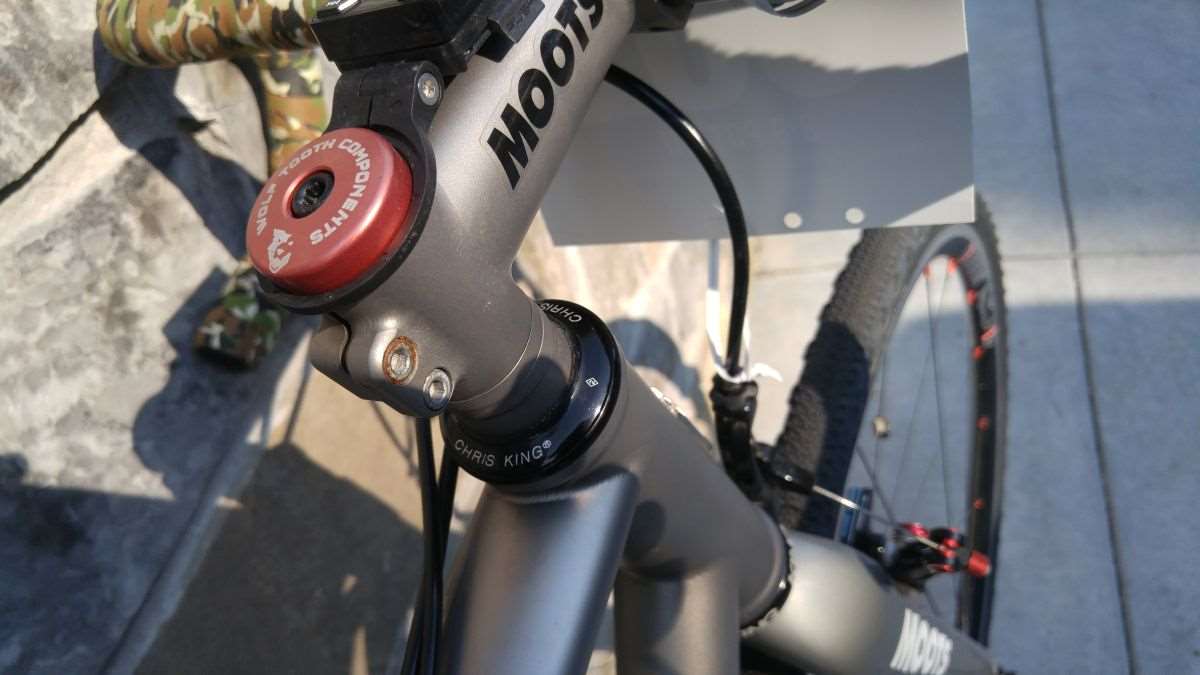

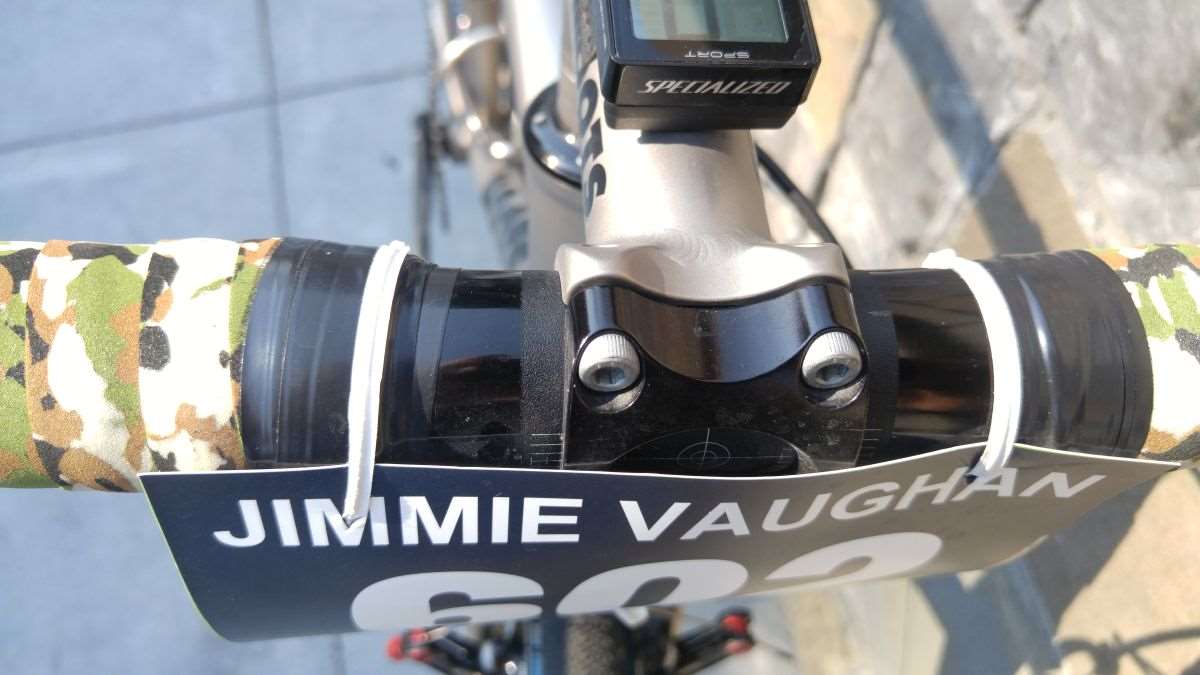

Everything about Moots is beautiful. Note the use of Moots titanium spacers beneath the stem (yes, we can see the rust on that stem bolt) that perfectly compliment the frame and stem.

moots psychlox rsl review

moots psychlox rsl review

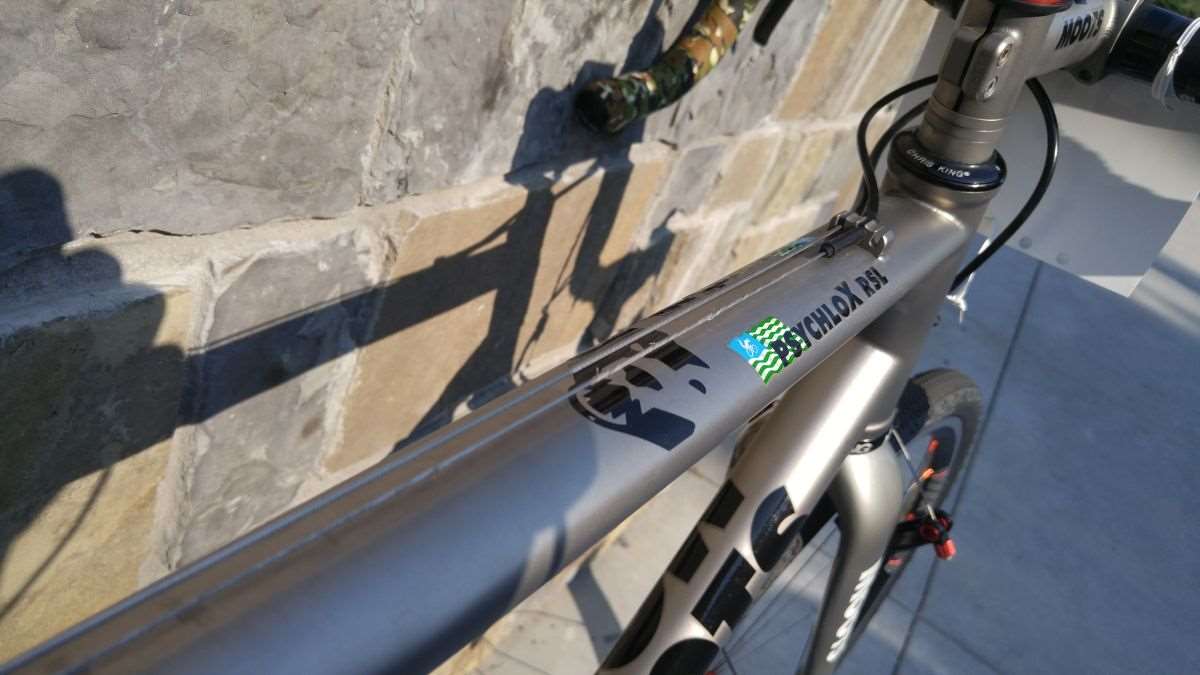

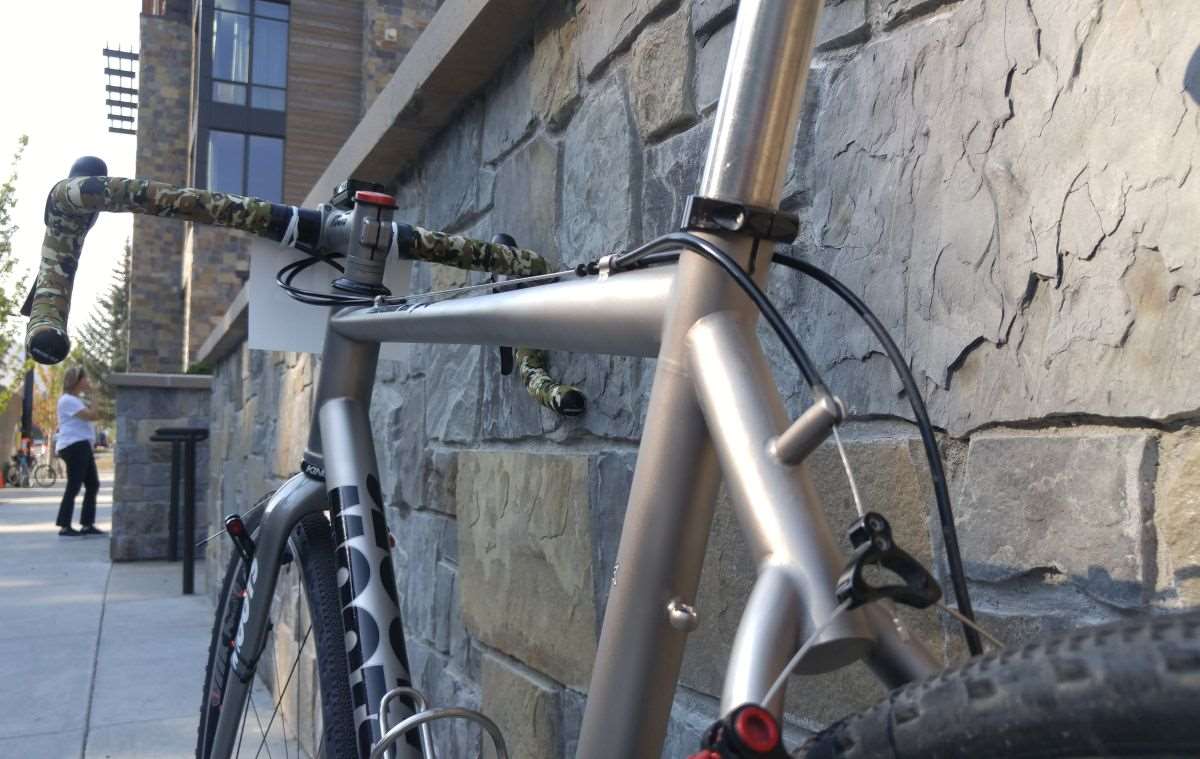

Because this Moots PsychloX RSL is now considered an older cyclocross bike where external routing was the norm – and still is in some cases – the rear brake and rear derailleur cable (no front deraillur, this bike is a 1X) are routed across the top of the top tube. This keeps cables away from mud and grime and allows for easier shouldering of the bike.

moots psychlox rsl review

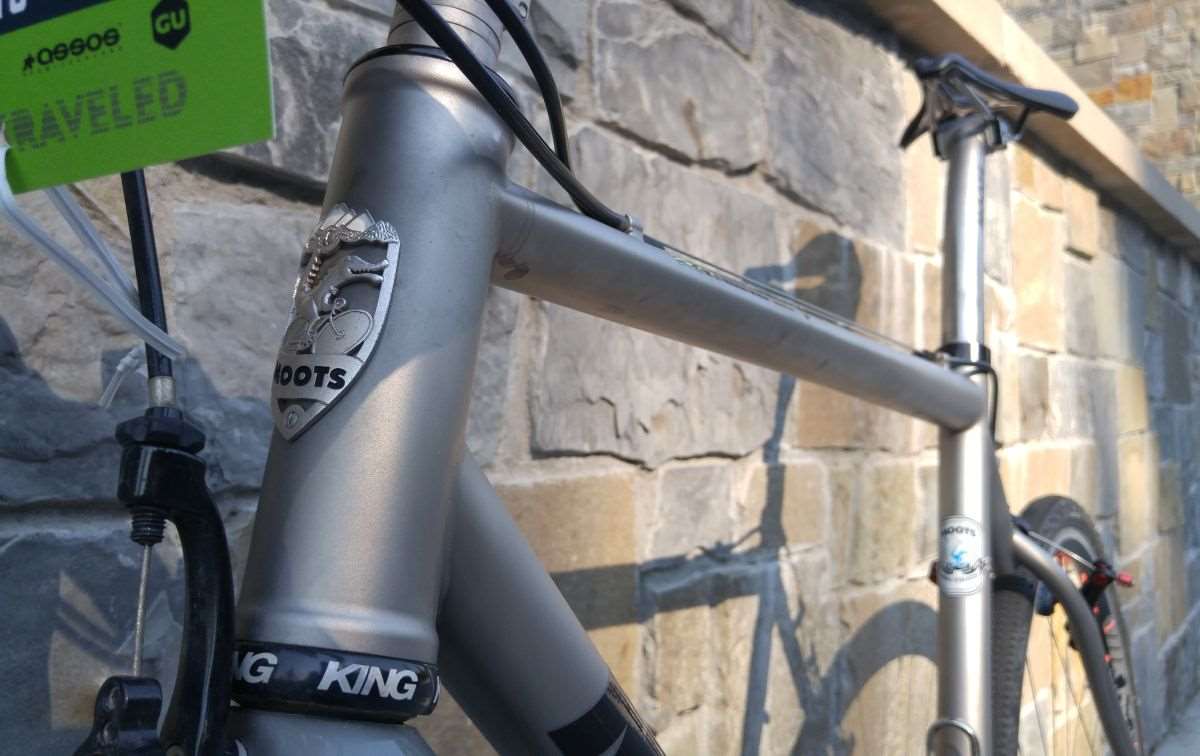

Note how the top tube flattens out towards the headtube.

moots psychlox rsl review

moots psychlox rsl review

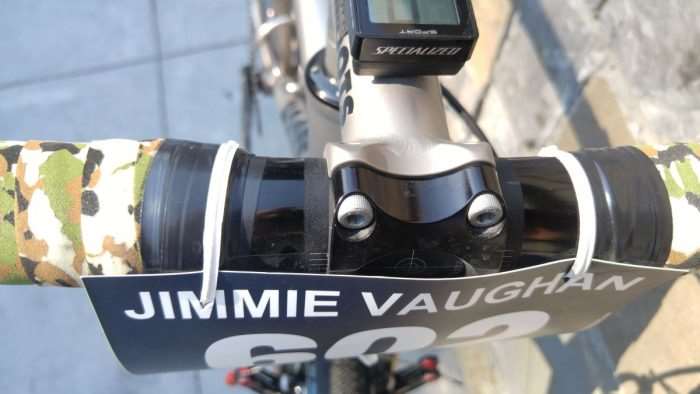

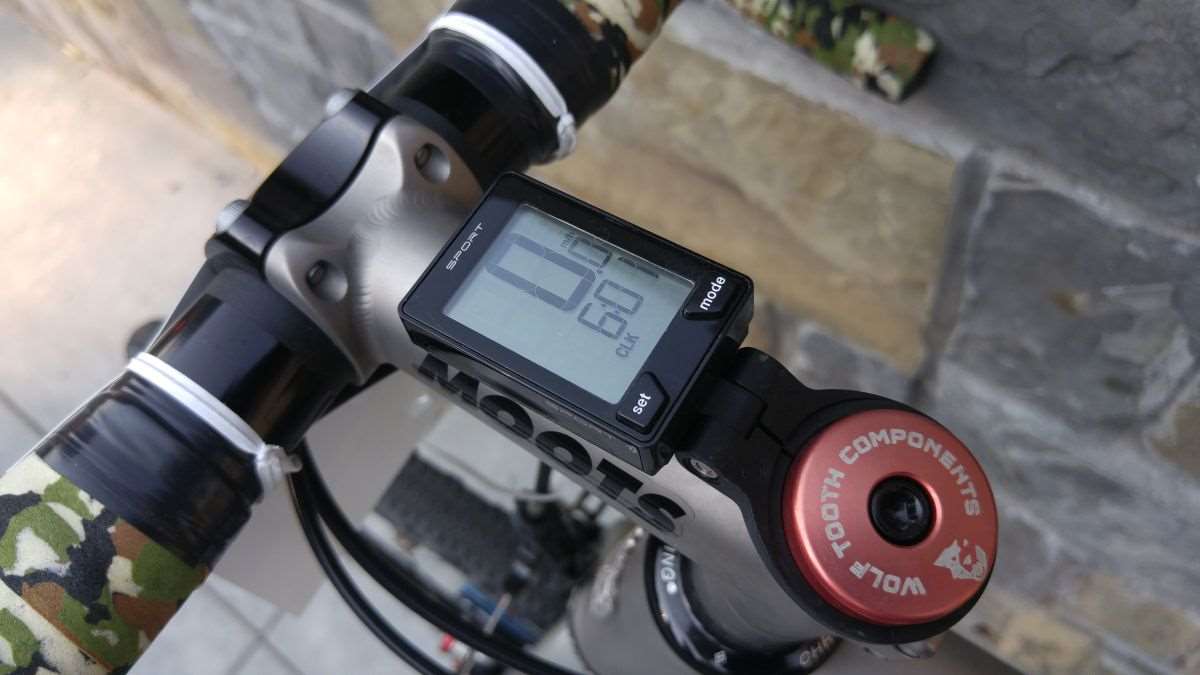

Jimmie eschews fancy Garmin computers or other devices for navigation. A simple Specialized Sport wireless computer keeps tabs on the important stats.

moots psychlox rsl review

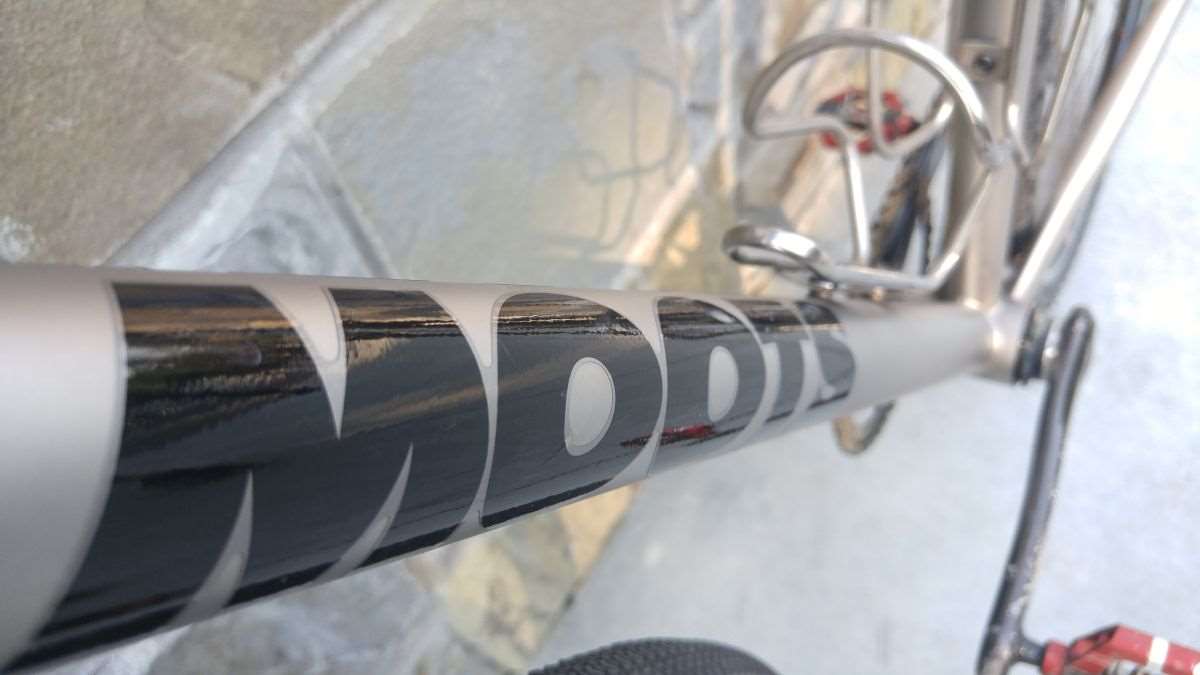

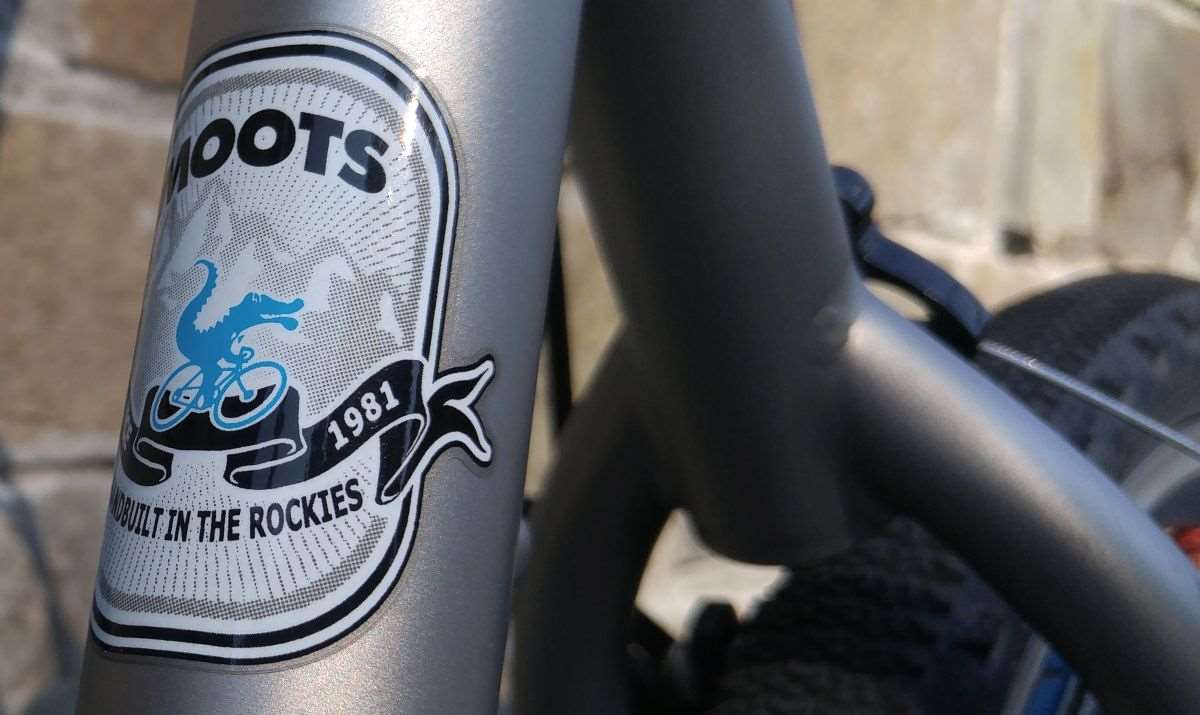

Thirty-six years is a long time to be in business, especially in the cycling industry.

moots psychlox rsl review

moots psychlox rsl review

Love them or hate them, 1x / single chainring drivetrains are here to stay. Check out our video where JOM of Gravel Cyclist canvassed a bunch of random people at the start line of the 2017 Rebecca’s Private Idaho on that subject. 1x or 2x drivetrains for gravel?

moots psychlox rsl review

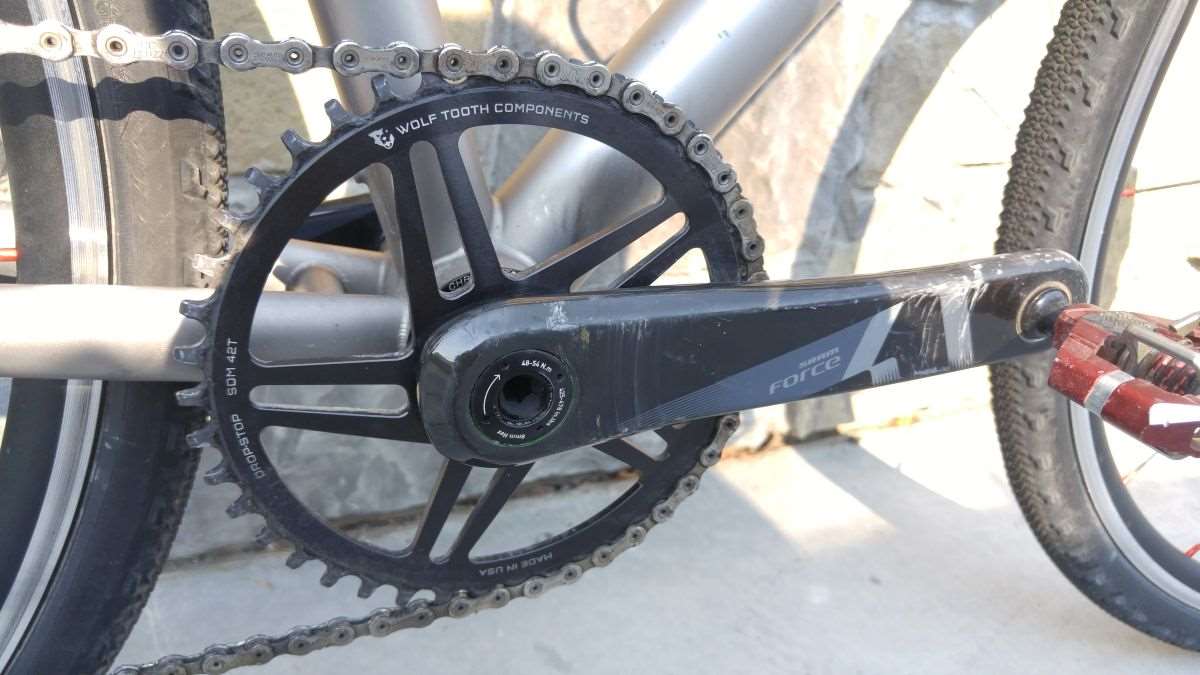

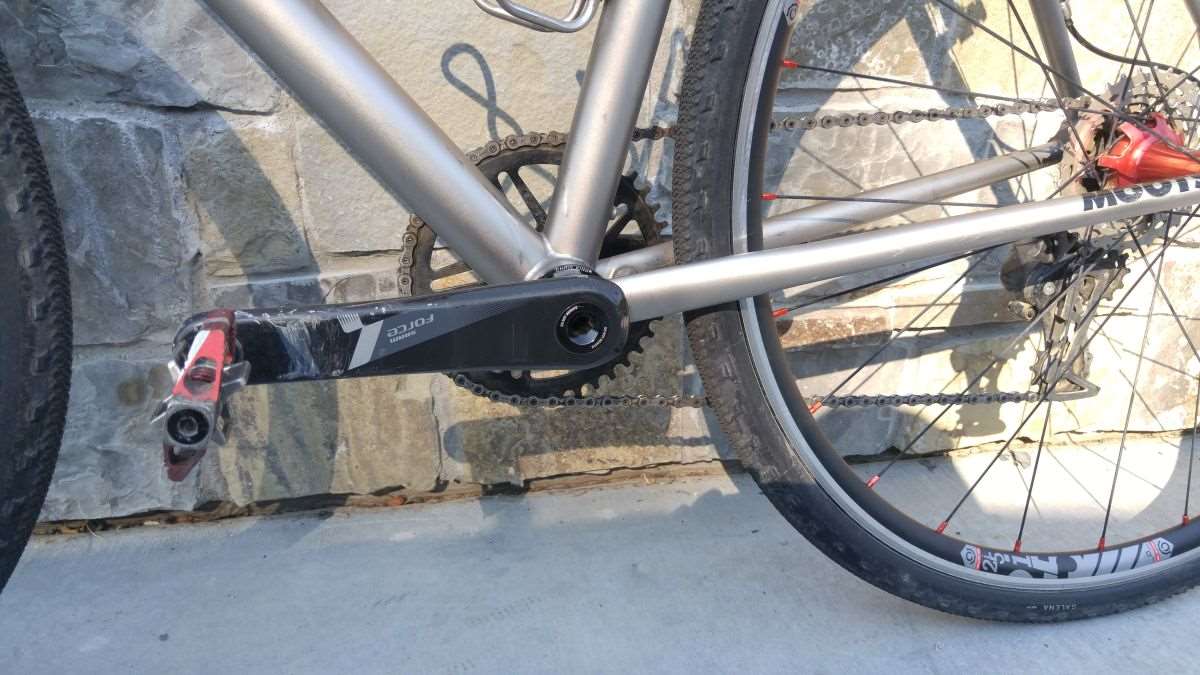

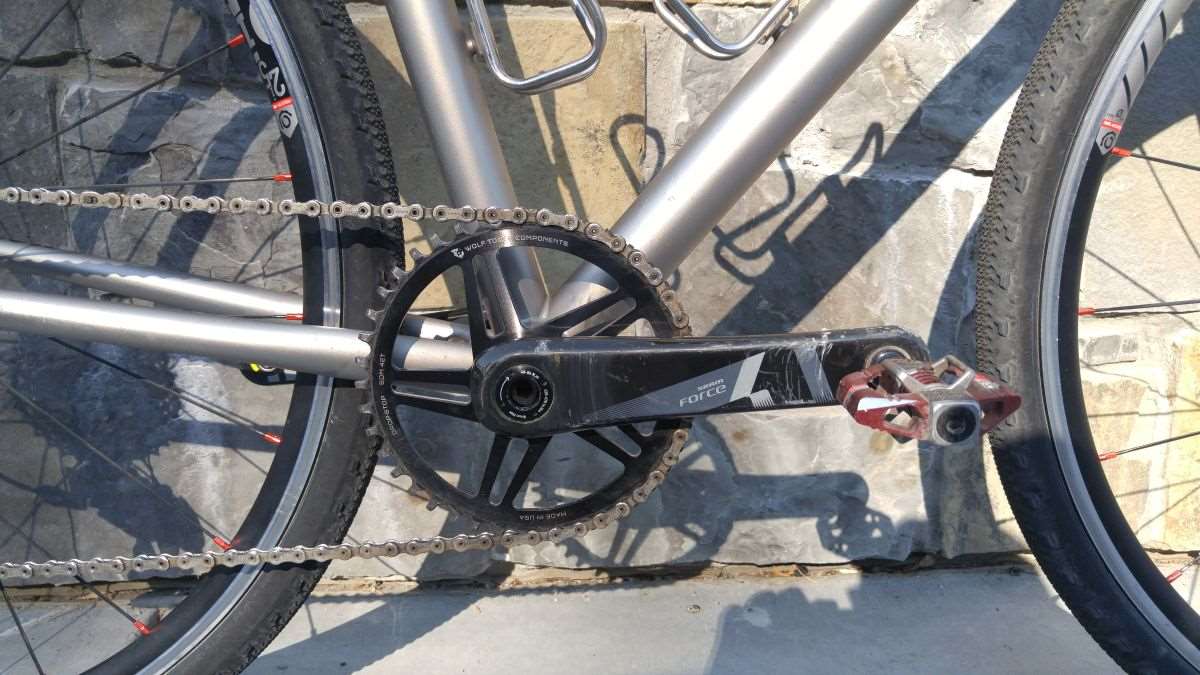

SRAM Force crankset and a Wolf Tooth Components Dropstop 42 tooth chainring.

moots psychlox rsl review

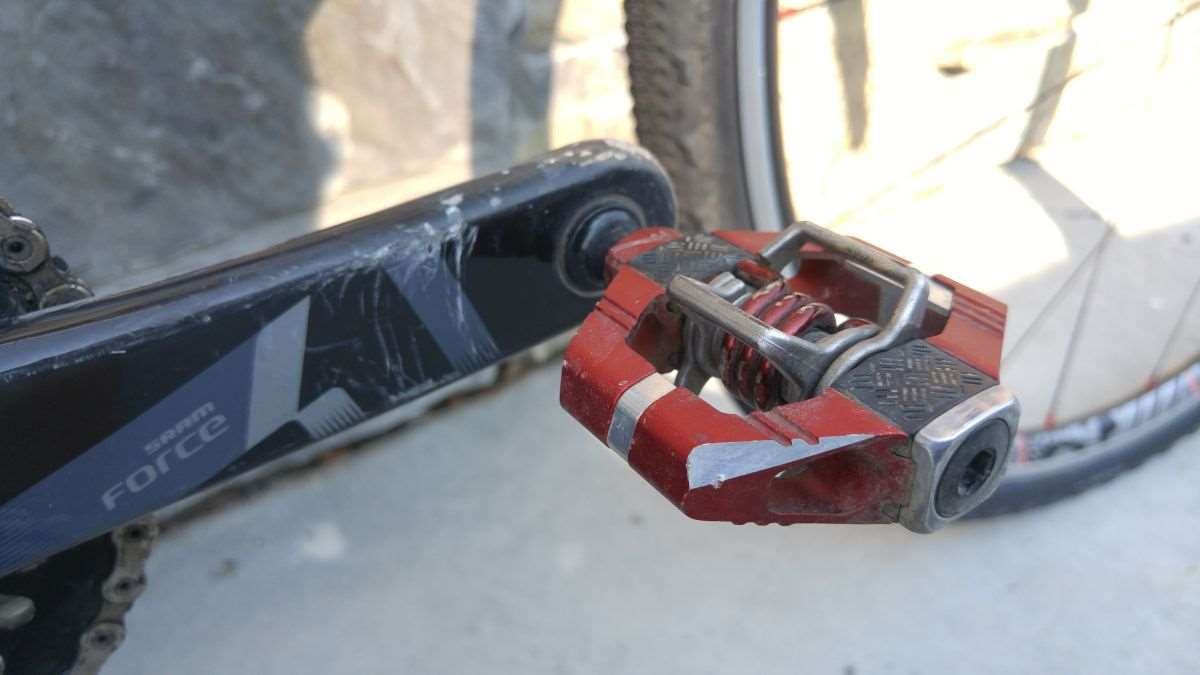

Crank Brothers pedals are relatively uncommon on cyclocross and gravel bikes.

moots psychlox rsl review

moots psychlox rsl review

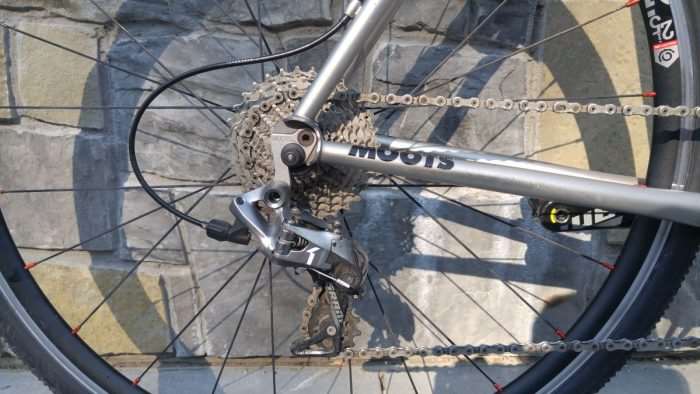

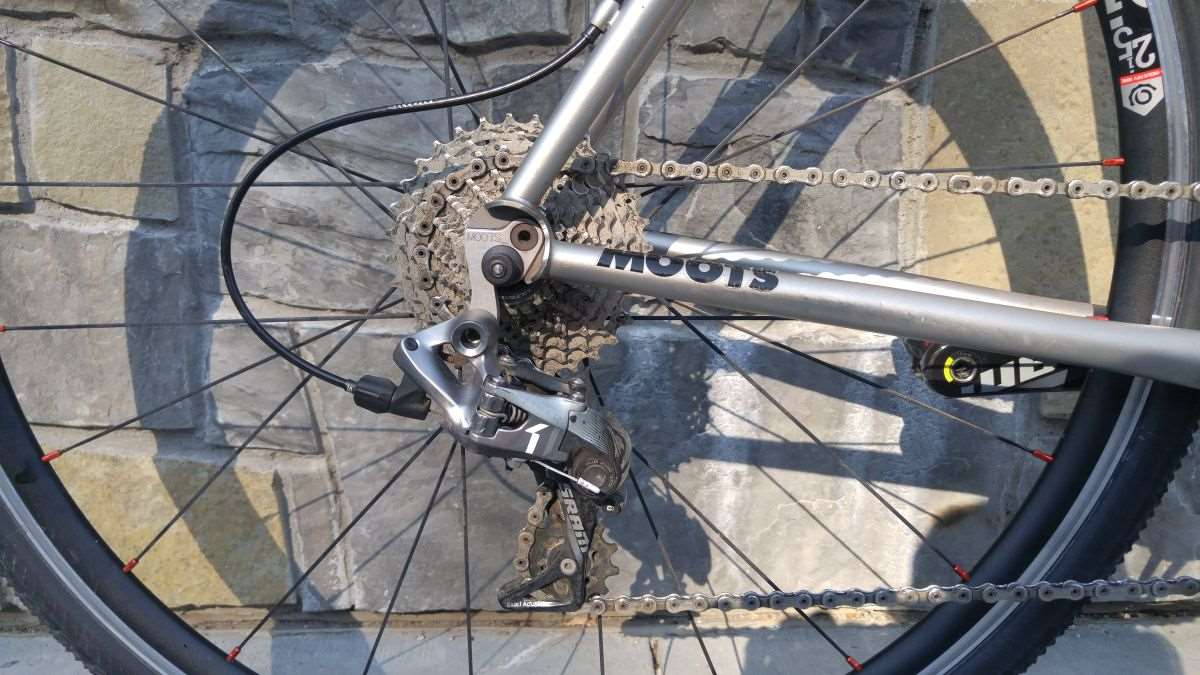

SRAM’s Force 1 rear derailleur with clutch paired to a PG1170 11-32 11-speed cassette.

moots psychlox rsl review

Above, the rear derailleur cable is routed along the right side rear seat stay.

moots psychlox rsl review

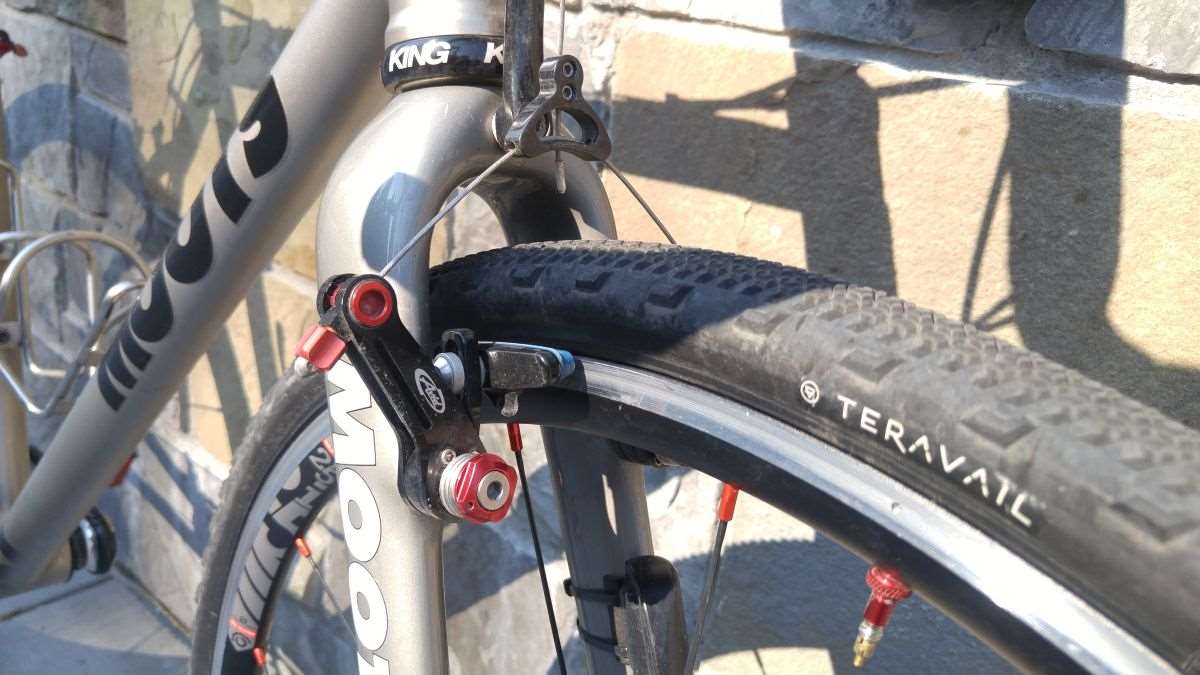

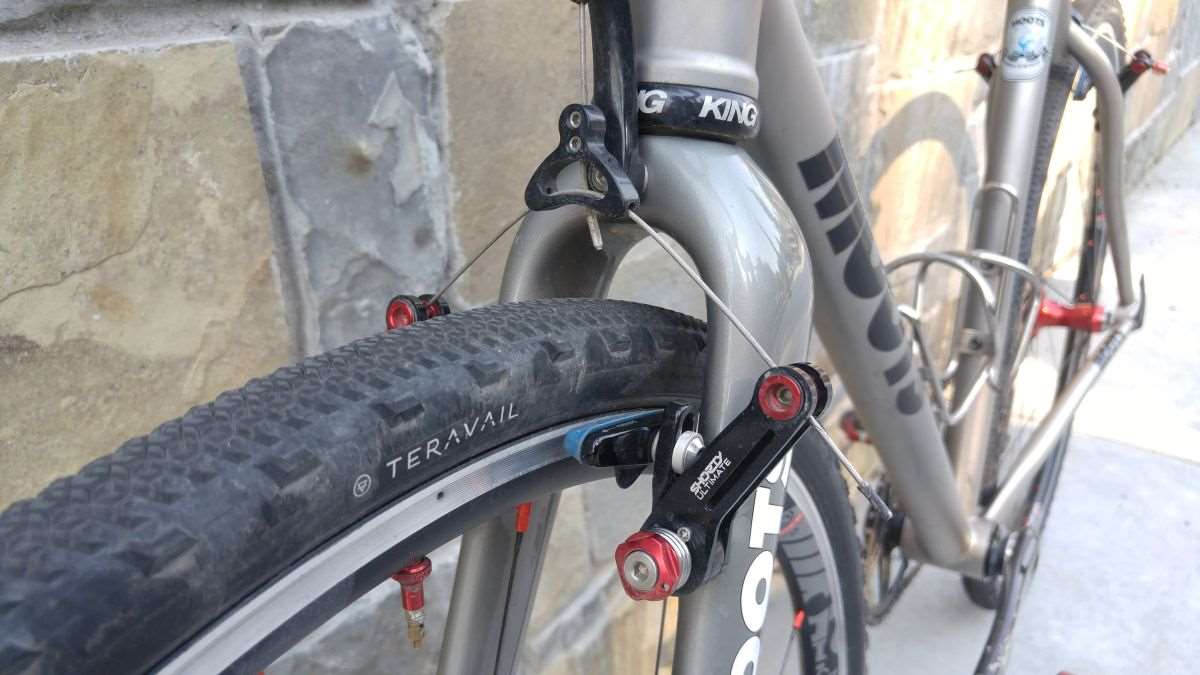

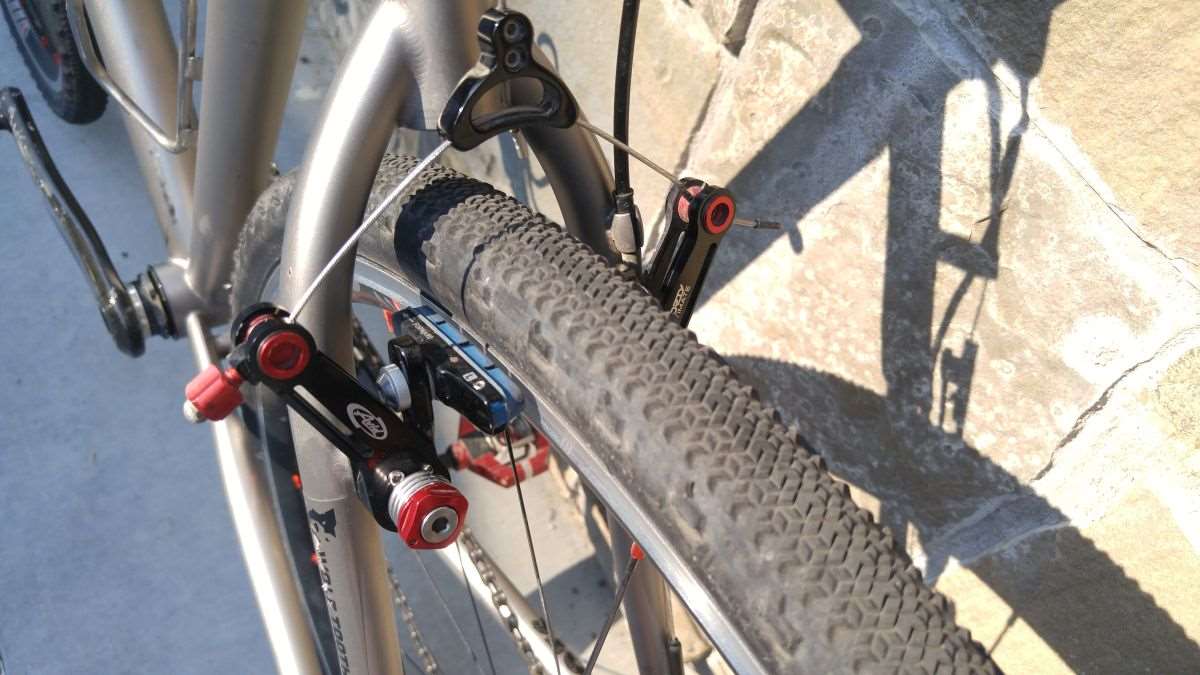

Properly configured, the Avid Shorty Ultimate cantilever brake has a ton of stopping power, excellent feel at the lever and good modulation. Don’t believe us? Check out this video of the 2017 Crusher in the Tushar, where JOM of the Gravel Cyclist crew descends the Col de Crush and more, riding these same brakes.

moots psychlox rsl review

moots psychlox rsl review

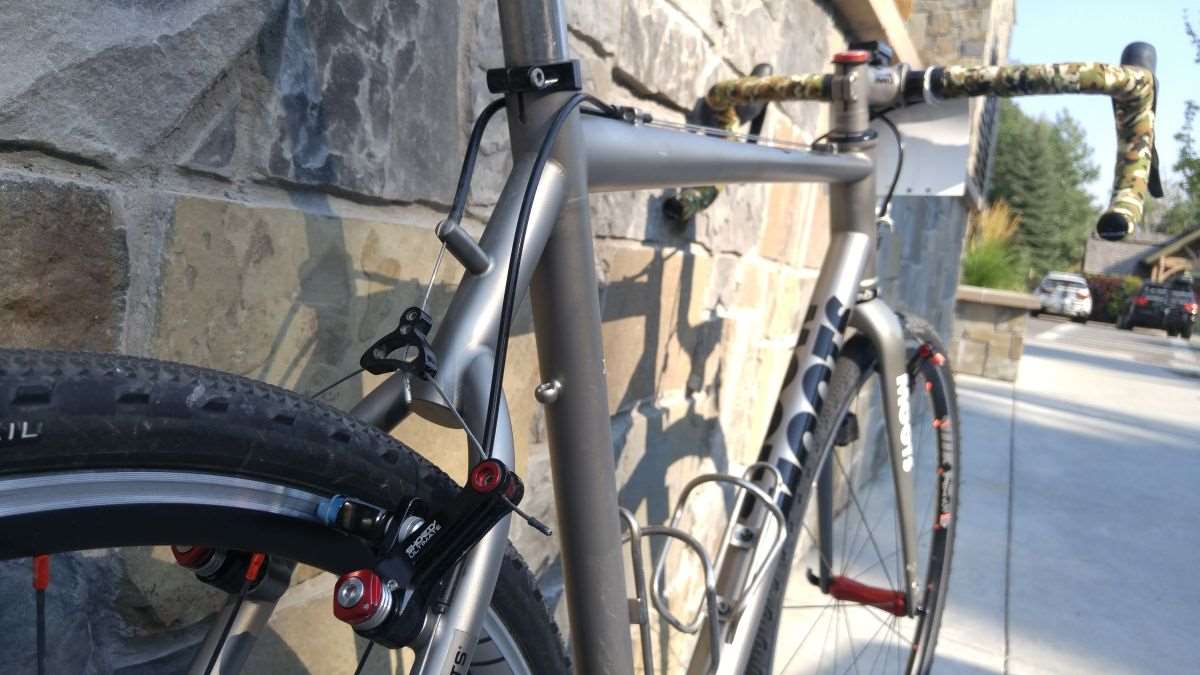

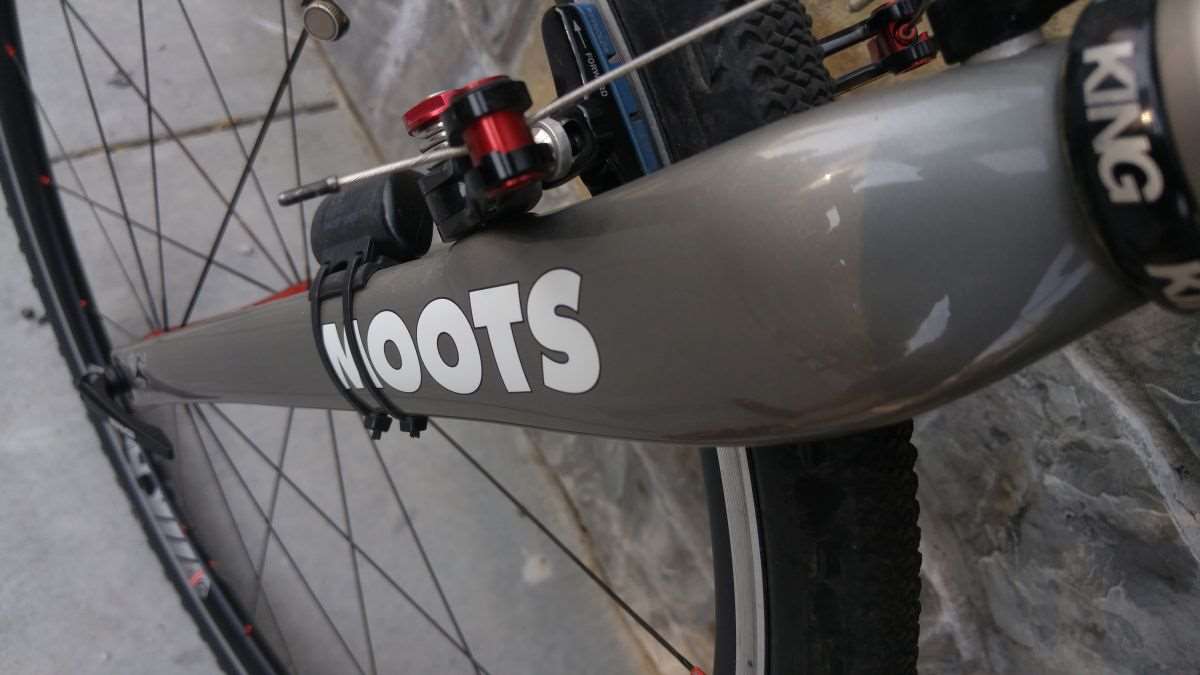

Another view of the Moots PsychloX RSL’s flattened top tube and rear brake cable guide.

moots psychlox rsl review

moots psychlox rsl review

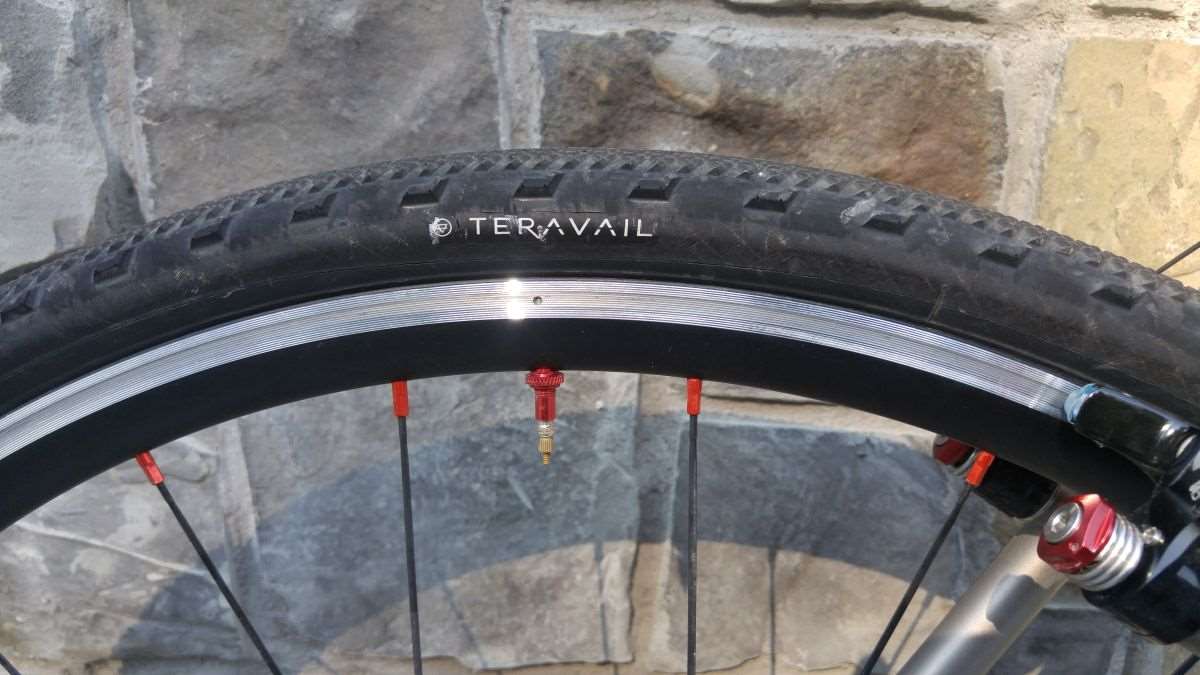

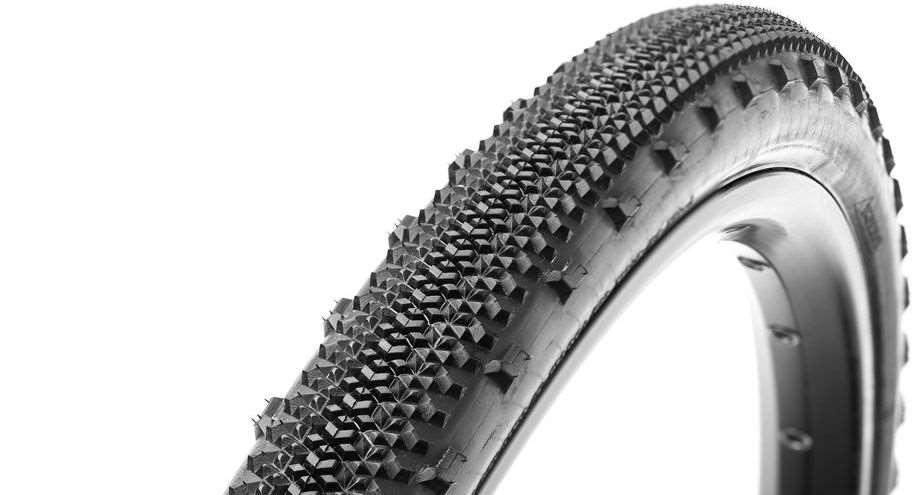

To the best of our knowledge, the Teravail Galena tubeless tyre is no longer produced. The Premium version at 120tpi (threads per inch), is relatively narrow by gravel standards at 700c x 32mm.

The Galena’s tread pattern is optimized for fast and hard-packed gravel roads.

moots psychlox rsl review

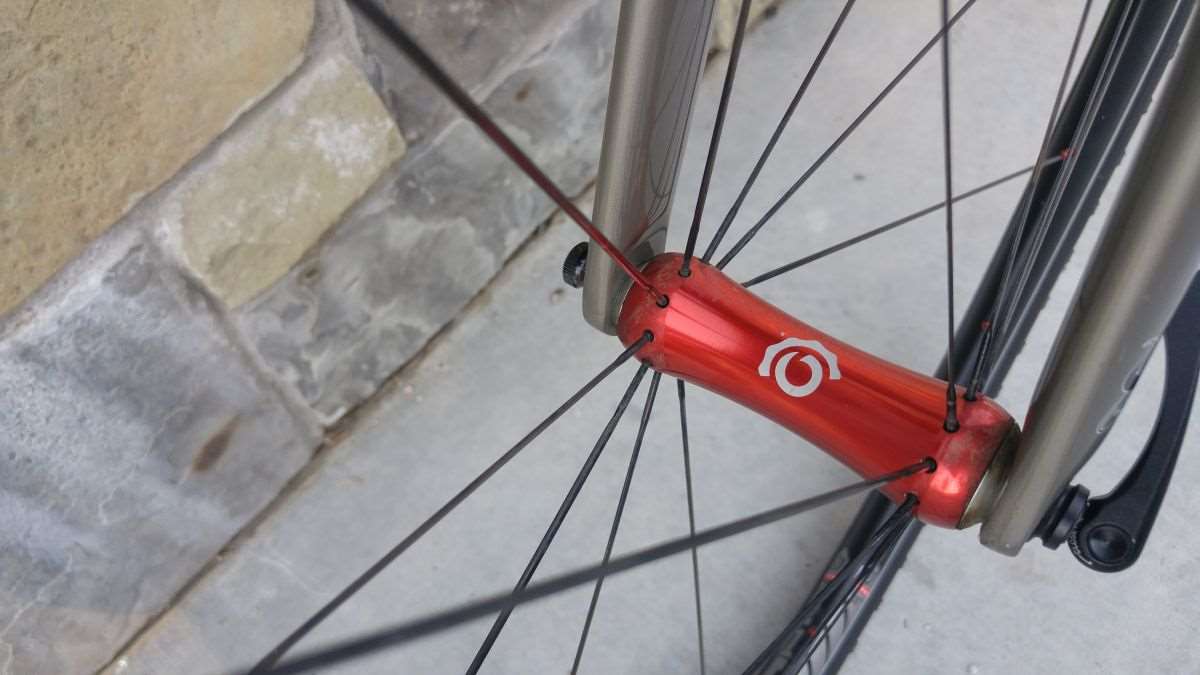

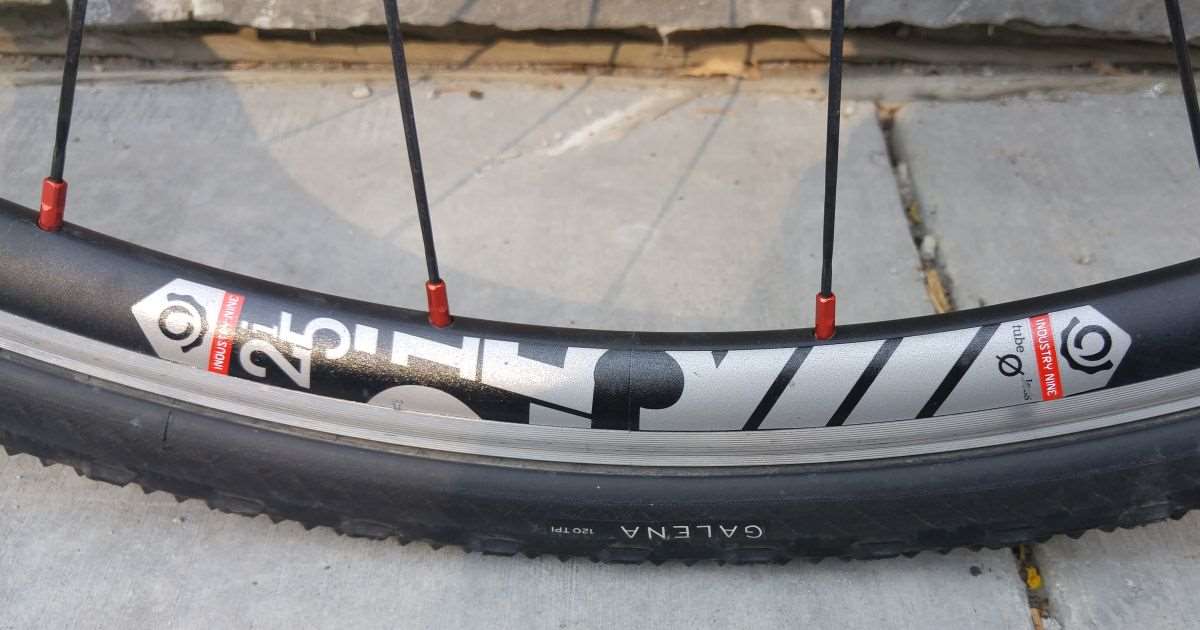

Rolling stock for Jimmie’s bike is Industry Nine’s I25 tubeless compatible, rim brake road wheelset.

moots psychlox rsl review

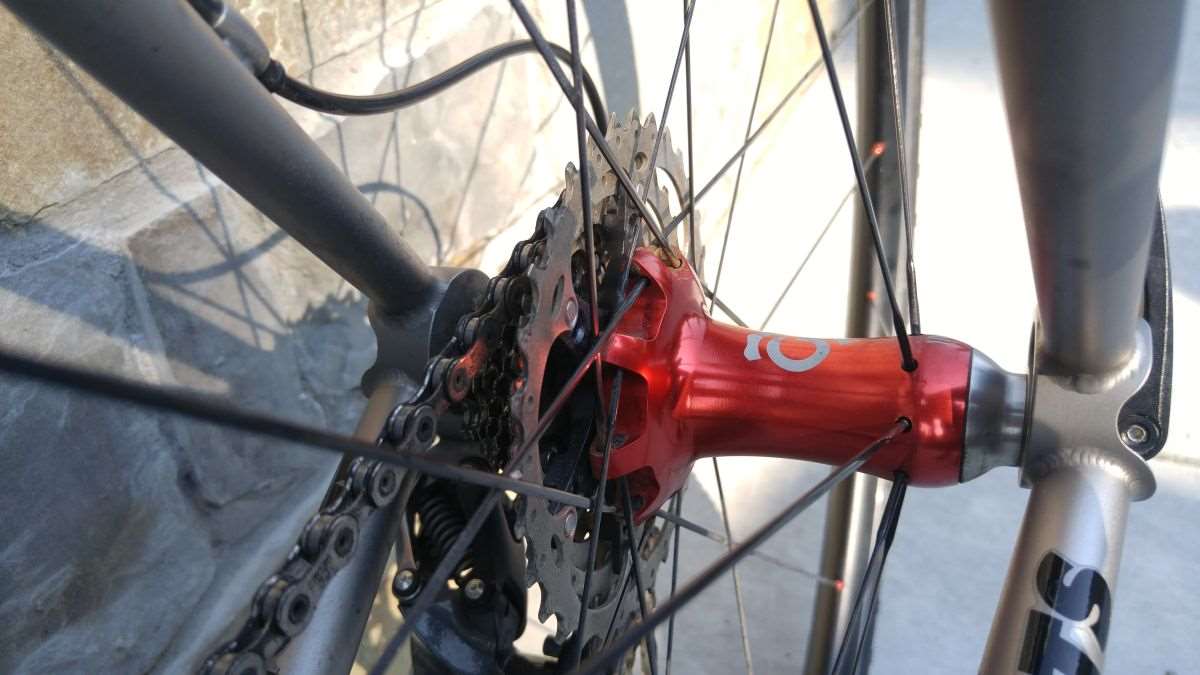

The Industry Nine I25 wheelset utilizes straight pull spokes and regular quick releases.

moots psychlox rsl review

moots psychlox rsl review

moots psychlox rsl review

moots psychlox rsl review

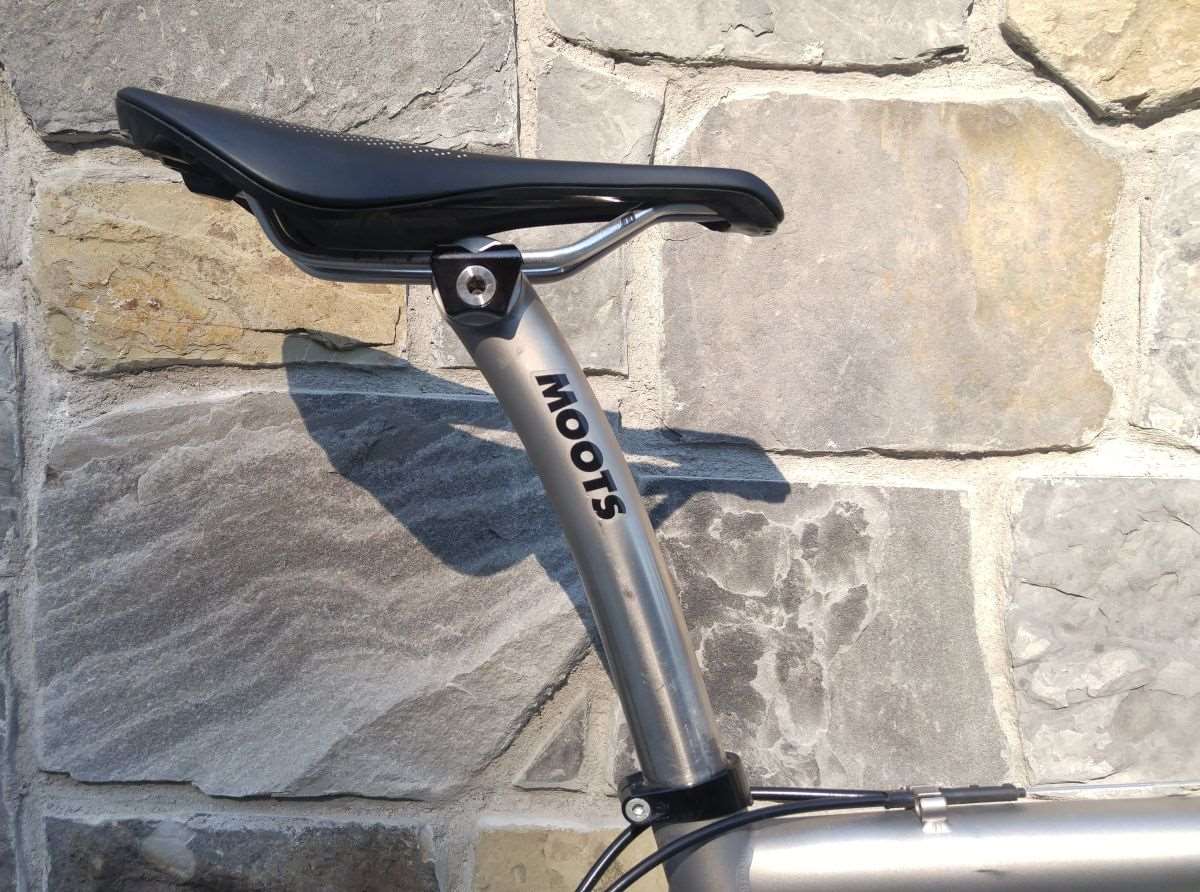

Note the subtle setback on the Moots titanium seatpost.

moots psychlox rsl review

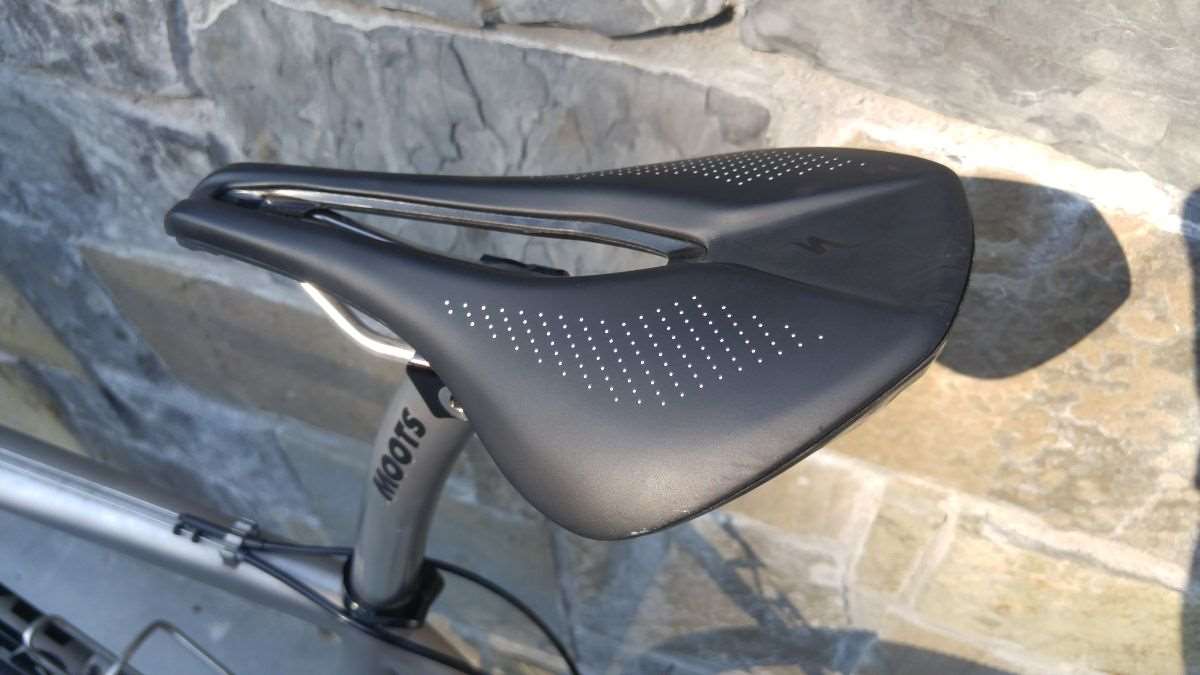

Above, the Moots seatpost is topped by a Specialized Power Expert saddle.

moots psychlox rsl review

moots psychlox rsl review

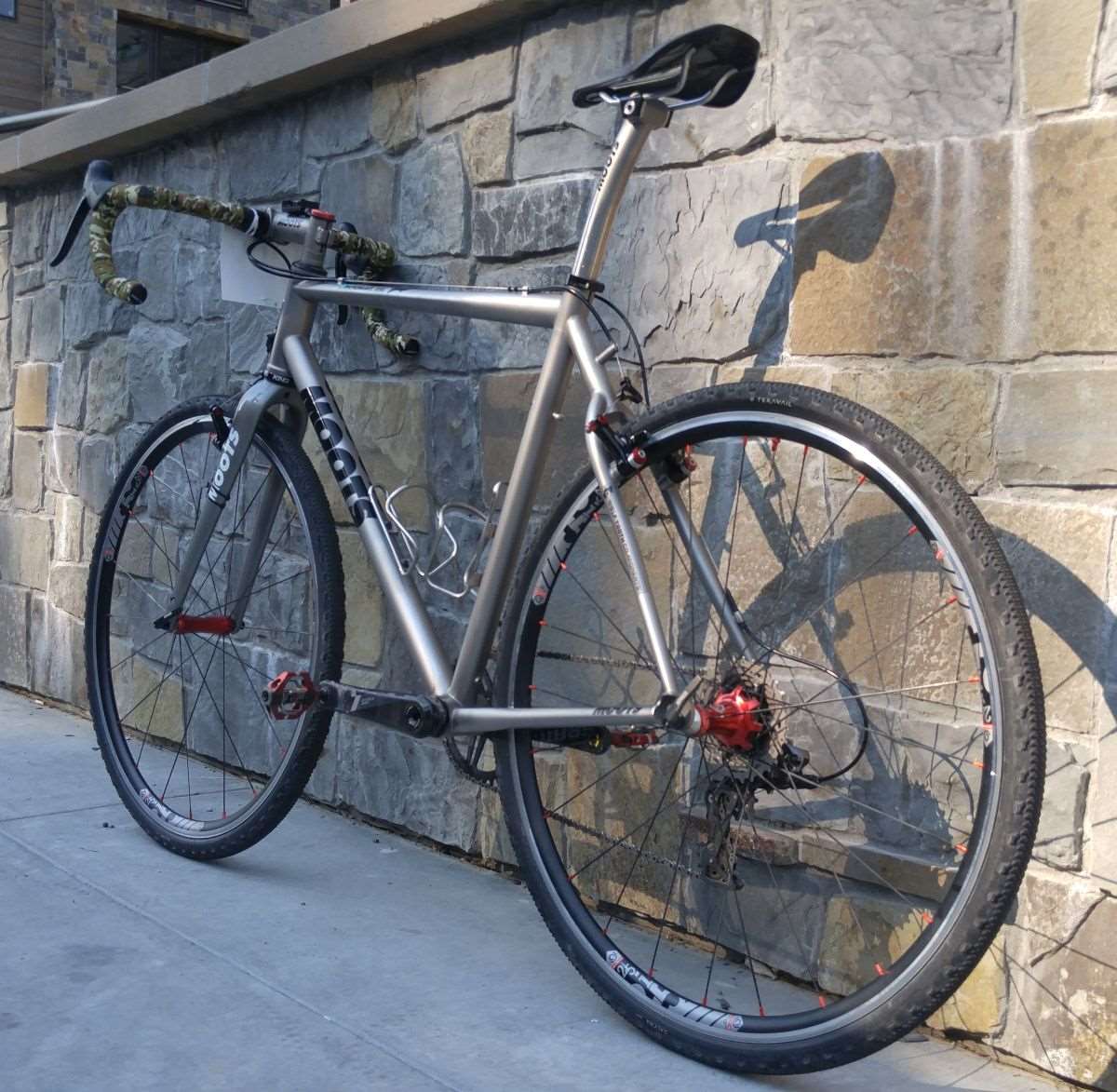

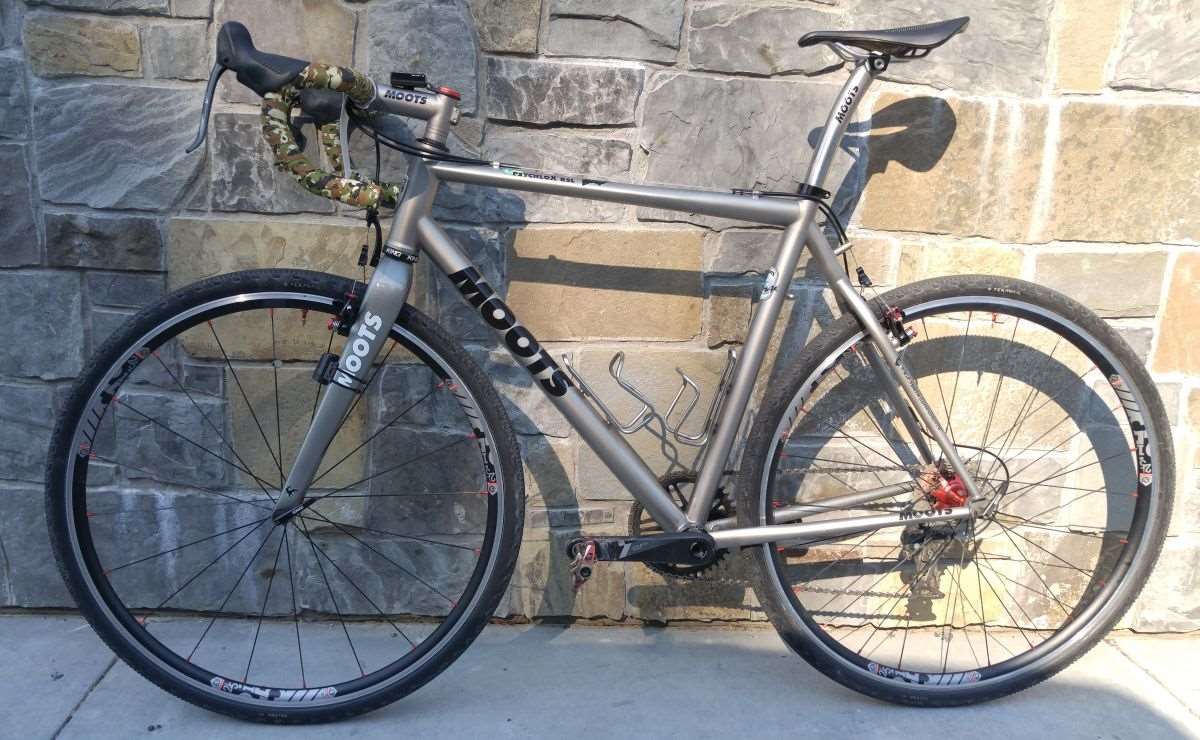

Jimmie Vaughan’s Moots PsychloX RSL Titanium Cyclocross / Gravel Bike:

  • Frame: Moots PsychloX RSL.
  • Fork: Moots tapered carbon cyclocross fork.
  • Headset: Chris King.
  • Stem: Moots titanium.
  • Handlebar: Unknown.
  • Bar Tape: Unknown.
  • Brakes: Avid Shorty Ultimate cantilever.
  • Brake Rotors: N/A.
  • Brake / Shift Levers: SRAM Force 1 mechanical 11-speed.
  • Front Derailleur: N/A.
  • Rear Derailleur: SRAM Force 22 11-speed.
  • Cassette: SRAM PG1170 11-speed 11-32.
  • Chain: SRAM.
  • Crankset: SRAM Force with Wolf Tooth 42 tooth chainring.
  • Bottom Bracket: SRAM PF30.
  • Pedals: Crank Brothers.
  • Wheelset: Industry Nine I25 rim brake.
  • Tires: Teravail Galena 120tpi 700c x 32mm.
  • Saddle: Specialized Power Expert.
  • Seatpost: Moots titanium with setback.
  • Seat Collar: Moots.
  • Bottle Cages: King Titanium.

Moots

If you own a unique gravel bike you’d like to see featured on Gravel Cyclist, please contact us.

10 comments on “Featured Bike: Jimmie Vaughan’s Moots PsychloX RSL Titanium Cross Bike turned Gravel Bike

  1. It seems odd that the top tube is flattened toward the head tube, not the seat tube. Usually when I see a ‘cross bike being shoulder-carried, it’s the rearmost part of the top tube that is in contact with the shoulder, where a flattened tube profile would seem to be more beneficial. Or is it just me?

    1. Hey Ben,

      You are the second person to notice that – I was a bit cheeky (sometimes my humor is lost) and originally had a comment that the tube was shaped that way for shouldering – which we know wouldn’t work, unless you have a new and unorthodox method of shouldering the bike. I will make a point of asking the folks at Moots why they flattened the top tube in that manner.

  2. Needs a red seat post clamp. How did he miss that? He’s even got red valve stem nuts. Very cool. And great pictures that make easy to check out these details.

  3. My $.02 on Canti’s vs discs: Assuming you are running identical tires on the same road surface, I believe that rim brakes, due to their greater swept area ( do the math), actually give you more stopping power than discs. I have 2 gravel bikes: Ritchie Swiss Cross Canti with Paul’s Minimoto linear pull rim brakes, and a custom 44 Bikes with 160 mm TRP Spyre discs. Both systems give me superb braking. Under most conditions, I really can’t notice any difference. I seriously doubt the real need for disc brakes in most situations I ride. None the less, my new custom bike is fitted with TA disks to avoid obsolescence more than any other reason.

    1. I rode Crusher in the Tushar (serious descents), Almanzo 100 (in pouring rain the entire time) and P2A in Canada on my canti-brake travel rig this year. No problems. Canti FTW!
